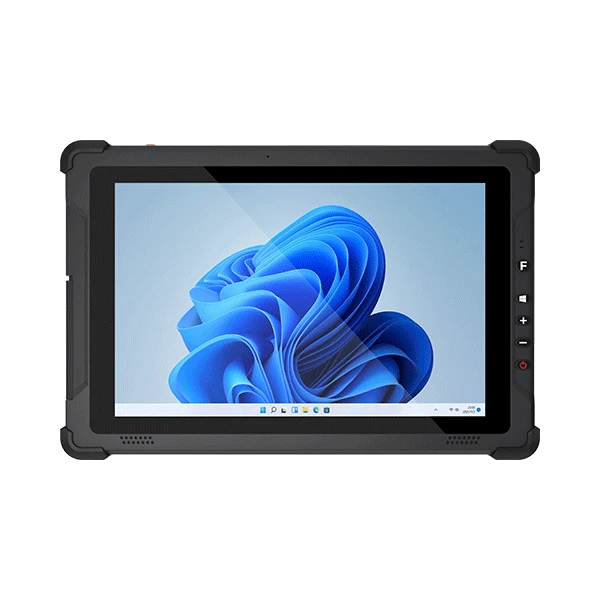

EM-T89: A Lightweight Rugged Tablet Designed for Extreme
Emdoor As industries continue to evolve, the need for durable, reliable, and high-performance mobile devices grows in tandem. The EM-T89...
Explore More
View All Products

Application of wireless data transmission module in Emdoor rugged tablet terminal

2021-03-29
Emdoor

Technical background


The wireless data transmission module is a modular product of the data transmission station, which refers to the high-performance professional data transmission station realized with the help of DSP technology and radio technology.


Application


The application of wireless data transmission module is very wide, such as wireless meter reading system for water and electricity, hydrological monitoring, oil pipeline monitoring, industrial monitoring, etc. We apply the wireless data transmission module to the rugged tablet. The wireless data transmission module has a variety of ISM frequency bands such as 433MHz, 450MHz, 470MHz, 868MHz, etc. 8, 16, 32, 64 and many other communication channels. 1200bps, 2400bps, 4800bps and other transmission rates. 8N1, 8E1, 8O1 and other data formats. Multiple interface modes such as RS232, RS485, TTL, etc. All of them can be arbitrarily set and selected according to a series of requirements such as transmission distance. The application of the wireless data transmission module can perfectly replace other conventional communication methods of the ruggedized and solve the problems of real-time sending and receiving, transfer, and transmission of data.


Advantage


In the application of the smart meter reading system, the wireless data transmission module is connected to the sensor (counter) of the gas meter and is in a complete sleep state. When the sensor (counter) detects the signal coming in, the wireless data transmission module is The data is automatically reported to the concentrator, and then enters the sleep state again, waiting for the next awakening. When reading the meter with the industrial panel, only the data in the current concentrator can be copied. If the user is in arrears, the relevant instructions can be transmitted to the concentrator through the tablet terminal like rugged tablet windows 10 and then transferred to the gas meter to close the valve.


In the application of hydrological monitoring, there are problems such as scattered monitoring points, wide distribution, and harsh surrounding environment. Through the direct connection between the wireless data transmission module and the water level sensor for automatic monitoring, real-time hydrological information collection, transmission and processing can be carried out. The collected water level data and alarm information are sent to the hydrological monitoring department in time, and the water level information can be copied through the Emdoor industrial tablet PC, as well as the timely management of monitoring units and individuals. Thereby greatly improving the work efficiency of the hydrological department.


Related device

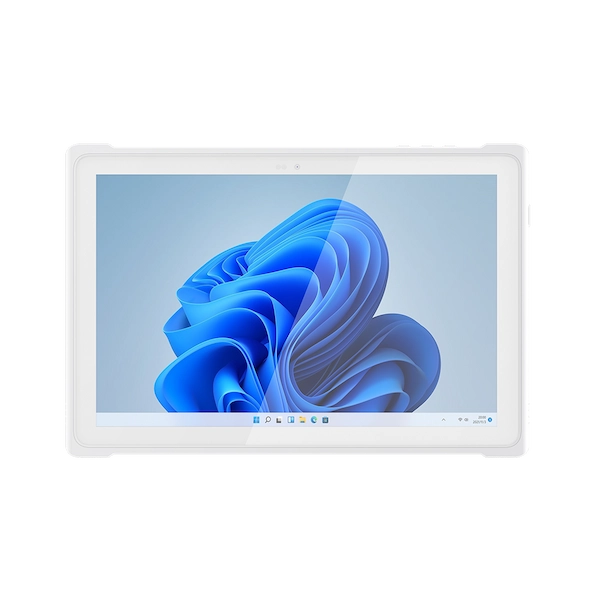

Emdoor industrial panel pc EM-I16H
