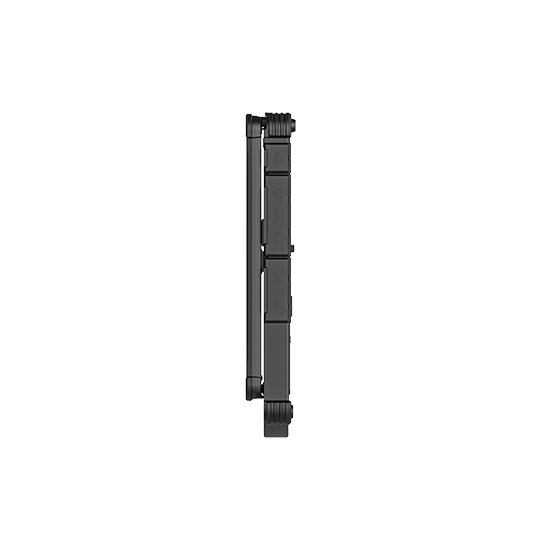

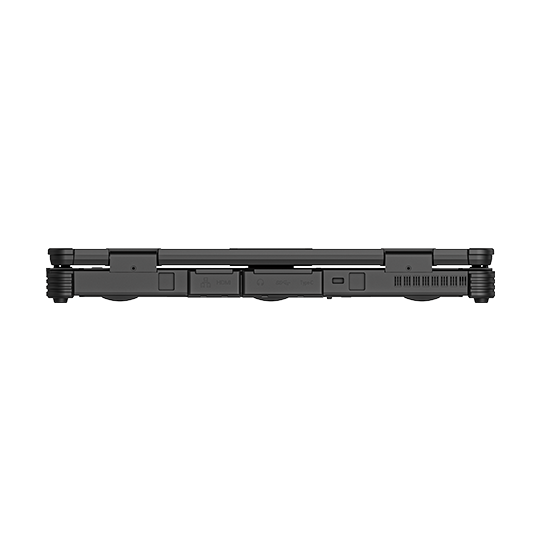

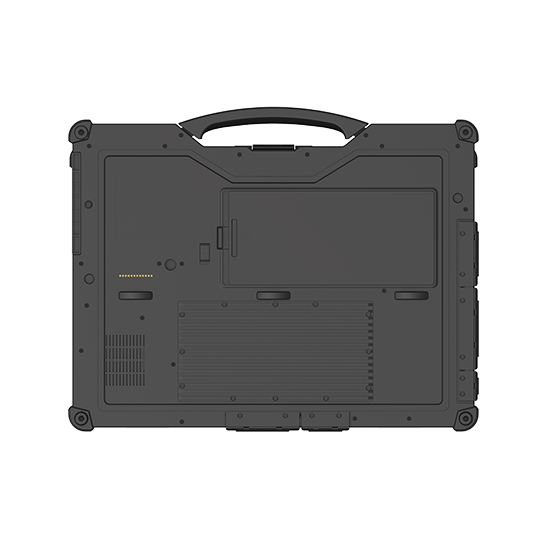

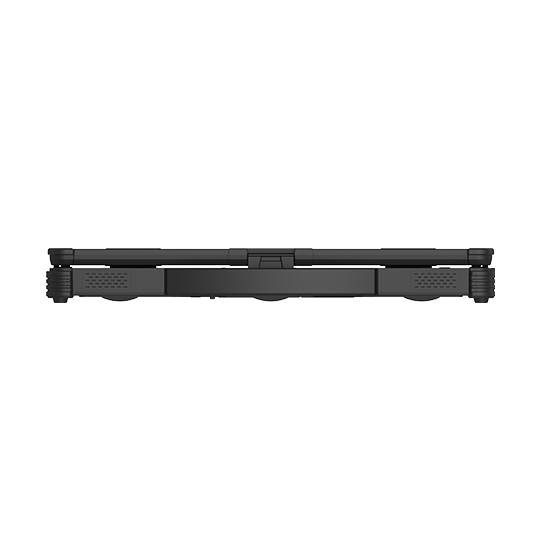

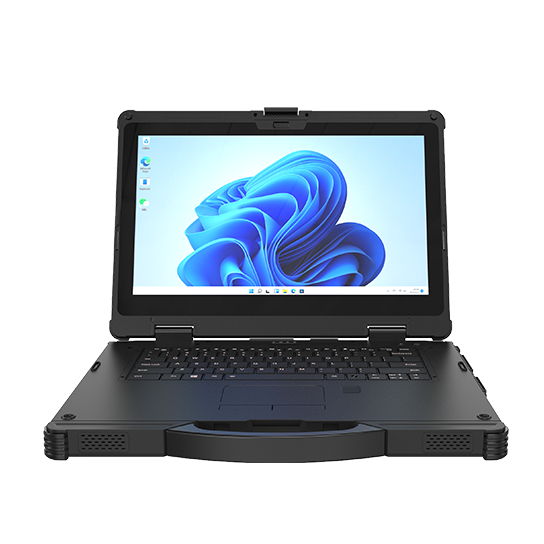

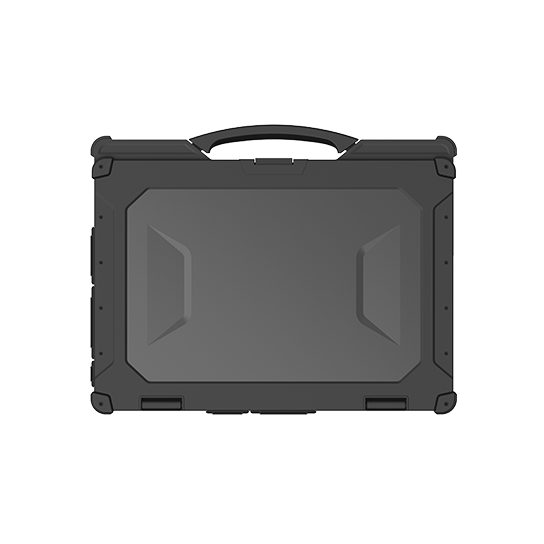

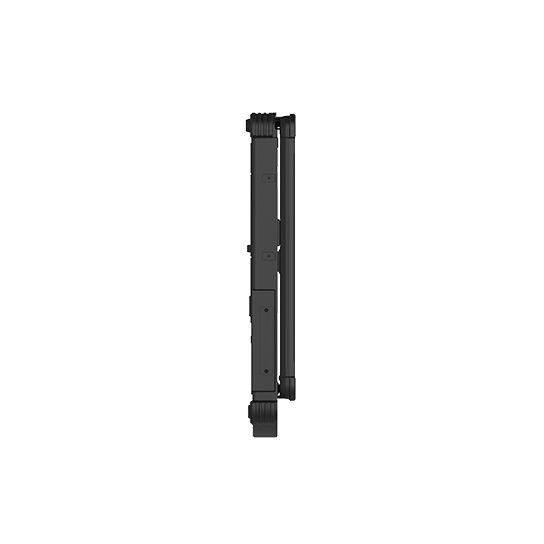

EM-X14M
14 Inch Rugged AI PC Intel Windows 11
14 inch Windows AI Rugged Laptop: Intel Core Ultra with NPU & Arc Graphics. MIL-STD-810H/IP65 14'' touchscreen. Thunderbolt 4 & dual 56Wh+14.4Wh batteries. Built for railway inspection.
- CPU: ® Intel Core™ Ultra 7 processor 155H with 16 cores and 22 threads
- GPU: iGfx/dGfx (Intel Xe LPG Graphics)
- Operating system: Windows 11 Pro
- Resolution: 1920*1080
- Screen size: 14 inches
Specifications
-
Basic parameters

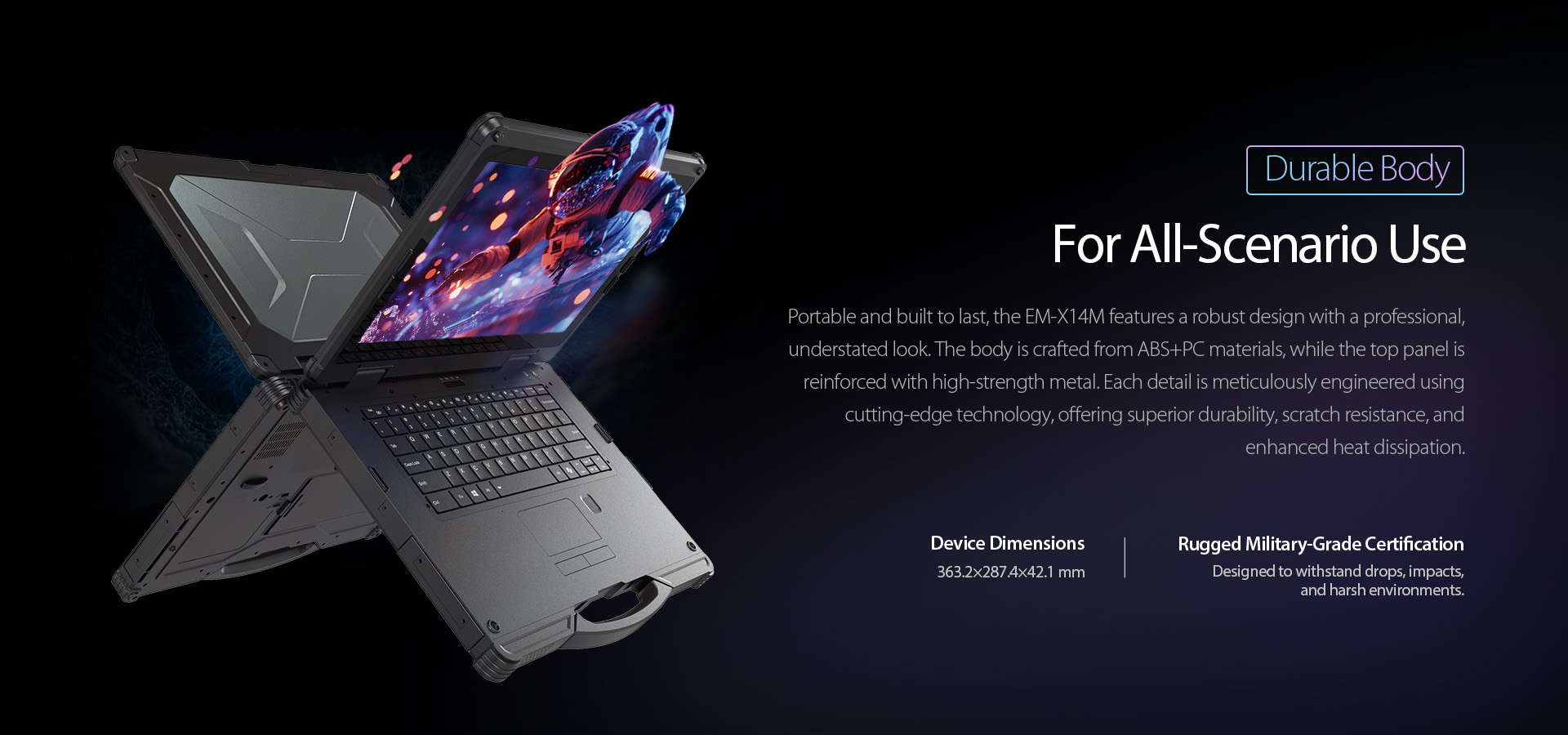

Dimensions363.2*287.4*42.1mmMachine weight2.97kgMachine colorBlackDisplay14 inch 16:9, 1920×1080, 1000 nitsTouch screenOptional 10-point capacitive screen,Hardness above 7H, Scratch-resistant，supports glove touchCameraFront 5.0MPI/O InterfaceUSB3.2 *1, USB3.0 *1，USB2.0 *1 TYPE-C, Supports Thunderbolt 4 ∮3.5mm Standard Earphone Jack *1 HDMI 2.0a mini *1 SIM card *1，TF card *1 RJ45*1 10M/100M/1000M self-adaptive， RJ45*1 10M/100M/1000Mself-adaptive(USB2.0), supports Gigabit Ethernet protocol RS232 *1, 9 fully functional lines DC19V/3.78A ∮5.5mm power interface *1 Anti-theft Lock Slot *1 Right-side Cooling Vent *1 Left-side expansion slot, optional M.2-2280 PCIe interface *1, supports SSD; Optional: M.2 E-KEY interface *1 for custom modules Optional: 12PIN Pogo Pin (USB & Charging) *1Power adapterAC100~240V, 19V/3.78A 71.82W output US Standard Optional: EU Standard -
Wireless Communications
WIFIWi-Fi 6 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,axBluetoothBT5.1(BLE) class 1 Transmission distance: 10m2G/3G/4G/5G4G(Optional)/5G(Optional)GNSSSupports single GPS or single Glonass, default GPS -
Performance parameters
CPUIntel® Core™ Ultra 7 processor 155HGPUiGfx/dGfx (Intel Xe LPG Graphics)Operating systemWindows 11 ProMemory32GBStorage capacity256GB -
Battery Performance
BatteryBuilt-in - 1300mah/11.1V / Built-in Polymer Lithium-ion Battery, Non-removable / 1.5 hours Hot-swappable - 4850mah/11.55V / Removable Polymer Lithium-ion Battery, Hot-swappable / 8 hours -
Data collection
NFCOptional1DNo2DNoFingerprintYes -
Product reliability
Operating temperature-20℃~60℃Storage temperature-30℃~70℃Humidity95%, no condensationProtection levelIP65 certified, MIL-STD-810H certifiedDrop height1.2m drop resistance
*Note: There is a lag in updating product parameters on the site. Please refer to the information provided by Emdoor Sales for all product parameters.
Case Studies
Explore More
-
Case StudiesClothing chain brand advertising machineIn the past two years, with the increasing awareness of corporate brand marketing, the number of chain stores of most brands has grown rapidly, ranging from hundreds to three or four thousand, which has become a development trend. In the market environment...
-
Case StudiesThe Ultimate Companion for Adventurers: Emdoor's Outdoor Rugged Devices Ready for ...As industries continue to evolve, the need for durable, reliable, and high-performance mobile devices grows in tandem. The EM-T89, an 8-inch lightweight rugged tablet from Emdoor, is a testament to cutting-edge ...
-
Case StudiesEM-T89: A Lightweight Rugged Tablet Designed for ExtremeAs industries continue to evolve, the need for durable, reliable, and high-performance mobile devices grows in tandem. The EM-T89, an 8-inch lightweight rugged tablet from Emdoor, is a testament to cutting-edge ...
Related Products
-
Recommended

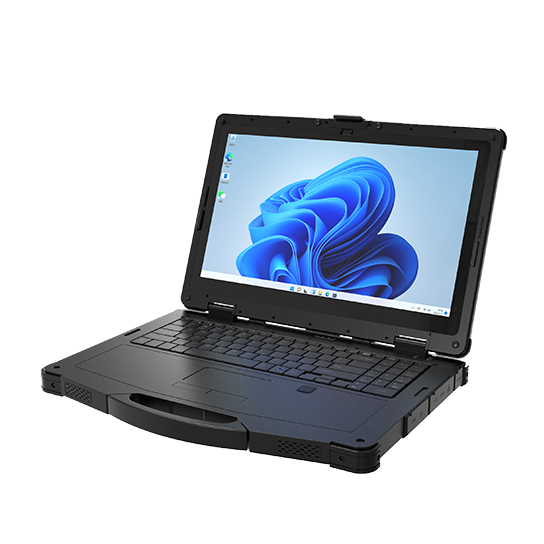

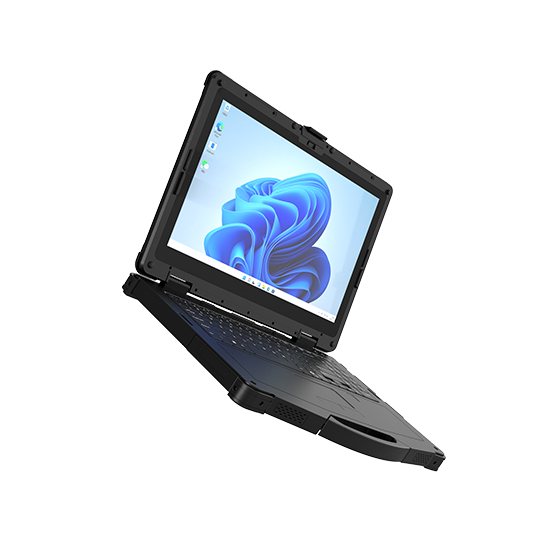

EM-X15M15.6 Inch Rugged AI PC Intel Windows+AI
Explore More
-
Recommended

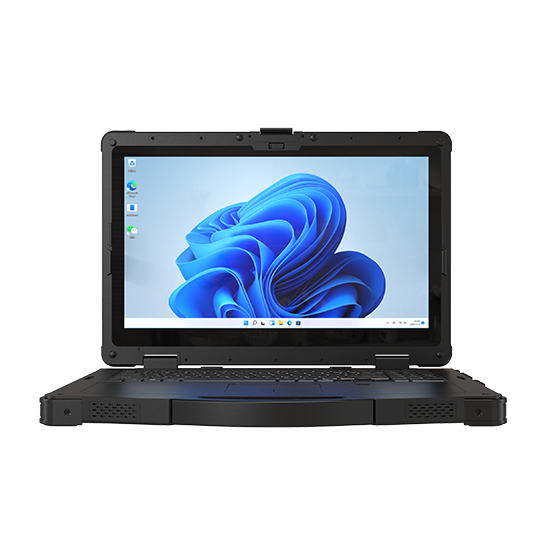

EM-X15A15.6 Inch Rugged Notebook Intel Core i5/i7 Windows 11
Explore More
-
Recommended
EM-X14A14 Inch Rugged Notebook Intel Core i5/i7 Windows11
Explore More
-
Recommended

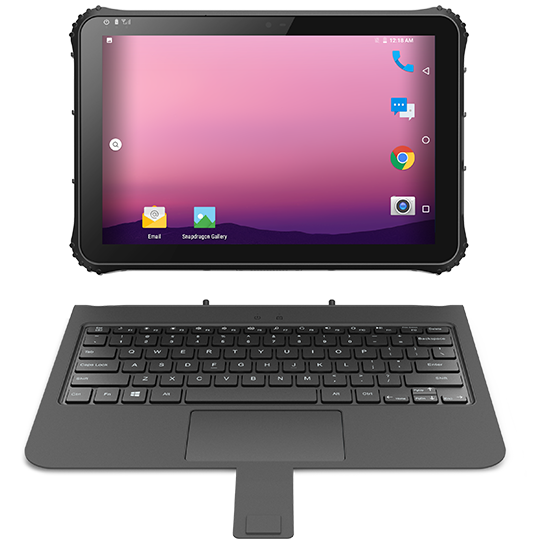

EM-Q225M12.2 Inch Rugged Android Tablet PC
Explore More
-
Recommended

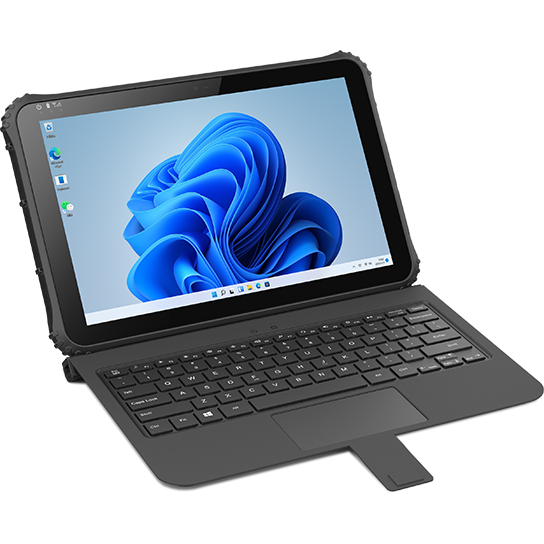

EM-I22J12.2 Inch Windows 11 Rugged 2in1 Notebook
