EM-B10A

Pictures

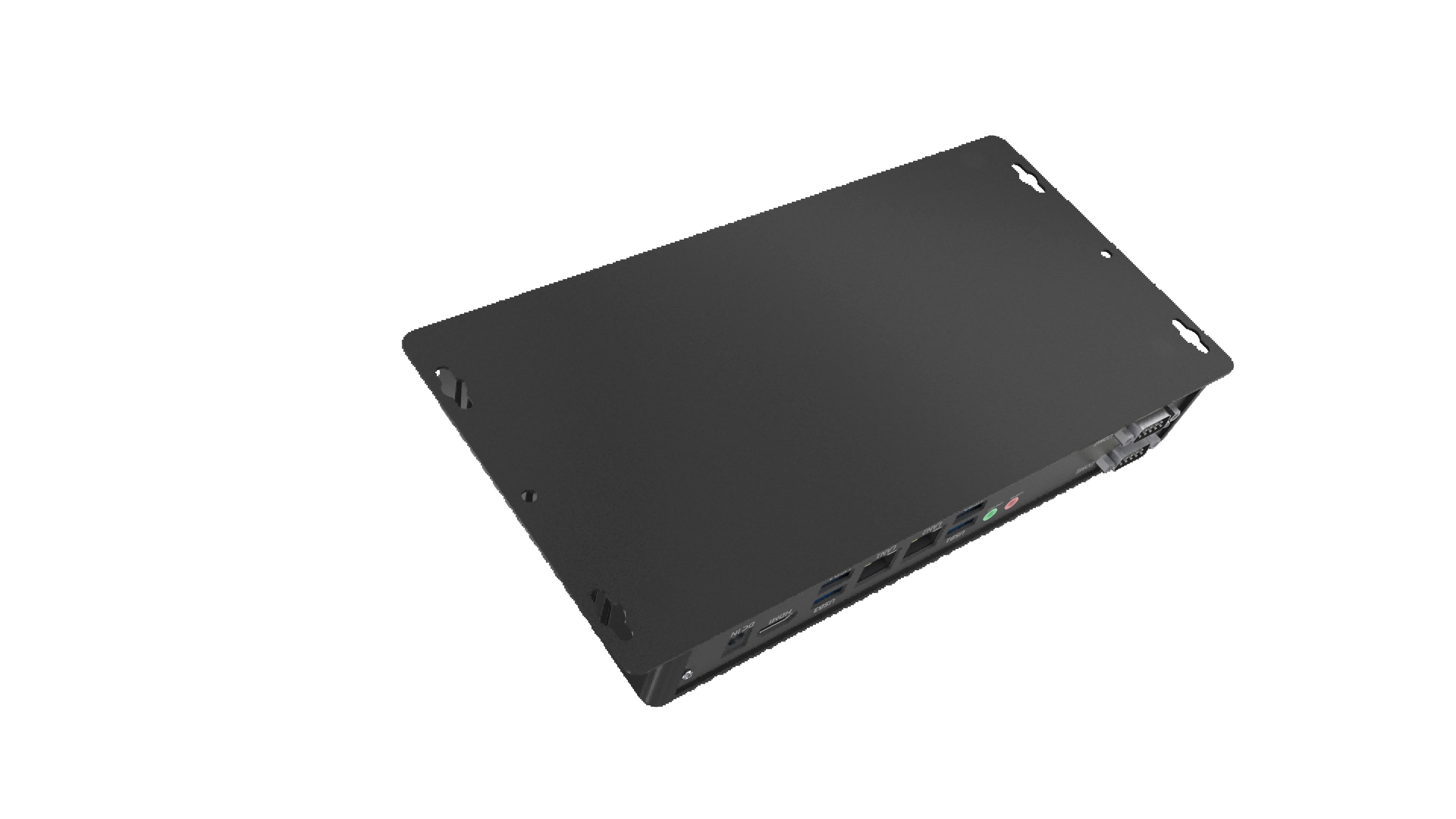

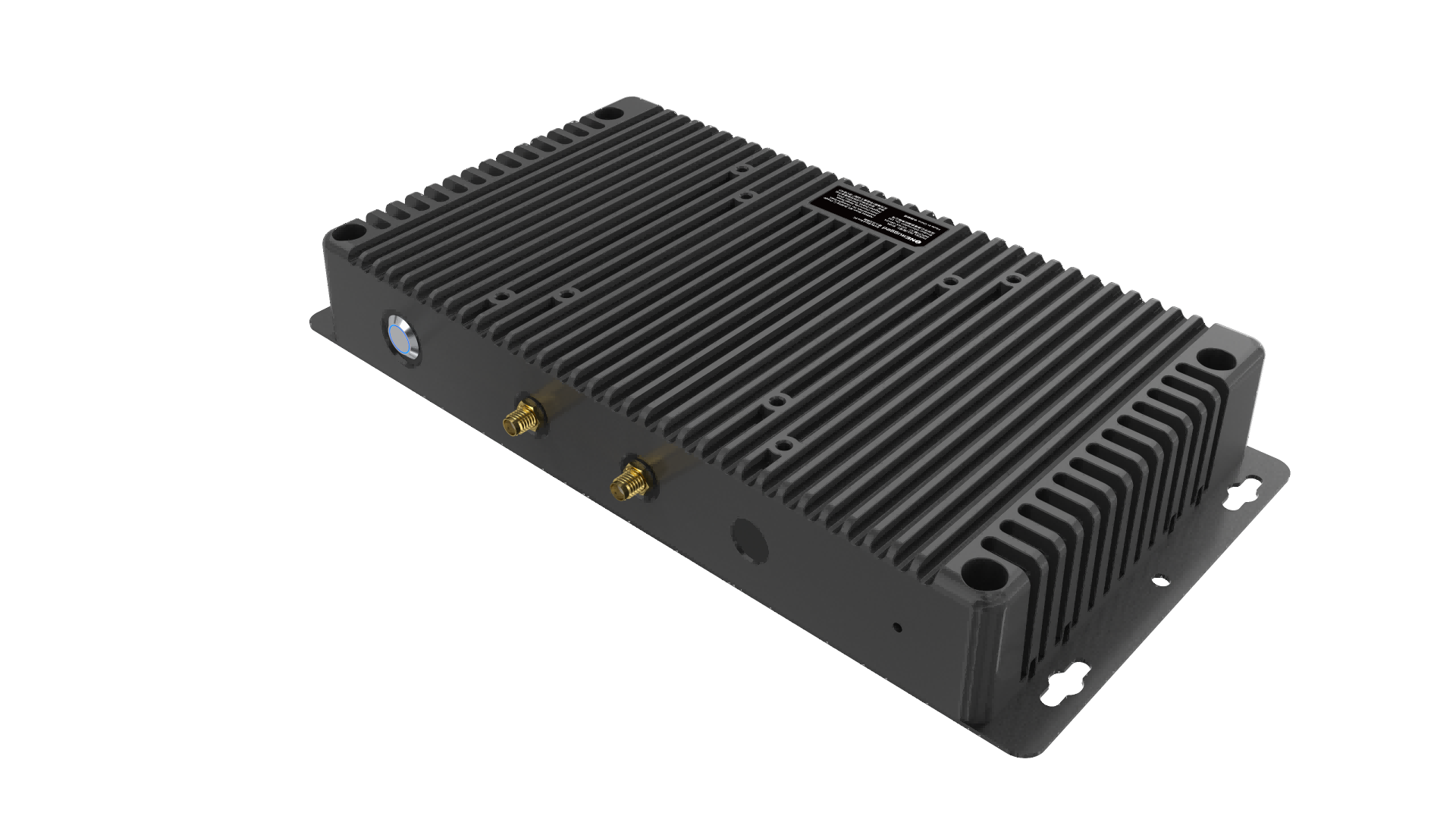

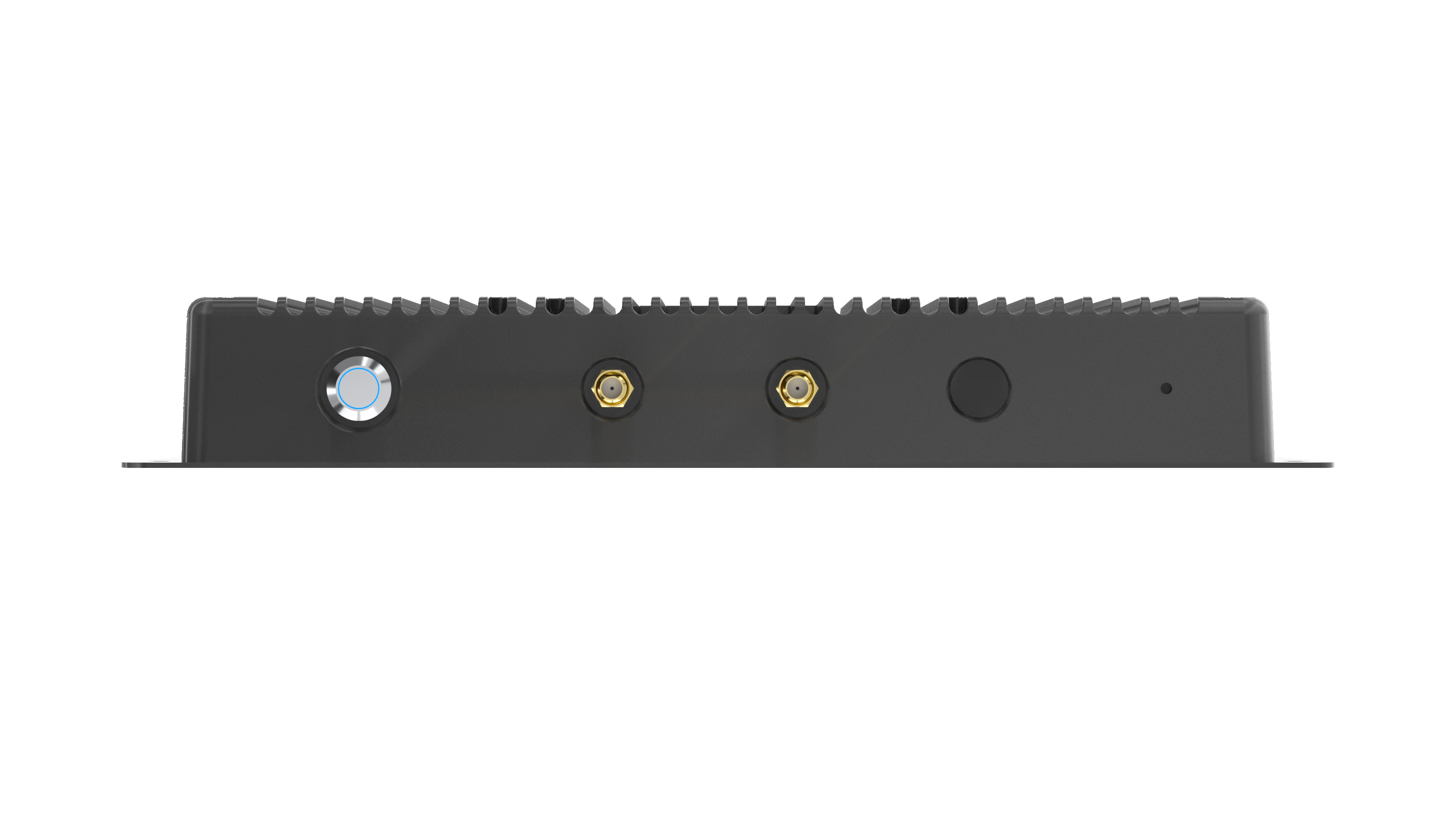

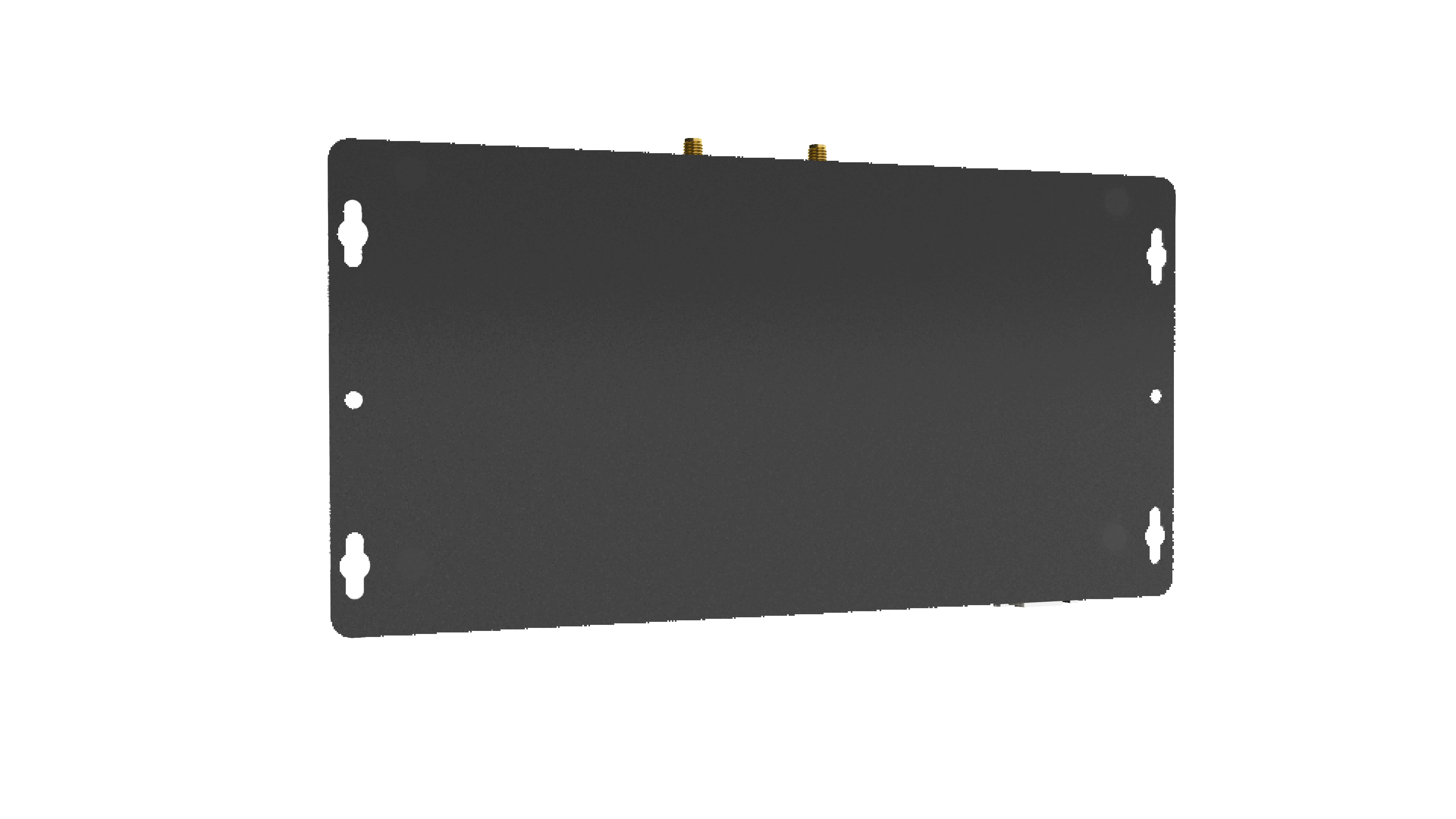

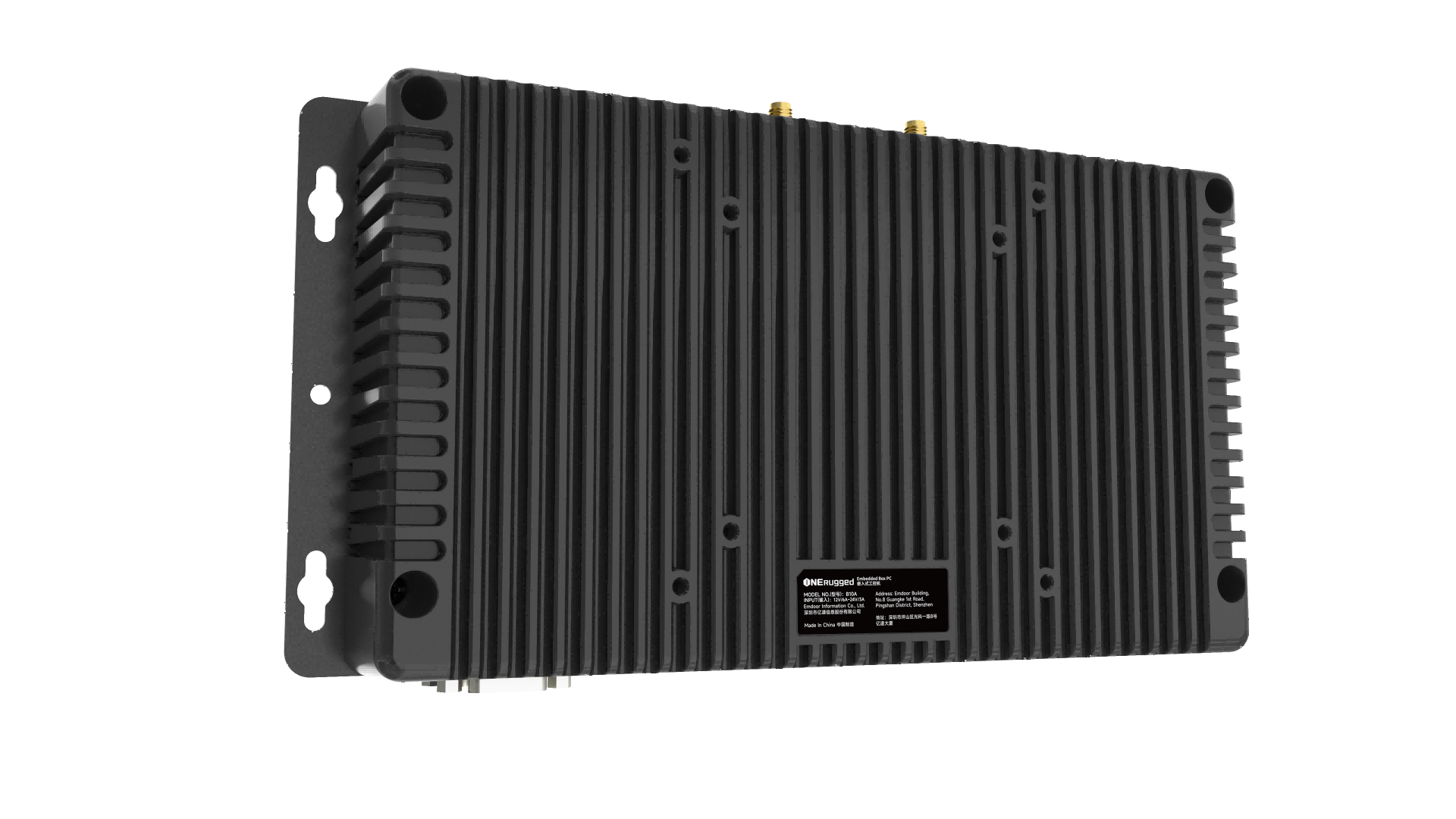

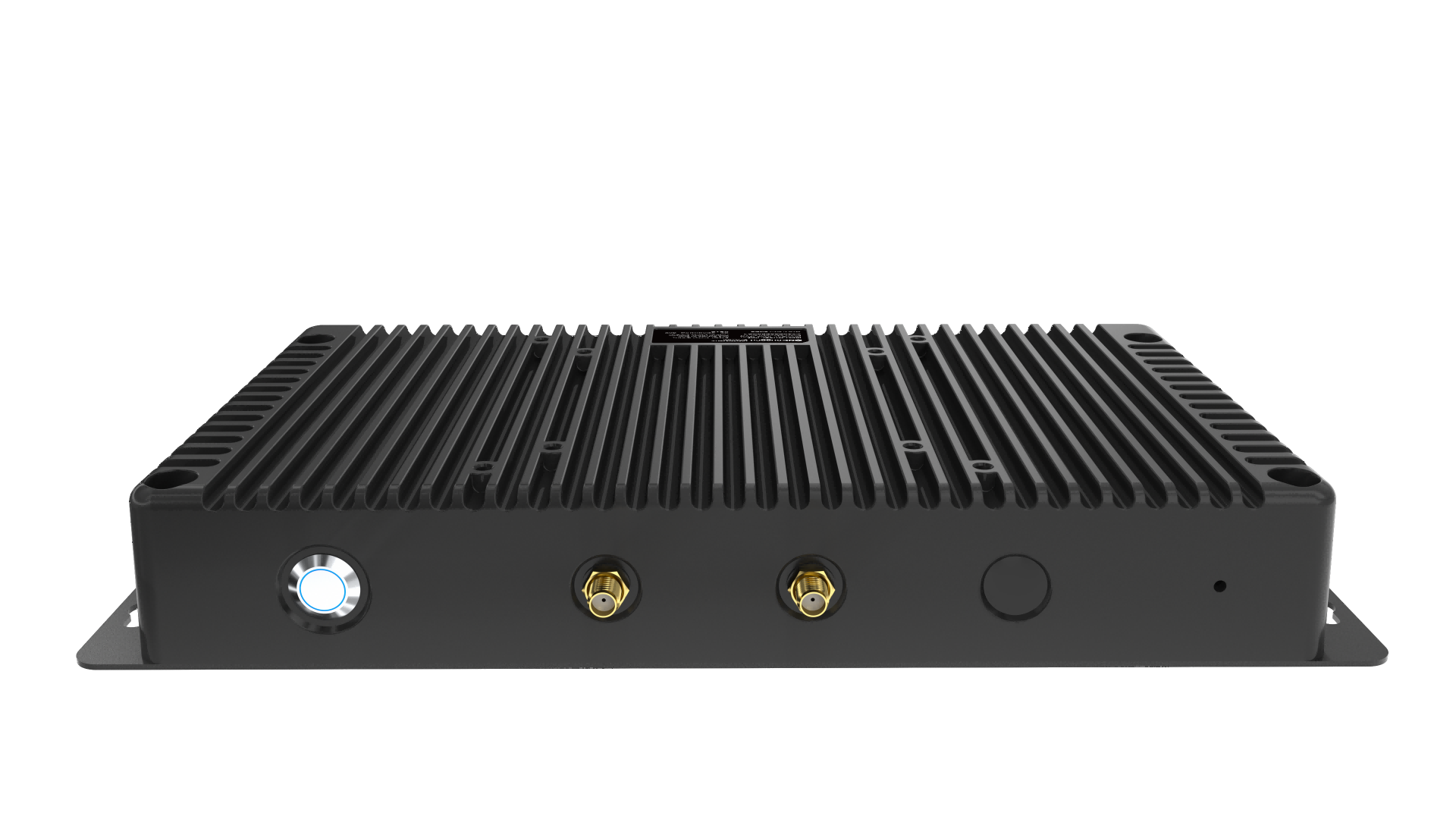

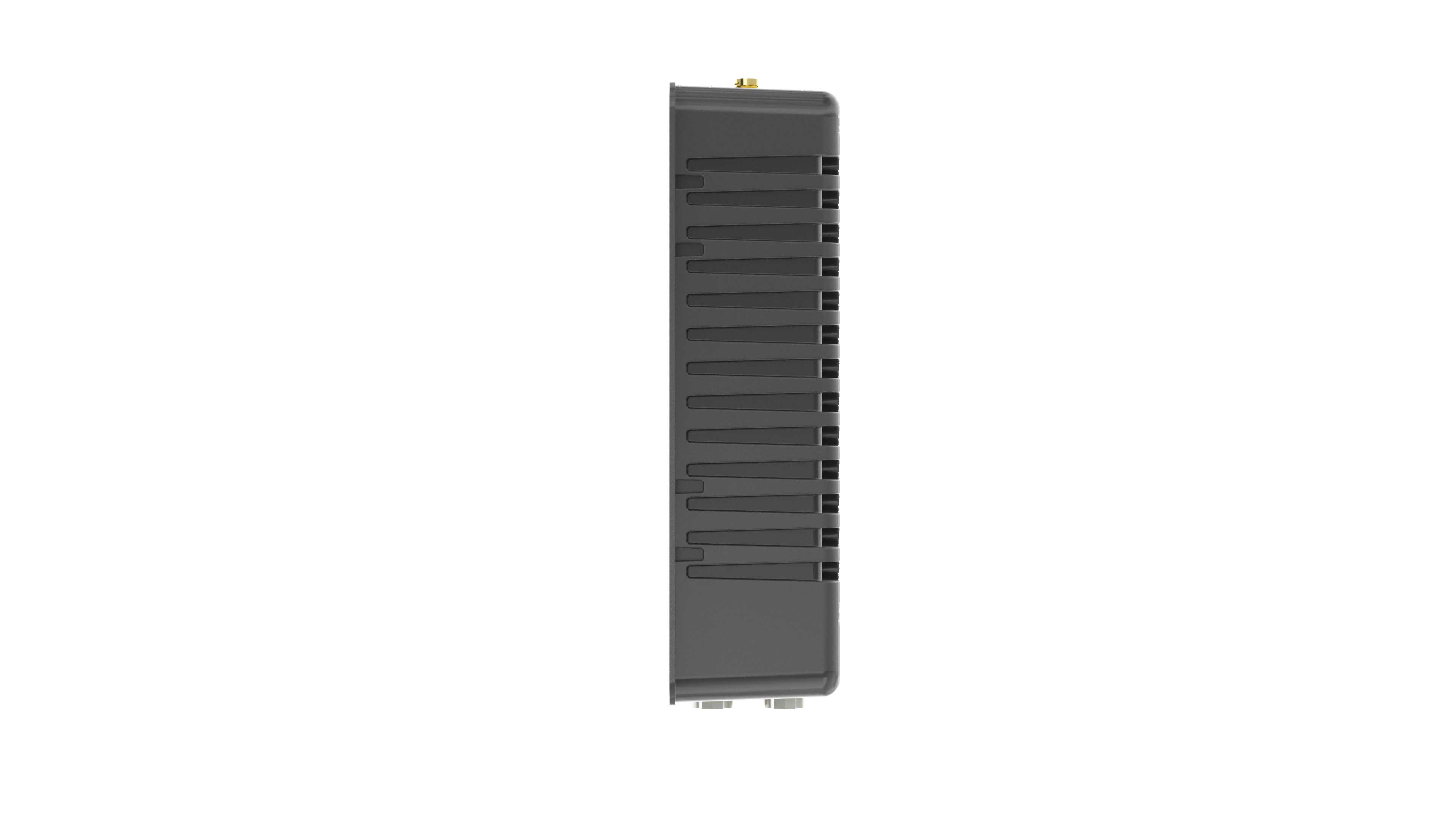

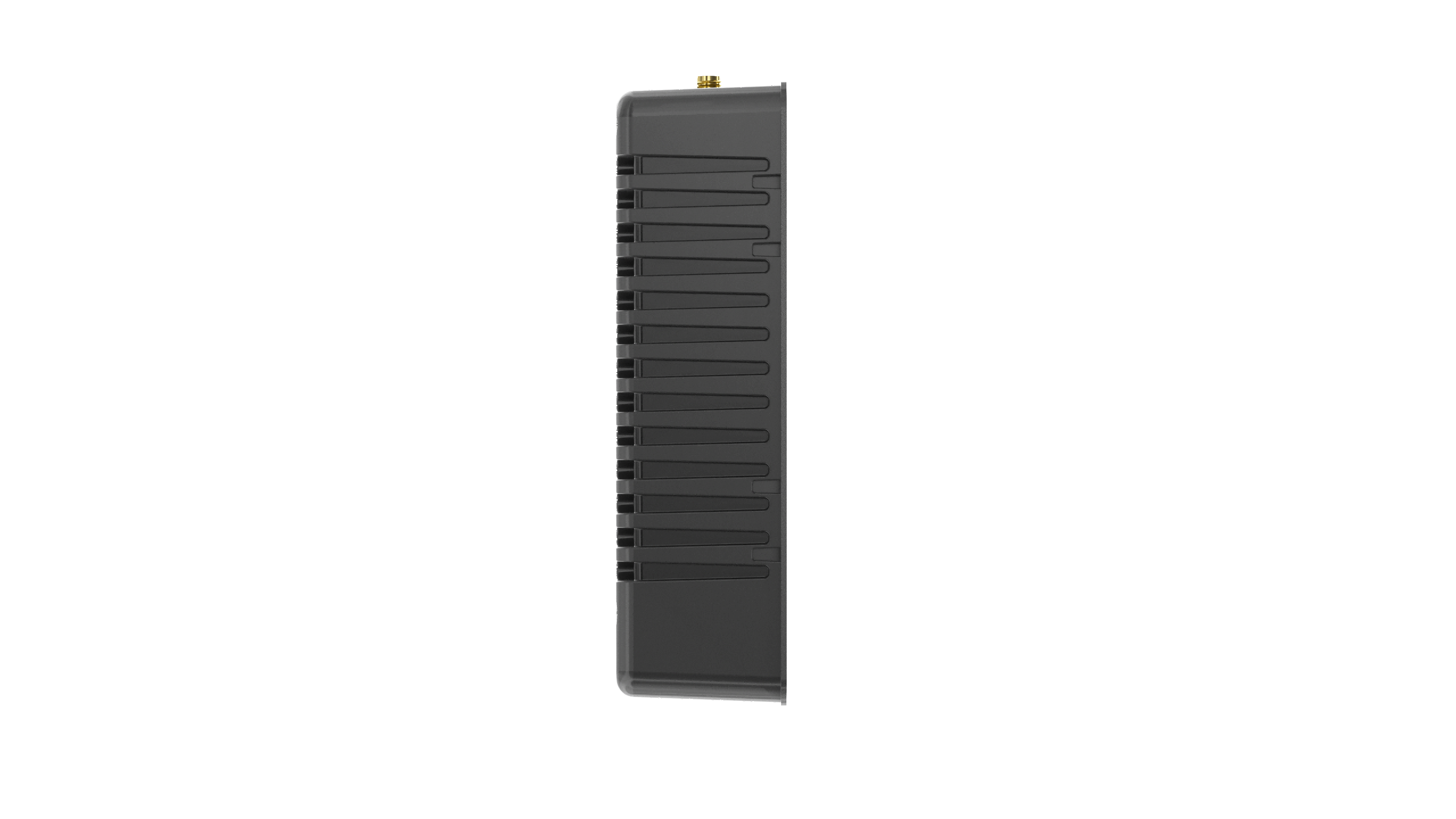

EM-B10A

Core Power. Always On.

Fanless Intel® Core™ i5 embedded box PC with dual LAN, industrial I/O, Wi-Fi 6, optional 4G LTE, and 24/7 operation.

CPU: i5-1235U
GPU: Intel® Iris® Xe Graphics eligible
Operating system: Windows 11
RAM: 8GB Onboard
Storage: 128GB (Optional 256/512GB)

Get a quote Compare

EM-B10A

Specifications Overview Accessories

Get a quote Compare

Specifications

Basic parameters
Wireless Communications
Performance parameters
Battery Performance
Data collection
Product reliability

*Note: There is a lag in updating product parameters on the site. Please refer to the information provided by Emdoor Sales for all product parameters.

EM-B10A

Specifications Overview Accessories

Get a quote Compare

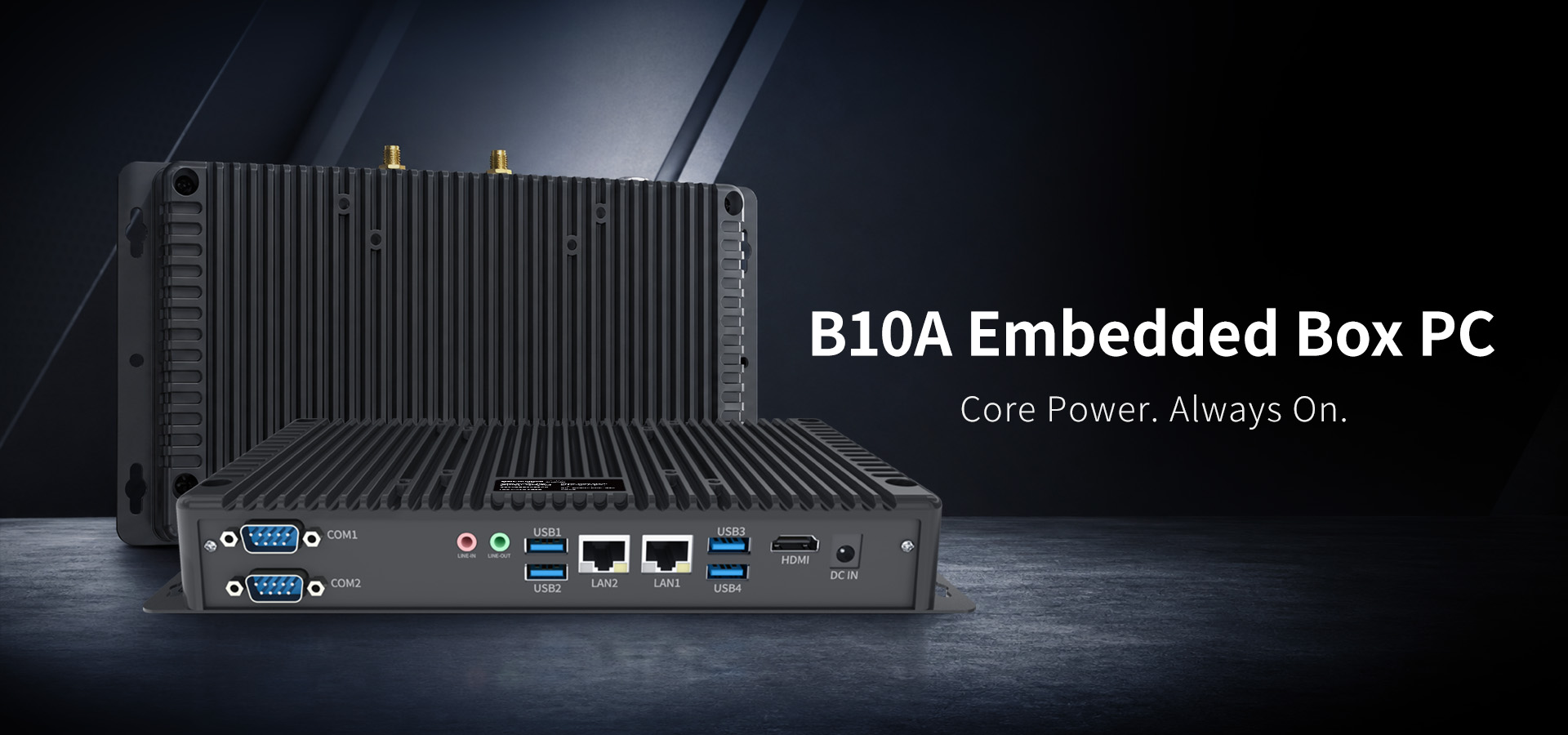

EMBEDDED BOX PC

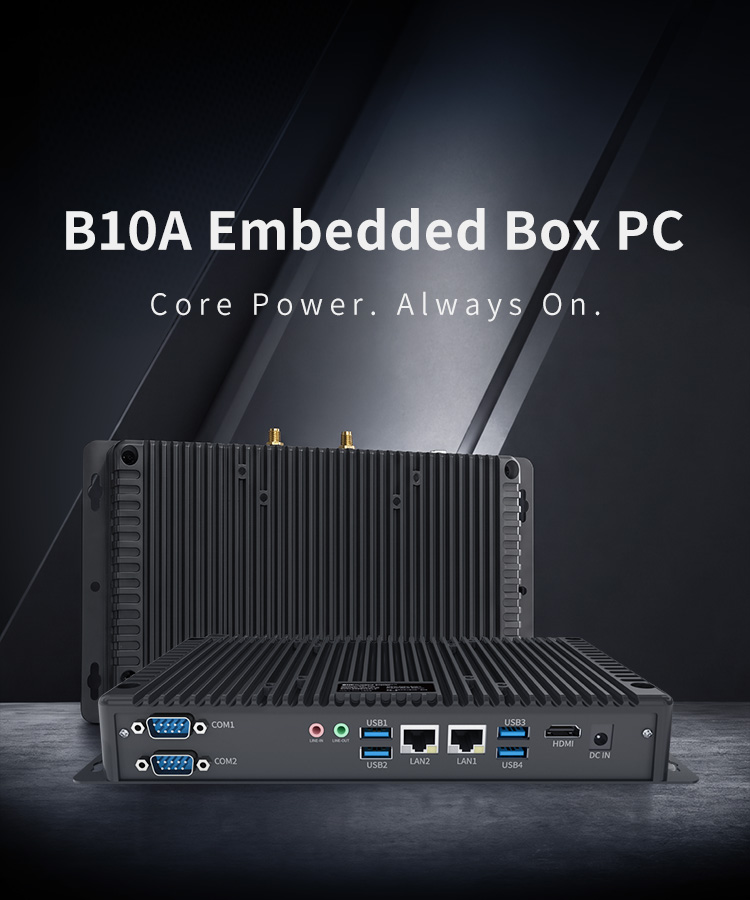

B10A Embedded Box PC

Core Power. Always On.

A compact embedded computing platform engineered for stable industrial operation, flexible system integration, and reliable deployment across demanding embedded applications.

Fanless Design Industrial Embedded Computing Rich I/O Connectivity Flexible Deployment

B10A Embedded Box PC for industrial embedded computing

B10A Embedded Box PC for industrial applications

B10A Embedded Box PC industrial computing key features

Key Highlights

Built for demanding industrial computing, the B10A combines Intel® Core™ i5-1235U performance, 16 GB memory, rich industrial I/O, advanced wireless connectivity, and a rugged fanless design for reliable 24/7 operation.

Intel® Core™ i5-1235U Processor

16 GB RAM System Memory

128 GB Internal Storage

24/7 Continuous Operation

Rich Industrial I/O Fanless Rugged Design Wi-Fi 6 Bluetooth 5.1 Optional 4G

Core Computing, Secured Stability

Powered by the Intel® Core™ i5-1235U processor with an onboard TPM 2.0 security chip, the B10A delivers reliable performance for demanding industrial workloads while ensuring hardware-level data protection.

Intel® Alder Lake Platform

10 / 12 Cores / Threads

Up to 4.4 GHz Max Turbo Frequency

TPM 2.0 Hardware-Level Security

Windows 11 Ubuntu Optional Industrial Workloads Secured Stability

B10A Embedded Box PC with Intel Core i5-1235U processor for secured industrial computing

B10A Embedded Box PC Intel Core computing performance

B10A Embedded Box PC with 16 GB LPDDR4x memory and expandable SSD storage

B10A Embedded Box PC memory and SSD storage expansion

Flexible Expansion, Future-Ready

The B10A comes standard with 16 GB LPDDR4x RAM and a 128 GB SSD, plus an M.2 SATA/PCIe slot supporting storage expansion up to 512 GB to grow with your application.

16 GB LPDDR4x System Memory

128 GB SSD Standard Storage

Up to 512 GB SSD M.2 SATA / PCIe Storage Expansion

128 GB SSD 256 GB Optional 512 GB Optional M.2 SATA / PCIe

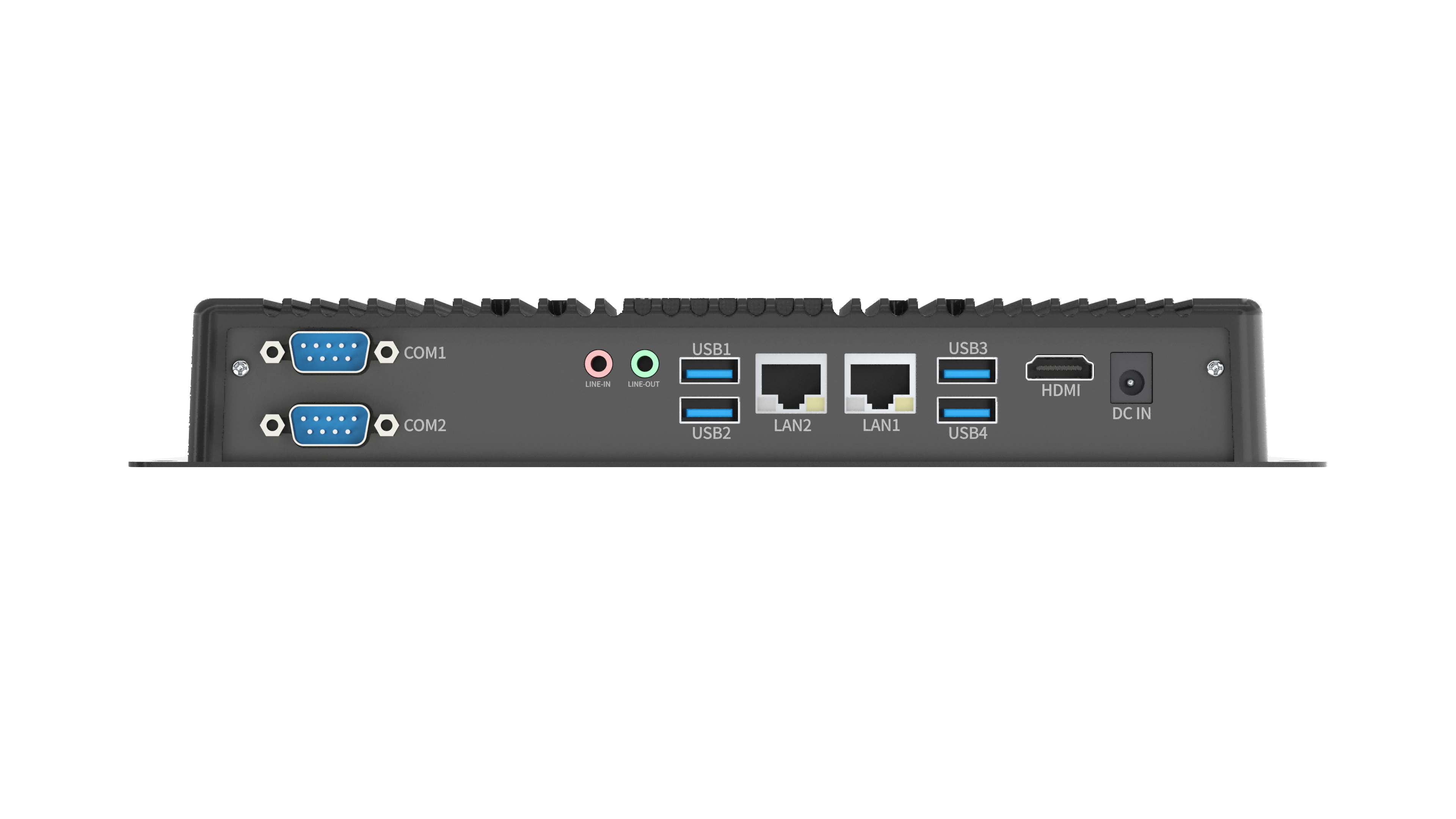

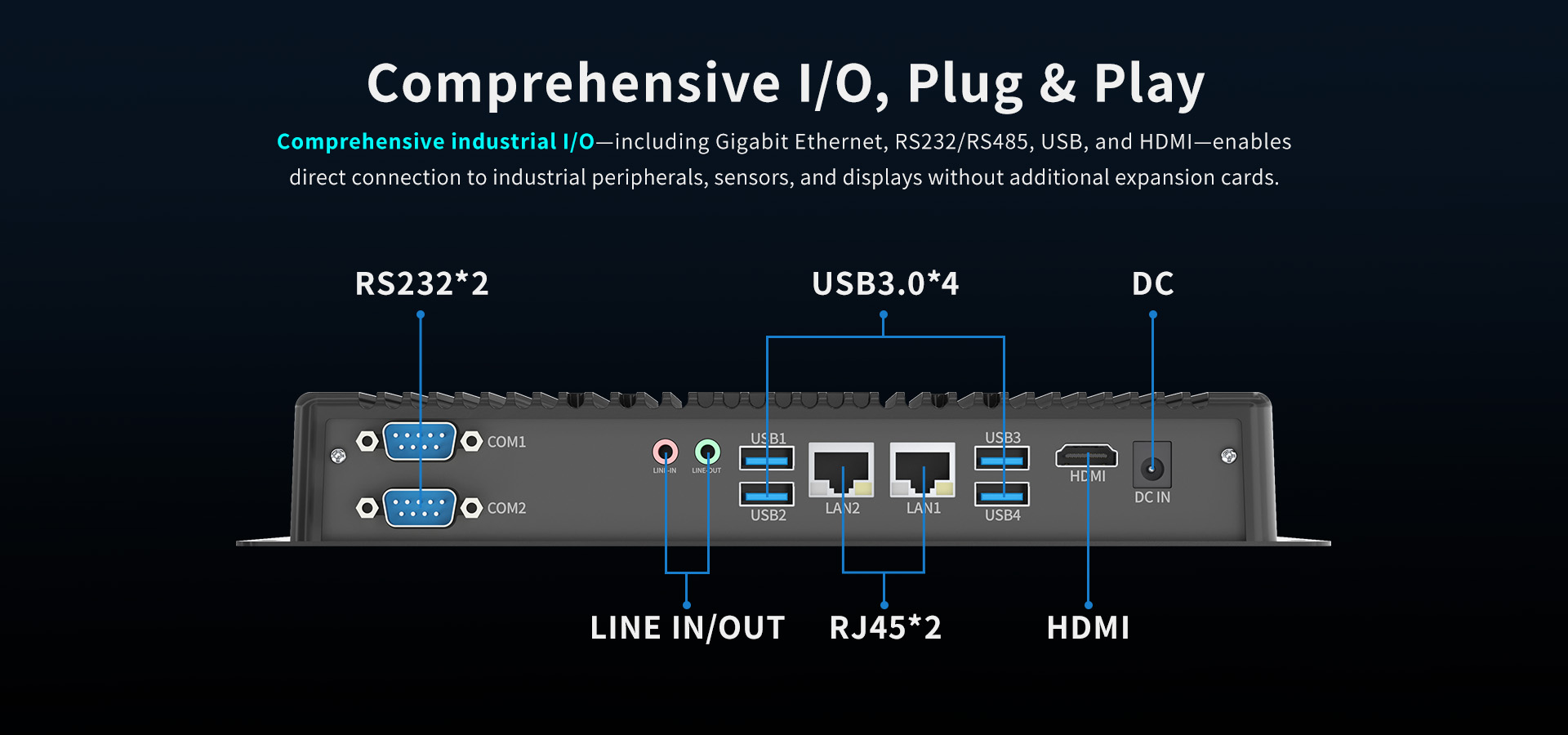

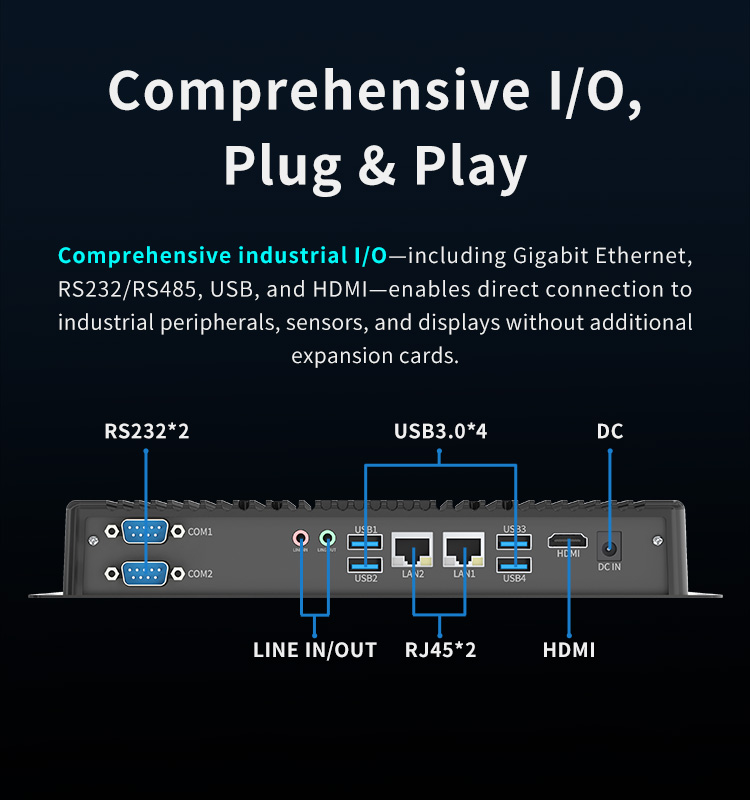

Comprehensive I/O, Plug & Play

Rich industrial interfaces enable the B10A to connect directly with controllers, sensors, displays, network equipment, and other industrial peripherals, simplifying system integration without additional expansion cards.

2 × RS232 Serial Communication

4 × USB 3.0 High-Speed Data Transfer

2 × RJ45 Gigabit Ethernet

HDMI Display Output

Line In / Out DC Input Dual LAN Rich Industrial I/O Plug & Play

B10A Embedded Box PC industrial I O with RS232 USB 3.0 dual RJ45 and HDMI

B10A Embedded Box PC industrial interfaces and connectivity

B10A Embedded Box PC with Wi-Fi 6 Bluetooth 5.1 and optional 4G connectivity

B10A Embedded Box PC Wi-Fi 6 industrial wireless connectivity

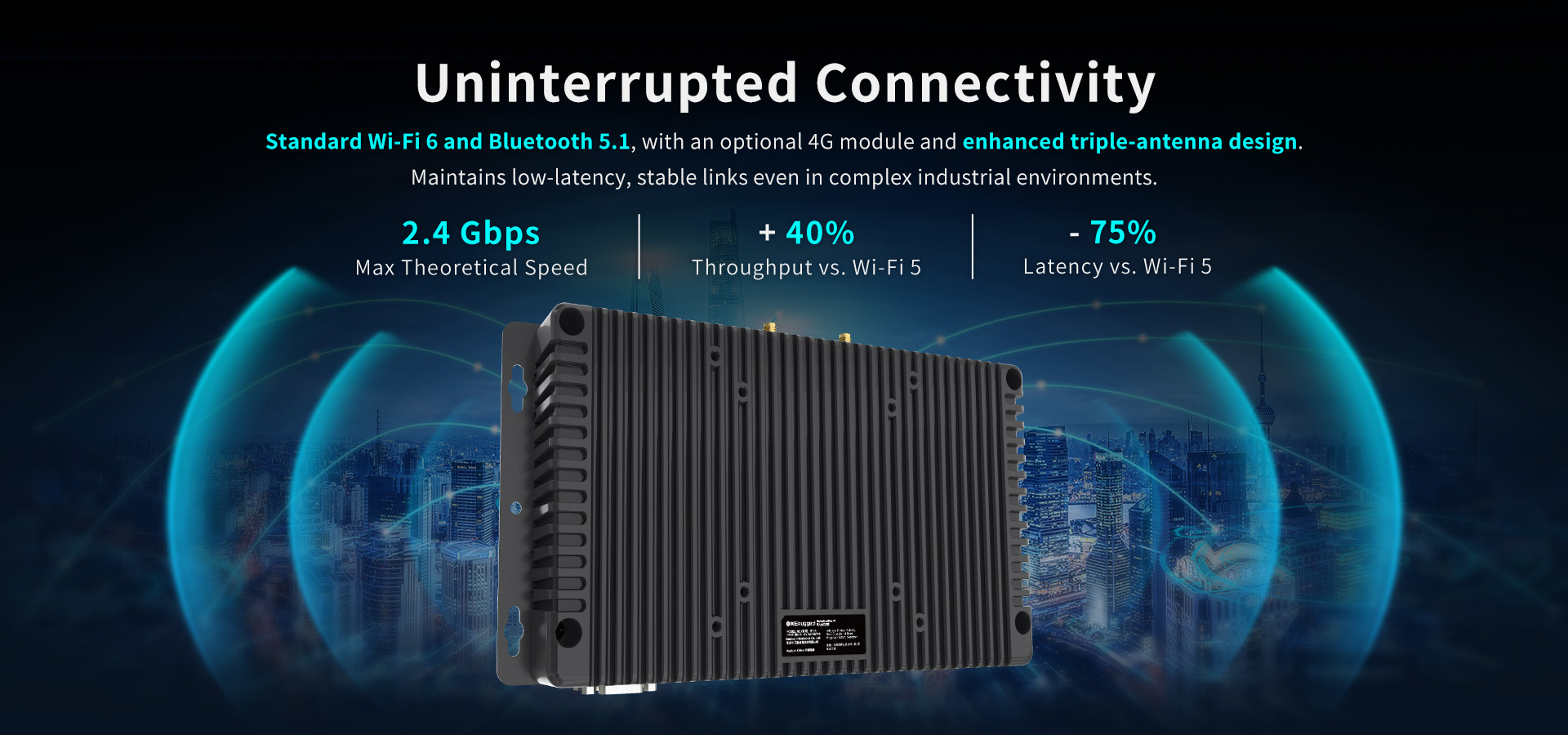

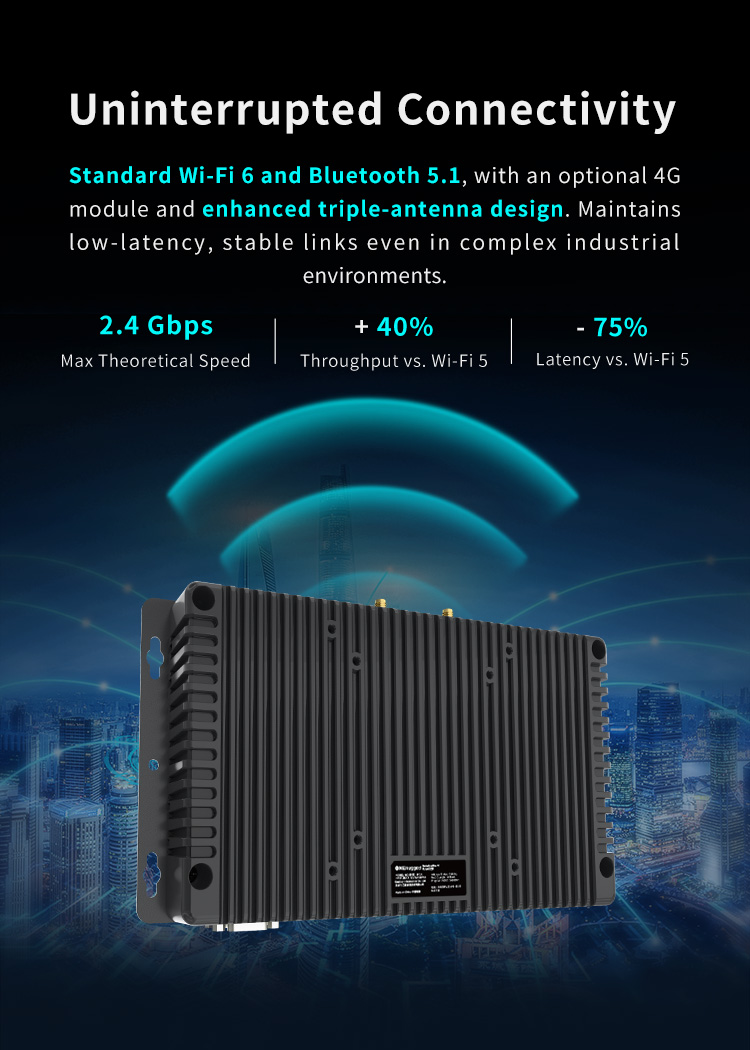

Uninterrupted Connectivity

Standard Wi-Fi 6 and Bluetooth 5.1, combined with optional 4G and an enhanced triple-antenna design, deliver fast, stable, and low-latency wireless connectivity for demanding industrial environments.

2.4 Gbps Max Theoretical Speed

+40% Throughput vs. Wi-Fi 5

-75% Latency vs. Wi-Fi 5

Wi-Fi 6 Bluetooth 5.1 Optional 4G Triple-Antenna Design Low-Latency Connectivity

Built for Harsh Environments

Wide-temperature and wide-voltage operation, combined with strong EMI immunity and multi-layer electrical protection, enables the B10A to maintain reliable 24/7 operation in demanding industrial environments.

-4°F to 140°F Operating Temperature

12–24 V DC Wide-Voltage Input

ESD Protection Electrostatic Protection

Surge Protection EOS Protection Supported

OVP Over-Voltage Protection

EMI Immunity Industrial Electrical Reliability

24/7 Continuous Operation Designed for stable long-term industrial deployment

B10A Embedded Box PC built for harsh industrial environments with wide temperature and voltage operation

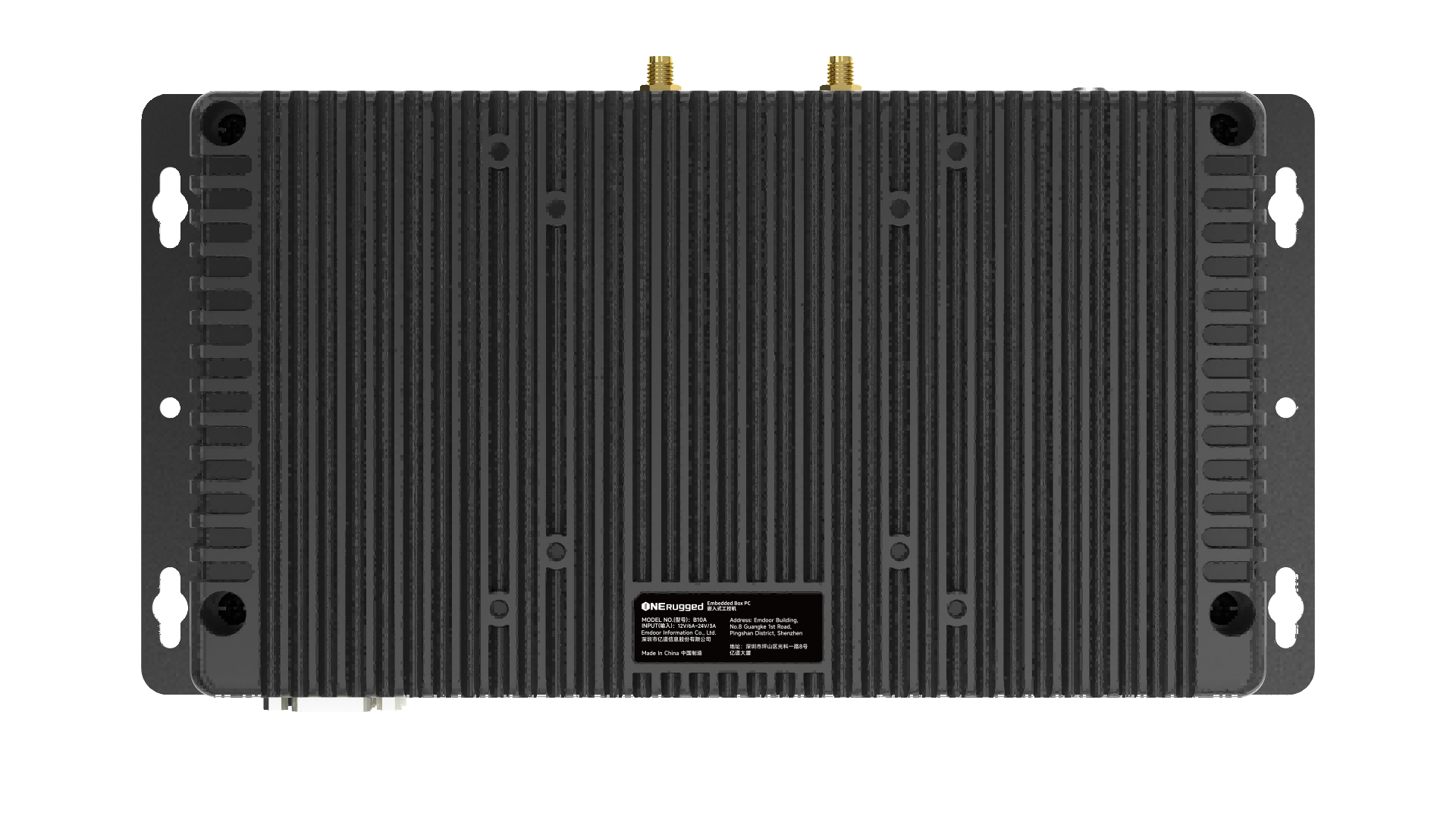

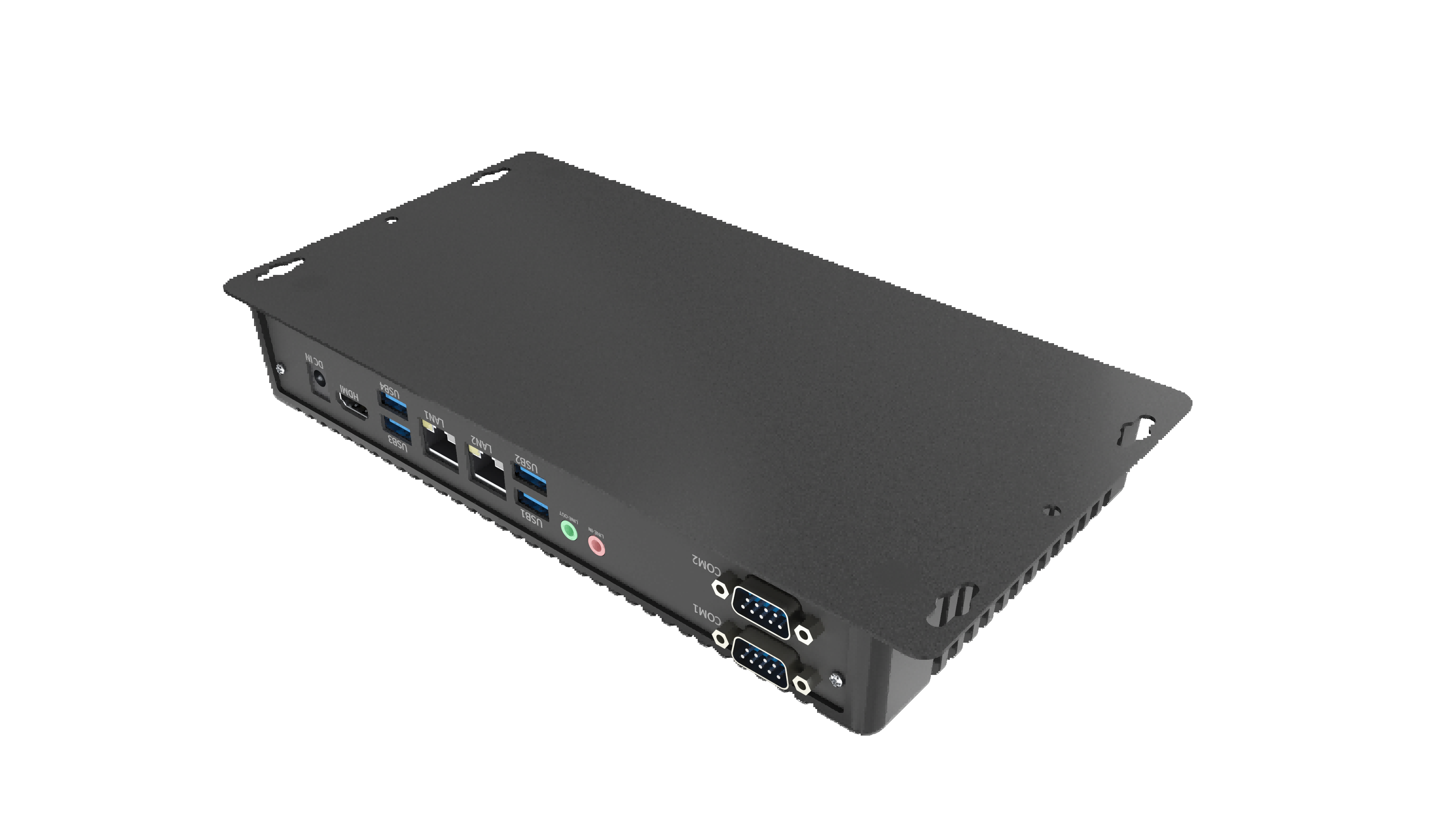

B10A industrial embedded box PC for harsh environments

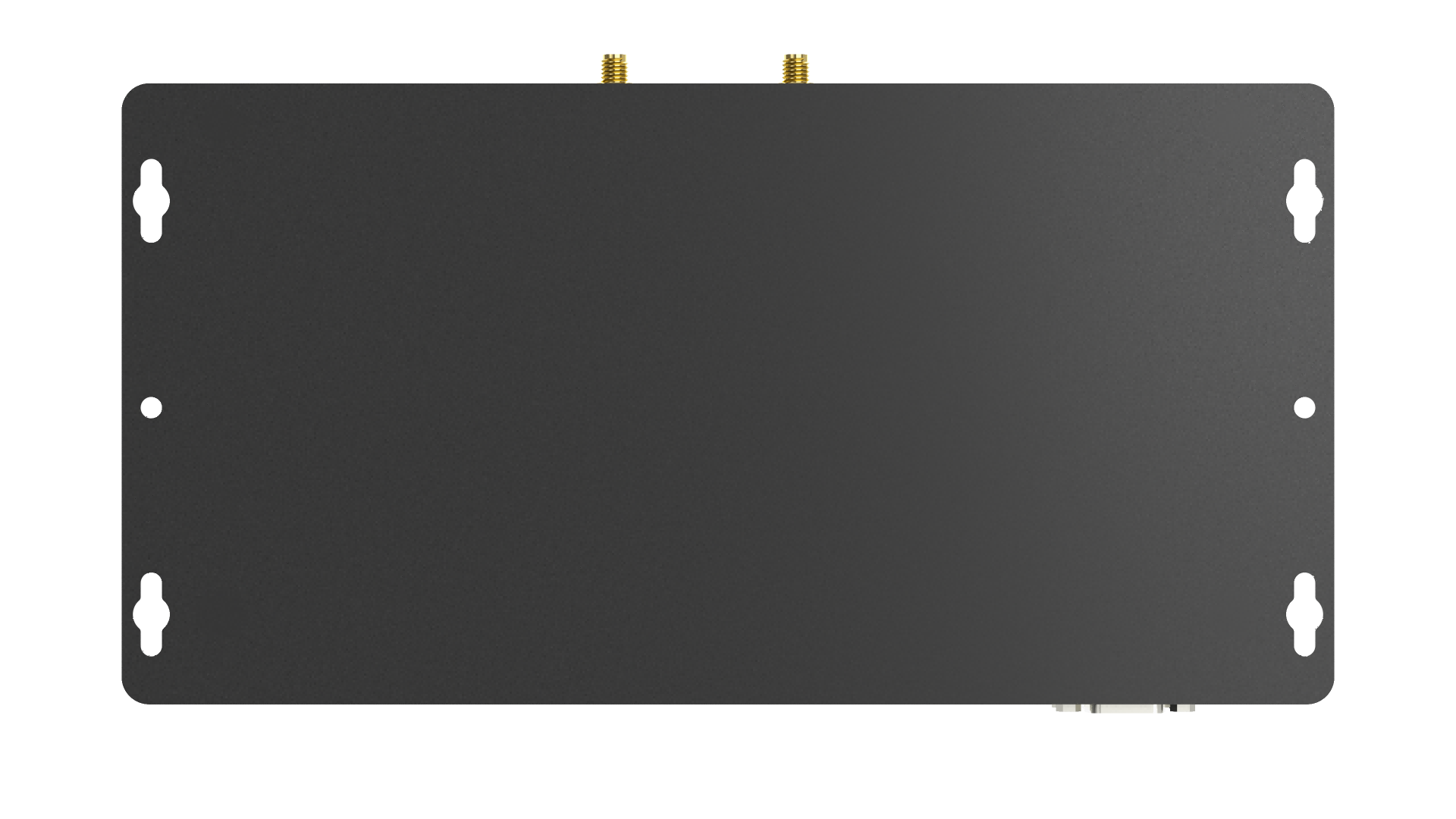

B10A Embedded Box PC flexible deployment with wall mounting and VESA mount

B10A Embedded Box PC compact wall and VESA mounting

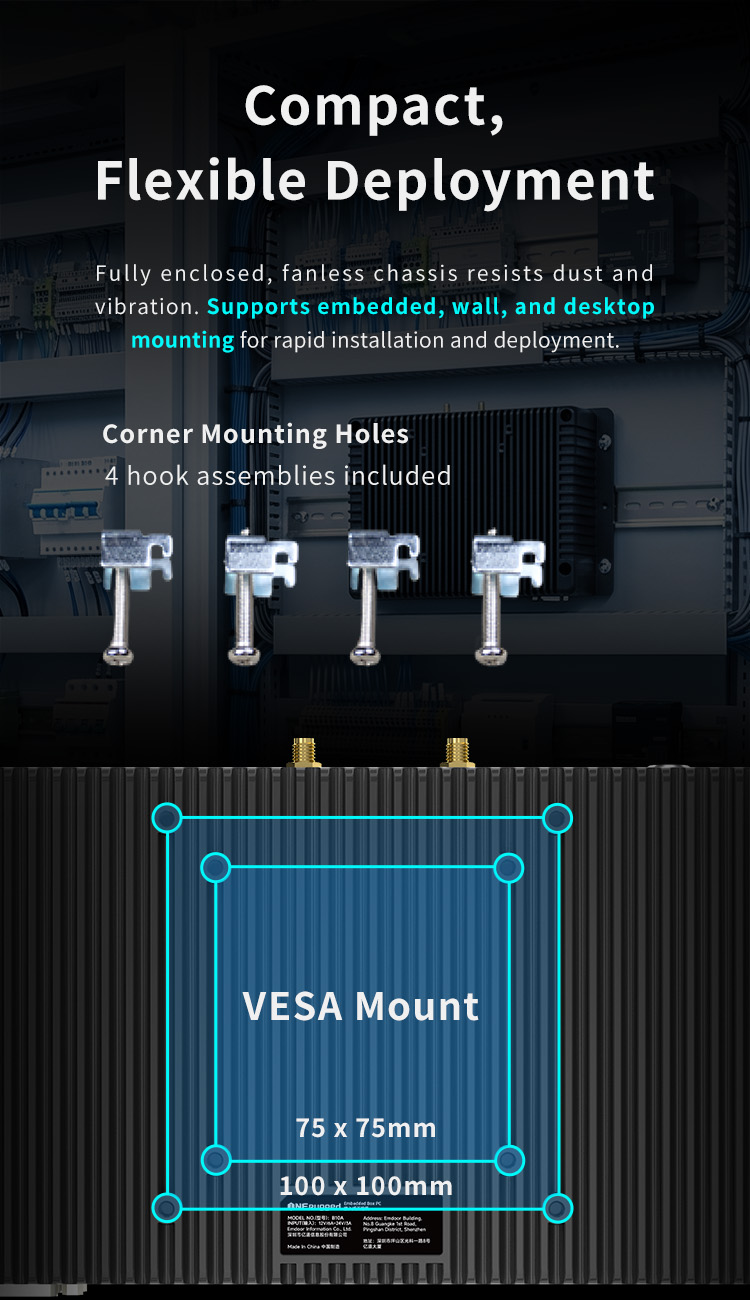

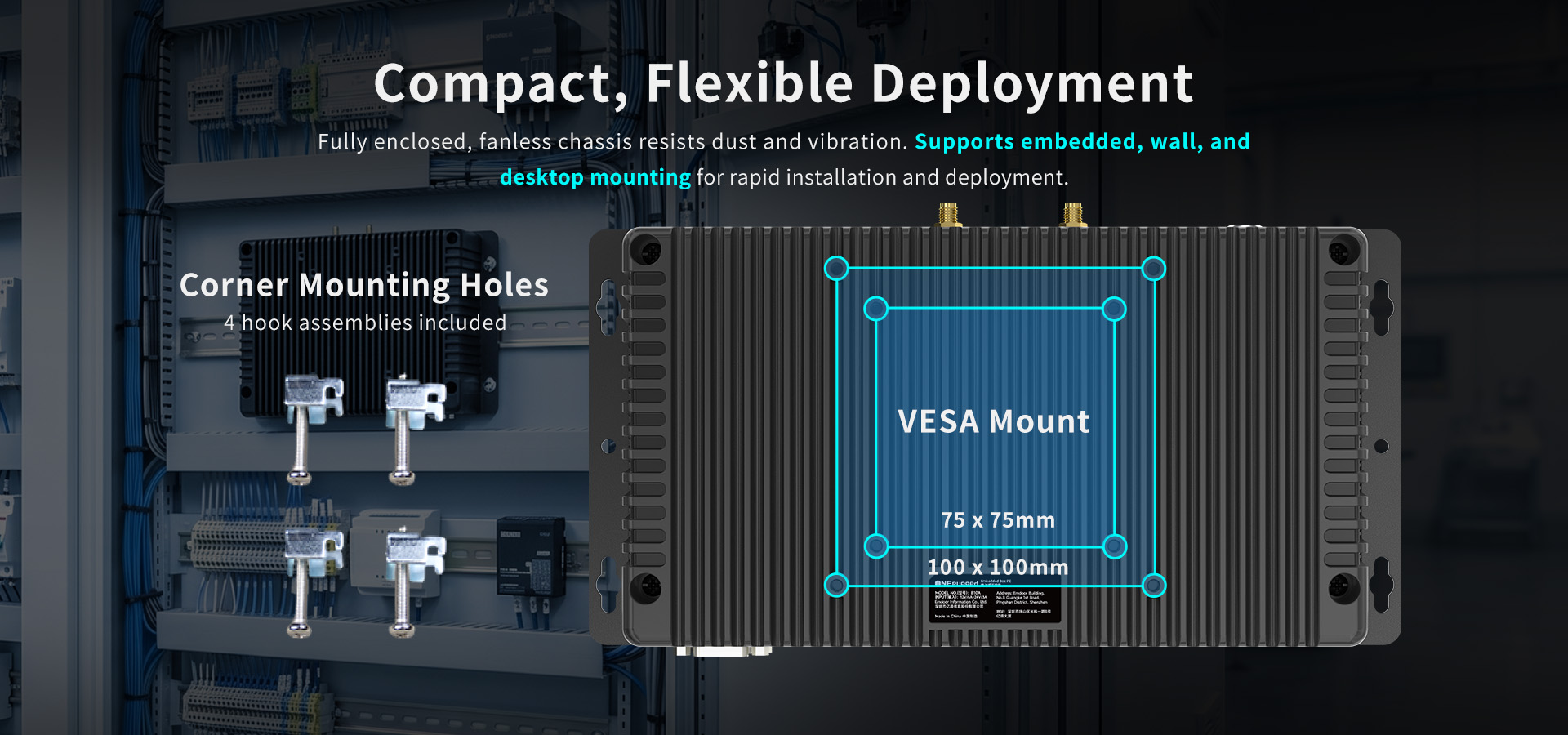

Compact, Flexible Deployment

The fully enclosed fanless chassis helps resist dust and vibration, while flexible mounting options support embedded, wall-mounted, and desktop deployment for fast integration into industrial environments.

Embedded Mounting Easy integration into industrial equipment

Wall Mounting Flexible installation in limited spaces

Desktop Mounting Compact deployment for workstations and control systems

4 Hook Assemblies Mounting accessories included

VESA 75 × 75 mm / 100 × 100 mm Supports standardized VESA mounting for flexible industrial installation.

One Platform, Versatile Applications

From production-line automation and industrial equipment control to intelligent security systems, the B10A delivers the computing performance, connectivity, and reliability required across demanding industrial applications.

Factory Automation Supports production-line monitoring, machine control, data acquisition, and automated manufacturing systems.

Intelligent Security Hub Provides stable computing for surveillance, access control, monitoring platforms, and intelligent security applications.

Industrial Equipment Control Integrates with industrial machinery and control systems for reliable equipment management and continuous operation.
