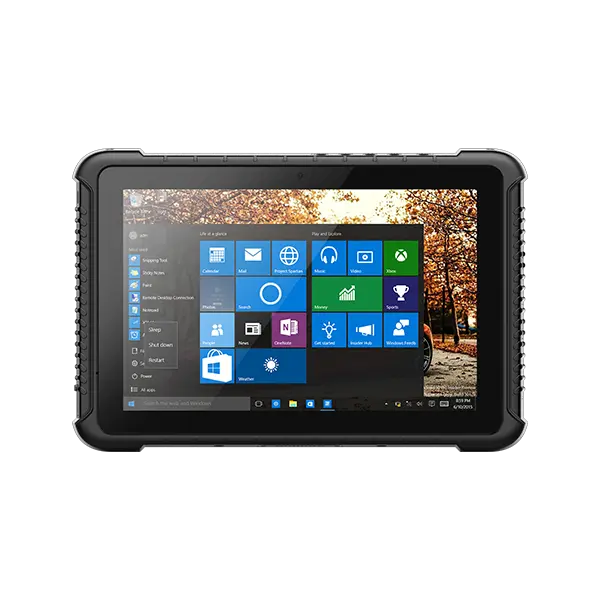

10'' Intel: EM-I16H Windows 10 Rugged Tablet

  • EM-16H Rugged Tablet PC supports Windows 10 system, a smoother user experience and stronger application compatibility.

  • Special modules such as ID card, fingerprint, UHF can be selected, and the application industry is more extensive.

  • It has an IP65 protection level and is as solid as a rock.

  • Support aviation plug to meet the requirements of industrial electricity.


Windows Windows
IP65 IP65
GPS GPS
Bluetooth Bluetooth
Fingerprint Fingerprint
1D 1D
2D 2D
RFID RFID
3G/4G 3G/4G
WiFi WiFi

Features of 10'' Intel Tablet PC EM-I16H Rugged PC


  • Support for Windows 10 system

  • Integrated 3G/4G all network communication, WiFi, Bluetooth and other communication modes

  • 10000mAh battery, 10 hours of machine endurance

  • IP65 high protection level, in accordance with MIL-STD-810G

  • Support GPS, more accurate positioning

  • Support 5 million pixel autofocus camera, easy to collect images and video information

  • Support 1D/2D, NFC, ID card and other functional modules for free selection

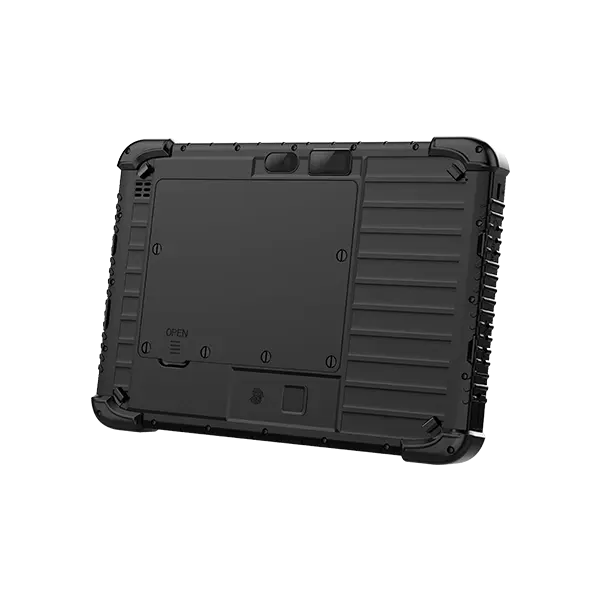

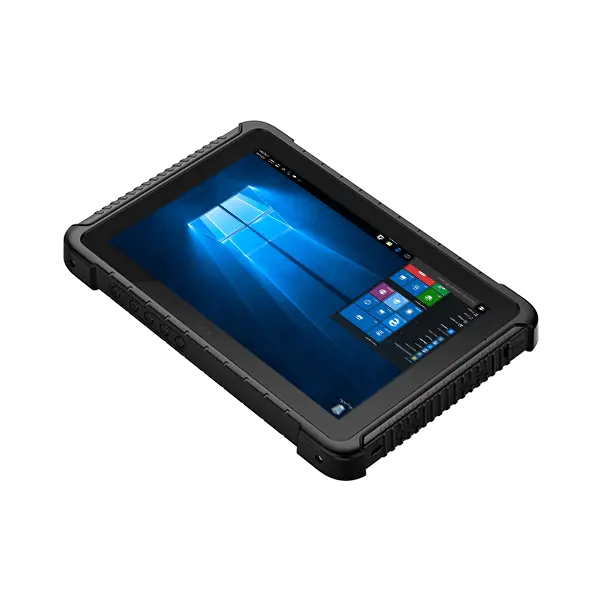

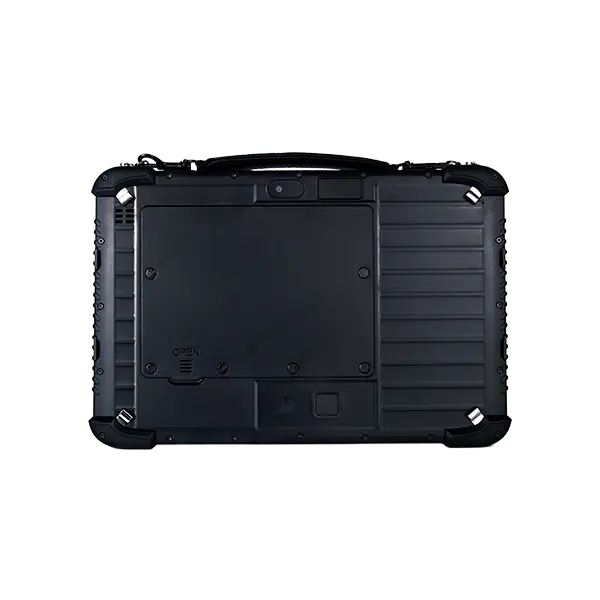

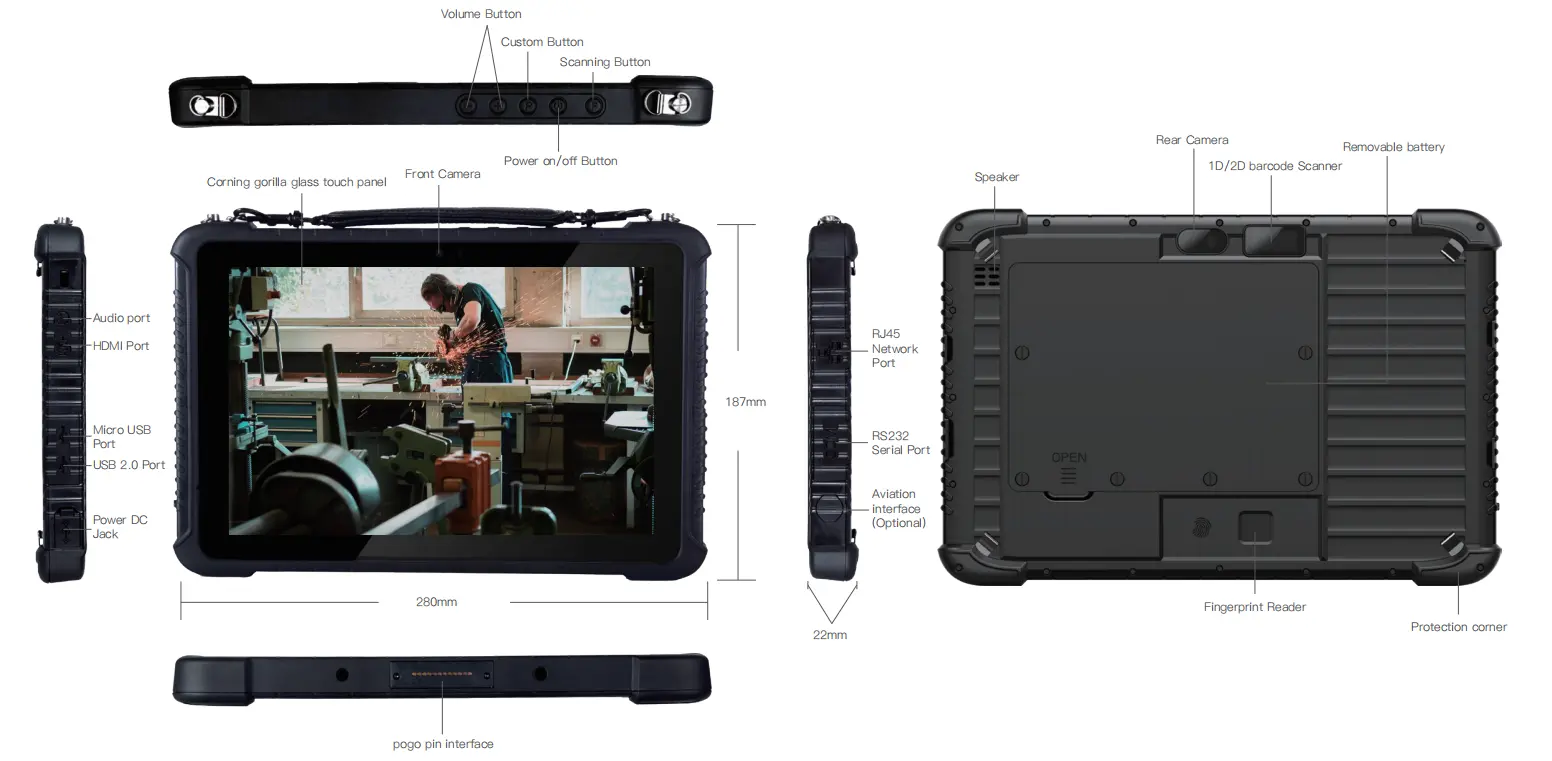

Six Views of 10'' Intel Tablet PC EM-I16H Rugged PC


10'' Intel: EM-I16H Rugged Tablet


Specifications of 10'' Intel Tablet PC EM-I16H Rugged PC


Model No:EM-I16H Specification
TypeDetailsStandard ConfigurationOptional
Product FormTypeRugged TabletNA
Dimension280*187*22mmNA
WeightDevice unit: 1014g  ,Unit with gift box and standard accessories:1990g,docking:290gNA
Device ColorBlack(frant and rear Panel: black,Decorate board: black)optional
LCDScreen Size10.1 inch  16:10NA
Resolution800 (RGB)*1280  /1920*1200(FHD)NA
Brightness400cd/㎡optional SLR Sunlight visible film
TPTouch Panel10 points Capacitive,G+G,Rigidity: above 7H-Anti-scratchoptional SLR Sunlight visible film
CameraFrontFront:2.0MP   with charging indicator lightNA
RearRear: 5.0MPNA
SpeakerBuilt-inEmbedded 8Ω/0.8W waterproof speakerx 1NA
MicBuilt-inSensitivity:-42db, output resistance2.2kΩNA
Batterytypebuild in polymer li-ion batteryoptional
Capacity3.7V/10000mAhNA
Endurance10 hrs(default 50% volumn,default200nit,play 1080P HD video)NA
System Hardware Configuration
TypeDetailsDescriptionsOptional
CPUTypeIntel Cherry Trail Z8350NA
Speed1.44Ghz-1.92GHzNA
GPUTypeIntel HD Graphic(Gen7)NA
RAMDDR3L4GBNA
ROMEmmc64GBNA
G_sensorBuilt-inGravity acceleration sensorNA
Network Connections
TypeDetailsDescriptionsOptional
WIFIWIFIWIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G  dual-band WIFI intel 3165D2WGNA
BluetoothBuilt-inBT4.2 (BLE) class1 transmission distance:10mNA
3GBuilt-inNAFIBOCOM_H350
GSM/GPRS/EDGE Band(MHz):900/1800;WCDMA Band(MHz):900/2100
1.Asia Pacific, Europe
2.China Unicom 3G
4GBuilt-inEC25-EC
LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8
EC25-EC LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28 LTE TDD: B40 WCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8
GPSBuilt-inU-blox NEO-7 Support :GPS; Capture sensitivity: -160 dBm;Cool Start Time:<50second,Hot start time:<28seconds,frequency:0.25 Hz … 10 MHz (configurable)NA
NFCBuilt-inNANXP NFC 13.56MHz  Support ISO/IEC 14443A/14443B/15693/18092/mifare protocol,Card reading distance:4cm
FingerprintOptionalNAFPC1020(sensor,Compression type of capacitance)
Fingerprint acquisition area:10mm x10mm Resolution:192x192pixel/508DPI
1D barcode scannerOptionalNAMOTO  SE655E100R, Support Buzzer
2D barcode scannerOptionalNAHoneywell N3680 Hardware decoder, Support Buzzer
Interface Configuration
TypeDetailsDescriptionsOptional
TF slotExtensive External Memorysupport TF   x1    max:128GNA
SIM slotSIM cardSIMx1NA
USB  interfacedata transmissionstandard USB*1 ,Micro USB x1NA
Earphone JackAudio Output∮3.5mm  standard earphone jack   x1NA
DC JackPowerDC 5V 3A ∮3.5mm Power connector  x1Overvoltage protection of circuit,Maximum protection voltage DC24V
HDMIVideo OutputHDMI 1.4a Type C  x1NA
Extensive Slotpogo Pin12pin  Pogo Pin   x1NA
DB9 PORTSerial port*1 (RS232) TTL electrical levelNA
RJ45 PORTinternet port*1(10/100 self-adaption)NA
Air outletAir outletNA*1( build in small board for customer customized )
TLU1HPO2H0709J-50( tong mao Plug)
LU1HR04H0709K(tong mao Plug)
Standard Accessories
TypeDetailsDescriptionOptional
OTG cableOTG cableUSB OTG to MICRO USB cable length:45mmNA
USB Cabletype-c cableUSB to micro 5P L=1.2M  4core aluminum foil shield cableNA
Power AdaptorStandardAC100V ~ 240V、50Hz/60Hz output DC 5V/3A      USA Standard  CE approvalUK standard
EU Standard
Software Configuration
TypeDetailsDescriptionOptional
Operation SystemOS versionwindows 10 S Mode 32bit     Default language:Englishwindows 10 S Mode 32bit       Windows 10 Pro 32bit /64bit  Windows 10 IOT 32bit /64bit
Software Configuration
TypeDetailsDescriptionOptional
Certificate SystemIP65IP65 Report: Water resistance:IP-X5,Dust resistance:IP-6X  Report ID no.:SET2015-07677
a.Inner Nozzle diameter:6.3mm;   b. water speed:12.5±0.625L/min;
c. Water Pressure:adjust according to water volumn;
d.Central part of water volumn:diameter of 40mm, distance from nozzle: 2.5M
e.Spray time on surface of panel:about 1min;f.test time:at least 3min;
g.distance between nozzle and panel surface:2.5~3m。
After test,there is no water leakage in sample.
NA
CE NBY
MIL-STD-810GY
BatteryUN3803,MSDS,IEC62133
Reliability
TypeDetailsDescriptionsOptional
Product ReliabilityDrop HeightMIL-STD-810G 1.22m drop
Operate Temperature‘-20 °C to 60 °C
Store Temperature’-30 °C to 70 °C
HumidityHumidity: 95% Non-Condensing



Application Range of 10'' Intel Tablet PC EM-I16H Rugged PC

Various modules and accessories can be selected to meet customers' application in various industries.



Accessories of 10'' Intel Tablet PC EM-I16H Rugged PC

Various modules and accessories can be selected to meet customers' application in various industries.

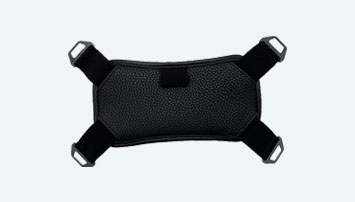

Hand-strap
Hand-strap
Back-Strap
Back-Strap
Car Charge
Car Charge

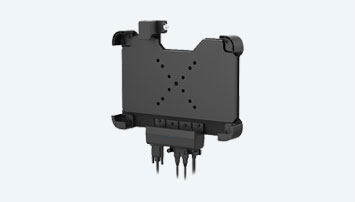

Vehicle Mount
Vehicle Mount
Docking Charger
Docking Charger

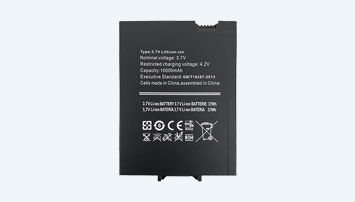

Battery
Battery
Shoulder-strap
Shoulder-strap
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Carry Handle
Carry Handle
