12'' Intel: EM-I20U Industrial Tablet

  • 12'' Screen High-performance tablet, Give you a broader view.

  • Hot-swappable dual batteries, longer-lasting. Does not affect standby when replace.

  • Replaceable SSD, ROM decide by you.

  • More custom modules are available.

  • Ethernet port, serial port, large port USB2.0, 1D and 2D.

12'' Intel: EM-I20U Rugged Tablet
12'' Intel: EM-I20U Rugged Tablet
12'' Intel: EM-I20U Rugged Tablet
12'' Intel: EM-I20U Rugged Tablet
12'' Intel: EM-I20U Rugged Table
Windows Windows
IP65 IP65
Dual-battery Dual-battery
Bluetooth Bluetooth
1D 1D
2D 2D
4G 4G
WiFi WiFi

Features of 12'' Intel: EM-I20U Rugged Tablet

  • Support for Win 7,Win 10 system

  • Intel® Core™ i5-8250U/i7-8550U, greatly improved performance

  • Equipped with built-in 860mAh, detachable 6300mAh polymer lithium ion battery

  • IP65 high protection level, in accordance with MIL-STD-810G

  • Support GPS, Beidou, GLONASS, more accurate positioning

  • Support 8 million pixel auto focus camera, easy to collect images and video information

  • Support 1D/2D, NFC and other functional modules for free selection

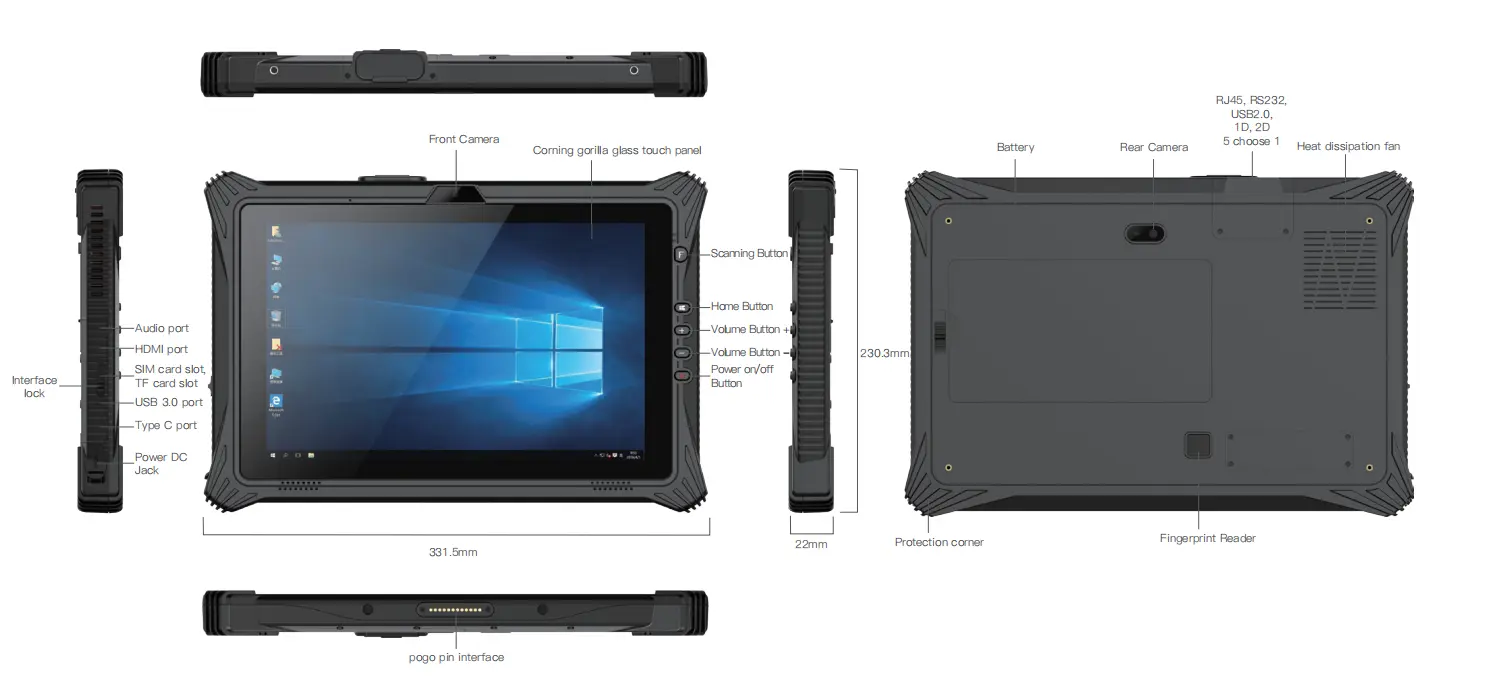

Six Views of 12'' Intel: EM-I20U Rugged Tablet


Specifications of 12'' Intel: EM-I20U Rugged Tablet

Model No:EM-I20U Specification
TypeDetailsStandard ConfigurationOptional
Product FormTypeRugged TabletNA
Dimension331.5*230.3*22 mmNA
WeightDevice unit: 1500gNA
Device ColorBlack(frant and rear Panel: black,Decorate board: black)NA
LCDScreen Size12.2 inch 16:10Full-fit components
Resolution1920*1200 IPS
TPTouch Panel10 points Capacitive,G+G,Rigidity: above 7H-Anti-scratchoptional SLR Sunlight visible film
RearRear: 8.0MP    USB Camera With the flashlightNA
SpeakerBuilt-inEmbedded 8Ω/0.8W waterproof speakerx 1NA
MicBuilt-inSensitivity:-42db, output resistance2.2kΩNA
Small BatterytypeBuild-in Lithium-ion polymer battery,  Non-removableNA
Endurance30mins(default 50% volumn,default200nit,play 1080P HD video)NA
BatterytypeLithium-ion polymer battery, pluggable, Hot SwapNA
Endurance5hrs(default 50% volumn,default200nit,play 1080P HD video)NA
System Hardware Configuration
CPUType8th Generation  KBL-R Intel® Core™ i5-8250U8th Generation  KBL-R Intel® Core™ i7-8550U
Speed4M Cache, 3.40 GHzmaximum frequency 4.0 GHz
GPUTypeIntel® UHD Graphics 620Intel® UHD Graphics 620
ROMEmmc128GB   removable256GB/512GB
FingerprintBuilt-in×1 SPI Fingerprint (windows hellow boot login)NA
G_sensorBuilt-inGravity acceleration sensorNA
Network Connections
WIFIWIFIWIFI 802.11(a/b/g/n/ac)  dual-frequency 2.4G+5.8G WIFINA
BluetoothBuilt-inBT4.2 (BLE) class1 transmission distance:10mBluetooth 5.1
LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8                                      China (China Unicom Telecom, mobile support is not good, only B8 supports no TDD band) Europe, Middle East, Africa, Taiwan, Japan
GPSBuilt-inU-blox  M8Q ,Support:GPS, Beidou module, glonassNA
Interface Configuration
TF slotExtensive External Memorysupport TF   x1    max:128GNA
SIM slotSIM cardSIMx1NA
USB  interfacedata transmissionx1  USB 3.0NA
Earphone JackAudio Output∮3.5mm  standard earphone jack   x1NA
DC JackPowerDC 19V 3.42A ∮5.5mm Power connector  x1NA
HDMIVideo OutputHDMI 1.4a mini  x1NA
pogo pinpogo Pinx1   12pin(USB&Docking charging)NA
Type CType C*1 Type C (USB3.0/HDMI/Charging)NA
Indicator light
powerBuilt-inPower on is always blue, power of light is off ×1NA
batteryBuilt-in(Red and Green) Charging red, full of green, red light flashing on low power, not discharging ×1NA
TypeDetailsDescriptionsOptional configuration
F KEYScanner keyScanner key x1,No barcode then customizable ((GPIO)NA
volume+volumeVolume adjustment key(+)  x 1NA
volume-volumeVolume adjustment key(-)  x 1NA
windowswindows keyx1NA
powerpower keyx1NA
Module extension (Note: The following modules are one of five)
TypeDetailsDescriptionsOptional configuration
Ethernet interfaceRJ45 board*1(10/100M) Ethernet interface
serial portDB9 boardNA*1 (RS232)9-line full function
USB2.0USB2.0NA*1  USB2.0 Big USB
One-dimension barcodeoptionalNAMOTO SE655100R/Optical resolution: 5mil/scan speed: 50 times /s serial port
Two-dimension barcodeoptionalNAHoneywell N3680   hardcode
Optical resolution:5mil
scan speed:50 times /s
Code system: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse
 Maxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse
Software Configuration
Operation SystemOS versionwindows 10 Home 64bit   Default language:Englishwindows 10 Home 64bit         Windows 10 Pro 64bit               Windows 10 IOT 64bit
Software Configuration
Certificate SystemIP65IP65 Report: Water resistance:IP-X5,Dust resistance:IP-6X  Report ID no.:SET2015-07677
a.Inner Nozzle diameter:6.3mm;   b. water speed:12.5±0.625L/min;
c. Water Pressure:adjust according to water volumn;
d.Central part of water volumn:diameter of 40mm, distance from nozzle: 2.5M
e.Spray time on the surface of panel:about 1min;f.test time:at least 3min;
g.distance between nozzle and panel surface:2.5~3m。
After the test, there is no water leakage in the sample.
BatteryUN3803,MSDS, IEC62133, Aviation, Ocean shipping reports
Product ReliabilityDrop Height1.22cm  composite wood floors, in operation status
Operate Temperature‘-20 °C to 60 °C
Store Temperature’-30 °C to 70 °C
HumidityHumidity: 95% Non-Condensing

Accessories of 12'' Intel: EM-I20U Rugged Tablet

Various modules and accessories can be selected to meet customers' application in various industries.

Application Range of 12'' Intel: EM-I20U Rugged Tablet

Various modules and accessories can be selected to meet customers' application in various industries.

Warehouse & Logistics Industry
Warehouse & Logistics Industry
Surveying & Mapping Industry
Surveying & Mapping Industry
Manufacturing Industry
Manufacturing Industry
Energy Industry
Energy Industry
Public Industry
Public Industry
Traffic Industry
Traffic Industry
