Intel Celeron N5100 8 inch Windows 10 Vehicle-mount Tablet EM-VPC80J

·Intel Jasper Lake processor Celeron N5100

·Windows 10 OS, Up to 16GB+512GB

·8 inch IPS screen, 700nit

·Optional NFC fast recognition function

·Support GPS, BDS and GLONASS

·Flexible expansion of multiple aviation plugs

·IP65 Waterproof and Dustproof

·Wide temperature operation: -20℃~60℃

·±8kV Contact Discharge, ±15kV Air Discharge

02
03
04
05
01
ip65 ip65
gps gps
nfc nfc
4g 4g
wifi wifi
bluetooth bluetooth
windows windows
high capacity high capacity

Features of Intel Celeron N5100 8 inch Windows 10 Vehicle-mount Tablet EM-VPC80J

Powerful yet Easily Portable

Built with the Quad-core Intel JASPER LAKE N5100 processor, VPC80J provides all performance you need to get tasks done with only 23mm thick portable body.


Ensure Outdoor Worker Visibility

700cd/m² higher brightness specifically in bright conditions with indirect or reflected bright light in the harsh environment both in and out-of-vehicle.


Ready for Fleets

Equipped with all the connectivity options and data-capturing capabilities you need in one compact form factor, the VPC80J empowers you to do more. It has a circular connector, supporting the battery-free mode, the cigarette lighter car chargers, and the external 9V-36V DC wide voltage modules. Optional NFC reader allows for identity detection.

Note: the 9V-36V DC wide voltage module is not standard.


Enhanced Robustness of field work

Morphed to endure outdoor applications prone with shock and vibration, VPC80J can sustain operations from day to night. Certified to IP65, VPC80J survives in any harsh terrain and environment.

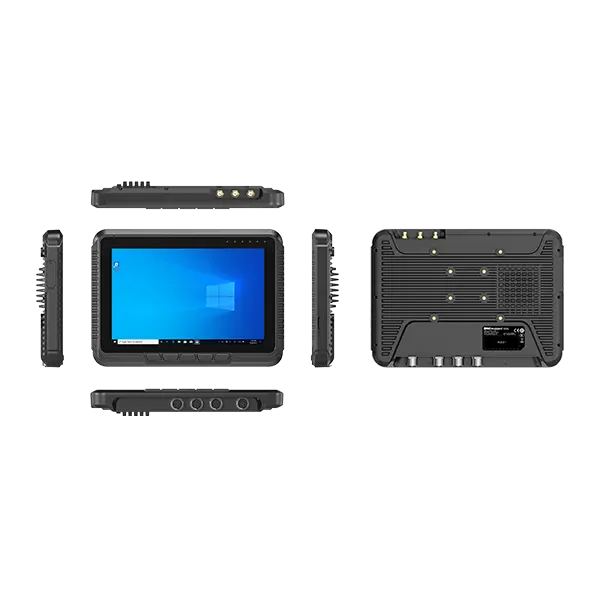

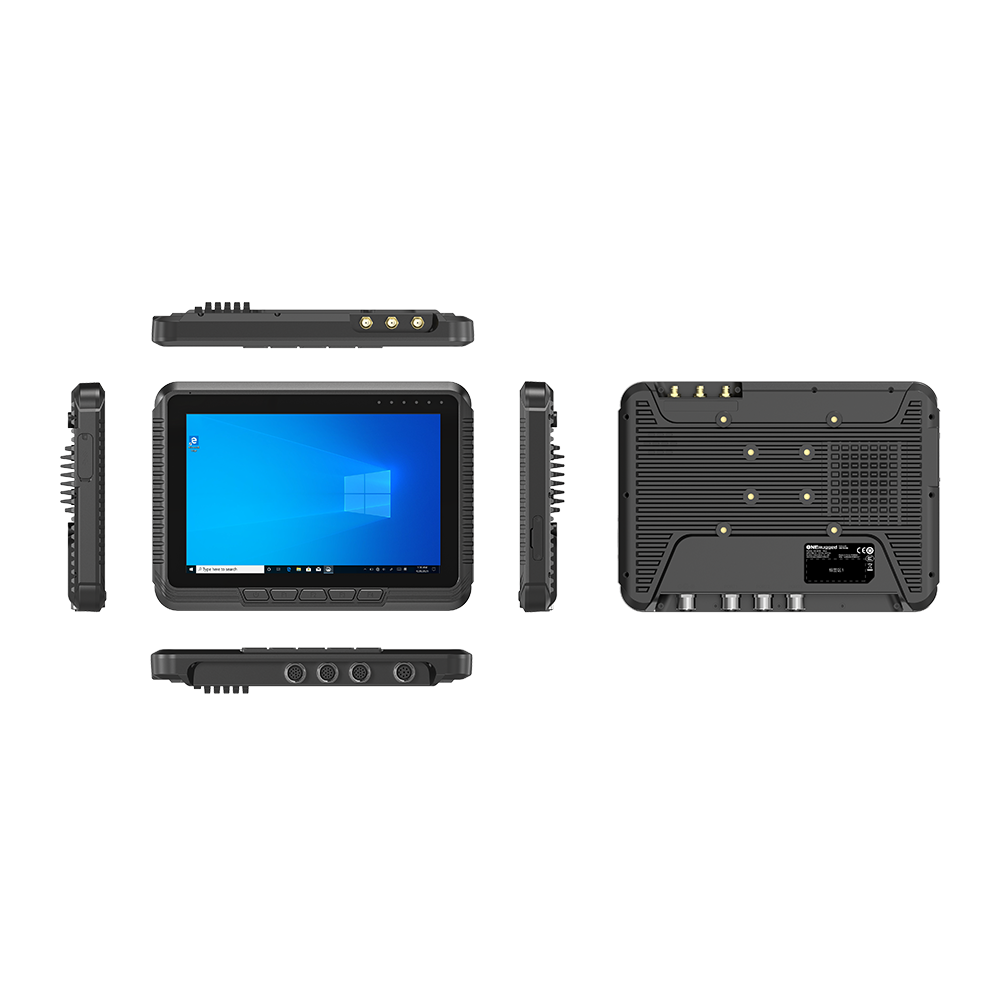

Six views of Intel Celeron N5100 8 inch Windows 10 Vehicle-mount Tablet EM-VPC80J



Specifications of Intel Celeron N5100 8 inch Windows 10 Vehicle-mount Tablet EM-VPC80J

Basic parameters
Dimension218.1*154.5*23.0mm
WeightTBD
Product ColorBlack
LCD8 inch, 800*1280, 700nits
Touch Panel5-point tempered glass capacitive screen G+F+F
I/O

Nano-SIM *1 (Optional)

USB 3.0 Type-A *1

RS232 + RS232/RS485 (Optional)

Ethernet interface (100/1000M) (Optional)

USB 2.0 *2 + CAN/CVBS *1 (Optional)

DC

NFC Optional
Performance parameter
CPUIntel® Celeron® N5100
OSWindows 10
RAM4GB, Optional 8GB, Up to 16GB
Storage64GB, Optional 128GB, Up to 512GB
Network connections
WIFI802.11 a/b/g/n/ac (2.4G/5.8G)
Bluetooth

BT5.0

4G

Optional

LTE FDD: B1/B3/B5/B7/B8/B20

LTE-TDD: B40 WCDMA: B1/B5/B8

GSM: B3/B5

GNSSBuilt-in GPS,GLONASS, Optional Beidou
Reliability
Operate Temperature-20 °C ~ 60 °C
Store Temperature-30 °C ~ 70 °C
Humidity95% Non-Condensing
Rugged FeatureIP65 certified
Electrostatic Discharge±8kV contact discharge, ±15kV air discharge
Battery (Optional)
Capacity1000mAh/7.4V
TypeBuilt-in Li-polymer battery
Endurance

30mins ( 50% volume sounds, 200 lumens brightness,

1080P HD video display by default )



Accessories of Tablet EM-VPC80J

Various modules and accessories can be selected to meet customers' application in various industries.


Application Range of Tablet EM-VPC80J

Various modules and accessories can be selected to meet customers' application in various industries.


Warehousing Logistics
Warehousing Logistics

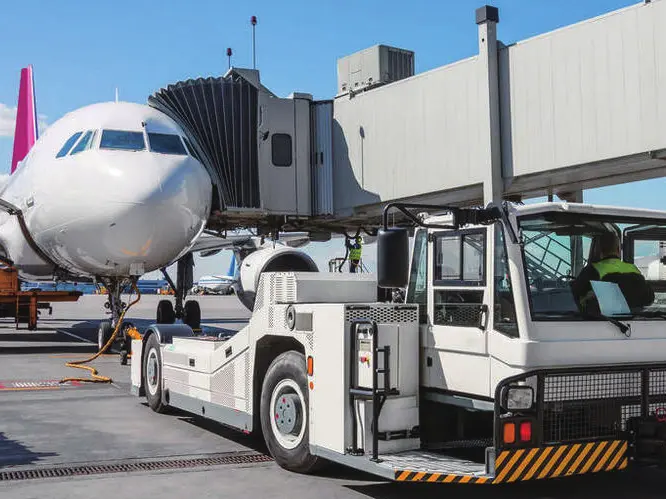

Airport Transportation
Airport Transportation
Vehicle Management
Vehicle Management
Automatic Driving of Agricultural Machinery
Automatic Driving of Agricultural Machinery
