● Support for windows 11（IOT)
● Equipped with front 5 million and rear 8 million pixel auto focus camera
● Support 4G all network communication, Dual-band WiFi, Bluetooth and other communication modes
● External polymer lithium-ion battery 7.4V 4000mAh high-voltage high-capacity battery, supports 33W/PD 3.0 fast charging
● Support GPS, Glonass, more accurate positioning
● Support NFC and the optional 2D module , to meet the application needs of multiple industries
● IP67 high protection level, in accordance with MIL-STD-810H
windows
ip67
gps
high capacity
bluetooth
camera
2d
nfc
4g
wifi ● Support for windows 11（IOT)
● Equipped with front 5 million and rear 8 million pixel auto focus camera
● Support 4G all network communication, Dual-band WiFi, Bluetooth and other communication modes
● External polymer lithium-ion battery 7.4V 4000mAh high-voltage high-capacity battery, supports 33W/PD 3.0 fast charging
● Support GPS, Glonass, more accurate positioning
● Support NFC and the optional 2D module , to meet the application needs of multiple industries
● IP67 high protection level, in accordance with MIL-STD-810H
| Basic parameters | Performance parameter | ||||||||||||||||||

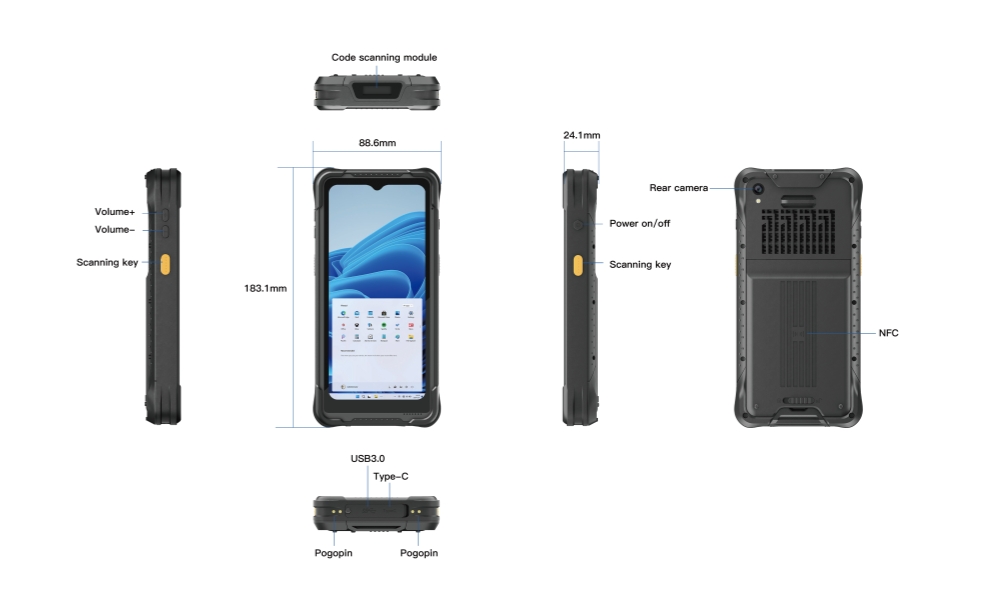

| Dimension | 183.1*88.6*24.1mm | CPU | Intel Twin Lake N150 | ||||||||||||||||
| Weight | Device unit 470g | OS | windows 11（IOT) | ||||||||||||||||
| Device Color | Black | RAM | 8GB | ||||||||||||||||
| LCD | 6.5 inch TFT 20:9, 720*1600, 400cd/cm² | ROM | 128GB | ||||||||||||||||
| Touch Panel | 10 points Capacitive, G+FF | Battery | |||||||||||||||||
| Camera | Front 5.0MP Rear 8.0MP | Capacity | 7.4V/4000mAh | ||||||||||||||||
| I/O | TYPE-C 3.1*1 (Charging & Data transmission) Standard USB-A port/Data Transfer (3.0) "TF card *1, Max: 512GB Nano-SIM * 1" Pogo Pin (supports docking charger DC61J) | Type | External polymer lithium-ion battery | ||||||||||||||||
| Endurance | About 7h29m (70dB sound volume,300nit screen brightness, 1080P HD video display by default) Charging Time: About 2.5h | ||||||||||||||||||
| Reliability | |||||||||||||||||||
| Power | Operate Temperature | -20 °C ~ 60 °C | |||||||||||||||||
| Communication | Store Temperature | -30 °C ~ 70 °C | |||||||||||||||||
| WIFI | Wi-Fi 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.8G WIFI | Humidity | 95% Non-Condensing | ||||||||||||||||
| Bluetooth | BT5.2 (BLE) class1 | Rugged Feature | IP67 certified, MIL-STD-810H certified | ||||||||||||||||
| Drop Height | 1.5m | ||||||||||||||||||
| 2G/3G/4G | LTE-FDD: B1/3/5/7/8/20/28 LTE-TDD: B38/40/41 WCDMA: B1/B5/B8 GSM:/ | Data Collection | |||||||||||||||||
NFC | 13.56MHz, Support ISO/IEC 14443A/14443B/15693/18092/mifare protocol, reading distance: 0-4cm | ||||||||||||||||||
| 2D | Optical resolution: 5mil Scanning speed: 30 times /s Support code: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Invers | ||||||||||||||||||
| GNSS | GPS+GLONASS | ||||||||||||||||||
* Please be aware all technical data, specification and performance figures subject to change without notice.
