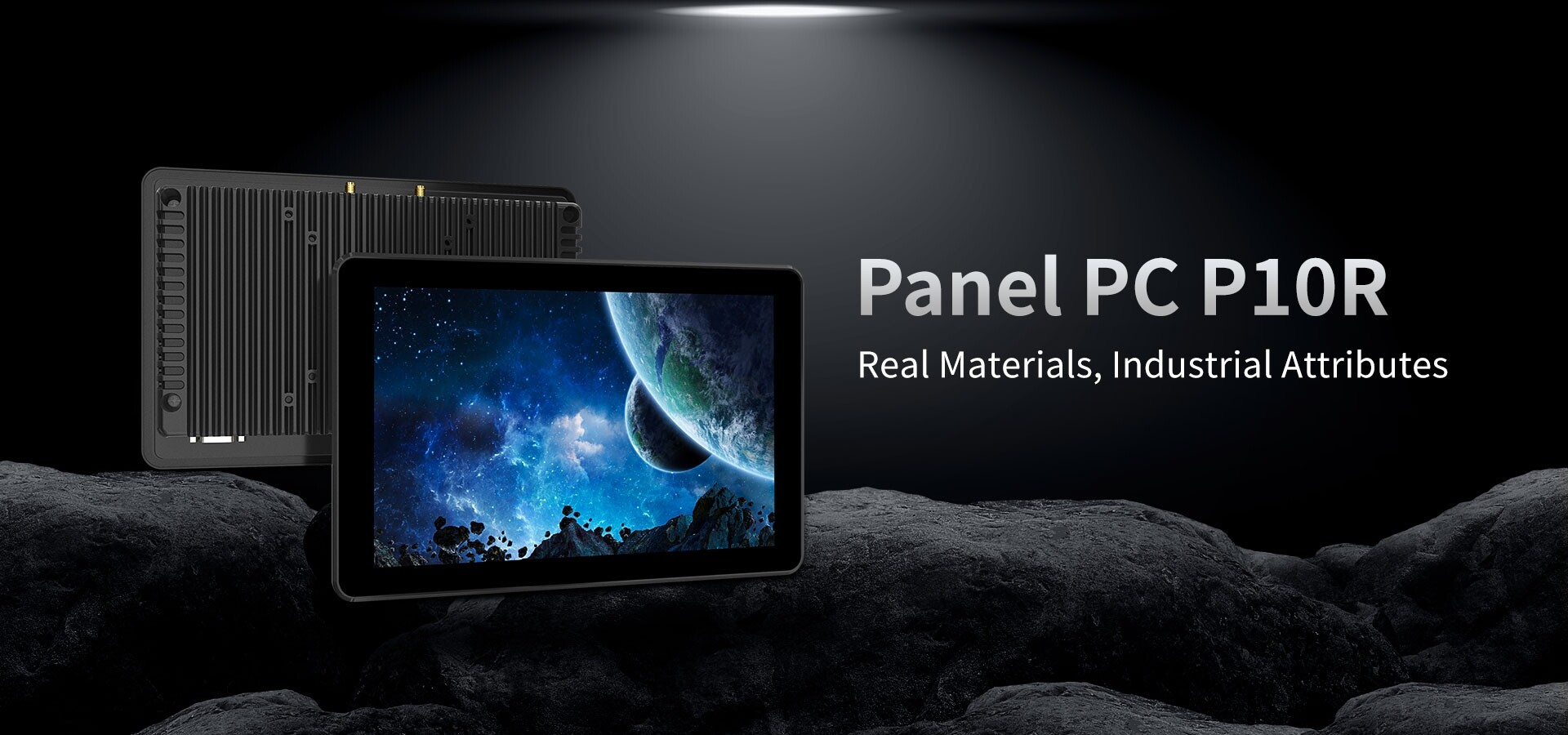

Panel PC
P10R
Real Materials, Industrial Attributes

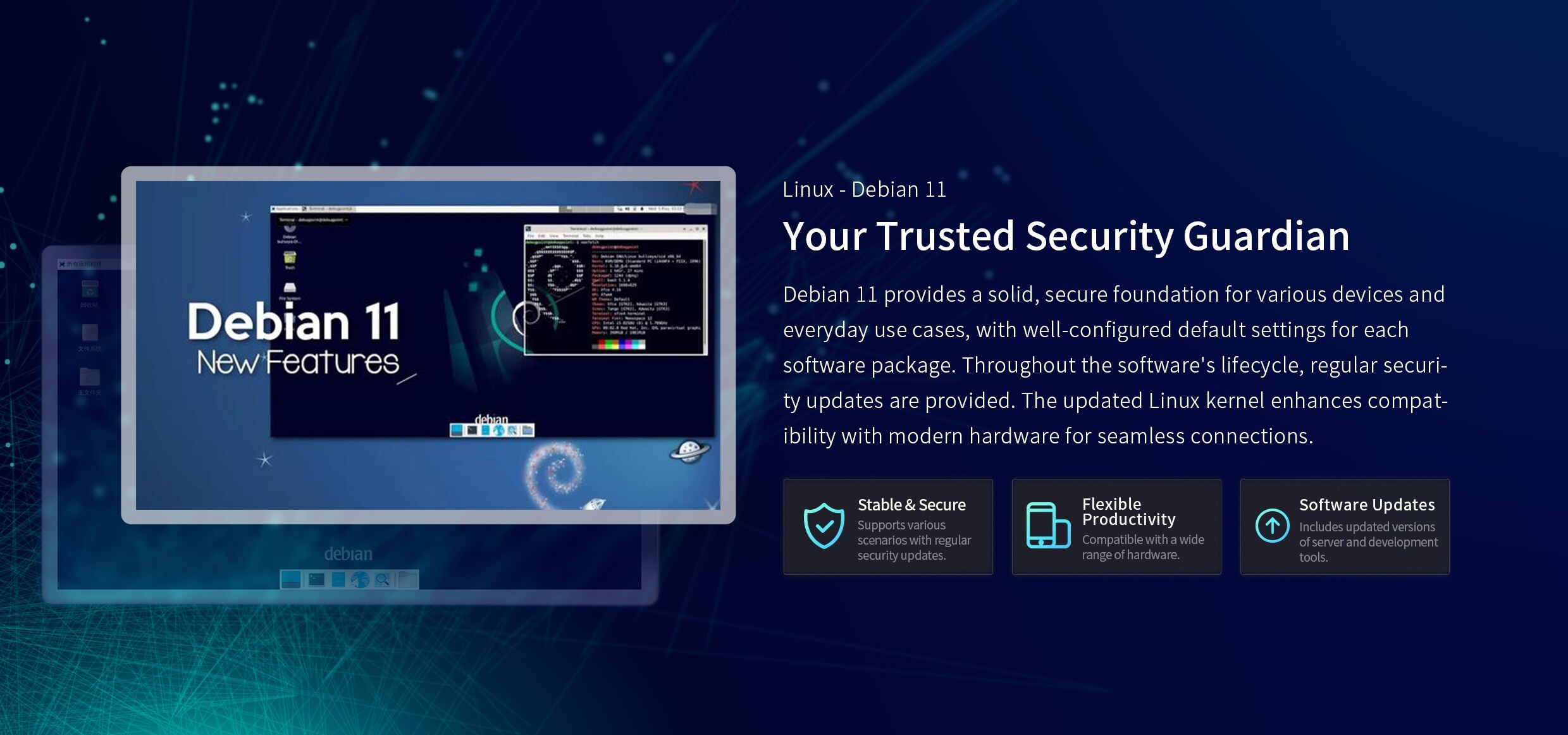

Your Trusted
Security Guardian
Debian 11 provides a solid, secure foundation for various devices and everyday use cases, with well-configured default settings for each software package.
Throughout the software's lifecycle, regular security updates are provided to ensure a safe operating environment. The updated Linux kernel also enhances compatibility with modern hardware for seamless connections.

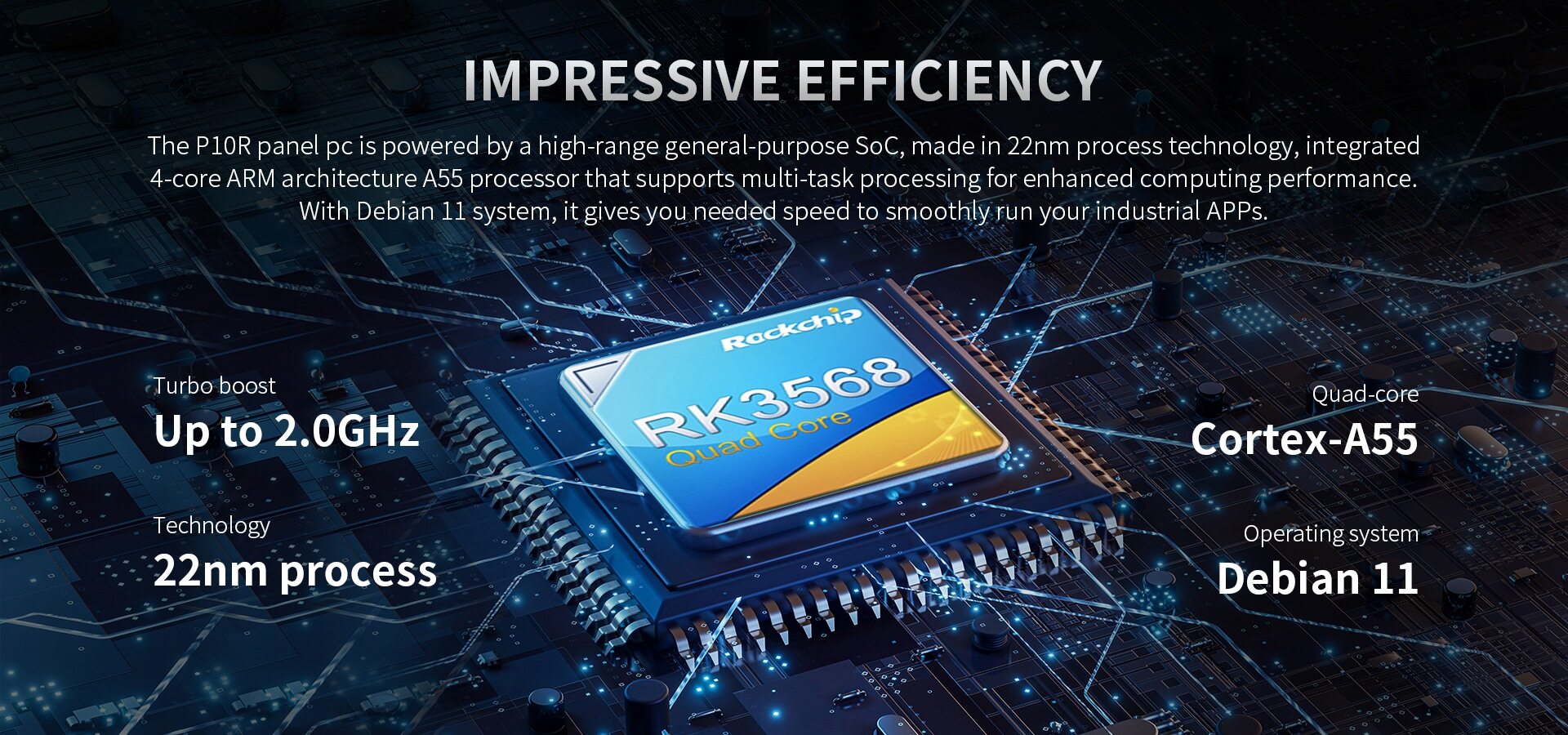

Impressive Efficiency
Optimized for Linux
The P10R Panel PC is powered by a high-range general-purpose SoC, engineered with advanced 22nm process technology. It integrates a 4-core ARM Cortex-A55 processor that excels in multi-tasking.
Optimized for the Debian 11 environment, it delivers the necessary speed and stability to smoothly run your industrial applications, ensuring responsive performance even in the most demanding control tasks.

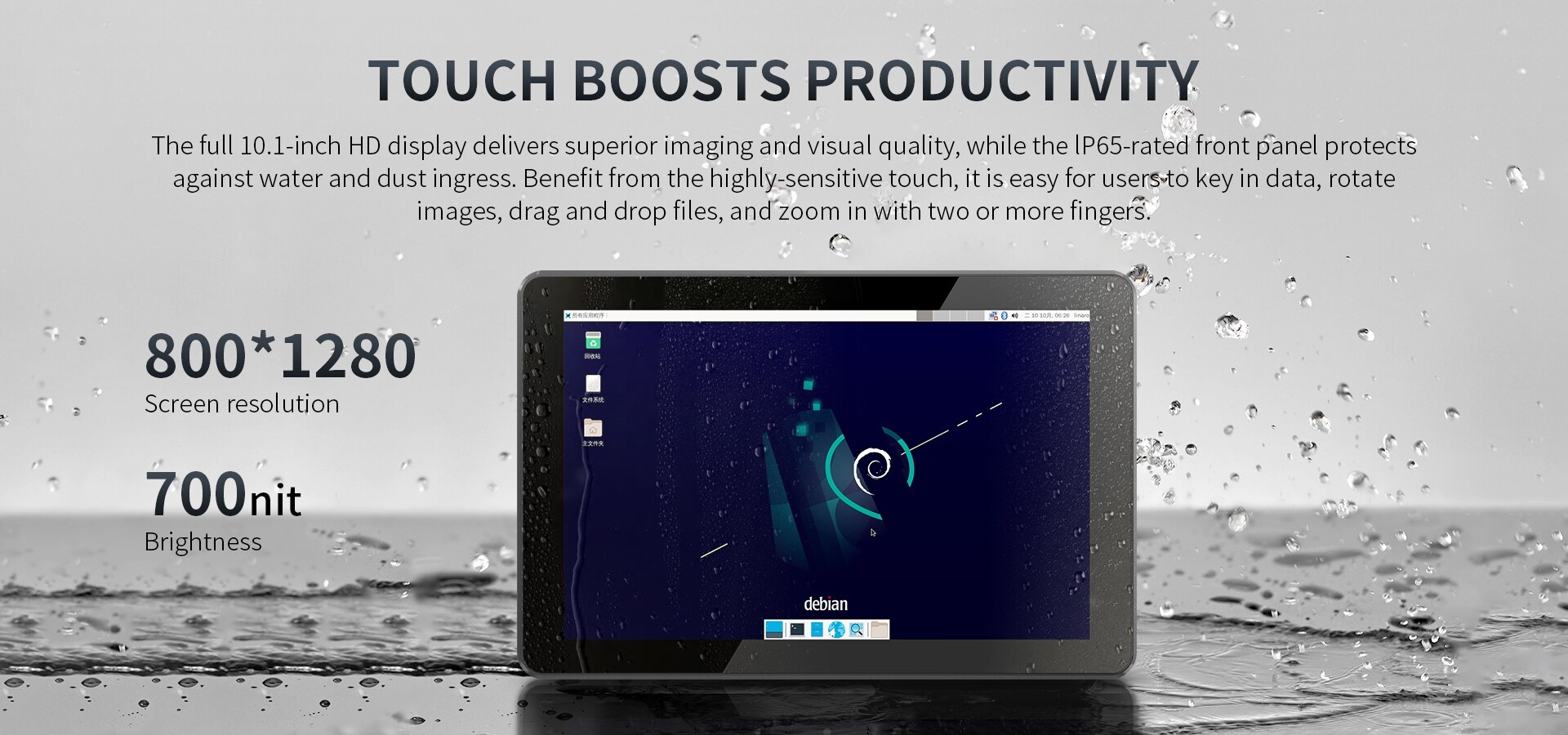

Touch Boosts
Productivity
The 10.1-inch HD display delivers superior imaging and crisp visual quality, while the IP65-rated front panel provides a robust shield against water and dust ingress in harsh environments.
Benefit from the highly-sensitive capacitive touch interface; it allows users to effortlessly key in data, rotate images, drag and drop files, and zoom with multi-finger gestures, enhancing workflow on the Linux platform.

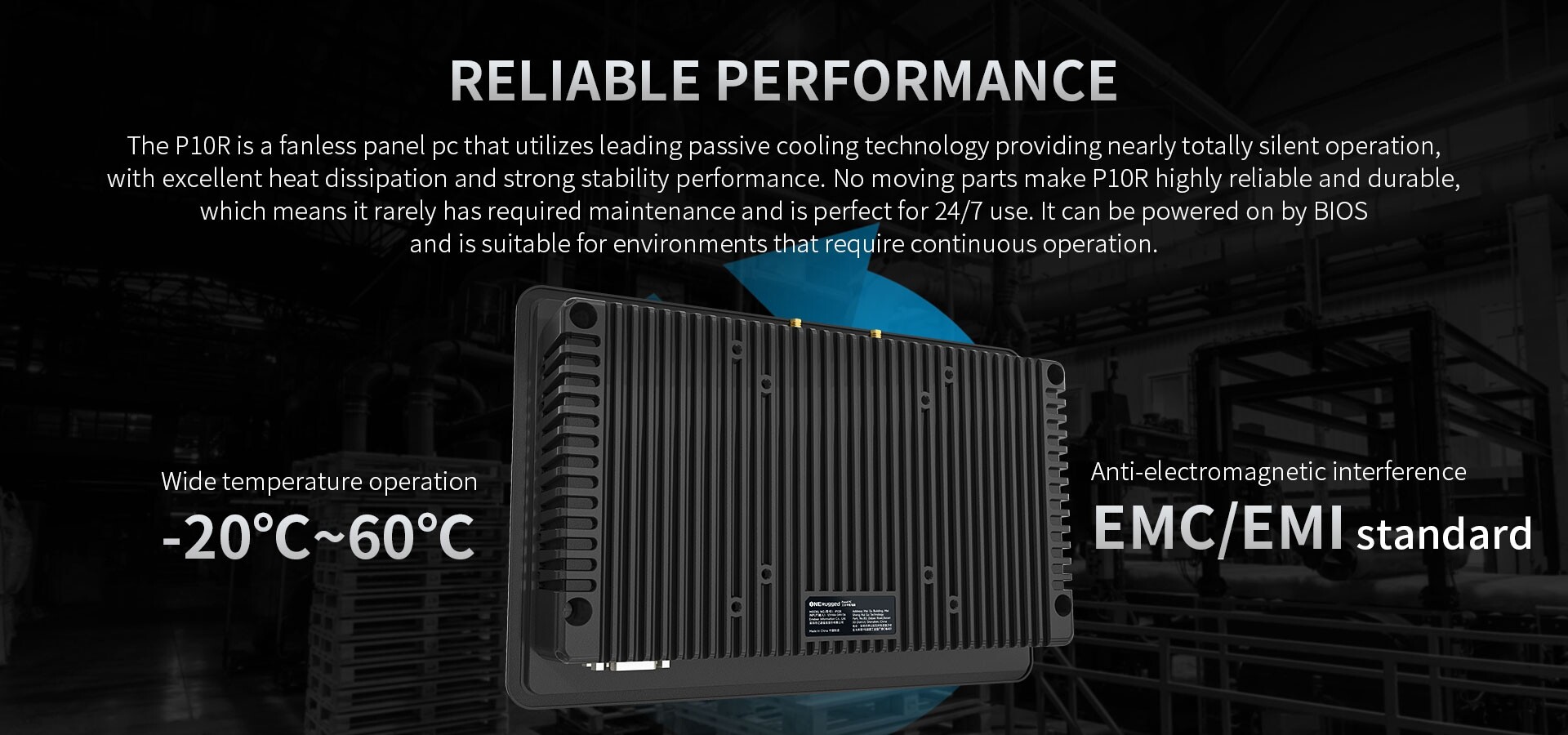

Reliable Performance
Built for 24/7 Stability
The P10R is a fanless Panel PC that utilizes leading passive cooling technology, providing nearly silent operation with excellent heat dissipation and strong stability performance.
With no moving parts, the P10R is highly durable and requires minimal maintenance. It supports Auto Power On via BIOS settings, making it the perfect solution for Linux-based environments that require continuous, round-the-clock operation.

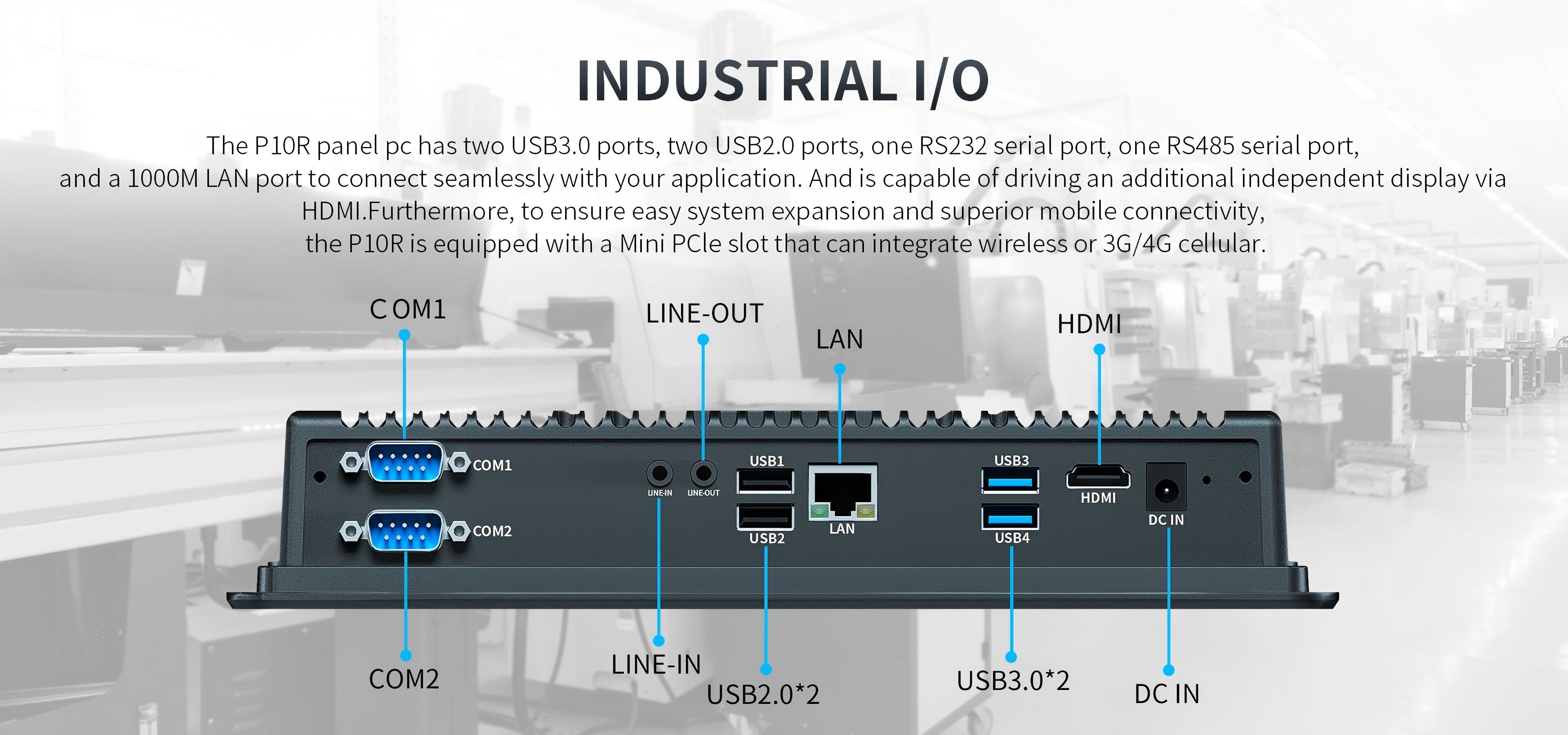

Industrial I/O
Seamless Integration
The P10R Linux Panel PC features a comprehensive range of ports, including dual USB 3.0, dual USB 2.0, RS232, RS485, and a high-speed 1000M LAN port to connect effortlessly with your professional equipment.
It is also capable of driving an additional independent display via HDMI. For ultimate flexibility, the P10R is equipped with a Mini PCIe slot, enabling easy integration of wireless or 3G/4G cellular modules for superior field connectivity.

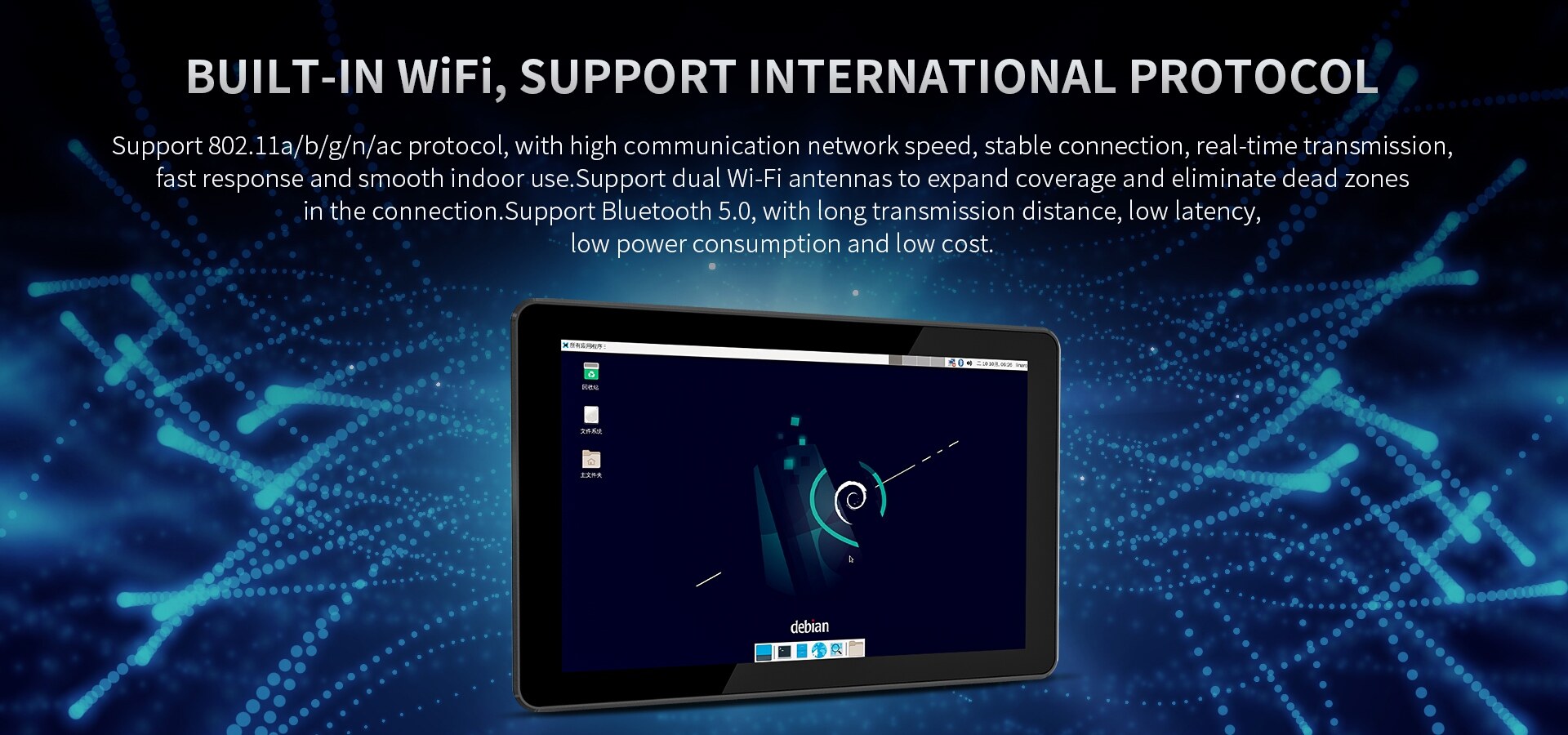

Built-in Wi-Fi 5
Universal Connectivity
The P10R supports the 802.11a/b/g/n/ac international protocols, delivering high-speed data transmission and a stable connection for seamless real-time industrial communication.
Equipped with dual Wi-Fi antennas, it effectively expands coverage and eliminates signal dead zones. Integrated Bluetooth 5.0 ensures low-latency, low-power connectivity with an extended range for all your inter-device requirements.

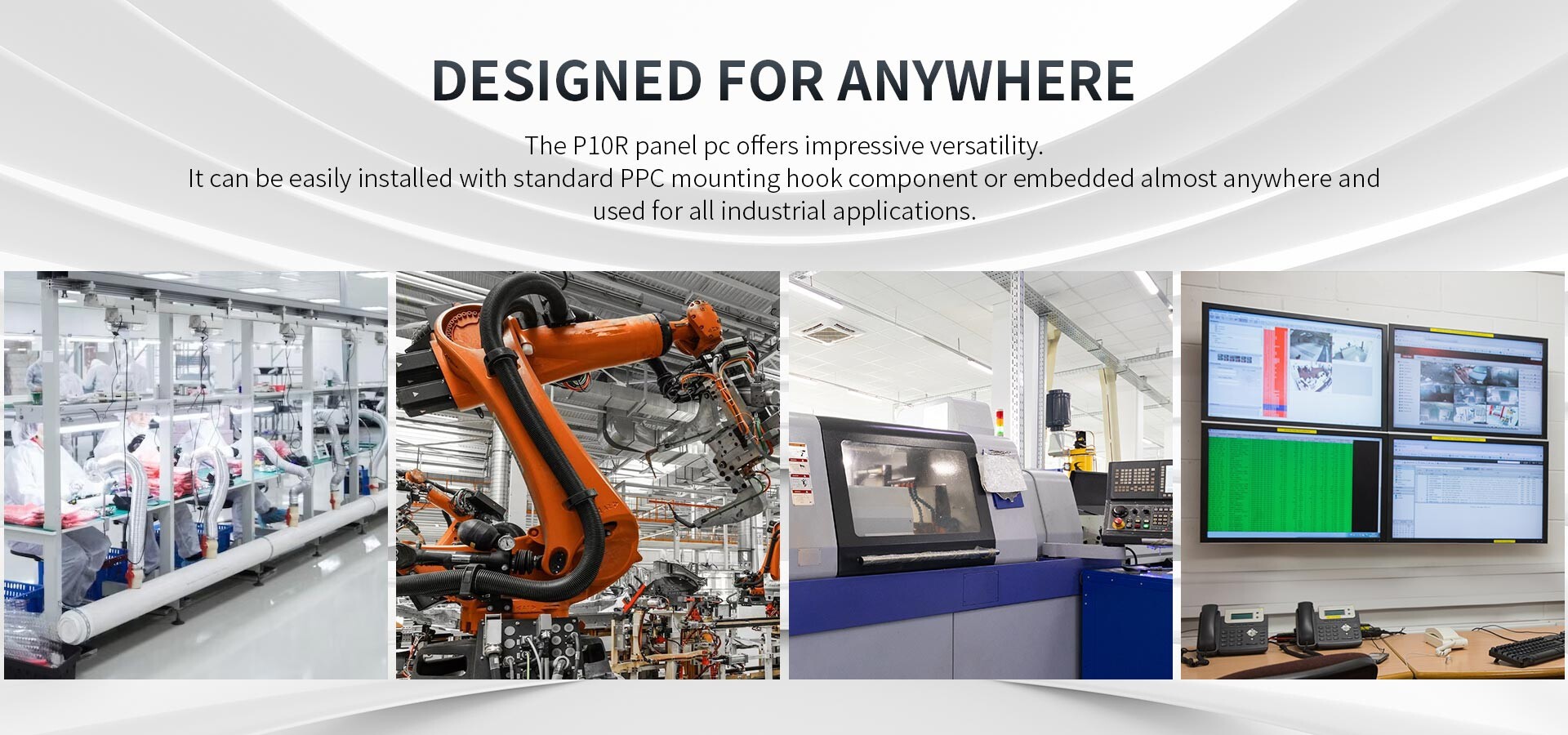

Designed for Anywhere
Maximum Versatility
The P10R Panel PC offers impressive versatility for modern industrial environments. It is engineered to be integrated seamlessly into cabinets or customized machinery with ease.
Using standard PPC mounting hook components, it can be embedded almost anywhere, ensuring a clean and secure fit for all industrial applications, from factory floor automation to smart kiosks.
-
