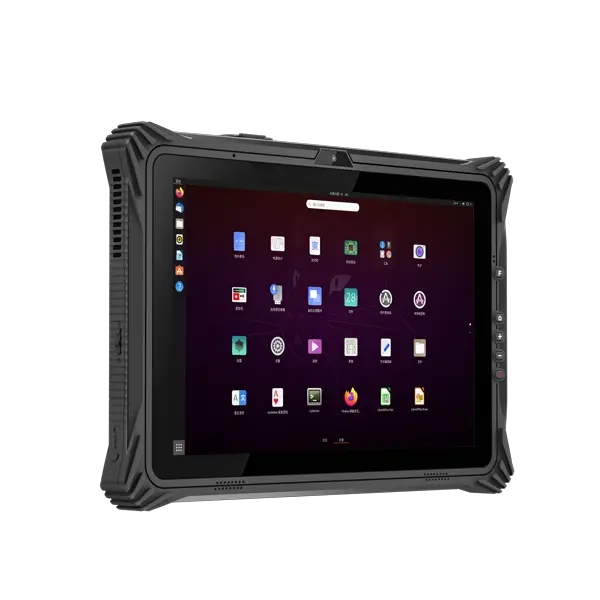

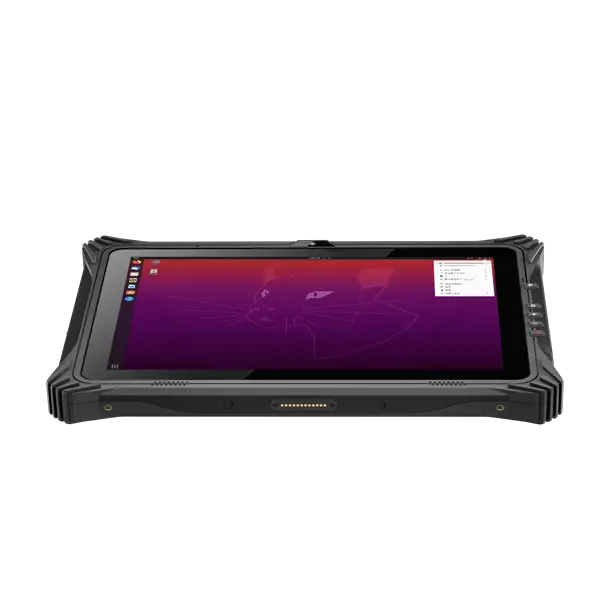

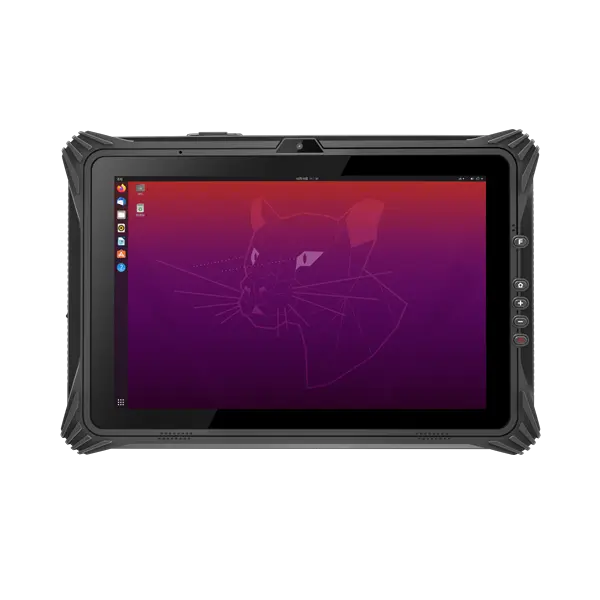

Emdoor Info. Rugged Tablet PC EM-I20J(Linux)

·Intel Celeron quad-core processor (up to 2.90 GHz)

·Ubuntu-20.4.5 OS and 8GB RAM+128GB storage

·12.2 inch FHD screen with 10-point capacitive touch

·2.4G/5.8G Dual band WIFI

·High speed 4G/5G

·BT 5.0 fast transmission

·Choose 1 from 4 modules (2D scan engine, RJ45 Gigabit Ethernet, DB9 and USB2.0 )

·Support GPS and GLONASS

·Equipped with multiple accessories, like docking charger, hand-strap, vehicle mount,carry handle

·IP65 Waterproof and Dustproof

·Vibration & 1.22m drop resistant

·MIL-STD-810G certified

Rugged Tablet PC
Rugged Tablet PC
Rugged Tablet PC
Rugged Tablet PC
Rugged Tablet PC
Rugged Tablet PC
Ubuntu Ubuntu
IP65 IP65
GPS GPS
Dual-battery Dual-battery
Bluetooth Bluetooth
2D 2D
NFC NFC
4G/5G 4G/5G
WiFi WiFi

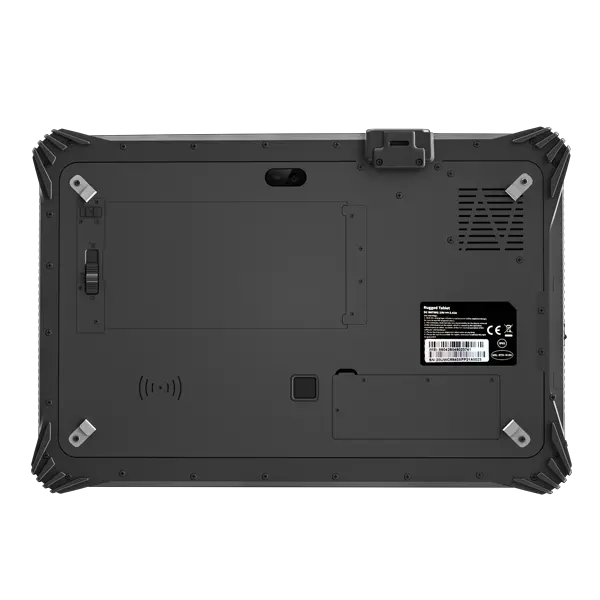

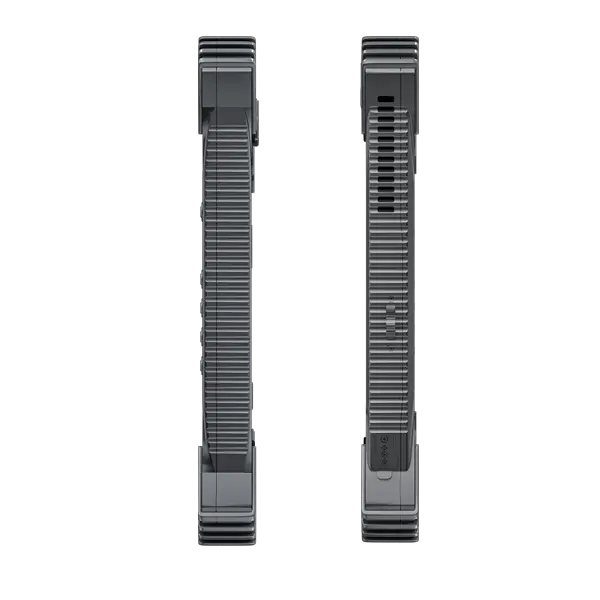

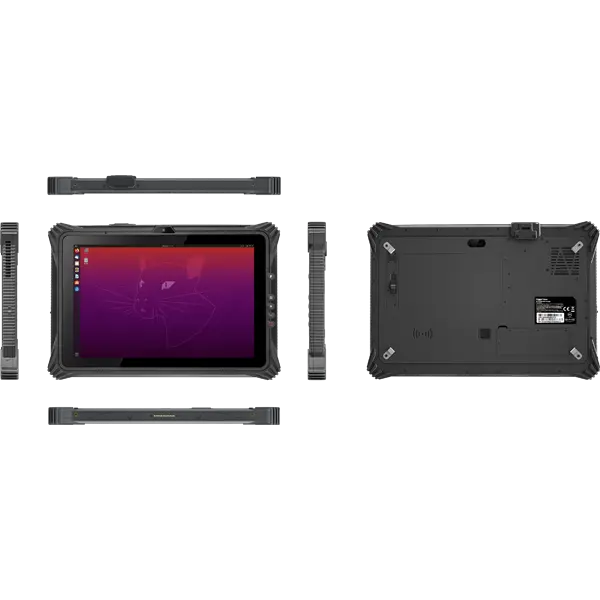

Six Views of EM-I20J: 12.2 inch Rugged Tablet PC Linux


Rugged Tablet PC


* All technical data, specification and performance figures subject to change without notice.



Specifications of EM-I20J: 12.2 inch Rugged Tablet PC Linux

Basic parameters
Dimension339.3 x 230.3 x 26mm
WeightDevice unit 1500g
Device ColorBlack
LCD12.2 inch FHD 16:10,1920×1200,650nits
Touch Panel10 point G+G capacitive touch screen
CameraFront 5.0MP Rear 8.0MP
I/OUSB 3.0 Type-A x 1, USB Type-C x 1,
SIM Card x 1, TF Card x 1,
HDMI 2.0a Mini x 1,
12PIN Pogo Pin x 1,
Φ3.5mm standard earphone jack x 1,
Φ5.5mm DC jack x 1
PowerAC100V ~ 240V, 50Hz/60Hz, Output DC 19V/3.42A
NFCOptional, 13.56MHz,
Support ISO/IEC 14443A/B/15693/18092/mifare protocols
Card reading distance: 4cm
FingerprintStandard
Battery
Capacity7.4V/700mAh
TypeBuilt-in Li-polymer battery
Battery
Capacity7.4V/6300mAh
TypeRemovable Li-polymer battery
Endurance4hrs ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default )
Performance parameter
CPUIntel® Celeron® Processor N5105
OSUbuntu-20.4.5
RAM8GB, Optional 16GB
Storage128GB
Network connections
WIFI802.11 a/b/g/n/ac (2.4G+5.8G)
BluetoothBT5.0
Transmission distance: 10m
4G/5G (Optional)LTE FDD: B1/B3/B7/B8/B20
LTE TDD:B40, WCDMA: B1/B5/B8
GSM: 900/1800
Optional 5G
GNSSSupport GPS, glonass
Reliability
Operate Temperature-20 °C ~ 60 °C
Store Temperature-30 °C ~ 70 °C
Humidity95% Non-Condensing
Rugged FeatureIP65 certified, MIL-STD-810G certified
Drop Height1.22m drop
Extension modules(1 out of 4)
Ethernet interfaceRJ45 (10/100/1000M) x 1,(Standard)
Serial portDB9 (RS232) x 1
USB2.0USB 2.0 x 1
2DOptical resolution: 5mil/scan
speed: 50 times/s



Accessories of EM-I20J: 12.2 inch Rugged Tablet PC Linux


Docking Charger
Docking Charger
Hand-strap
Hand-strap

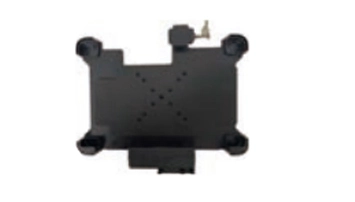

Vehicle Mount
Vehicle Mount
Carry Handle
Carry Handle

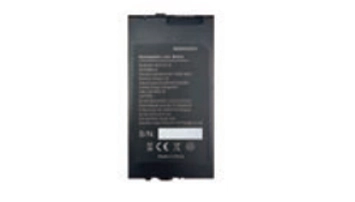

Removable Battery
Removable Battery

Application Range of EM-I20J: 12.2 inch Rugged Tablet PC Linux

Various modules and accessories can be selected to meet customers' application in various industries.


Outdoor Exploration
Outdoor Exploration
Manufacturing Industry
Manufacturing Industry
Finance
Finance
Animal Husbandry
Animal Husbandry
