Intel Celeron N5100 Windows Embedded Box PC B10J

● Intel 11th-Gen Jasper Lake N5100 processor, Windows 11 OS;

● 2.4G+5G WiFi 5, and BT5.0, can expand 4G communication;

● USB3.0/RJ45/DB9/HDMI and other rich interfaces, supports expanding SSD and connecting peripherals;

● Fanless design, stable operation from -20℃ to 60℃;

● 12-24V voltage input to avoid overvoltage/overcurrent;

● Supports wall-mounted, embedded, or desktop installation ;

● High-quality aluminum alloy body for great texture.

Embedded Box PC
Embedded Box PC
Embedded Box PC
Embedded Box PC

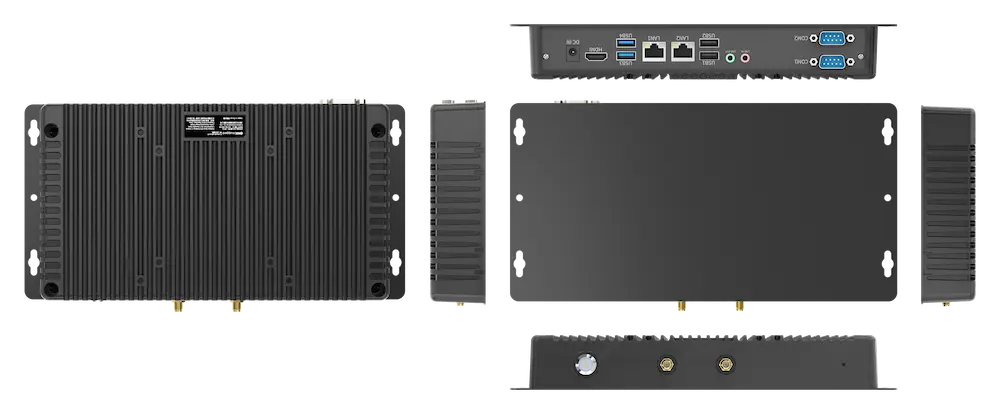

Six Views of Intel Celeron N5100 Fanless Embedded Box PC B10J

Embedded Box PC

Specification of Intel Celeron N5100 Fanless Embedded Box PC B10J

Embedded Box PC B10J
System Parameter
CPUIntel® Celeron® Processor N5100,4M Cache, up to 2.80 GHz
ChipsetIntel UHD
RAM8GB  Onboard
Storage128GB
I/O

SIM *1

USB3.0*2  USB2.0*2"

DC 12V-24V *1

M.2 *1

∮3.5mm Standard earjack*1

RJ45 *2(10/100/1000M adaptive)

HDMI *1

DB9  RS232 *2

OS

Windows 11 Home

Optional:

Windows 11 pro

Power
DCAC100V ~ 240V, 50Hz/60Hz, DC 12V/4A
Product Form
Dimension264x 135.2 x 37.2 mm
Device Colorblack
Weight1 Kg
Reliability
Operate Temperature-20℃ to 60℃
Store Temperature-30℃ to 70℃
HumidityHumidity: 95% Non-Condensing

*Product specifications, pictures, and other information are for reference only.  The appearance is subject to the material object. This instruction is subject to change without notice.


Advantages of Intel Celeron N5100 Fanless Embedded PC B10J

Suitable for continuous use

The PC box 10J can provide incredible performance with the Intel® Celeron processors. It has exceptional capabilities, working continuously on maximum operation. If your application demands powerful, scalable, and efficient processing, the pc box 10J covers you.


Ample availability of I/O ports

One of the strengths of the box PC 10J is the very ample availability of input/output ports and modules. It offers many interface options that allow it to be used in any industrial system.Connectivity includes up to 2x COM, 2x USB 3.0, 2x USB 2.0, 2x RS232,1x M.2 key HDMI and 2x Gigabit Ethernets.


Designed for industrial demands

The fanless industrial-grade design of the box PC 10J is built to withstand the challenges of even the most extreme computing environments. It is elegant, durable, and cool even after long operations under heavy CPU and GPU utilization. With its extended operating temperature range of -20°C to 60°C, you can use it in any industrial environment.


Wide Input Voltage

The box PC 10J provides a wide range of voltage input together with reliability. You can connect any power supply between the 12-36 VDC range, and it will work for weeks and mounts without any issues.


Customized module

Reserving space inside the box PC 10J caters to the various customization demands. Stably fixed by four 63x64 mm positioning holes, the customized module connects to the mainboard via a serial port or USB interface.


Compact for more computing applications

Due to its compact structure, The box PC 10J is easily integrated into existing industrial automation environments. It offers multiple mounting options for different settings. While it can simply be used as a desktop computer or mounted on the wall via the VESA holes.
