Rockchip RK3568 10.1 inch Industrial Panel PC EM-PPC10R

Product Feature:

● RK3568 2.0GHz CPU

● Android 11 OS

● Fanless with low consumption

● IP65 of front panel

● DC 12V

01
02
03
04
05

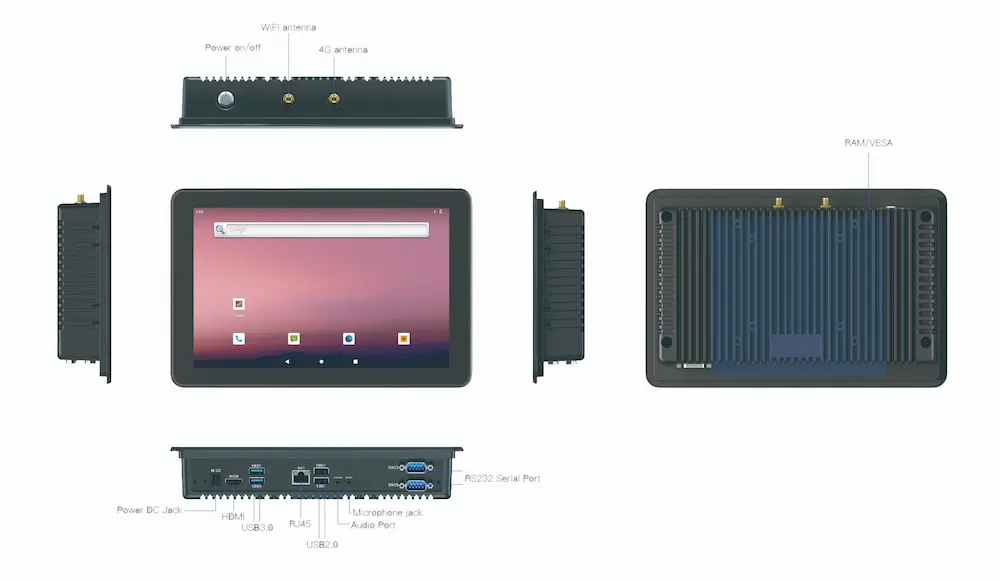

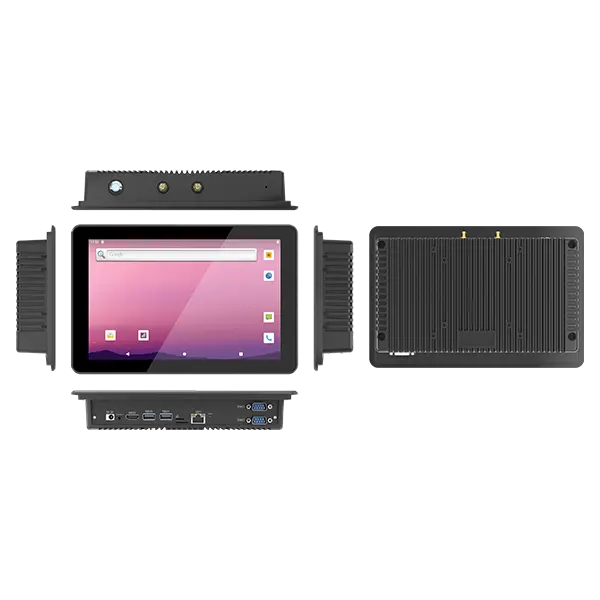

Six Views of Rockchip RK3568 10.1 inch Industrial Panel PC EM-PPC10R



Specification of Rockchip RK3568 10.1 inch Industrial Panel PC EM-PPC10R

TypeDetailsStandard ConfigurationOptional
Product FormTypePPCNA
Dimension257.2*170*45.95mmNA
WeightDevice unit:  1.2kg
Unit with giftbox and standard accessories:  kg
NA
Device ColorBlack(Front and Rear Panel: Black,Decorate Board:Black)NA
LCDScreen Size10.1 inch 10:16NA
Resolution800x1280NA
Brightness450 cd/m2
TPTouch PanelPCAP
SpeakerBuilt-inNANA
System Hardware Configuration
TypeDetailsDescriptionOptional
CPUTypeRK3568 Quad core 64 bit ARM V8.2 Cortex-A55NA
Speedup to 2.0 GHzNA
GPUTypeMali-G52-2EENA
RAMDDR42GB   onboard4GB
EMMC/SSDEMMC/SSD16GB32G
Interface Configuration
TypeDetailsDescriptionsOptional
SIM SlotSIM SlotSIM *1  TF*1NA
type A usbUSBUSB3.0*1  + USB3.0*1 OTGNA
DC JackPowerDC 12V  Power connector  x1NA
Earphone JackAudio Output∮3.5mm Standard Earphone Jack  x1NA
Extensive SlotMiniPCIE1*MiniPCIE X1NA
WIFI /BTWIFI /BT802.11b/g/n  /BT4.0NA
DB9 PORTSerial port*2 RS232NA
DisplayDisplayHDMINA
RJ45 PORTInternet port*1(10/100/1000 Mbps)NA
Standard Accessories
TypeDetailsDescriptionsOptional
Power AdaptorStandardAC100V ~ 240V、50Hz/60Hz output DC 12V/4ANA
NA
Software Configuration
TypeDetailsDescriptionsOptional
Operation SystemOS versionAndroid 11


Product Certificate
TypeDetailsDescriptionsOptional
Certificate SystemIP65IP65 Report:Water Resistance:IP-X5,Dust Resistance:P-6X
a.Inner Nozzle Diameter:6.3mm;   b. Water Speed:12.5±0.625L/min;
c. Water Pressure:Adjust according to water volumn;
d.Central part of water volumn :A round with a diameter of about 40mm at the distance from the nozzle 2.5m.
e.Spray time in surface of panele: About 1 min/Square meter;f.Test time:at least 3min;
g.Distance between nozzle and panel surface:2.5~3m。
After test,there is no water leakage in sample.
NA
CE-NBNANA
MIL-STD-810GNANA
CCCNANA
Reliability
TypeDetailsDescriptionsOptional
Product ReliabilityDrop HeightNA
Operate Temperature-20 °C to 60 °C
Store Temperature-30 °C to 70 °C
HumidityHumidity: 95% Non-Condensing


Product specifications, pictures, and other information are for reference only.  The appearance is subject to the material object. This instruction is subject to change without notice.


Advantages of Rockchip RK3568 10.1 inch Industrial Panel PC EM-PPC10R

IMPRESSIVE EFFICIENCY

The EM-PPC10R/EM-PPC15R/EM-PPC21R industrial computer is powered by a high-range general-purpose SoC, made in 22nm process technology, integrated 4-core ARM architecture A55 processor that supports multi-task processing for enhanced computing performance. The Android 11 system, it gives you the needed speed to smoothly run your industrial APPs.


Touch boosts productivity

The full 10.1 / 15.6 / 21.5-inch HD display delivers superior imaging and visual quality, while the IP65-rated front panel protects against water and dust ingress. Benefiting from the highly-sensitive touch, it is easy for users to key in data, rotate images, drag and drop files, and zoom in with two or more fingers.


450nit Brightness
