Rockchip RK3568 15.6 inch Industrial Panel PC EM-PPC15R

Product Feature:

● RK3568 2.0GHz CPU

● Android 11 OS

● Fanless with low consumption

● IP65 of front panel

● DC 12V


01
02
03
04
05

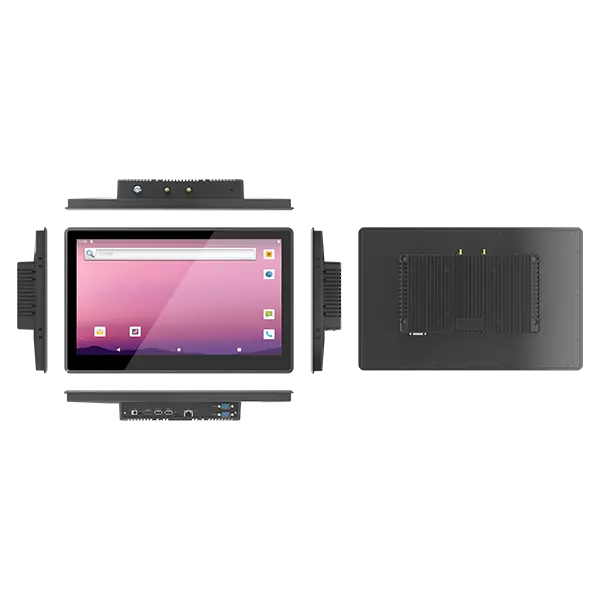

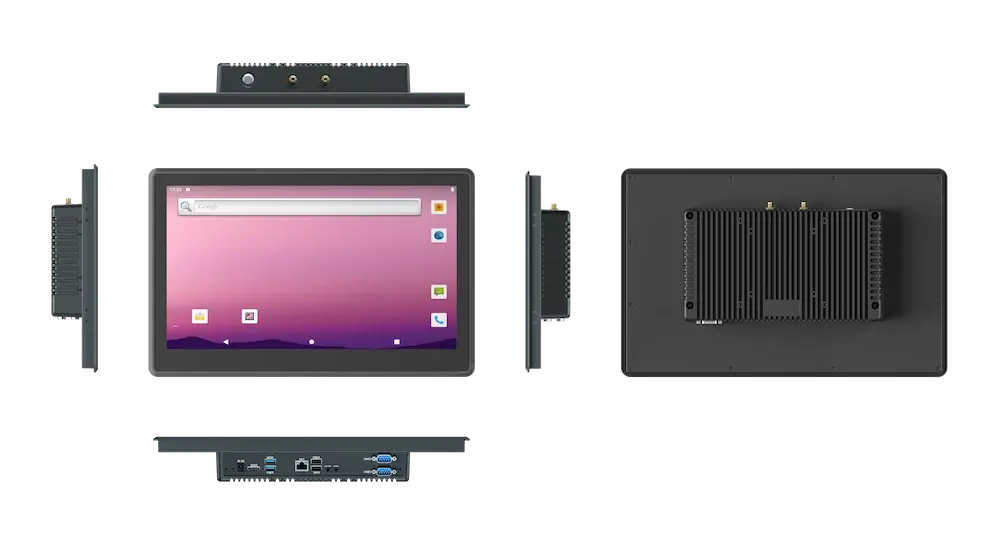

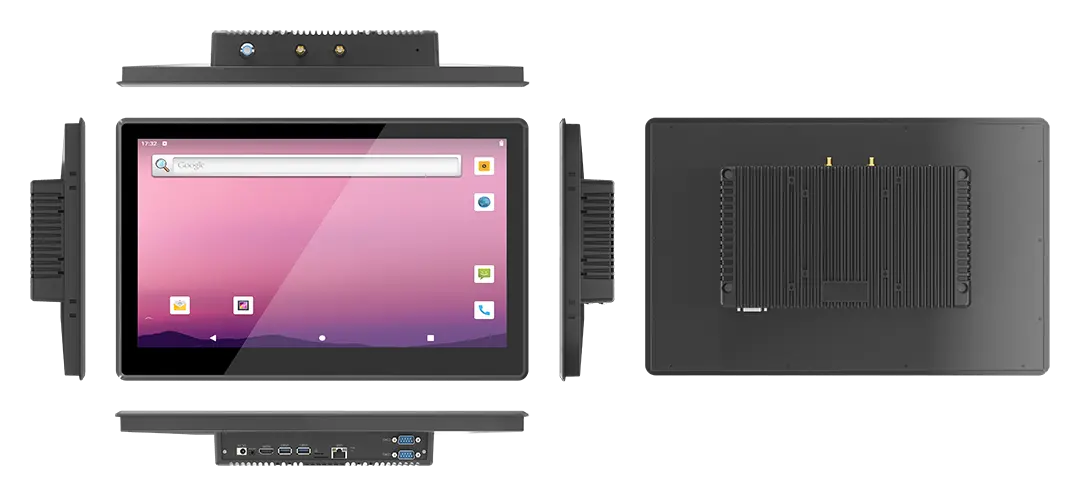

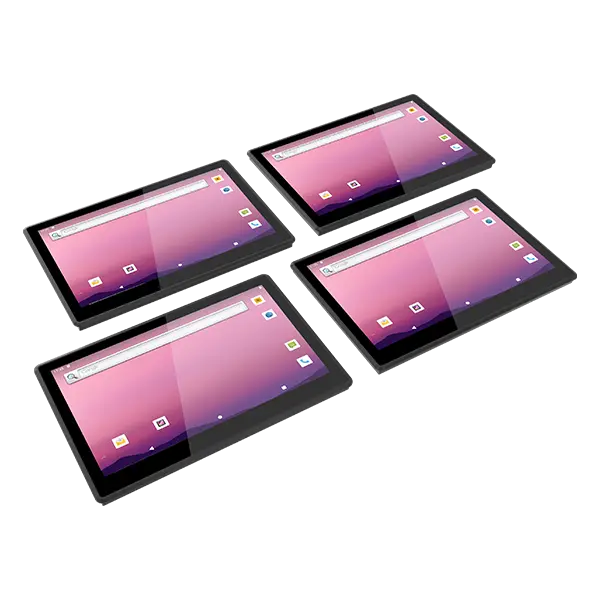

Six Views of Rockchip RK3568 15.6 inch Industrial Panel PC EM-PPC15R



Specification of Rockchip RK3568 15.6 inch Industrial Panel PC EM-PPC15R

TypeDetailsStandard ConfigurationOptional
Product FormTypePPCNA
Dimension388.63 x 248.43 x 54.95 mmNA
WeightDevice unit:   2.4kg
Unit with giftbox and standard accessories:  kg
NA
Device ColorBlack(Front and Rear Panel: Black,Decorate Board:Black)NA
LCDScreen Size15.6inchNA
Resolution1920x1080  16:9NA
Brightness250 cd/m2
TPTouch Panel10 PCAP
SpeakerBuilt-inNANA
System Hardware Configuration
TypeDetailsDescriptionOptional
CPUTypeRK3568 Quad core 64 bit ARM V8.2 Cortex-A55NA
Speedup to 2.0 GHzNA
GPUTypeMali-G52-2EENA
RAMDDR42GB   onboard4GB
EMMC/SSDEMMC/SSD16GB32G
Interface Configuration
TypeDetailsDescriptionsOptional
SIM SlotSIM SlotSIM *1  TF*1NA
type A usbUSBUSB3.0*1  + USB3.0*1 OTGNA
DC JackPowerDC 12V  Power connector  x1NA
Earphone JackAudio Output∮3.5mm Standard Earphone Jack  x1NA
Extensive SlotMiniPCIE1*MiniPCIE X1NA
WIFI /BTWIFI /BT802.11b/g/n  /BT4.0NA
DB9 PORTSerial port*2 RS232NA
DisplayDisplayHDMINA
RJ45 PORTInternet port*1(10/100/1000 Mbps)NA
Standard Accessories
TypeDetailsDescriptionsOptional
Power AdaptorStandardAC100V ~ 240V、50Hz/60Hz output DC 12V/4ANA
NA
Software Configuration
TypeDetailsDescriptionsOptional
Operation SystemOS versionAndroid 11


Product Certificate
TypeDetailsDescriptionsOptional
Certificate SystemIP65IP65 Report:Water Resistance:IP-X5,Dust Resistance:P-6X
a.Inner Nozzle Diameter:6.3mm;   b. Water Speed:12.5±0.625L/min;
c. Water Pressure:Adjust according to water volumn;
d.Central part of water volumn :A round with a diameter of about 40mm at the distance from the nozzle 2.5m.
e.Spray time in surface of panele: About 1 min/Square meter;f.Test time:at least 3min;
g.Distance between nozzle and panel surface:2.5~3m。
After test,there is no water leakage in sample.
NA
CE-NBNANA
MIL-STD-810GNANA
CCCNANA
Reliability
TypeDetailsDescriptionsOptional
Product ReliabilityDrop HeightNA
Operate Temperature-20 °C to 60 °C
Store Temperature-30 °C to 70 °C
HumidityHumidity: 95% Non-Condensing

Product specifications, pictures, and other information are for reference only.  The appearance is subject to the material object. This instruction is subject to change without notice.


Advantages of Rockchip RK3568 15.6 inch Industrial Panel PC EM-PPC15R

RELIABLE PERFORMANCE

The EM-PPC10R/EM-PPC15R/EM-PPC21R is a fanless computer that utilizes leading passive cooling technology providing nearly totally silent operation.

No moving parts make EM-PPC10R/EM-PPC15R/EM-PPC21R highly reliable and durable, which means it rarely has required maintenance and is perfect for 24/7 use.


INDUSTRIAL I/O

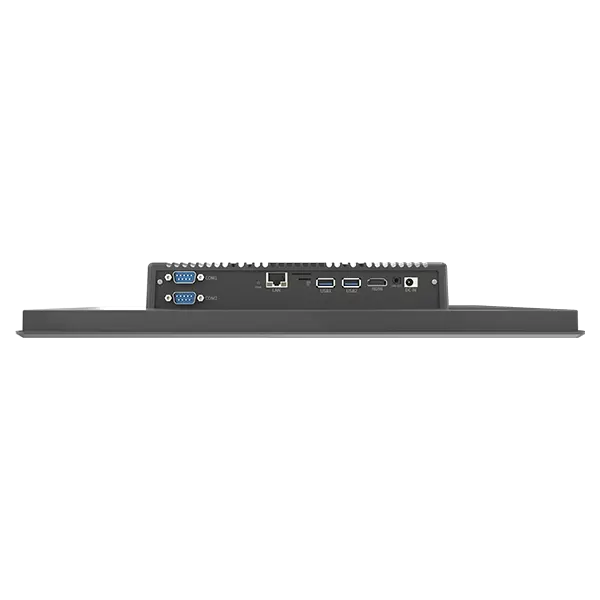

The EM-PPC10R/EM-PPC15R/EM-PPC21R Industrial Panel PC has two USB ports, dual COM ports, and a Gb LAN port to connect seamlessly with your application. And is capable of driving an additional independent display via HDMI. Furthermore, to ensure easy system expansion and superior mobile connectivity, the EM-PPC10J /EM-PPC15J/EM-PPC21J is equipped with a Mini PCIe slot that can integrate wireless or 3G / 4G cellular.
