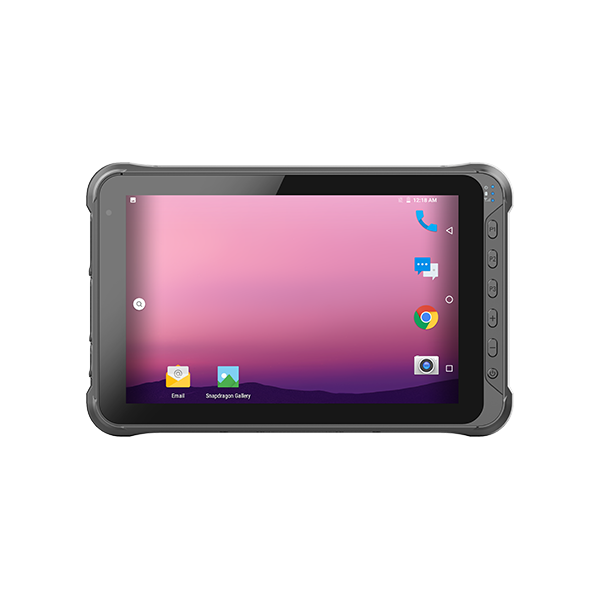

10'' Android: EM-Q15P Android 10.0 System Tablet

  • EM-Q15 Pro Version.

  • Higher performance.

  • Support for Android 10.0 system.

  • 1200x1920 IPS, more suitable for outdoor harsh environment.

  • Support GPS, Glonass, optional Beidou positioning system, more accurate positioning.


Android Android
IP65 IP65
GPS GPS
ID-card ID-card
High-capacity High-capacity
1D 1D
2D 2D
3G/4G 3G/4G
WiFi WiFi
Bluetooth Bluetooth

Features of 10'' Android Tablet EM-Q15P Rugged PC

  • Support for Android 10.0 system

  • Integrated 3G/4G all network communication, WiFi, Bluetooth and other communication modes

  • 10000mAh battery, 7 hours of machine endurance

  • IP65 high protection level, in accordance with MIL-STD-810G

  • Support GPS, Glonass, Optional Beidou, more accurate positioning

  • 1200x1920 IPS, more suitable for outdoor harsh environment

  • Support 1D / 2D, UHF, NFC, ID card and other functional modules for free selection

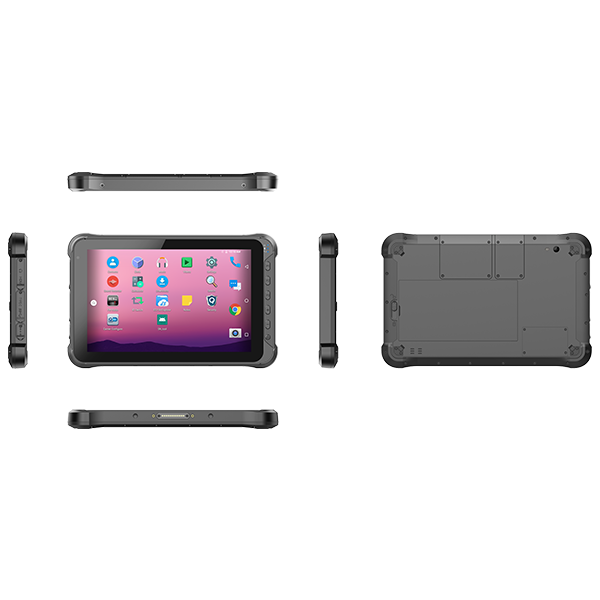

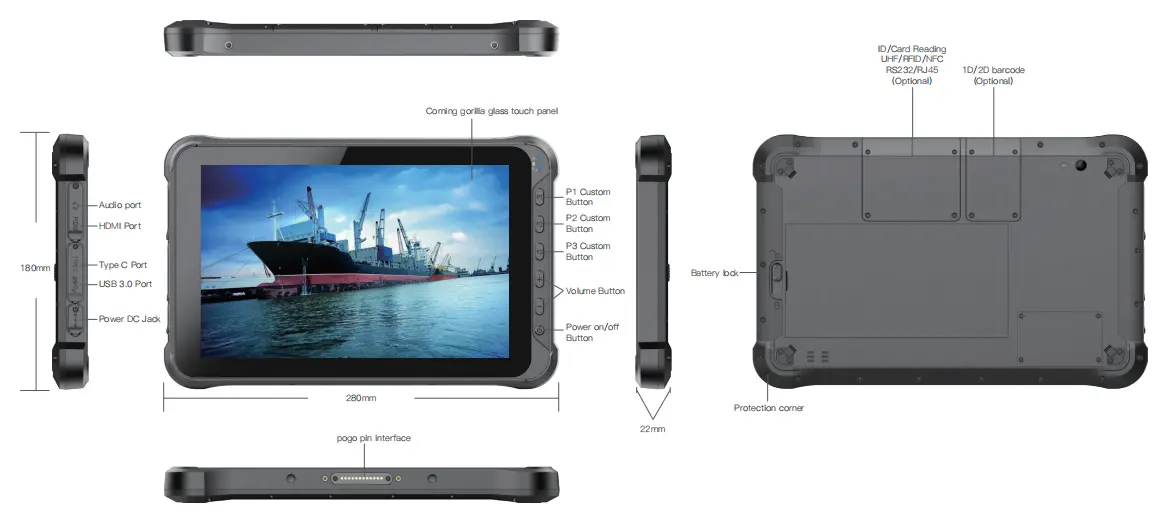

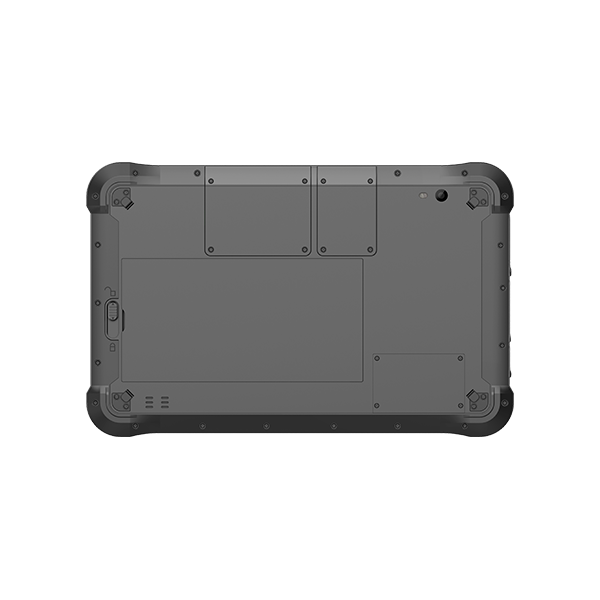

Six views of 10'' Android Tablet EM-Q15P Rugged PC


Specifications of 10'' Android Tablet EM-Q15P Rugged PC


Model No:EM-Q15P Specification
TypeDetailsStandard ConfigurationOptional
Product FormTypeRugged TabletNA
Dimension280*180*22 mm NA
WeightDevice unit: 1068g  Unit with gift box and standard accessories:gNA
Device Colorblack( bottom shell in black, front shell in black)NA
LCDScreen Size10.1“   16:10  NA
Resolution1200*1920NA
Brightness700 cd/m2NA
TPTouch Panel 10points Capacitive,G+G,Rigidity: above 7H-Anti-scratch, TP thickness:1.1mm,COF, support penNA
CameraFrontFront:5.0MP NA
RearRear: 13MP auto-focus with flashlightNA
Speakerbuild in Embedded 8Ω/0.8W waterproof speakerx 1NA
Micbuild in Sensitivity:-42db, output resistance2.2kΩNA
BatteryTypeRemovable polymer lithium-ion batteryNA
Capacity3.7V/10000mAh NA
Endurancenearly 7 hours ( 50% volume sounds,50% brightness, 1080P HD video display by default )NA
System Hardware Configuration
TypeDetailsDescriptionsOptional
CPUTypeMSM 8976  Plus 8核NA
Speed2.2GHZNA
GPUtypeAdreno 512 GPU NA
RAMMemory4GBNA
ROM  storage64GBNA
 Indicator lightbuild in Indicator light of charge, red light will flash when the device has low power. red long light when charging, green long light when full powerNA
Compass Built-inCompass  Sensor *1NA
Gyro SensorBuilt-inGyro Sensor *1NA
G_sensorbuild in Gravity acceleration sensorNA
Network Connections
TypeDetailsDescriptionsOptional
WIFIWIFI moduleWIFI 802.11 b/g/n/a/ac frequency 2.4G+5G dual-band WIFI,SC66E support mimo
Bluetoothbuild in BT5.0(BLE)NA
2G/3G/4GBbuild in LTE FDD: B1/B3/B5/B7/B8/B20/B28A
LTE TDD: B38/B40/B41
WCDMA: B1/B2/B5/B8
GSM: 850/900/1800/1900MHz
North America SC66-A:
LTE FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/ B26/B66/B71 LTE TDD: B41① WCDMA: B2/B4/B5
GPSbuild in support:GPS+Glonass;Capture sensitivity:-140 dBmCool Start Time<50s,Hot start time<5s,GPS frequency1575.42MHzGlonass frequency:1602MHZOptional ublox NE0-M8N-0,support GPS,GLONASS,BEIdou
serial portoptionalNA RS232
Ethernet interfaceoptionalNA*1(10/100M self-adaption) with indicator light
NFCbuild in NANFC-ST21
ID ModuleoptionalNAsupport reading the fingerprint information in the 1st and 2nd ID card
Port:USB or TTL serial port optional
power 5v or 3.3v,size:53mm*52mm*10mm
UHFoptionalNAUFH,Working spectrum range
 902Mhz – 928Mhz,inventory tag peak velocity > 50 pcs /second,
Data Collection
TypeDetailsDescriptionOptional
1DOPTIONALHoneywell N4313(TTL)Honeywell N4313
optical resolution:5mil
scan speed:50 times/s
support code system:UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code 128,GS1-128,ISBT 128,Code 39,Trioptic Code 39 ,Code 32,Code 93  ,Code 11
2DOPTIONALHoneywell N3680  Hard decoding(TTL)Honeywell N3680
optical resolution:5mil
scan speed:50 times/s
support code system: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse
  Maxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse
Interface Configuration
TypeDetailsDescriptionsOptional
SIM CardSIM CardSIM card   x2     in tabletNA
TF CardTF Card x1    max:128GNA
USB InterfaceExtend external memory and data transferStandard USB 2.0*1         TypeC x1data&charingNA
Earphone JackAudio Output3.5mm standard earphone jack  x1NA
DC JackPowerDC 5.5V 4A 5.5mm Power connector  x1NA
HDMI Video OutputMini HDMI  x1NA
Extensive Slotpogo Pin12pin  Pogo Pin   x1NA
KeysKeysPower*1、Vol*2,P*3NA
Standard Accessories
TypeDetailsDescriptionOptional configuration
OTG cableOTG cableType C OTG line L = 138mmNA
USB cable USB cableUSB - Type - C, USB data cable, 0003946, black wire length 1.0m, CC pin with resistance, one side connected to VCC, the other side emptyNA
Power AdaptorStandardInput:100 ~240V,AC 50/60Hz  Output:5.5V DC 4A  , straight end tuning fork, 18  standard round line, 1185 od3.51000 ± 30mm, 6 * 9 clamp tail, DC head: 5.5 * 2.5 * 10mm, shell size: l121.8 * w54.3 * h33.8mm, 48W, black tail, UL label, name plate: PVC printing (Grade 6, rohs2.0NA
Software Configuration
TypeDetailsDescriptionOptional
Operation SystemOS versionAndroid 10.0/GMS
Software Configuration
TypeDetailsDescriptionOptional
Certificate SystemIP65IP65 Report: Water resistance:IP-X5,Dust resistance:IP-6X  Report ID no.:SET2015-07677
a.Inner Nozzle diameter:6.3mm;   b. water speed:12.5±0.625L/min;
c. Water Pressure:adjust according to water volumn;
d.Central part of water volumne.Spray time on surface of panel:about 1min;f.test time:at least 3min;
g.distance between nozzle and panel surface:2.5~3m。
After test,there is no water leakage in sample.
NA
CE NBY
MIL-STD-810GY
BatteryUN38.3,MSDS, Aviation report, Sea transportation report, IEC62133
Reliability
TypeDetailsDescriptionsOptional
Product ReliabilityDrop HeightMIL-STD-810G 1.22m drop
Operate Temperature‘-20 °C to 55 °C
Store Temperature’-30 °C to 70 °C
HumidityHumidity: 95% Non-Condensing



Application Range of 10'' Android Tablet EM-Q15P Rugged PC

Various modules and accessories can be selected to meet customers' application in various industries.



Accessories of 10'' Android Tablet EM-Q15P Rugged PC

Various modules and accessories can be selected to meet customers' application in various industries.

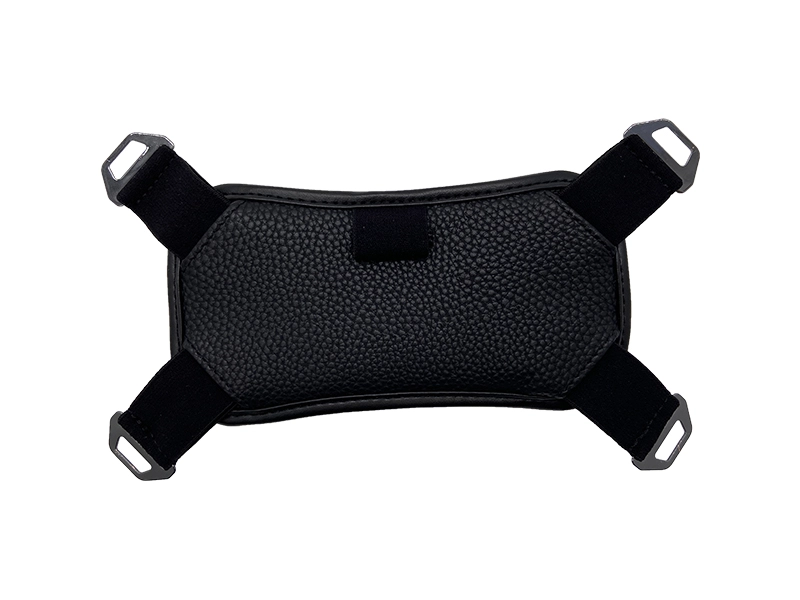

Hand-strap
Hand-strap

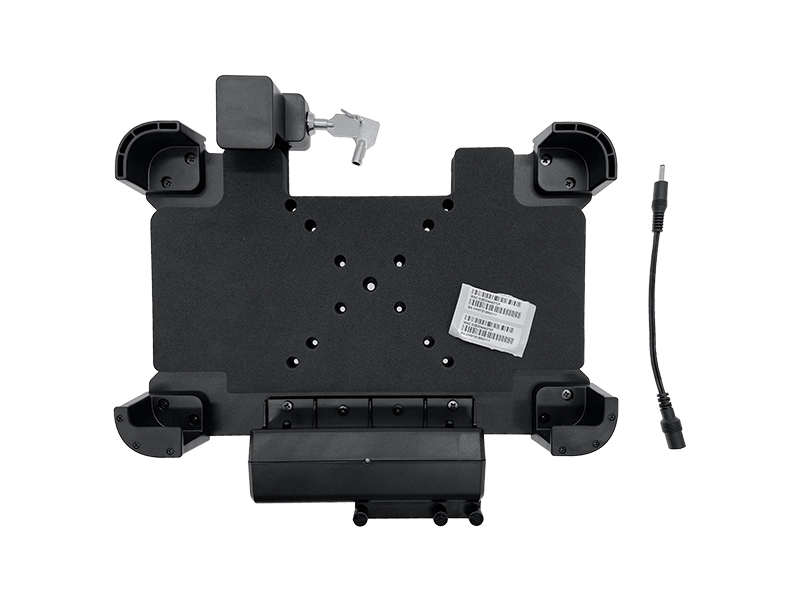

Vehicle Mount
Vehicle Mount

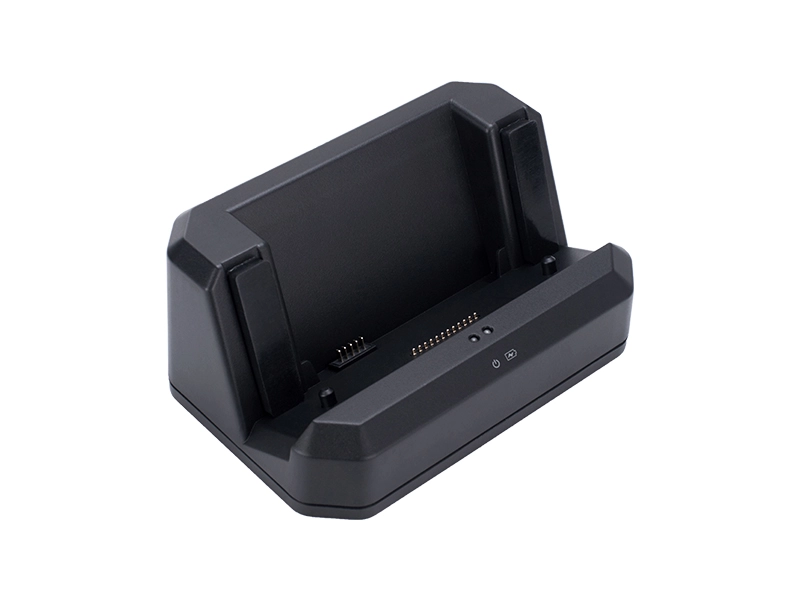

Docking Charger
Docking Charger

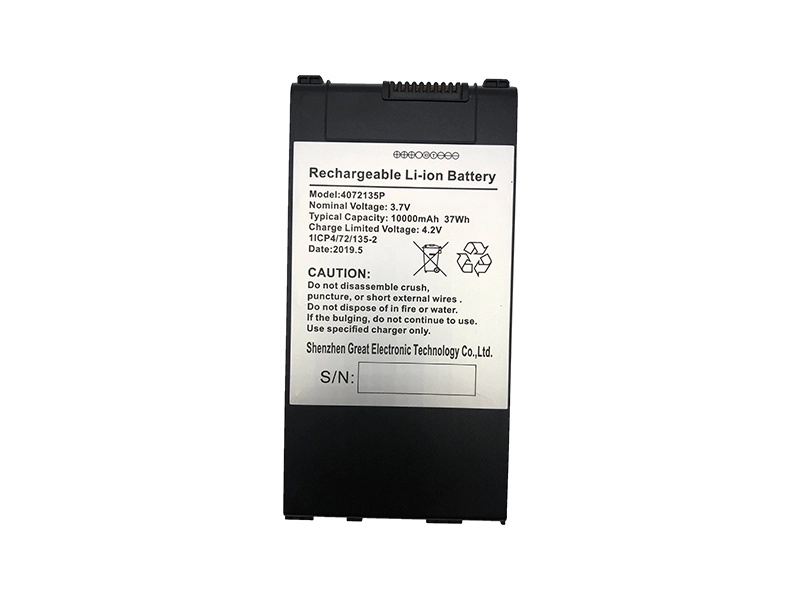

Battery
Battery

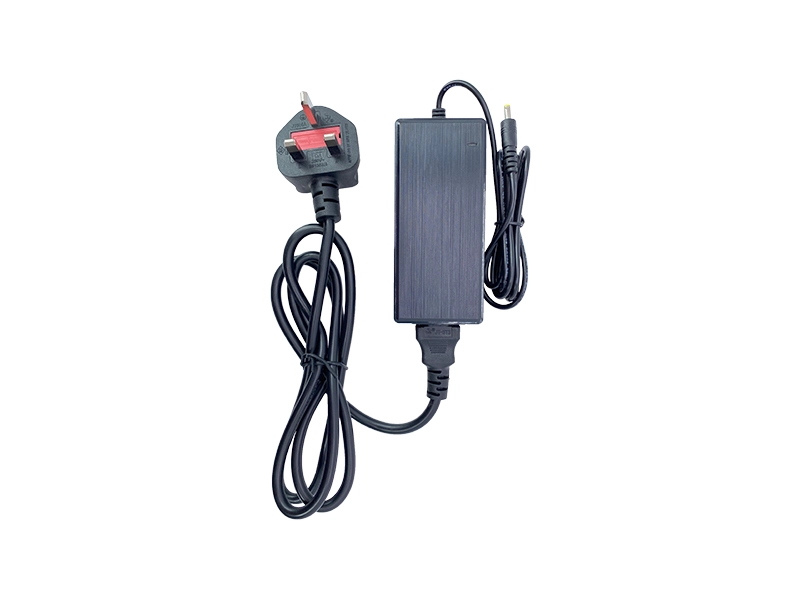

Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter-cable
Adapter-cable
Adapter-cable
Adapter-cable
Adapter-cable
Adapter-cable
Adapter-cable
Adapter-cable
