10.1'' Intel: EM-I12U 4G Windows 10 Industrial Tablet

 Full magnesium alloy body;

 Intel® Core™ i5-8250U/i7-8550U processor;

 Windows 10 OS, Up to 16GB + 128GB;

 Vibration & 1.22m drop-resistant;

 IP65 Waterproof, and Dustproof, MIL-STD-810G certified;

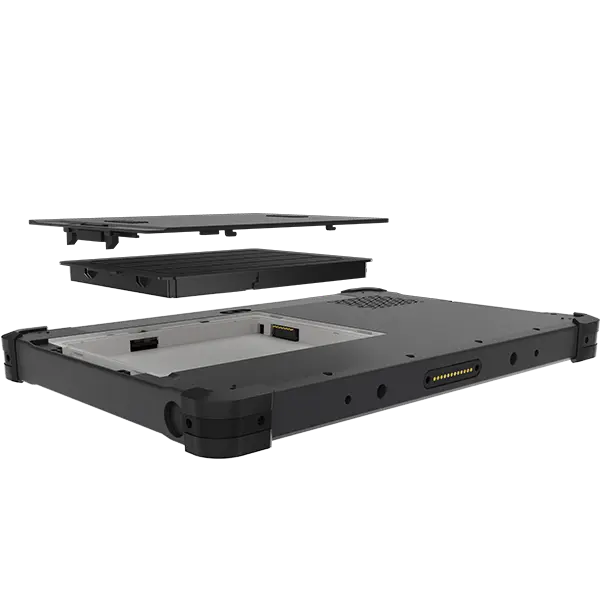

 Hot-swappable design, 5000mAh/860mAh dual-battery;

 10.1 inch IPS Full HD screen with 10-point capacitive touch;

 Dual-band WIFI, High speed 4G LTE BT 4.2, support GPS, Glonass, and BeiDou;

 Optional professional 2D scan engine; USB Type-C interface, USB 3.0 interface, 3.5mm audio interface,  DC power interface; Expandable HDMI Mini interface, aviation plug-in charging interface, antenna BNC interface.

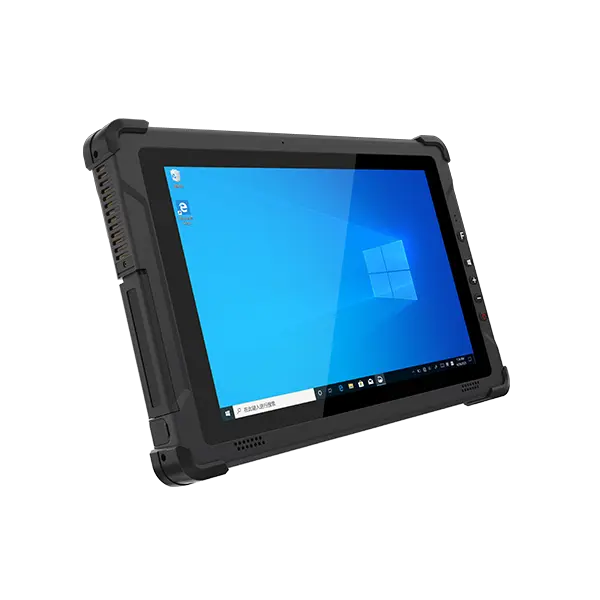

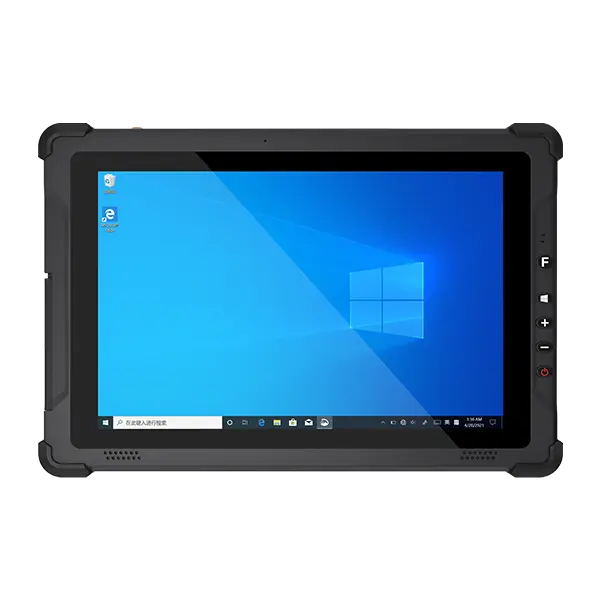

10.1'' Intel: EM-I12U Rugged Tablet- front-view

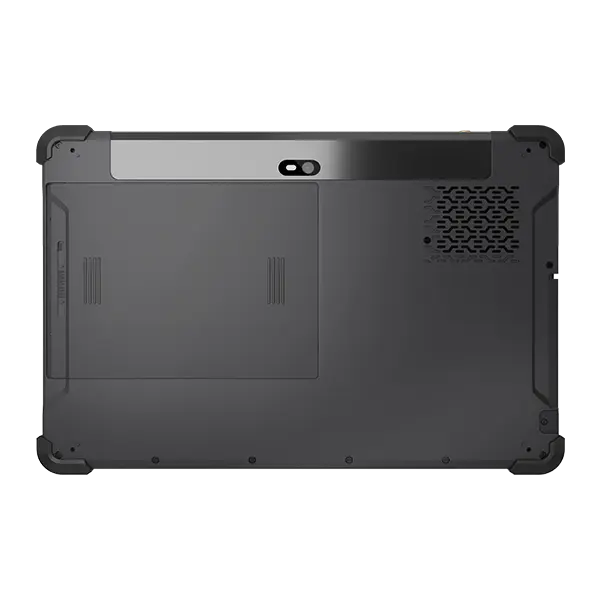

10.1'' Intel: EM-I12U Rugged Tablet-back-view

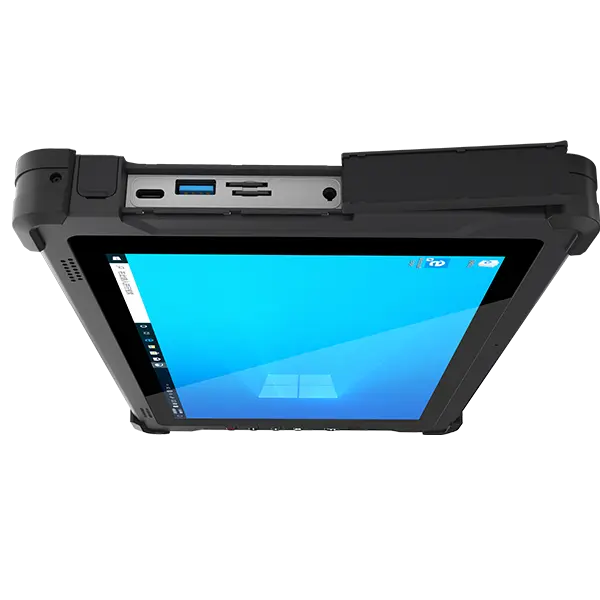

10.1'' Intel: EM-I12U Rugged Tablet-left view

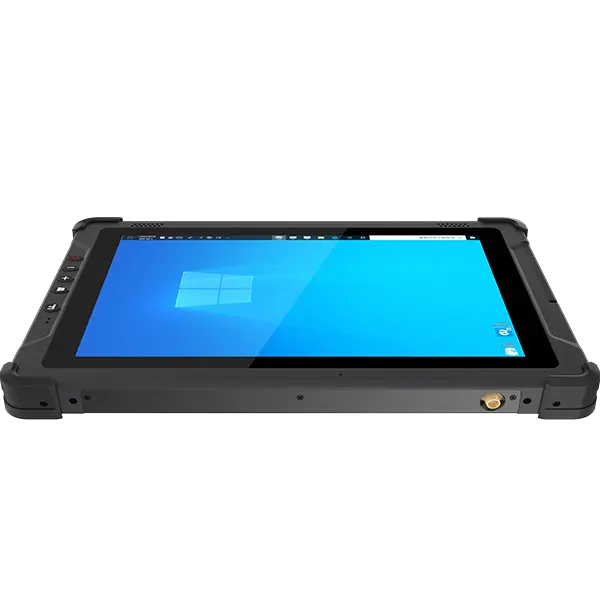

10.1'' Intel: EM-I12U Rugged Tablet-bottom-view
10.1'' Intel EM-I12U 4G Windows 10 Industrial Tablet
10.1'' Intel EM-I12U 4G Windows 10 Industrial Tablet
10.1'' Intel EM-I12U 4G Windows 10 Industrial Tablet
Windows Windows
IP65 IP65
GNSS
GNSS
Dual-battery Dual-battery
Bluetooth Bluetooth
2D 2D
4G 4G
NFC NFC
WiFi WiFi

Features of 10.1'' Intel: EM-I12U Windows Industrial Tablet

  • Support Windows 10;

  • Support  USB3.0 type A connector;

  • Support Battery Single Charger Docking;

  • Support GPS navigation;

  • Support 1D/2D barcode scanner;

  • Rugged IP65 protection level;

  • Support 5000mAh pluggable battery, big and small double batteries;

  • Support Wrist Strap and back jacket;

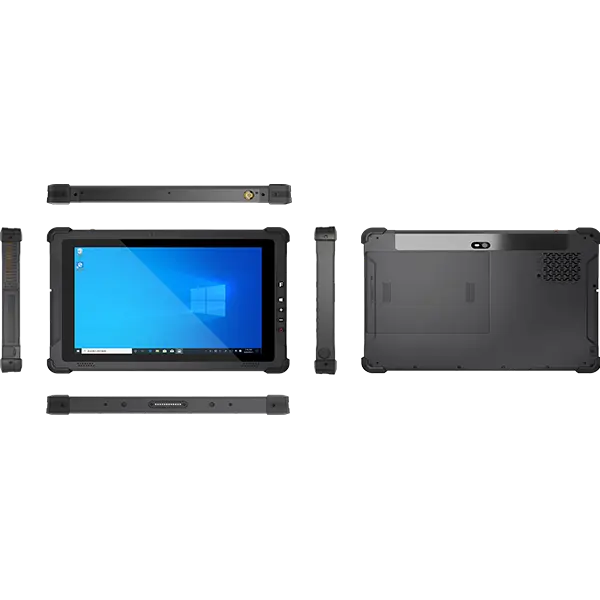

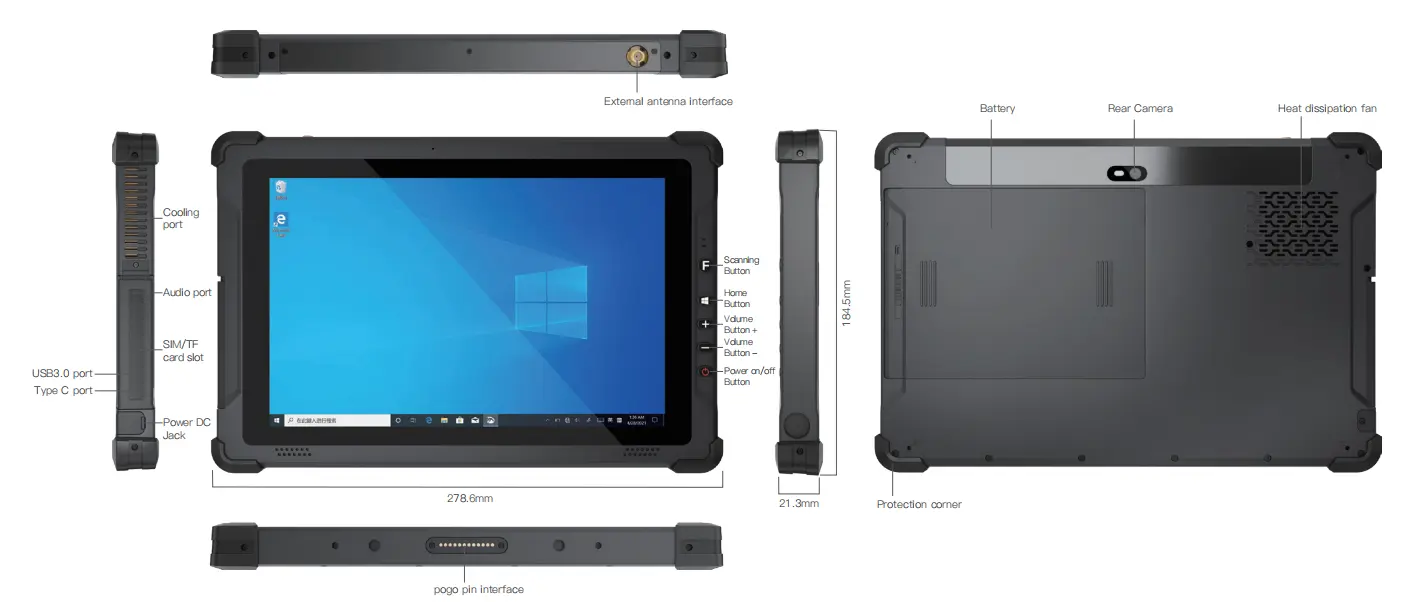

Six Views of 10.1'' Intel: EM-I12U Windows Industrial Tablet

Six Views of 10.1'' Intel: EM-I12U Rugged Tablet







Specifications of 10.1'' Intel: EM-I12J Windows Industrial Tablet


TypeDetailsStandard ConfigurationOptional
Product FormTypeRugged TabletNA
Dimension290*196*22mmNA
WeightDevice unit: 1190g
5000mAh battery:250g
NA
Device ColorMagnesium alloys(Front and Rear Panel: Black,Decorate Board:Black)NA
LCDScreen Size10.1 inch   16:10Full-fit components
Resolution1200×1920
Brightness400 cd/m2
TPTouch Panel5 points Capacitive, G+G, Rigidity: above 7H-Anti-scratchOptional SLR Sunlight visible film
CameraRearRear: 8.0MP    USB Camera With a flashlightNA
SpeakerBuilt-inEmbedded 8Ω/0.8W waterproof speaker x 1NA
Mic
Sensitivity:-42db, Output resistance:2.2kΩNA
Small BatteryTypeBuild-in Lithium-ion polymer battery,  Non-removableNA
Capacity7.4V/860mAhNA
Endurance30mins(default 50% volume,default200nit,play 1080P HD video)NA
Bigl BatteryTypeLithium-ion polymer battery, pluggable, Hot SwapNA
Capacity7.4V/5000mAhNA
Endurance5hrs(default 50% volume,default200nit,play 1080P HD video)NA
System Hardware Configuration
TypeDetailsDescriptionOptional
CPUType8th Generation  KBL-R Intel® Core™ i5-8250U8th Generation  KBL-R Intel® Core™ i7-8550U
Speed4M Cache, 3.40 GHzmaximum frequency 4.0 GHz
GPUTypeIntel® UHD Graphics 620Intel® UHD Graphics 620
RAMDDR4L8GB16GB
SSDNGFF SSD128GB   removable128GB /256GB/512GB
TPMBuilt-inTPM2.0   SLB9665TNA
G_sensorBuilt-inGravity acceleration sensorNA
FingerprintBuilt-in×1 SPI Fingerprint (windows hellow boot login)NA
FanBuilt-in×1  IPX5  FanNA
NFCBuilt-inNANXP100
Network Connections
TypeDetailsDescriptionOptional
WIFIWIFI ModuleWIFI 802.11(a/b/g/n/ac)  dual-frequency 2.4G+5.8G WIFINA
BluetoothBuilt-inBT4.2 (BLE) class1  transmitted distance:10mNA
4GBuilt-inEC25-EC
LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8                                      China (China Unicom Telecom, mobile support is not good, only B8 supports no TDD band) Europe, Middle East, Africa, Taiwan, Japan
NA
GPSBuilt-inU-Blox  M8Q, Support: GPS, Beidou module, GLONASS(Only external antennas are supported)Only external antennas are supported (SMA straight head, wired vehicle-mounted active GPS antenna)
Interface Configuration
TypeDetailsDescriptionsOptional
type A usbUSB3.0x1  USB 3.0NA
Type CType C*1 Type C (USB3.0/HDMI/Charging)NA
Earphone JackAudio Output∮3.5mm Standard Earphone Jack  x1NA
HDMI JackAudio&Video OutputNAHDMI 1.4a mini  x1
TF SlotExtensive External MemorySupport TF   x1    max:512GNA
SIM SlotSIM SlotSIM   x1NA
DC JackPowerDC 19V 3.42A ∮5.5mm Power connector  x1NA
pogo pinpogo pinx1   12pin(USB&Docking charging)NA
Keys
TypeDetailsDescriptionsOptional configuration
F KEYScanner keyScanner key x1, No barcode then customizable ((GPIO)NA
volume+volumeVolume adjustment key(+)  x 1NA
volume-volumeVolume adjustment key(-)  x 1NA
windowswindows keyx1NA
powerpower keyx1NA
Indicator light
TypeDetailsDescriptionsOptional configuration
powerBuilt-inPower on is always blue, power of light is off ×1NA
baterryBuilt-in(Red and Green) Charging red, full of green, red light flashing on low power, not discharging ×1NA
Module extension
TypeDetailsDescriptionsOptional configuration
Two-dimension barcodeoptionalNAHoneywell N3680   hardcode
Optical resolution:5mil
scan speed:50 times /s
Code system: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse
 Maxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse
Standard Accessories
TypeDetailsDescriptionsOptional
Power AdaptorStandardAC100V ~ 240V、19V3.42A/65W Output       USA Standard  CE approvalUK Standard
EU Standard
Software Configuration
TypeDetailsDescriptionsOptional
Operation SystemOS versionwindows 10 Home 64bit   Default language: EnglishWindows 10 Home 64bit
Windows 10 Pro 64bit
Windows 10 IOT 64bit
Product Certificate
TypeDetailsDescriptionsOptional
Certificate SystemIP65IP65 Report: Water Resistance: IP-X5, Dust Resistance: P-6X  Report ID no.:SET2015-07677

a.Inner Nozzle Diameter:6.3mm;

b. Water Speed: 12.5±0.625L/min;

c. Water Pressure: Adjust according to water volume;
d. Central part of water volume: A round with a diameter of about 40mm at the distance from the nozzle 2.5m.

e. Spray time in surface of panel: About 1 min/Square meter;

f. Test time: at least 3min;

g. Distance between nozzle and panel surface:2.5~3m。
After the test, there is no water leakage in a sample.
NA
CE-NBYESNA
MIL-STD-810GYESNA
CCCYESNA
BatteryUN3803, MSDS, IEC62133, Aviation, Ocean shipping reportsNA
Reliability
TypeDetailsDescriptionsOptional
Product ReliabilityDrop Height1.22cm  composite wood floors, in operation status
Operate Temperature‘-20 °C to 60 °C
Store Temperature’-30 °C to 70 °C
HumidityHumidity: 95% Non-Condensing
Product feature:
1. Support Windows 10;
2. Support  USB3.0 type A connector;
3. Support Battery Single Charger Docking;
4. Support GPS navigation;
5. Support 1D/2D barcode scanner;
7. Rugged IP65 protection level;
8. Support 5000mAh pluggable battery, big and small double batteries;
10. Support Wrist Strap and back jacket;

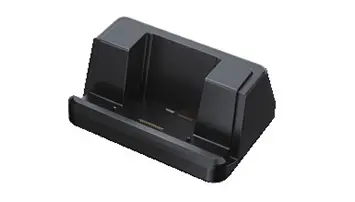

Accessories of 10.1'' Intel: EM-I12U Windows Industrial Tablet

Various modules and accessories can be selected to meet customers' applications in various industries.

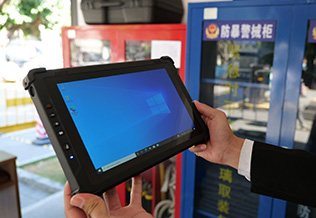

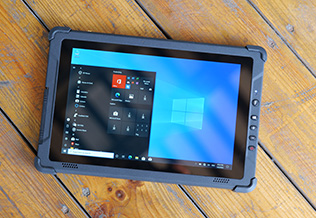

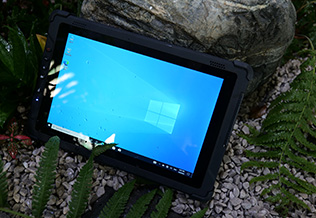

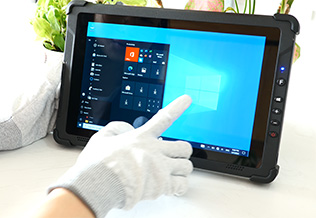

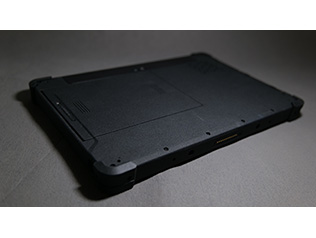

Gallary of 10.1'' Intel Tablet EM-I12U Rugged PC

10.1'' Intel Tablet EM-I12U Rugged PC
10.1'' Intel Tablet EM-I12U Rugged PC
10.1'' Intel Tablet EM-I12U Rugged PC
10.1'' Intel Tablet EM-I12U Rugged PC
10.1'' Intel Tablet EM-I12U Rugged PC
10.1'' Intel Tablet EM-I12U Rugged PC
10.1'' Intel Tablet EM-I12U Rugged PC
10.1'' Intel Tablet EM-I12U Rugged PC
10.1'' Intel Tablet EM-I12U Rugged PC
10.1'' Intel Tablet EM-I12U Rugged PC

Application Range of 10.1'' Intel: EM-I12U Windows Industrial Tablet

Various modules and accessories can be selected to meet customers' application in various industries.


Warehouse & Logistics Industry
Warehouse & Logistics Industry
Surveying & Mapping Industry
Surveying & Mapping Industry
Manufacturing Industry
Manufacturing Industry
Energy Industry
Energy Industry
Public Industry
Public Industry
Traffic Industry
Traffic Industry
