10.1 Inch Windows: EM-I17J(EX) Explosion-Proof Rugged Tablet PC

·Intel Jasper Lake processor Celeron N5100

·10.1 inch IPS screen, 1920x1200 TFT

·Front 5.0MP + Rear 8.0MP, autofocus with flashlight

·Dual-band WiFi, Bluetooth 5.0, support 4G mobile network

·Efficient file transfer rely on advanced USB Type-A/Type-C 3.0/3.1 I/O port

·Optional high performance 2D imager designed to data capture

·IP65 Waterproof and Dustproof, MIL-STD-810G certified

·Removable 5000mAh battery & New battery-free working mode

Explosion-Proof Rugged Tablet PC
Explosion-Proof Rugged Tablet PC
Explosion-Proof Rugged Tablet PC
Explosion-Proof Rugged Tablet PC
Explosion-Proof Rugged Tablet PC
Explosion-Proof Rugged Tablet PC
Explosion-Proof Rugged Tablet PC
windows windows
IP65 IP65
GNSS GNSS
high capacity high capacity
bluetooth bluetooth
camera camera
4G 4G
wifi wifi
2D 2D
NFC NFC

Features of 10.1'' Windows EM-I17J(EX) Explosion-Proof Rugged Tablet PC


  • ·Intel Jasper Lake processor Celeron N5100

  • ·10.1 inch IPS screen, 1920x1200 TFT

  • ·Front 5.0MP + Rear 8.0MP, autofocus with flashlight

  • ·Dual-band WiFi, Bluetooth 5.0, support 4G mobile network

  • ·Efficient file transfer rely on advanced USB Type-A/Type-C 3.0/3.1 I/O port

  • ·Optional high performance 2D imager designed to data capture

  • ·IP65 Waterproof and Dustproof, MIL-STD-810G certified

  • ·Removable 5000mAh battery & New battery-free working mode

  • Approved ATEX 2/22 Zone explosion-proof certification for use in potentially explosive and hazardous environments.

  • Extension interface (3 choose 1, RJ45, DB9, USB Type-A)

  • Certified by CECP, significantly improving the energy efficiency ratio and energy saving performance.

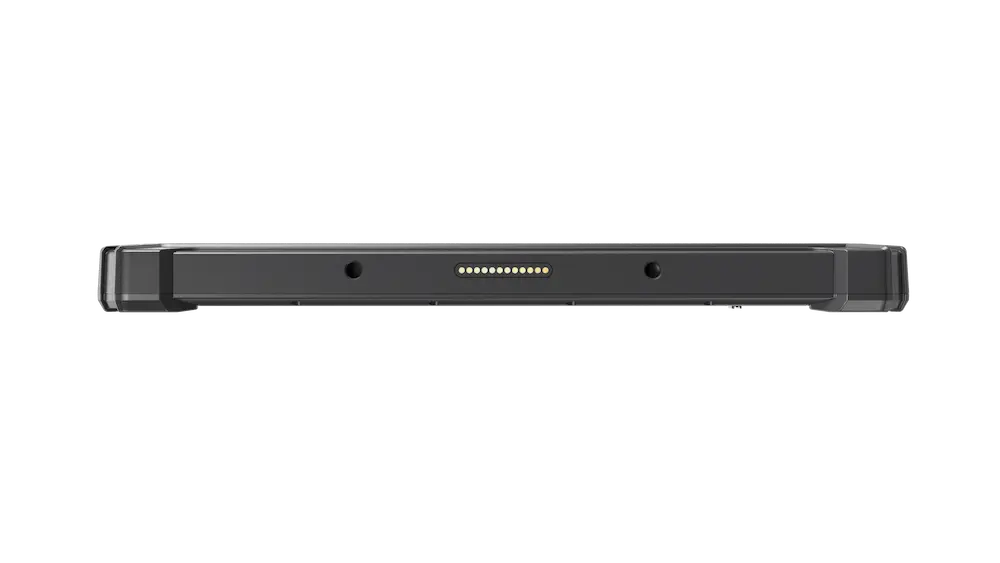

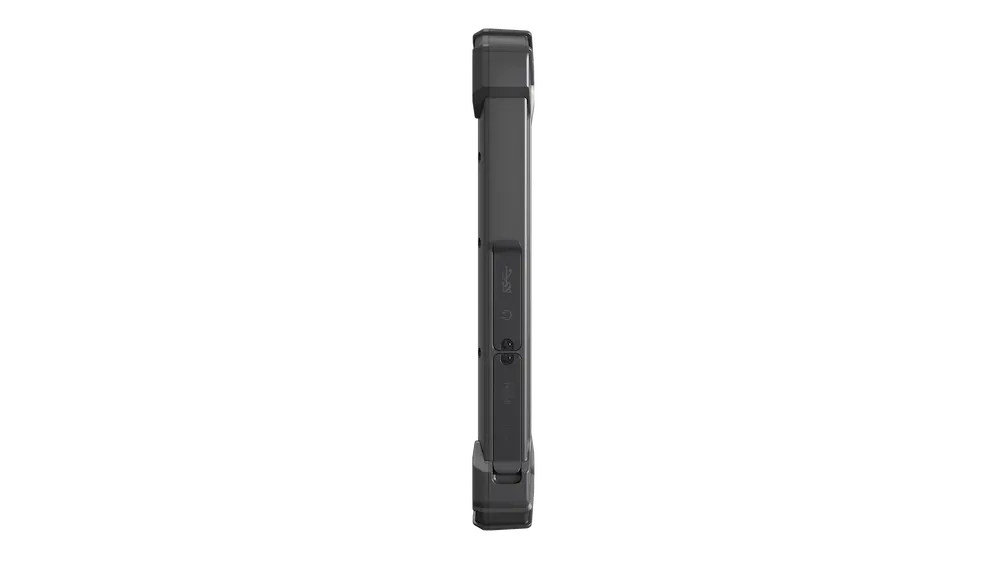

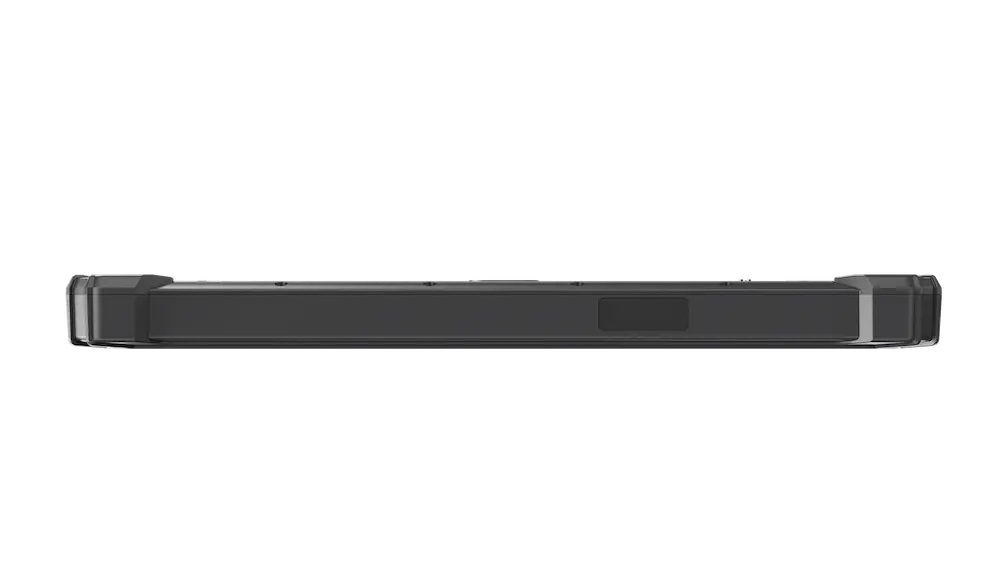

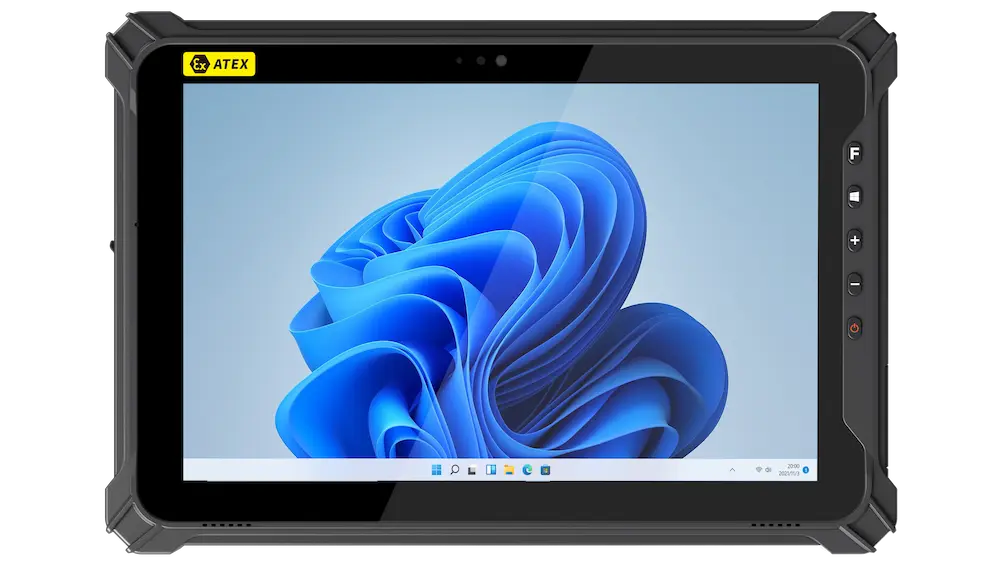

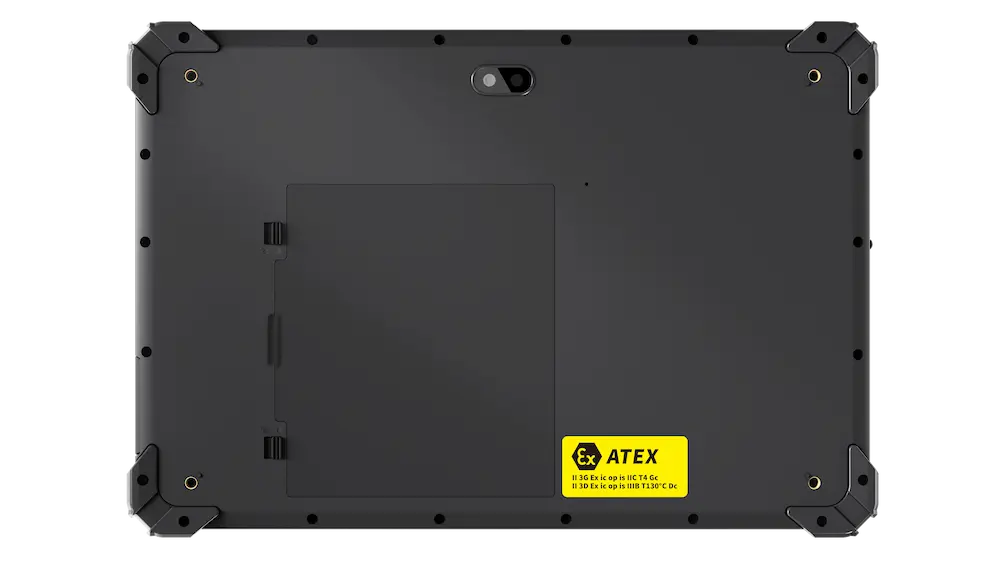

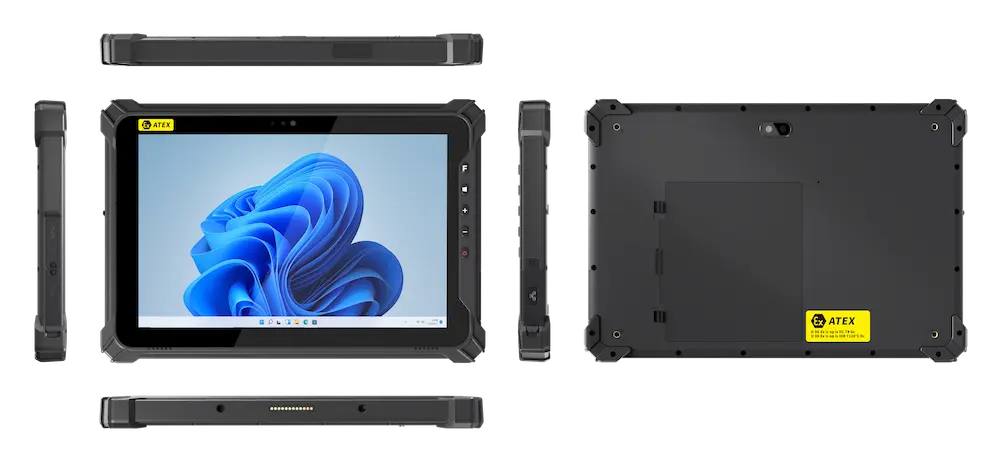

Six views of 10.1'' Windows EM-I17J(EX) Explosion-Proof Rugged Tablet PC





Specifications of 10.1'' Windows EM-I17J(EX) Explosion-Proof Rugged Tablet PC

Basic parameters Battery
Dimension  274.9 x 188.7 x 23.1mm Capacity  5000mAh/7.6V
Weight  Device unit 1140g Type  Removable Li-polymer battery
Device Color  Black Endurance8hrs ( 50% volume sounds, 50% screen brightness,
1080P HD video display by default )
LCD10.1 inch FHD 16:10, 1920×1200, 400 nits,
Optional, HD 16:10, 1280×800, 700 nits
 Network connections
Touch Panel  10 point capacitive touch screenWIFIWIFI 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.8G WIFI
Camera  Front 5.0MP, Rear 8.0MPBluetoothBT5.0
Transmission distance: 10m
I/OUSB3.0 x 1 (USB A port, HOST data transmission),
Type C 3.1 x 1 (Charging and Data transmission,
Full function Type-C),
Φ3.5mm standard earphone jack x 1,
HDMI 2.0a Mini x 1,
Three in one card holder (Micro SD card, up to
512GB; Nano SIM x 1)
12PIN Pogo Pin x 1
4GLTE FDD: B1/B3/B7/B8/B20, LTE-TDD: B40 WCDMA:
B1/B5/B8, GSM:900/1800
Optional, EC25-AF, 750-VA, 750-VSA
GNSSSupport GPS , GLONASS
 Reliability
Operate
Temperature
  -20 °C ~ 60 °C
Extension
interface
(3 choose 1)
RJ45 network port x 1 (10/100M adaptive) Standard,
DB9 serial port x 1 (RS232),
USB 2.0 Type-A x 1
Store
Temperature
   -30 °C ~ 70 °C
 Humidity  95% Non-Condensing
PowerAC100V ~ 240V, 50Hz/60Hz,
Output Type-C 12V/4A  EU
Rugged
Feature

IP65 certified, MIL-STD-810G certified,
Battery: UN38.3, MSDS, Air and Maritime Reporting,
Performance parameter Drop Height  1.22m drop
CPUIntel® Celeron®  Processor N5100 Data Collection
OS  Windows 11/10 2DOptional, Optical resolution: 5mil
Scanning speed: 50 times /s
RAM  8GB  NFCOptional, 13.56MHz,
Support ISO/IEC 14443A/B/15693/18092/mifare protocols
Card reading distance: 4cm
Storage  128GB



* Please be aware all technical data, specification and performance figures subject to change without notice.


Accessories of 10.1'' Windows EM-I17J(EX) Explosion-Proof Rugged Tablet PC

Various modules and accessories can be selected to meet customers' application in various industries.

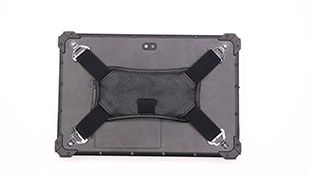

Back-strap
Back-strap

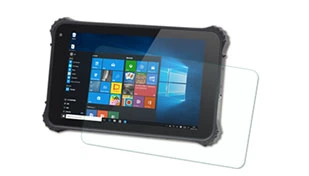

TP Resist film
TP Resist film

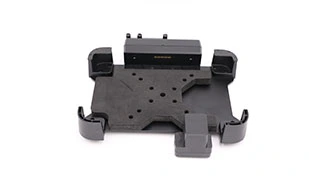

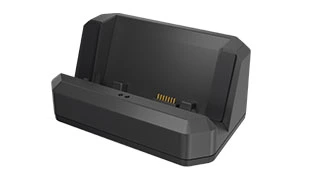

Docking Charger
Docking Charger

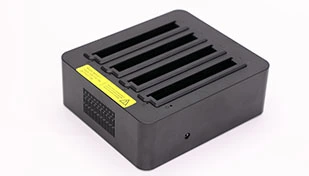

Quad charging
Quad charging

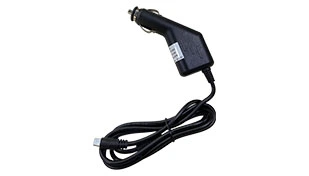

Car Charge
Car Charge
Hand-strap
Hand-strap
Vehicle Mount
Vehicle Mount

Application Range of 10.1'' Windows EM-I17J(EX) Explosion-Proof Rugged Tablet PC

Various modules and accessories can be selected to meet customers' application in various industries.
