12'' Intel: EM-I22H 2 in 1 Rugged Notebook

  • Easy to carry, 2 in 1 Rugged notebook.

  • Switch between tablet or laptop at any time.

  • Removable 12600mAh battery, standby is not a problem.

  • With multilingual (waterproof) detachable keyboard, it can easily deal with various possibilities.

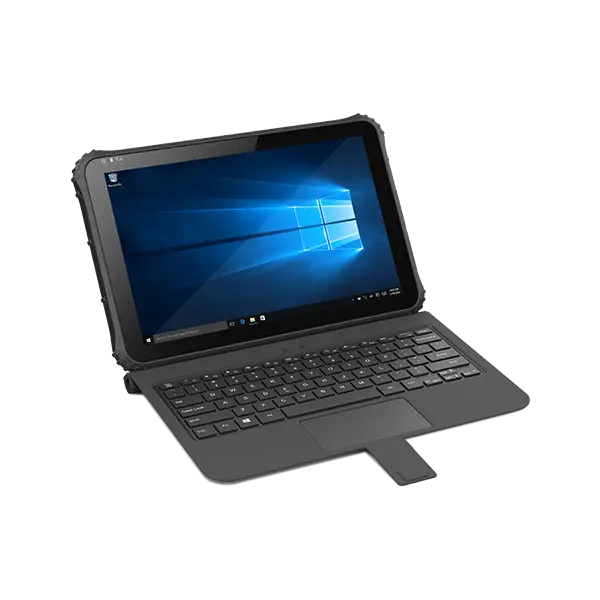

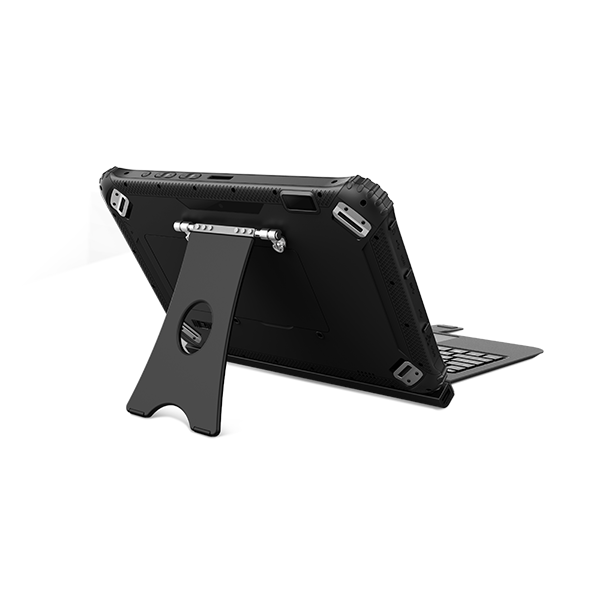

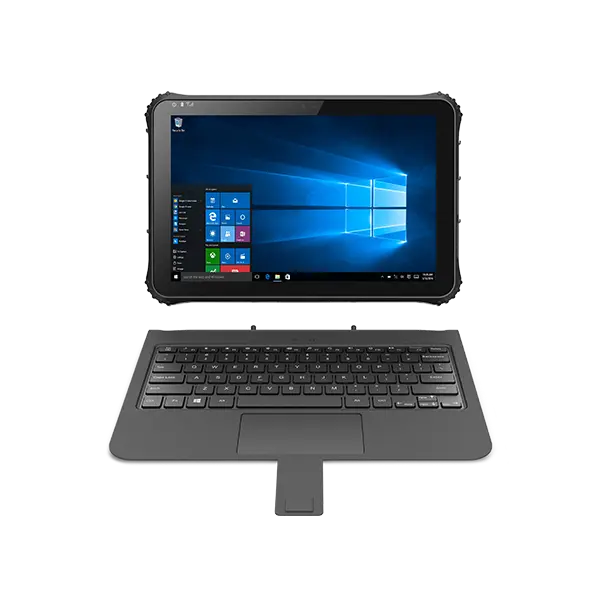

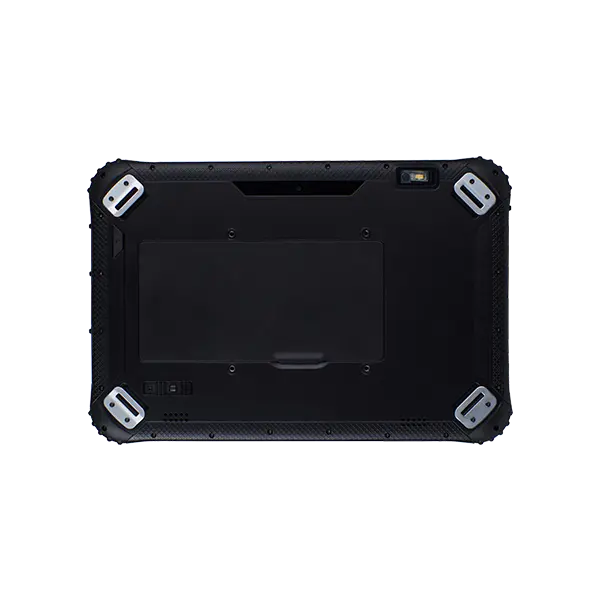

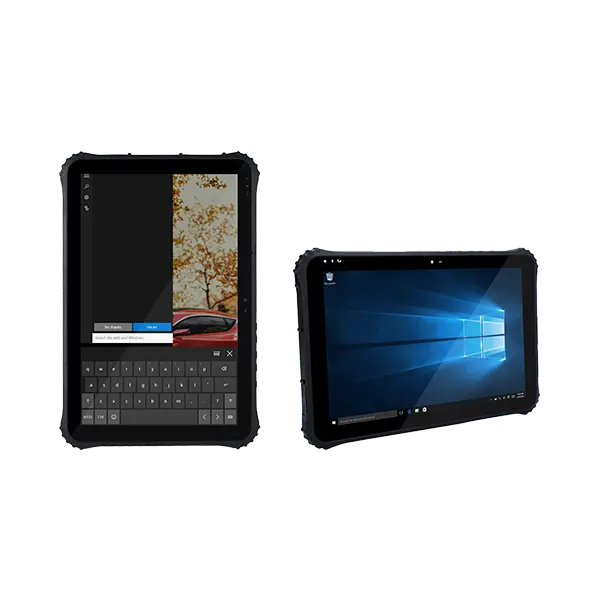

EM-I22H Rugged Notebook
EM-I22H Rugged Notebook
EM-I22H Rugged Notebook
EM-I22H Rugged Notebook
EM-I22H Rugged Notebook
Windows Windows
IP65 IP65
GPS GPS
High-capacity High-capacity
Bluetooth Bluetooth
1D 1D
2D 2D
RFID RFID
3G/4G 3G/4G
WiFi WiFi

Features of 12'' Intel: EM-I22H Rugged Notebook


  • Support for Windows 10 system

  • Integrated 3G/4G all network communication, WiFi, Bluetooth and other communication modes

  • 12600mAh battery, 6-8 hours of machine endurance

  • IP65 high protection level, in accordance with MIL-STD-810G

  • Support GPS, more accurate positioning

  • Support 1920x1200 FHD high score screen, optional with Corning gorilla TP and sunshine visual screen

  • Support 1D/2D, NFC and other functional modules for free selection

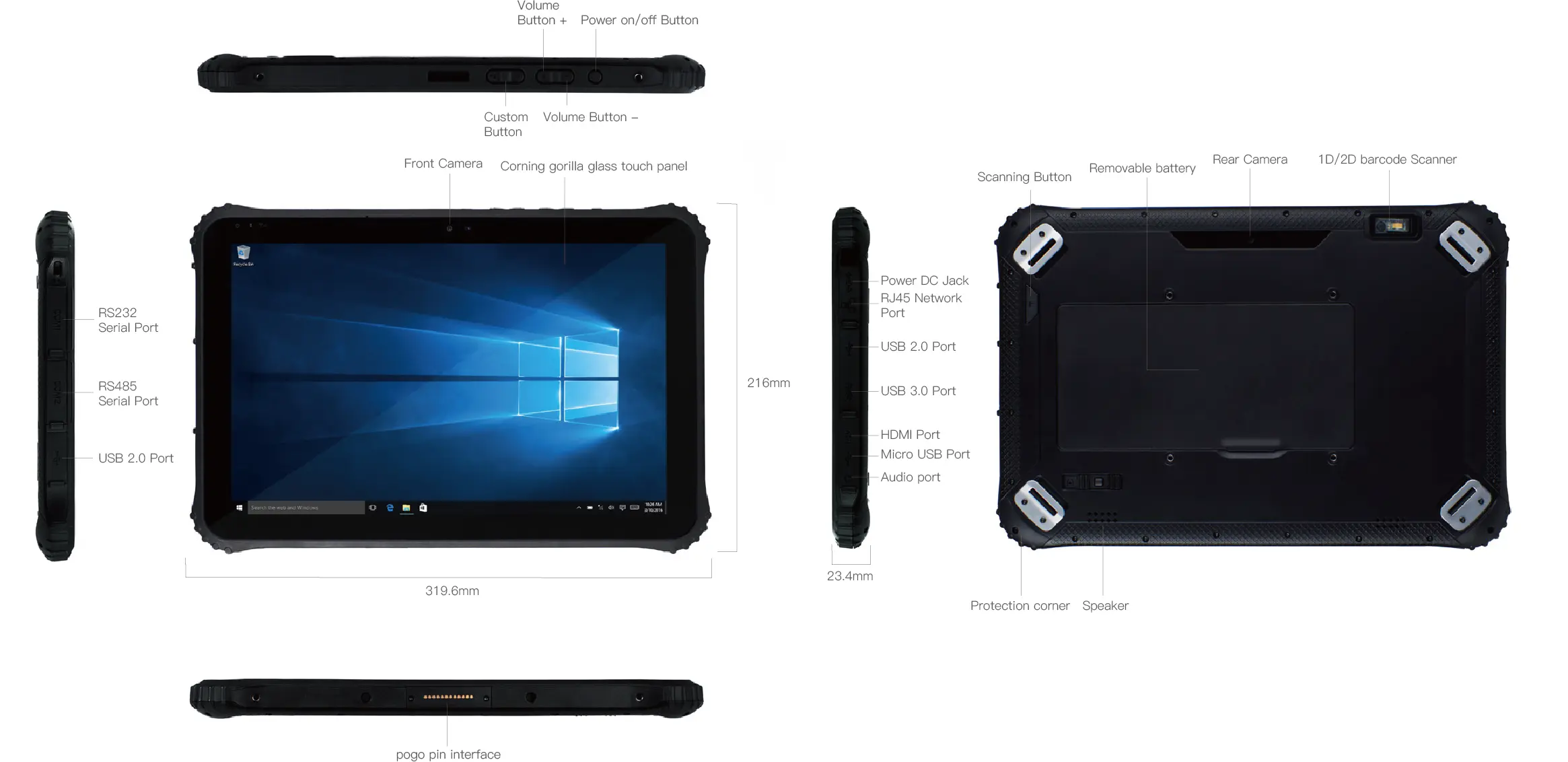

Six Views of 12'' Intel: EM-I22H Rugged Notebook



Specifications of 12'' Intel: EM-I22H Rugged Notebook

TypeDetailsStandard ConfigurationOptional Configuration
Product FormType12.2 inch Rugged Tablet(optional keyboard)NA
Dimension319.6*216*24.3 mmNA
WeightMain Unit: 1500gNA
Device ColorBlack+silver(Back panel-silver,Front panel-black)NA
LCDScreen Size12.2 inch   16:10NA
Resolution1920*1200 IPS screenNA
Brightness280NitOptional SLR sunlight readable film
TPTouch Panel10 point capacitive,G+G,Corning gorrila glass, Rigidity: 7H above, anti-scratch,Optional SLR sunlight readable film
CameraFrontFront 2.0MPNA
Rearrear 5.0MPNA
SpeakerBuilt-inbuilt-in 8Ω/0.8W water-proof speaker x2NA
MicBuilt-insensivity:-42db, Output resistance:2.2kΩNA
BatteryTypeLithium-ion polymer / swappableNA
Capacity3.7V/12600mAhNA
Endurance8Hrs (default 50%volumn,default 200lumens brightness,play 1080P HD video)NA
System Hardware Configuration
TypeDetailsDescriptionsOptional Configuration
CPUTypeIntel Cherrytrail Z8350NA
Speed1.44Ghz-1.92GHzNA
GPUTypeIntel® HD GraphicsNA
RAMDDR3L4GBNA
ROMEmmc128GB64G
G_sensorBuilt-ingravity sensorNA
Internet Connections
TypeDetailsDescriptionsOptional Configuration
WIFIWIFI ModuleWIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G  dual band WIFI intel 3165D2WGNA
BluetoothBuilt-inBT4.2 (BLE) class1 transmission distance:10mNA
3GBuilt-inNAFIBOCOM_H350
GSM/GPRS/EDGE Band(MHz):900/1800;WCDMA Band(MHz):900/2100
1.Asia Pacific,Europe
2.China Unicom 3G
4GBuilt-inEC25-EC
LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8
NA
GPSBuilt-inU-blox NEO-7 Support :GPS; Capture sensitivity: -160 dBm;Cool Start Time:<50second,Hot start time:<28seconds,frequency:0.25 Hz … 10 MHz (configurable)NA
NFCBuilt-inNANXP NFC 13.56MHz  Support ISO/IEC 14443A/14443B/15693/18092/mifare protocol,Card reading distance:4cm
Data Collection
TypeDetailsDescriptionsOptional Configuration
1D barcode scannerOptionalNAMOTO  SE655E100R
Optical Position: 5mil
Scan speed: 50/s
Symbol system:UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code 128,GS1-128,ISBT 128,Code 39,Trioptic Code 39 ,Code 32,Code 93  ,Code 11
2D barcode scannerOptionalNAEM80 hardware decoder
Optical Resolution:5mil
Scan speed:50/s
Symbol system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse
 Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse
Connectors
TypeDetailsDescriptionsOptional Configuration
TF slotExtensive External Memorysupport TF   x1    max:128GNA
SIM card slot3G/4G communicationSIM card   x1NA
USB connectorExtensive external memory and data transferUSB 2.0*2 (4pin) (Host)for windowsNA
USB 3.0*1 (9pin)NA
MICRO USB connectorUSB2.0MICRO USB x1NA
Earphone JackAudio Output∮3.5mm standard earphone jack  x1NA
DC JackPowerDC 5V 3A ∮3.5mm power adaptor  x1NA
HDMIVideo OutputHDMI 1.4a  x1NA
Serial port connectorSerial PortDB9 (RS232) ×1, DB9 (RS485) ×1DB9 (RS232) ×1, DB9 (RS232) ×1
RJ45 connectorEthernet port10/100Mbps ×1NA
Extensive connectorpogo Pin12pin  Pogo Pin   x1NA
Button Key
TypeDetailsDescriptionsOptional Configuration
powerOn/Offx1NA
volumevolume up/volume downvolume+- x2NA
F KEYScannerCode scanner(back of unit) x1NA
programProgram KeySelf define key  x2NA
Standard Accessories
TypeDetailsDescriptionsOptional Configuration
USB CableUSB CableUSB to micro 5P L=1.2M  4core aluminum foil shield cableNA
Power AdaptorStandardAC100V ~ 240V、50Hz/60Hz output DC 5V/3A    USA standard   CE approvedUSA standard
EU Standard
Software Configuration
TypeDetailsDescriptionsOptional Configuration
Operation SystemOS versionWindows 10 IOT   Default language:English;Windows 10 Home 64bit
Windows 10 Pro  64bit
Product Certificate
TypeDetailsDescriptionsOptional Configuration
Certificate SystemIP65IP65 Report: Water resistance:IP-X5,Dust resistance:IP-6X
a.Inner Nozzle diameter:6.3mm;   b. water speed:12.5±0.625L/min;
c. Water Pressure:adjust according to water volumn;
d.Central part of water volumn:diameter of 40mm, distance from nozzle: 2.5M
e.Spray time in surface of panel:about 1min;f.test time:at least 3min;
g.distance between nozzle and panel surface:2.5~3m。
After test,there is no water leakage in sample.
NA
CEY
MIL-STD-810GY
BatteryUN38.3,MSDS,IEC62133
Reliability
TypeDetailsDescriptionsOptional Configuration
Product ReliabilityDrop HeightMIL-STD-810G 1.22m drop
Operate Temperature‘-20 °C to 60 °C
Store Temperature’-30 °C to 70 °C
HumidityHumidity: 95% Non-Condensing
Product feature:
1.Support Windows 10 / Android 5.1;
2.Support USB2.0 & USB3.0 connector;
3.Support NXP NFC(13.56M);
4.Support GPS Navigation;
5.Support 1D/2D barcode scanner;
6.Support standard DB9 connector(RS232,RS485);
7.Rugged IP65 protection level;
8.Support 12600mAh loadable batteries;
9.Support High strengthened glass touch panel,gloves and wet hand touch;
10.Support gigabit network interface;
11.Support wrist strap and leather keyboard;









Accessories of 12'' Intel: EM-I22H Rugged Notebook

Various modules and accessories can be selected to meet customers' application in various industries.


Hand-strap
Hand-strap
 Back-Straps
Back-Straps
Car Charge
Car Charge
Vehicle Mount
Vehicle Mount
Docking Charger
Docking Charger
Battery
Battery
Shoulder-strap
Shoulder-strap
Removable keyboard
Removable keyboard
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Carry handle
Carry handle
Car Holder
Car Holder

Application Range of 12'' Intel: EM-I22H Rugged Notebook

Various modules and accessories can be selected to meet customers' application in various industries.


Warehouse & Logistics Industry
Warehouse & Logistics Industry
Surveying & Mapping Industry
Surveying & Mapping Industry
Manufacturing Industry
Manufacturing Industry
Energy Industry
Energy Industry
Public Industry
Public Industry
Traffic Industry
Traffic Industry
