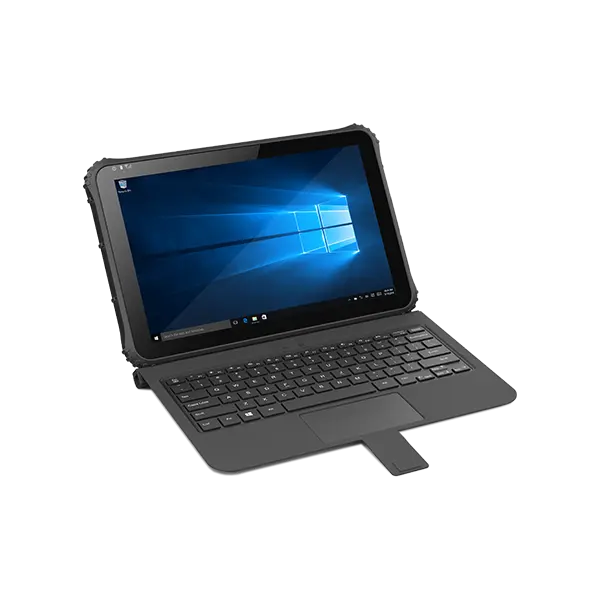

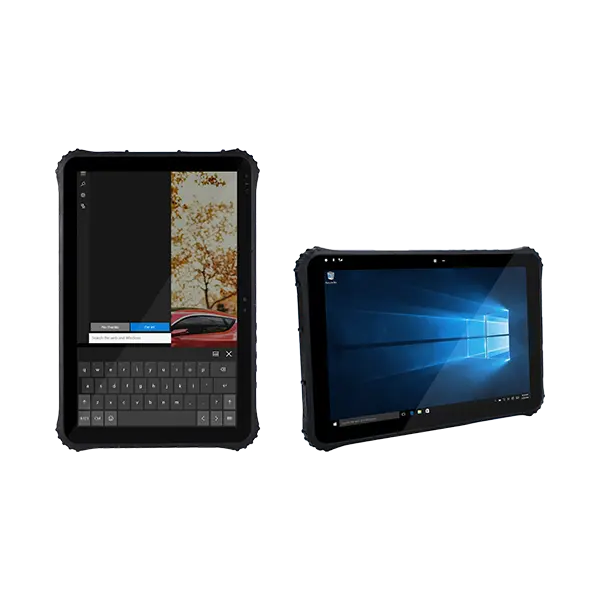

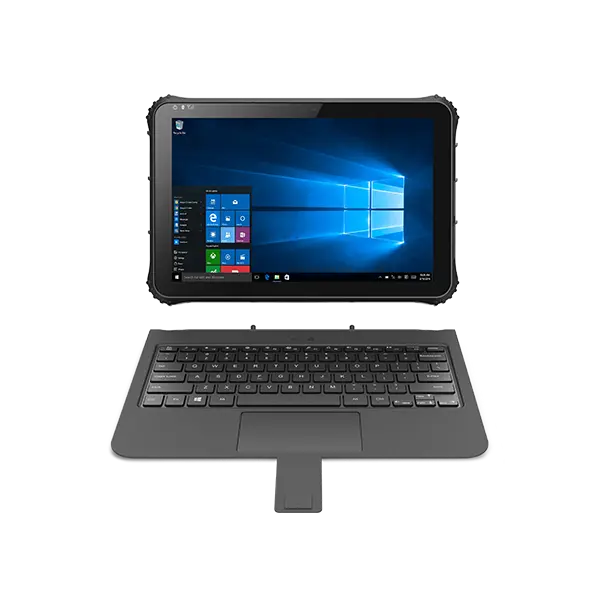

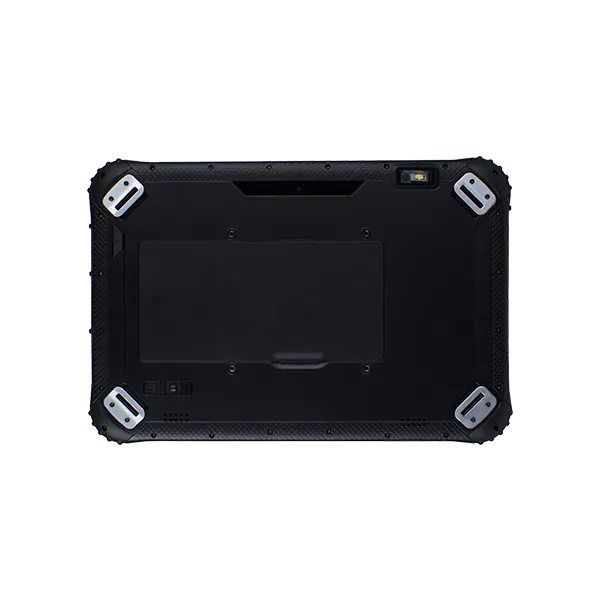

12'' Intel: EM-I22K Barcode Scanners Notebook

  • Windows Rugged 2in1 Notebook EM-I22K

  • Rugged IP65 protective grade for waterproof & dustproof

  • Hot-swappable dual batteries, Escort your long hours of work

  • Intel® Core™  stronger performance

  • 2D Barcode Scanner/Fingerprint Recognition Reader

  • Support Windows 10 / Windows 7 / Linux  system

12'' Intel: EM-I22K Rugged Notebook
12'' Intel: EM-I22K Rugged Notebook
12'' Intel: EM-I22K Rugged Notebook
12'' Intel: EM-I22K Rugged Notebook
12'' Intel: EM-I22K Rugged Notebook
Windows Windows
IP65 IP65
GPS GPS
High-capacity High-capacity
Bluetooth Bluetooth
1D 1D
2D 2D
RFID RFID
3G/4G 3G/4G
WiFi WiFi

Features of 12'' Intel: EM-I22K Rugged Notebook

  • Support for Windows 10 system

  • Integrated 3G/4G all network communication, WiFi, Bluetooth and other communication modes

  • 6300mAh、1000mAh capacity dual battery, machine endurance 6-8 hours

  • IP65 high protection level, in accordance with MIL-STD-810G

  • Support GPS, more accurate positioning

  • Support 1920x1200 FHD high score screen, optional with Corning gorilla TP and sunshine visual screen

  • Support 1D/2D, NFC and other functional modules for free se lection

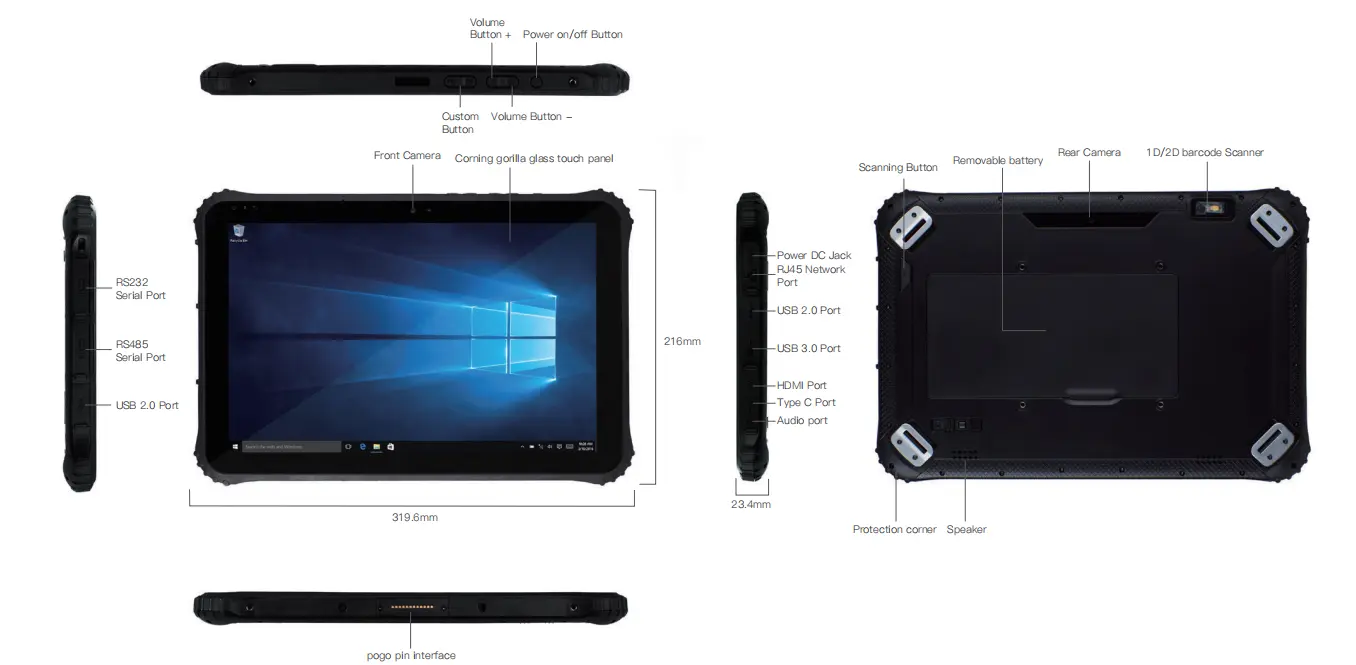

Six Views of 12'' Intel: EM-I22K Rugged Notebook


Specifications of 12'' Intel: EM-I22K Rugged Notebook

Specification Parameter of 12'' Windows Rugged 2in1 Notebook EM-I22K
TypeDetailsStandard ConfigurationOptional
Product FormTypeRugged Tablet (Optional keyboard )NA
Dimension319.6*216*23.4 mmNA
WeightDevice unit: 1500gNA
Device Colorblack+black color(bottom shell black color,front shell black color)black+silver color(bottom shell silver color ,front shell silver color)
LCDScreen Size12.2 inch  16:10NA
Resolution1200×1920 IPSNA
Brightness280cd/㎡optional SLR Sunlight visible film
TPTouch Panel10 points Capacitive,G+G,Corning Gorilla Rigidity: above 7H-Anti-scratch,TP thickness:1.1mm,COF,support handwriteoptional SLR Sunlight visible film
CameraFrontfront 2.0MPNA
Rearrear 5.0MPNA
SpeakerBuilt-inEmbedded 8Ω/0.8W waterproof speaker x2NA
MicBuilt-inSensitivity:-42db, output resistance2.2kΩNA
BatterytypeBuild in Lithium-ion polymer battery/large battery can hot plug replacementNA
Capacity6300mAh/7.4V  1000mAh/7.4V  (dual battery )NA
Endurance6hrs(default 50% volumn,default200 lumens brightness play 1080P HD video)NA
System Hardware Configuration
TypeDetailsDescriptionsOptional
CPUTypeIntel® Skylake M3-6Y30Intel Kabylake Core™ m3-7Y30
Speed4M Cache, 2.20 GHzNA
GPUTypeIntel® HD Graphics 515NA
RAMDDR3L4GB8GB
ROMEmmc128G M.2128G/256G/512G
G_sensorBuilt-inGravity acceleration sensorNA
Network Connections
TypeDetailsDescriptionsOptional
WIFIWIFIWIFI 802.11(a/b/g/n/ac)  dual frequency 2.4G+5.8G WIFI intel 3165D2WGNA
BluetoothBuilt-inBT4.2 (BLE) class1 transmission distance:10mNA
3GOptionalNAFIBOCOM_H350
GSM/GPRS/EDGE Band(MHz):900/1800;WCDMA Band(MHz):900/2100
1.Asia Pacific,Europe
2.China Unicom 3G
4GOptionalEC25-EC
LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8
NA
GPSBuilt-inU-blox NEO-7 Support :GPS; Capture sensitivity: -160 dBm;Cool Start Time:<50second,Hot start time:<28seconds,frequency:0.25 Hz … 10 MHz (configurable)NA
NFCBuilt-inNANXP NFC 13.56MHz  Support ISO/IEC 14443A/14443B/15693/18092/mifare protocol,Card reading distance:4cm
1D barcode scannerOptionalNAMOTO  SE655E100R
2D barcode scannerOptionalNAHoneywell N3680   Hardware decoder
Interface Configuration
TypeDetailsDescriptionsOptional
TF slotExtensive External Memorysupport TF   x1    max:128GNA
SIM slotSIM cardSIMx1NA
USB  interfacedata transmissionUSB 2.0*2 (4pin) (Host)for windows,  USB 3.0*1 (9pin)NA
Earphone JackAudio Output∮3.5mm  standard earphone jack   x1NA
DC JackPowerDC 12V 4A ∮3.5mm  Power connector  x1NA
HDMIVideo OutputHDMI 1.4a   x1NA
Extensive Slotpogo Pin12pin  Pogo Pin   x1NA
DB9 PORTSerial portDB9 (RS232) ×1, DB9 (RS485) ×1NA
RJ45 PORTinternet port*1(10/100 self-adaption)NA
Type C interfaceUSB3.0,charging,AVType c x1NA
Key
TypeDetailsDescriptionsOptional configuration
powerpower on/off keyx1NA
volumeVOL+ VOL-VOL+ VOL- x2NA
F KEYBarcode scan keybarcode scan (backside of machine) x1NA
programprogamming keycustomized key function  x2NA
Standard Accessories
TypeDetailsDescriptionOptional configuration
handlehandlehandleNA
Power AdaptorStandardAC100V ~ 240V、50Hz/60Hz output DC 12V/4A      USA Standard  CE approvalUSA standard
EU Standard
TypeDetailsDescriptionOptional
Operation SystemOS versionwindows 10 Home 64bit   Default language:EnglishWindows 10 Pro 64bit/Home  64bit
Software Configuration
TypeDetailsDescriptionOptional
Certificate SystemIP65IP65 Report: Water resistance:IP-X5,Dust resistance:IP-6X  Report ID no.:SET2015-07677
a.Inner Nozzle diameter:6.3mm;   b. water speed:12.5±0.625L/min;
c. Water Pressure:adjust according to water volumn;
d.Central part of water volumn:diameter of 40mm, distance from nozzle: 2.5M
e.Spray time in surface of panel:about 1min;f.test time:at least 3min;
g.distance between nozzle and panel surface:2.5~3m。
After test,there is no water leakage in sample.
NA
CE NBY
MIL-STD-810GY
BatteryUN38.3,MSDS,IEC62133
Reliability
TypeDetailsDescriptionsOptional
Product ReliabilityDrop Height1.22m  composite wood floors, in operation status
Operate Temperature‘-20 °C to 60 °C
Store Temperature’-30 °C to 70 °C
HumidityHumidity: 95% Non-Condensing



Accessories of 12'' Intel: EM-I22K Rugged Notebook

Various modules and accessories can be selected to meet customers' application in various industries.


Hand-strap
Hand-strap
Back-strap
Back-strap
Car Charge
Car Charge
Vehicle Mount
Vehicle Mount
Docking Charger
Docking Charger
Battery
Battery
Shoulder-strap
Shoulder-strap
Removable keyboard
Removable keyboard
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter-cable
Adapter-cable
Adapter-cable
Adapter-cable
Adapter-cable
Adapter-cable
Adapter-cable
Adapter-cable
Carry handle
Carry handle
Car Holder
Car Holder

Application Range of 12'' Intel: EM-I22K Rugged Notebook

Various modules and accessories can be selected to meet customers' application in various industries.


Warehouse & Logistics Industry
Warehouse & Logistics Industry
Surveying & Mapping Industry
Surveying & Mapping Industry
Manufacturing Industry
Manufacturing Industry
Energy Industry
Energy Industry
Public Industry
Public Industry
Traffic Industry
Traffic Industry
