21.5-inch Panel Touch Display PT21

● Featured a 21.5-inch display with up to 178° viewing angles;

● Industrial-grade screen, with a resolution of 1920×1080;

● Supports 10-point capacitive touch, same frequency without delay;

● Supports HDMI, VGA (Analog RGB), and DVI interface types;

● Optional wall-mounted installation or embedded Installation;

● -20℃ to 60℃ wide temperature operation, stable in harsh scenarios;

● With a durable metal body and an IP65-rated flat panel.

Panel Touch Display
Panel Touch Display
Panel Touch Display
Panel Touch Display
Panel Touch Display
Realtek RTD25XX Realtek RTD25XX
21.5-inch 21.5-inch
250cd/㎡ 250cd/㎡
1920*1080 1920*1080
Rich interface extensions Rich interface extensions
IP65 IP65

Features of 21.5-inch 10-point capacitive touch Panel Touch Display PT21


● Featured a 21.5-inch display with up to 178° viewing angles;

● Industrial-grade screen, with a resolution of 1920×1080;

● Supports 10-point capacitive touch, same frequency without delay;

● Supports HDMI, VGA (Analog RGB), and DVI interface types;

● Optional wall-mounted installation or embedded Installation;

● -20℃ to 60℃ wide temperature operation, stable in harsh scenarios;

● With a durable metal body and an IP65-rated flat panel.

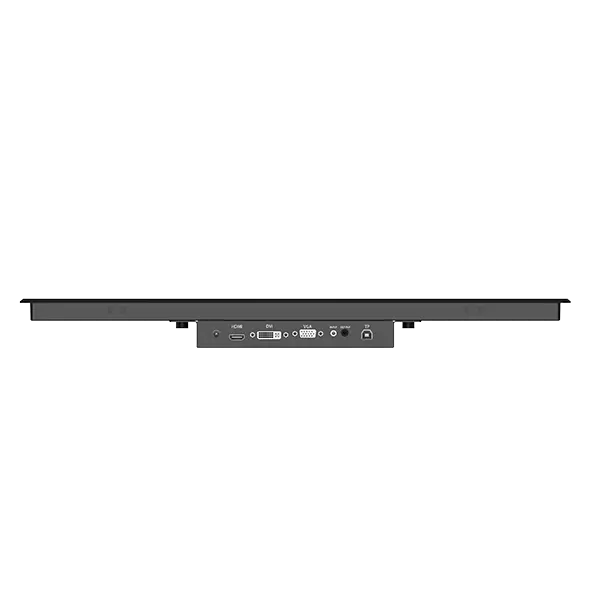

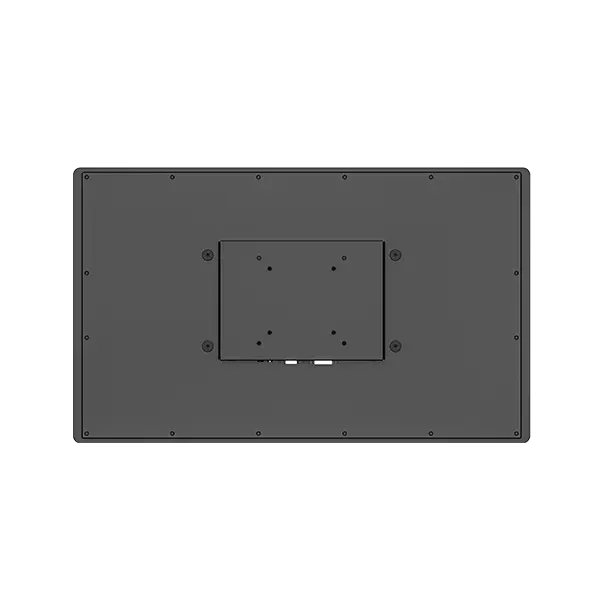

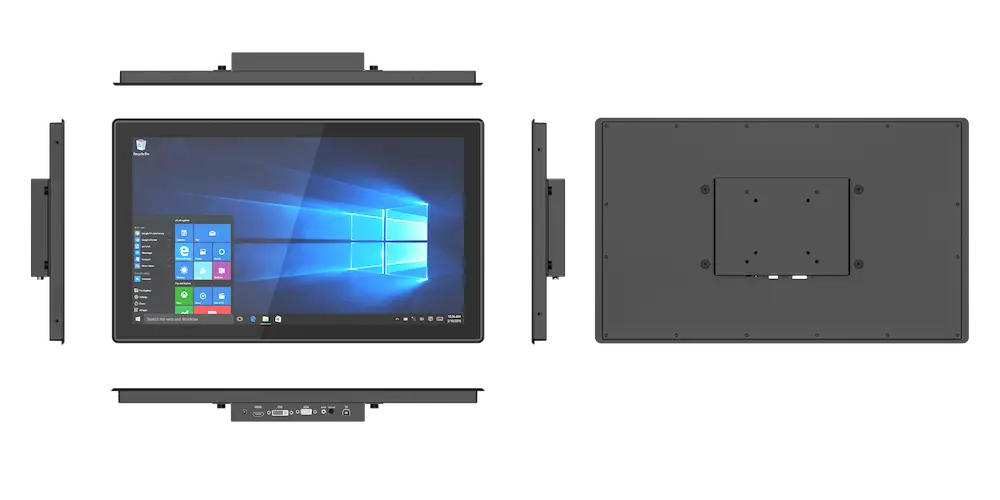

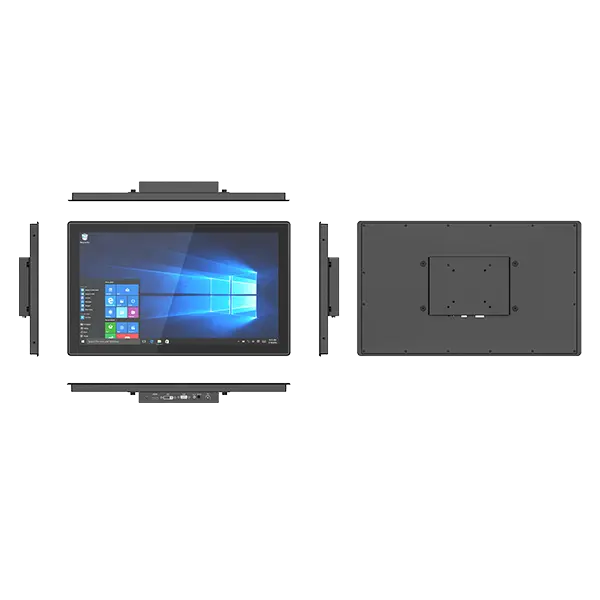

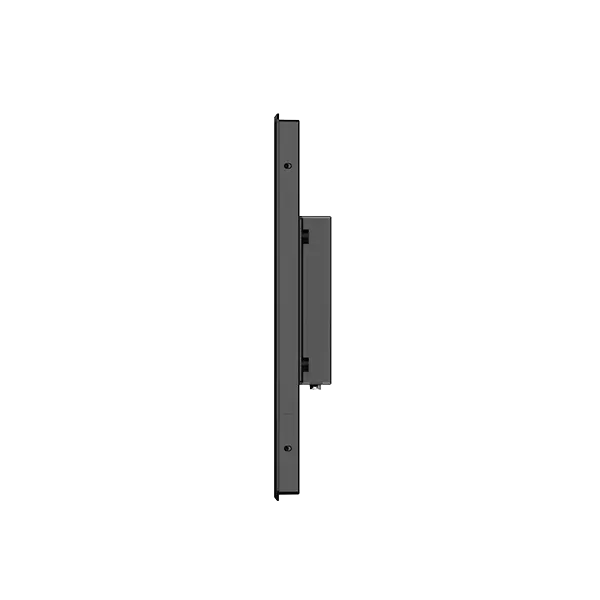

Six Views of 21.5-inch 10-point capacitive touch Panel Touch Display PT21


Panel Touch Display

Specification of 21.5-inch 10-point capacitive touch Panel Touch Display PT21



Panel Touch Display PT21
Product FormPanel Touch Display
MaterialGalvanized Sheet
Dimension537.02 x 324.02 x 57.60 mm
Weight5.05 kg (Subject to actual measurement)
Product ColorBlack
CPURealtek RTD25XX
DisplayType: LCD
Size: 21.5-inch   16 :9
Resolution:  1920x1080
Brightness:  250cd/㎡
Touch Pannel10-point capacitive touch (Optional without touch control)
I/O InterfacePower Interface
DC 12V *1
HDMI  *1 (Up to 1920*1080@60Hz)
VGA  *1  (Analog RGB)
DVI  *1  (Up to 1920*1080@60Hz)
∮3.5mm Standard AUDIO Port *1
∮3.5mm Standard Earphone Jack *1
USB TYPE-B (TP Port)
Power AdaptorAC100V ~ 240V, 50Hz/60Hz output DC 12V/4A
Rugged FeaturesWorking temperature: -20 °C to 60 °C
Storage temperature: -30 °C to 70 °C
Humidity: 95% Non-Condensing
IP65-rating waterproof of front panel
Product certifications: CCC CE FCC
AccessoriesStandard: Input AC 100V~240V, 50Hz/60Hz output DC 12V/4A adapter

Standard: PPC_ Hook assembly, material: galvanized sheet, specification: 17.8 * 16.2 * 10mm, thickness: T=1.5mm (including cross screw * 1, specification: PM5*30, nut φ 8*3, Quantity: 8)



*Product specifications, pictures, and other information are for reference only.  The appearance is subject to the material object. This instruction is subject to change without notice.



Accessories of 21.5-inch 10-point capacitive touch Panel Touch Display PT21


12V/4A adapter
12V/4A adapter

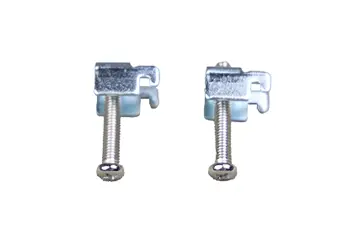

PPC_ Hook
PPC_ Hook

Application Range of 21.5-inch 10-point capacitive touch Panel Touch Display PT21

Various modules and accessories can be selected to meet customers' application in various industries.
