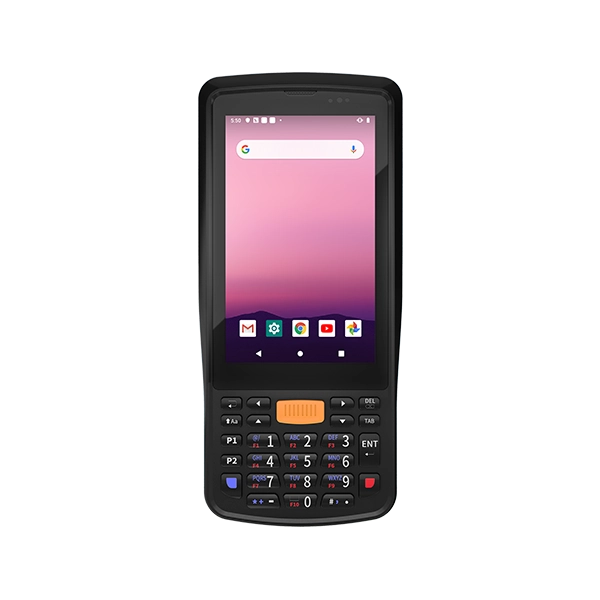

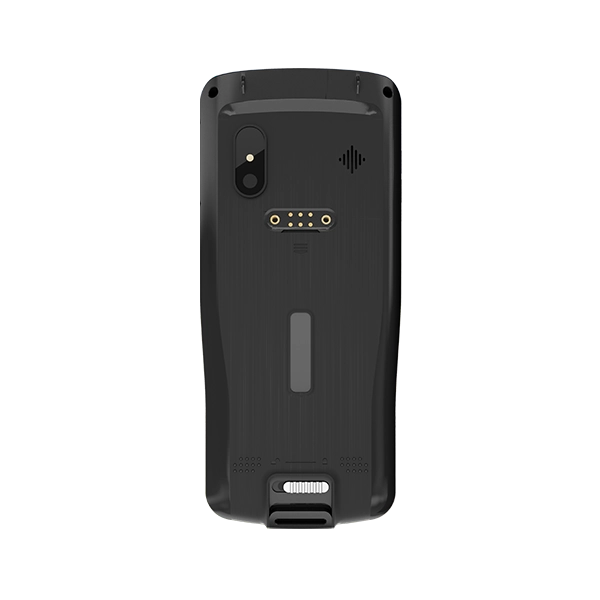

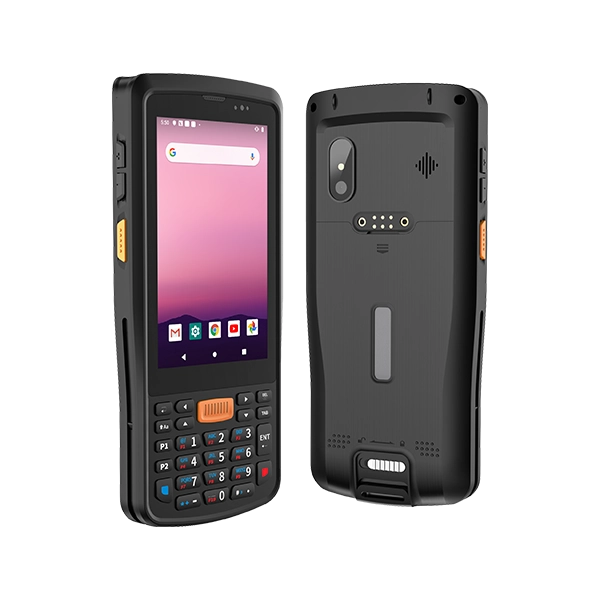

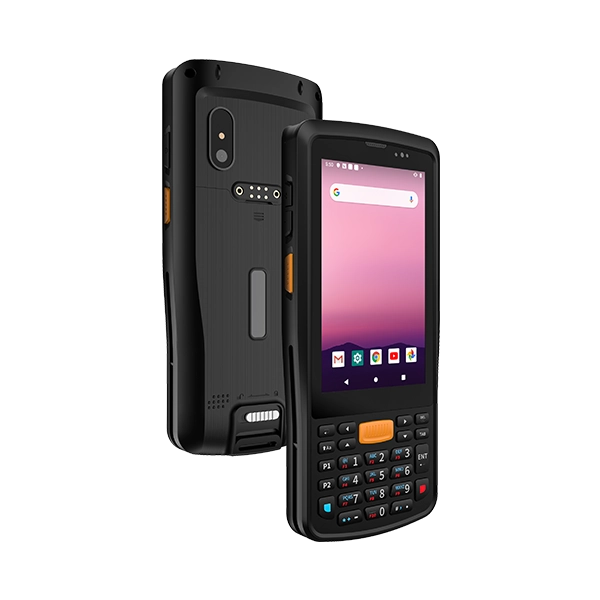

NEW LAUNCH 4'' Android: EM-T40 Rugged Handheld

  • No need too big, 4”inch screen is enough

  • With 26-key keypad, Data can be done with one finger

  • Finger-Friendly Design, Avoid mis-pressing

  • Reversible Type C Connector, No matter which side to plug in

Android Android
Bluetooth Bluetooth
2D 2D
WiFi WiFi
4G 4G
IP65 IP65
GPS GPS
Camera Camera
NFC NFC

Features of 4'' Rugged Android Handheld EM-T40 Rugged PC

• Support for Android 11 system

• Integrated 4G all network communication, WiFi, Bluetooth, and other communication modes

• Equipped with a 4000mAh large capacity battery, the machine has an endurance of 7 hours

• IP65 high protection level, in accordance with MIL-STD-810G

• Support GPS (A-GPS), Beidou, GLONASS, and more accurate positioning

• With a front 5MP rear 13MP autofocus camera, you can easily collect your images and video information

• Support  2D, NFC, and other functional modules to meet the application needs of multiple industries

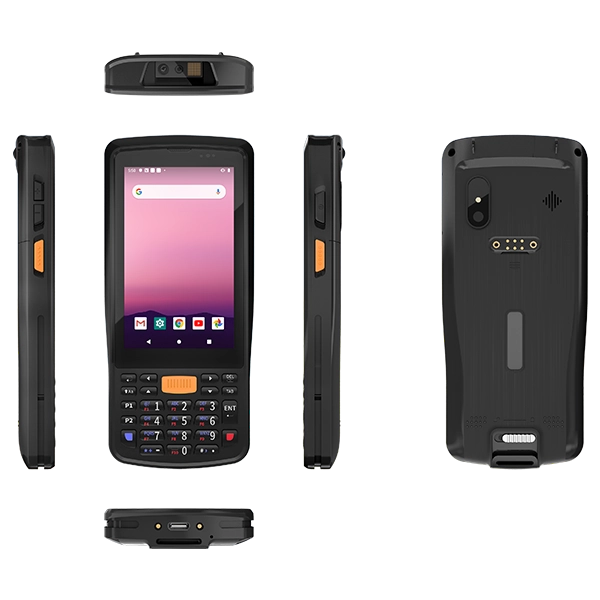

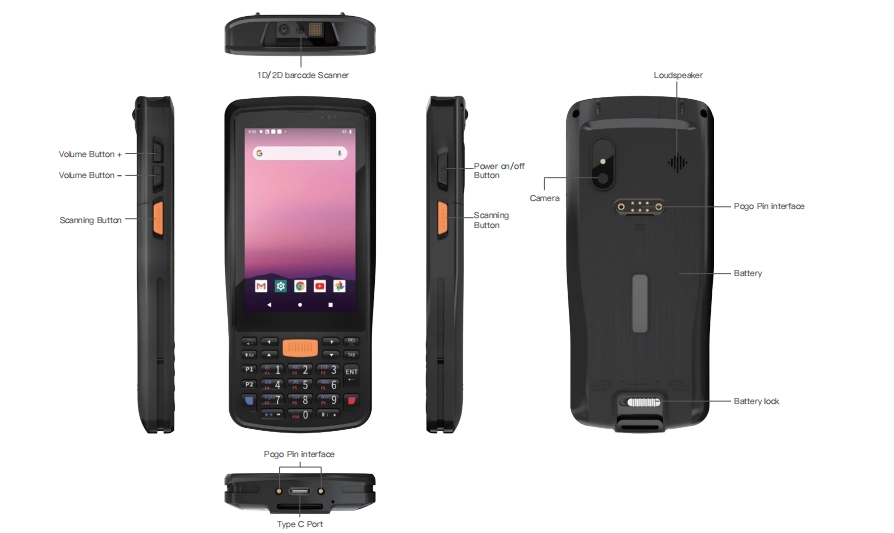

Six Views of 4'' Android Handheld EM-T40 Rugged PC


Six Views of 4'' Android Handheld EM-T40 Rugged PC



Specifications of 4'' Android Handheld EM-T40 Rugged PC

TypeDetailsStandard ConfigurationOptional
Product FormTypeRugged handheld terminalNA
Dimension162.4*72.8*19.4mmNA
WeightTBDNA
Device ColorBlack(front and rear Panel: black)NA
LCDScreen Size4 inch   16:9
Resolution480*800 IPS
Brightness350 Nit
TPTouch Panel5 points Capacitive,G+F,Rigidity: above 7H-Anti-scratch
CameraFront/

RearRear13.0MP, automatic focusing with astigmatism,PDAF support
Rear flashYES single LED
SpeakerBuilt-inEmbedded 8Ω/0.8W  speaker x 1
MicBuilt-inOnboard silicon MIC
BatteryTypeBuilt-in Removable Lithium-ion polymer battery
Capacity3.8V/4500mAh
Endurance
System Hardware Configuration
TypeDetailsDescriptionOptional
CPUTypeMTK OCTA Core
Speed4*A53  2.0GHz
4*A53  1.5GHz

GPUTypeIMG GE8320 650MHz
RAMLPDDR4XLPDDR4X up to 4GB(dual channels with 16-bit data bus width)
ROMEMMC64GB
Indicator lightBuilt-inYES

L-SensorBuilt-inlight Sensor *1
M-SensoronboardGeomagnetic sensor *1
gyroscopeonboardGgyroscope *1
G_sensoronboardG_sensor *1
Audio amplifierBuilt-inClass K power amplifier
Real Time Clock(RTC):Built-inYES
Network Connections
TypeDetailsDescriptionOptional
WIFIWIFI moduleWIFI 802.11(a/b/g/n/ac)    frequency 2.4G+5G dual band WIFI,Support AP seamless roaming
Bluetoothbuild inBT5.0(BLE)
2G/3G/4GOptional

GSM(B2/3/5/8)+WCDMA(B1/B2/5/8)+TDS(B34/B39)+FDD(B1/2/3/4/5/7/8/13/17/20/28AB)+TDD(B38/39/40/41)

GPSbuild in1. Support GPS、Glonass、beidou(G+G+B)

NFCbuild inNFC 13.56MHz  Support 14443A/14443B/15693/18092/mifare protocol under ISO/IEC
Data Collection
TypeDetailsDescriptionOptional
2D Barcode ScannerOptional/Serial port&MIPI
Support EM80//EM03/Zebra4710(under debugging)
Interface Configuration
TypeDetailsDescriptionOptional
TF slotExtensive External MemoryThree choice two card socket (two nano SIM cards or one nano SIM card and one T card)NA
SIM slotSIM cardNA
Earphone JackAudio outputTYPE-CNA
keyboardSmall board26 keysNA
Barcode Scan KeybarcodeBar code scanning (left and right)*2NA
power onKeypower key x1NA
Volume addition and subtractionKeyVolume addition and subtraction x1NA
Expansion interfaceCharge POGO PIN1Base Charging 2pinNA
Data  transmission POGO PIN2Back 8pin (connecting UHF and Scanner Gun)NA
Standard accessories
TypeDetailsDescriptionOptional
USB CableUSB Cabletype-CNA
The power adapterStandardAC100V ~ 240V、50Hz/60Hz output DC 5V/2AUK Standard
EU Standard
Software configuration
TypeDetailsDescriptionOptional
operating systemOperating System VersionAndriod11NA
Certification
TypeDetailsDescriptionOptional

Certification System
IP65IP65 Report: Water resistance:IP-X5,Dust resistance:IP-6X  Report ID no.:SET2015-07677
a.Inner Nozzle diameter:6.3mm;   b. water speed:12.5±0.625L/min;
c. Water Pressure:adjust according to water volumn;
d.Central part of water volumn
e.Spray time in surface of panel:about 1min;f.test time:at least 3min;
g.distance between nozzle and panel surface:2.5~3m。
After test,there is no water leakage in sample.

Reliability
TypeDetailsDescriptionOptional
Product Reliabilitydrop height1.2m Composite wood floor working
working temperature‘-10 °C to 50 °C
Storage temperature’-20 °C to 60 °C
humidityHumidity: 95% Non-Condensing



Accessories of 4'' Android Handheld EM-T40 Rugged PC

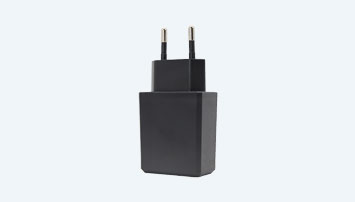

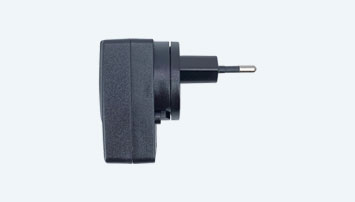

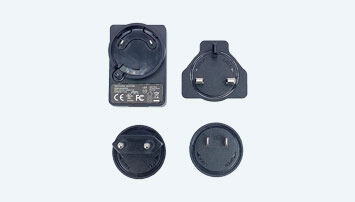

Adapter
Adapter
Adapter
Adapter
Adapter cable
Adapter cable
Adapter
Adapter
Adapter
Adapter
Docking Charger
Docking Charger
Car Holder
Car Holder

Gallary of 4'' Android Handheld EM-T40 Rugged PC

Application Range of 4'' Android Handheld EM-T40 Rugged PC


Traffic Industry
Traffic Industry
Warehouse Logistics Industry
Warehouse Logistics Industry
Surveying Mapping Industry
Surveying Mapping Industry
Public Industry
Public Industry
Manufacturing Industry
Manufacturing Industry
Energy Industry
Energy Industry
