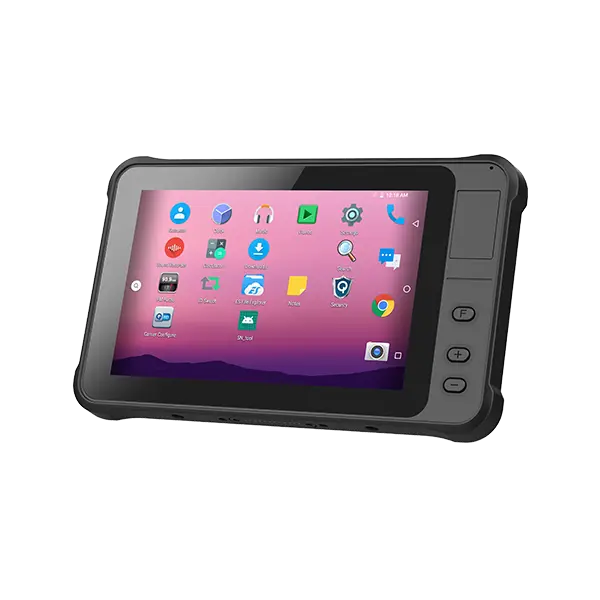

7'' Android: EM-Q75 1000nit Highlight Tablet

  • Equipped with 2.0GHz Qualcomm(OCTA Core), Smoother experience.

  • 1000nit higlight screen, Clearly dispaly under strong light.

  • Front 5.0MP + rear 13MP camera,Clearer picture record.

  • The protection is also outstanding.

  • IP65 high protection level, in accordance with MIL-STD-810G.


7'' Android: EM-Q75 Rugged Tablet
7'' Android: EM-Q75 Rugged Tablet
7'' Android: EM-Q75 Rugged Tablet
7'' Android: EM-Q75 Rugged Tablet
Android Android
High-capacity High-capacity
1D 1D
2D 2D
RFID RFID
4G 4G
WiFi WiFi
Bluetooth Bluetooth
IP65 IP65
GPS GPS

Features of 7'' Android Tablet EM-Q75 Rugged PC


  • Support for Android 10 system

  • Integrated 4G all network communication, WiFi, Bluetooth and other communication modes

  • 7500mAh battery, 6-8 hours of machine endurance

  • IP65 high protection level, in accordance with MIL-STD-810G

  • Support GPS, GLONASS, more accurate positioning

  • 800x1280 IPS, 1000nit high brightness screen, more suitable for outdoor harsh environment

  • Support 1D/2D, UHF, NFC, ID card and other functional modules for free selection

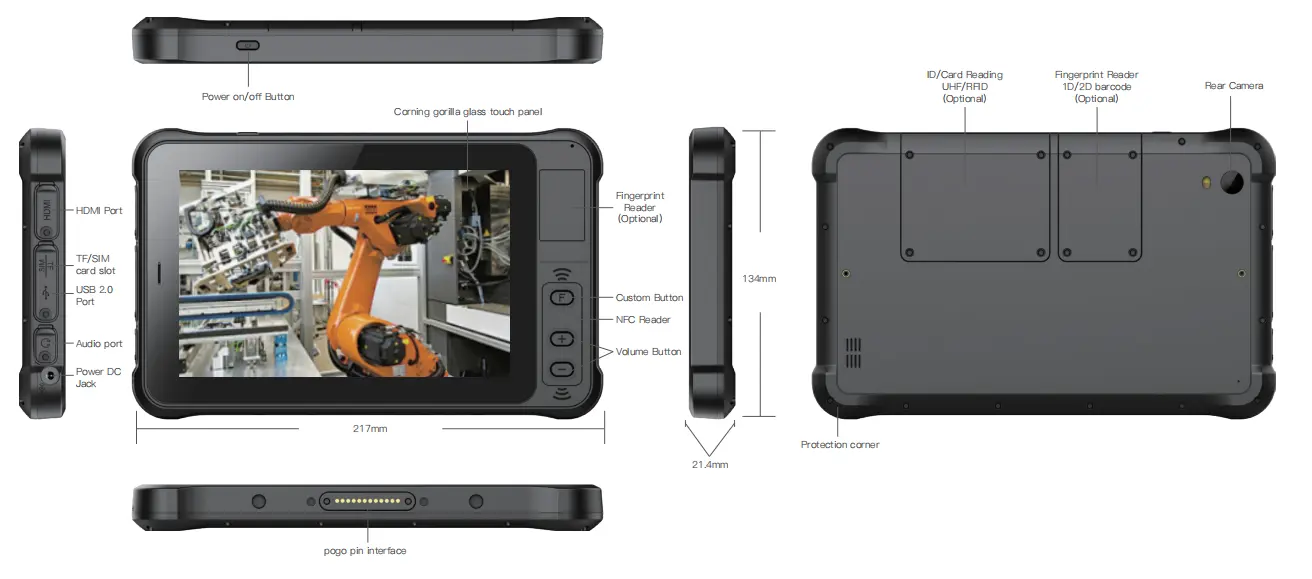

Six Views of 7'' Android Tablet EM-Q75



Specifications of 7'' Android Tablet EM-Q75 Rugged PC


TypeDetailsStandard ConfigurationOptional
Product FormProduct Form7 inch   rugged TabletNA
Dimension216.98*133.96*21.4NA
Weight680gNA
Product ColorBlack (front + rear)
LCDScreen Size7 inch  16:10NA
Resolution800*1280 IPSNA
Brightness1000cd/m2
TPTouch panel5 points capacity TP,G+G,hardness over 7H, scratch resistant, TP thickness:1.1mm, support touch with wearing glovesNA
CameraFrontFront 5.0MPNA
RearRear 13MP ,Auto focus with flashNA
SpeakerBuilt-inbuilt-in 8Ω/1W Boss speaker x 1NA
MicrophoneBuilt-inSensitivity: -42db, output impedance 2.2kΩNA
Battery(tablet)TypeRemovable Li-polymer batteryNA
Capacitycalculate 3.7V/7500mAhNA
Endurancenearly 7hours ( 50% volume sounds, 50% brightness, 1080P HD video display by default )
nearly 5hours ( 50% volume sounds, 100% brightness, 1080P HD video display by default )
NA
System Hardware Configuration
TypeDetailsDescriptionsOptional
CPUTypeMSM8953SDM450
Speed2.0GHZ1.8GHZ
GPUtypeAdreno 506 1920 × 1200 @ 60 fpsNA
RAMDDR3L4GB DDR3NA
ROMEmmc64GBNA
Indicator lightBuilt-inCharging indicator light,which is red flash when low power,keeping on red light when power more than 20% , ,keeping on green light when full charged .


L/P-SensorBuilt-inLight/Proximity sensors
Compass sensorBuilt-inCompass sensor
gyroscopeGyroscopeGyroscope
G_sensorBuilt-inG_sensorNA
Internet Connections
TypeDetailsDescriptionsOptional
WIFIWIFI moduleWIFI 802.11(ac/a/b/g/n)   dual frequency 2.4G+5.8G WIFINA
BluetoothBuilt-inBT4.1 (BLE) class1.5     Transmission distance :10mNA
4GBuilt-inCMCC 4M:
LTE B1,B3,B5,B7,B8,B20,B38,B39,B40,B41
 WCDMA 1/2/5/8
GSM 2/3/5/8
LTE 2/4/7/17
GPSBuilt-insupport GPS、Glonass、BeidouNA
Data collection
TypeDetailsDescriptionsOptional
one-dimension barcodeoptionalNAN 4313
Optical resolution: 5mil
Scan speed: 50 times/s
Code system:UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code 128,GS1-128,ISBT 128,Code 39,Trioptic Code 39 ,Code 32,Code 93  ,Code 11
Two-dimension barcodeoptionalNAEM80
Optical resolution:5mil
Scan speed:50 times/s
Code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse
 Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse
NFCBuilt-inNFC- ST21NFCDNA
ID ModuleoptionalNAsupport reading the 2nd,the 3rd ID card information and the fingerprint information built-in.
FingerprintoptionalNAthe fingerprint module authenticated by Chinese Ministry of public security, support the collection of resident fingerprint which built in their ID card.
UHFoptional
1:PR9200,recognition distance:1m~1.5M,TTL port
2:M-550 UHF RFID slim all-in-one module:
I/O Ports
TypeDetailsDescriptionsOptional
TF cardExtending external storagex1    max:128GNA
SIM cardSIM cardx1
USB portExtending external storage and data exchangeMicroUSB 2.0*1NA
earphone jackaudio output∮3.5mm standard earphone jack  x1NA
DC jackpowerwaterproof DC 5V 3A ∮3.5mm DC jack x1NA
HDMI portvideo,audio outputHDMI 1.4a Type C  x1NA
Extension interfacepogo Pin12pin  Pogo Pin   x1( USB + UART + power )NA
Standard Accessories
TypeDetailsDescriptionsOptional
OTG CableOTG CableUSB OTG turn MICRO USB cable  length 45mmNA
USB  CableUSB CableUSB turn micro 5P L=1.2M    4 wires with aluminium foil and shieldingNA
AdapterStandardAC100V ~ 240V,50Hz/60Hz   Output DC 5V/3A      Europe standard with  CE certificatethe UK standard
the European standard
Software Configuration
TypeDetailsDescriptionsOptional
Operation SystemOperation System
Version
Android 10 GMS
Product Certificate
TypeDetailsDescriptionsOptional
Certificates SystemIP65IP65 Report: Water resistance:IP-X5,Dust resistance:IP-6X  Report ID no.:SET2015-07677
a.Inner Nozzle diameter:6.3mm;   b. water speed:12.5±0.625L/min;
c. Water Pressure:adjust according to water volumn;
d.Central part of water volumn
e.Spray time in surface of panel:about 1min;f.test time:at least 3min;
g.distance between nozzle and panel surface:2.5~3m。
After test,there is no water leakage in sample.

CE NBY
MIL-STD-810GY
BatteryUN38.3,MSDS, Aviation report, Sea transportation report, IEC62133
Reliability
TypeDetailsDescriptionsOptional
Product reliabilityFalling heightMIL-STD-810G 1.22m drop
Working temperature‘-20 °C to 55°C
Storage temperature’-30 °C to 70 °C
HumidityHumidity: 95% Non-Condensing



Accessories of 7'' Android Tablet EM-Q75 Rugged PC

Various modules and accessories can be selected to meet customers' application in various industries.


Hand-strap
Hand-strap
Car Charge
Car Charge
Vehicle Mount
Vehicle Mount
Docking Charger
Docking Charger
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter

Application Range of 7'' Android Tablet EM-Q75 Rugged PC

Various modules and accessories can be selected to meet customers' application in various industries.


Warehouse & Logistics Industry
Warehouse & Logistics Industry
Surveying & Mapping Industry
Surveying & Mapping Industry
Manufacturing Industry
Manufacturing Industry
Energy Industry
Energy Industry
Public Industry
Public Industry
Traffic Industry
Traffic Industry
