8'' Intel: EM-I86H Barcode scanner Rugged Tablet

Hot sale Windows Rugged Tablet EM-I86

  • Hot sale & Classical Fully Rugged Tablet

  • Rugged IP67 protective grade for waterproof & dustproof

  • Intel core with Win10 OS/Gorilla glass TP, easy to operate

  • 1D/2D barcode scanner/USB/NFC/BD

  • Abundan ACCESSORIZE FOR BETTER PERFORMANCE

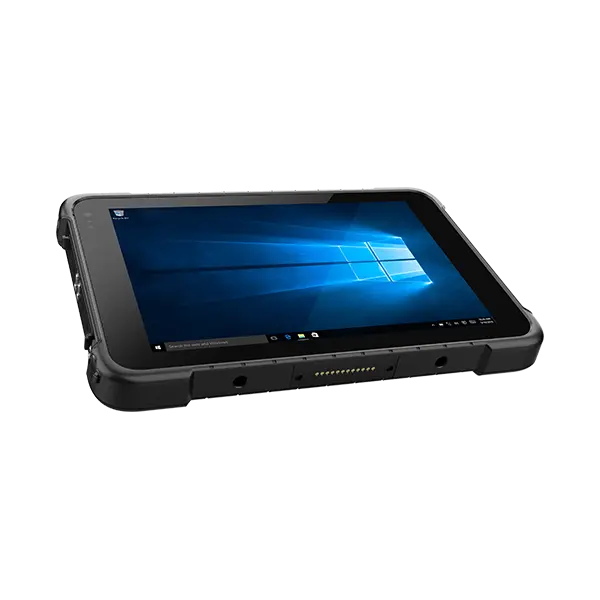

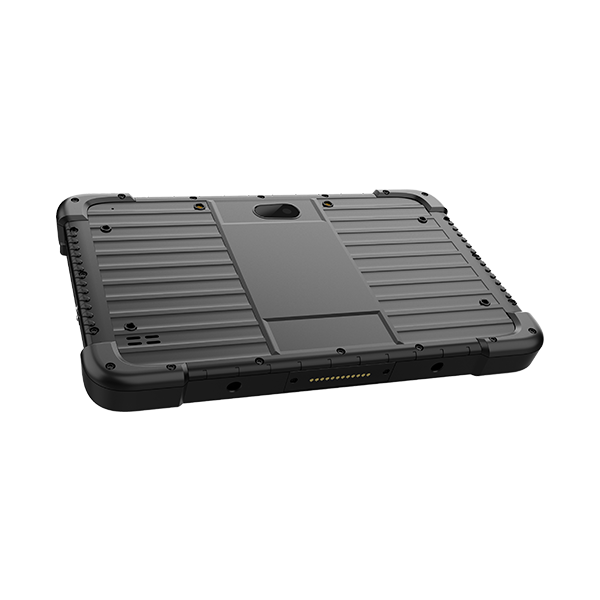

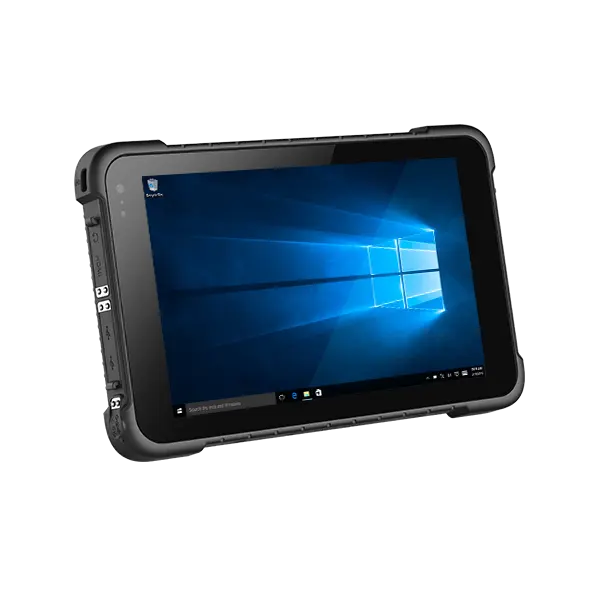

8'' Intel: EM-I86H Rugged Tablet
8'' Intel: EM-I86H Rugged Tablet
8'' Intel: EM-I86H Rugged Tablet
8'' Intel: EM-I86H Rugged Tablet
Windows Windows
GPS GPS
3G/4G 3G/4G
IP67 IP67
High-capacity High-capacity
Bluetooth Bluetooth
1D 1D
2D 2D
RFID RFID
WiFi WiFi

Features of 8'' Intel Tablet EM-I86H Rugged PC


  • Support for Windows 10 system

  • Integrated 3G/4G all network communication, WiFi, Bluetooth and other communication modes

  • 8500mAh battery, 8 hours of machine endurance

  • IP67 high protection level, in accordance with MIL-STD-810G

  • Support GPS, more accurate positioning

  • Support 5 million pixel autofocus camera, easy to collect images and video information.

  • Support 1D/2D, NFC and other functional modules for free selection

  • Optional high-brightness screen

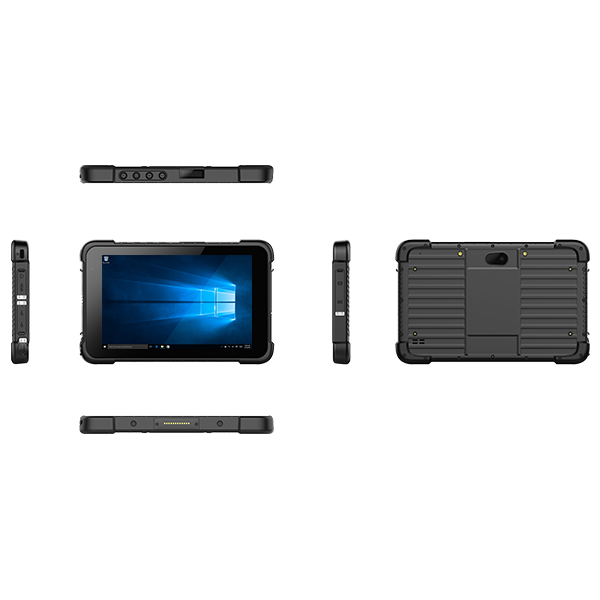

Six Views of 8'' Intel Tablet EM-I86H Rugged PC


8'' Intel: EM-I86H Rugged Tablet



Specifications of 8'' Intel Tablet EM-I86H Rugged PC


Model No:EM-I86H Specification
TypeDetailsStandard ConfigurationOptional
Product FormTypeRugged TabletNA
Dimension228*145*16.5mmNA
WeightDevice unit:715g  ,Unit with giftbox and standard accessories:1400g,docking:290gNA
Device Colorblack( bottom shell in black, front shell in black)black+ silver ( bottom shell in silver color, front shell in black)
LCDScreen Size8 inch   10:16NA
Resolution800*1280 IPS LCD/1920*1200FHDNA
Brightness450 NitNA
TPTouch PanelMulti points Capacitive,G+G,Rigidity: above 7H-Anti-scratch,support handwritingNA
CameraFrontFront:2.0MP   with indicator lightNA
RearRear: 5.0MPNA
SpeakerBuilt-inEmbedded 8Ω/0.8W waterproof speakerx 1NA
MicBuilt-inSensitivity:-42db, output resistance2.2kΩNA
Batterytypebuild in polymer li-ion batteryNA
Capacity3.7V/8500mAhIf use 4G configuration, battery capacity is 7800MAH
Endurance8Hrs(default 50% volumn,default200 lumens brightness,play 1080P HD video)NA
System Hardware Configuration
TypeDetailsDescriptionsOptional
CPUTypeIntel Cherry trail Z8350NA
Speed1.44Ghz-1.92GHzNA
GPUTypeIntel HD Graphic(Gen7)NA
RAMDDR3L4GBNA
ROMEmmc64GBNA
G_sensorBuilt-inGravity acceleration sensorNA
Network Connections
TypeDetailsDescriptionsOptional
WIFIWIFIWIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G  dual-band WIFI intel 3165D2WGNA
BluetoothBuilt-inBT4.2 (BLE) class1 transmission distance:10mNA
3GBuilt-inNAIC:H350_A30:WCDMA(900/2100MHz)  GSM(900/1800MHz),HSDPA 7.2Mbps,HSUPA 5.76 Mbps
4GBuilt-inEC25-EC(European version)
LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8
EC25-ECLTE FDD: B1/B2/B3/B4/B5/B7/B8/B28 LTE TDD: B40 WCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8
GPSBuilt-inU-blox NEO-7,support :GPS;Capture sensitivity: -160 dBm;Cool Start Time:<50 seconds,Hot start time:<28 seconds,frequency:0.25 Hz … 10 MHz (configurable)NA
NFCBuilt-inNANXP NFC 13.56MHz  support SO/IEC 14443A/14443B/15693/18092/Mifare protocol,Card reading distance:4cm
1D barcode scannerOptionalNAMOTO  SE655E100R
2D barcode scannerOptionalNAMOTO  SE4710   hardware decoding, Support Buzzer
Interface Configuration
TypeDetailsDescriptionsOptional
TF slotExtensive External Memorysupport TF   x1    max:128GNA
SIM slotSIM cardSIMx1NA
USB2.0 interfacedata transmissionUSB2.0*1 (Host)micr usb  x1NA
Earphone JackAudio Output∮3.5mm  standard earphone jack   x1NA
DC JackPowerDC 5V 3A ∮3.5mm Power connector  x1Overvoltage protection of circuit,Maximum protection voltage DC24V
HDMIVideo OutputHDMI 1.4a Type C  x1NA
Extensive Slotpogo Pin12pin  Pogo Pin   x1NA
Standard Accessories
TypeDetailsDescriptionOptional
OTG cableOTG cableUSB OTG to MICRO USB cable length:45mmNA
USB cableUSB cableUSB to micro 5P L=1.2M  4core aluminum foil shield cableNA
Power AdaptorStandardAC100V ~ 240V、50Hz/60Hz output DC 5V/3A      USA Standard  CE approvalUK standard
EU Standard
Software Configuration
TypeDetailsDescriptionOptional
Operation SystemOS versionwindows 10 Smode 32bit    Default language:Englishwindows 10 Smode 32bit
Windows 10  Pro 32bit/64bit
Software Configuration
TypeDetailsDescriptionOptional
Certificate SystemIP65IP67 Report: Water resistance:IP-X7,Dust resistance:IP-6X  Report ID no.:SET2015-07677
a.Inner Nozzle diameter:6.3mm;   b. water speed:12.5±0.625L/min;
c. Water Pressure:adjust according to water volumn;
d.Central part of water volumn:diameter of 40mm, distance from nozzle: 2.5M
e.Spray time on surface of panel:about 1min;f.test time:at least 3min;
g.distance between nozzle and panel surface:2.5~3m。
After test,there is no water leakage in sample.
NA
CE NBY
MIL-STD-810GY
BatteryUN38.3,MSDS,IEC62133
Reliability
TypeDetailsDescriptionsOptional
Product ReliabilityDrop HeightMIL-STD-810G 1.22m drop
Operate Temperature‘-20 °C to 60 °C
Store Temperature’-30 °C to 70 °C
HumidityHumidity: 95% Non-Condensing



Application Range of 8'' Intel Tablet EM-I86H Rugged PC

Various modules and accessories can be selected to meet customers' application in various industries.



Accessories of 8'' Intel Tablet EM-I86H Rugged PC

Various modules and accessories can be selected to meet customers' application in various industries.


Hand-strap
Hand-strap
Back-strap
Back-strap
Car Charge
Car Charge
Vehicle Mount
Vehicle Mount
Docking Charger
Docking Charger
TP Film
TP Film
Shoulder-strap
Shoulder-strap
Leather Case
Leather Case
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
