• Support for Android 12 (GMS) system
• Optional 3G/4G all network communication, WiFi, Bluetooth and other communication modes
• 6000mAh battery, 7 hours of machine endurance
• IP65 high protection level, in accordance with MIL-STD-810G
• Support GPS, Glonass, more accurate positioning
• Support 13 million pixel auto focus camera, easy to collect images and video information
• Support 2D, NFC and other functional modules for free selection
Android
IP67
GPS
High-capacity
Bluetooth
2D
NFC
2G/3G/4G
WiFi
Camera
| Basic parameters | Performance parameter | ||||||||||||||||
| Dimension | 227.7 x 150.8 x 24.7mm | CPU | ARM (Octa-Core), 2.0GHz | ||||||||||||||
| Weight | Device unit 680g | OS | Android 12 (GMS) | ||||||||||||||
Device Color | Black | RAM | 8GB | ||||||||||||||
| LCD | 8 inch IPS 16:10, 800x1280 FHD, 700nits | ROM | 128GB | ||||||||||||||
| Touch Panel | 5 point G+G capacitive touch screen | Battery | |||||||||||||||
| Camera | Front 5.0MP Rear 13.0MP | Capacity | 3.7V/6000mAh | ||||||||||||||

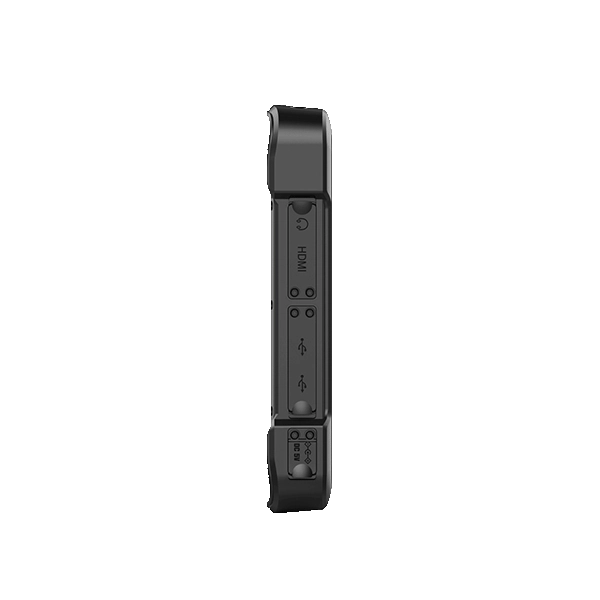

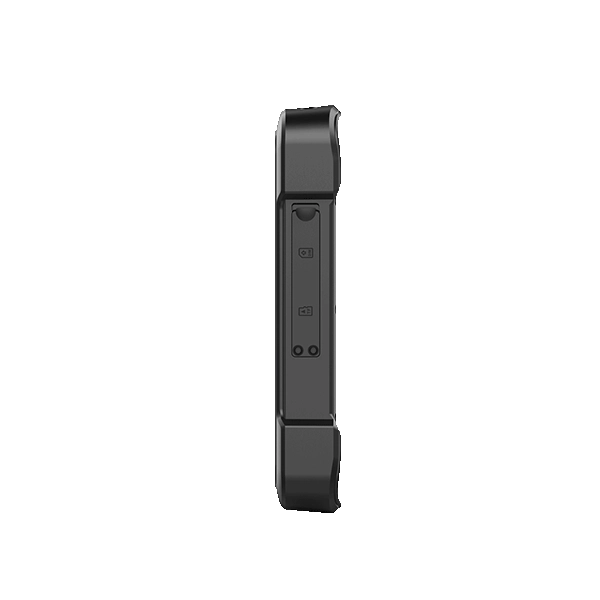

| I/O | USB 2.0 Type-A x 1, USB Type-C x 1, SIM Card x 1, TF Card x 1, 12PIN Pogo Pin x 1, Φ3.5mm standard earphone jack x 1, Φ3.5mm DC jack x 1 | Type | Built-in Li-polymer battery | ||||||||||||||
| Endurance | 7hrs ( 50% volume sounds, 200 lumens brightness, 1080P HD video display by default ) | ||||||||||||||||
| Data Collection | |||||||||||||||||
| Power | AC100V ~ 240V, 50Hz/60Hz, Output DC 5V/3A | NFC | Built-in, 13.56MHz, Support ISO/IEC 14443A protocol Card reading distance: 3-5cm | ||||||||||||||
| Communication | |||||||||||||||||
| 2D | Optional, Optical resolution: 5mil/ scan speed: 50 times/s | ||||||||||||||||
| WIFI | WiFi 802.11 a/b/g/n/ac (2.4G+5G) | ||||||||||||||||
| Reliability | |||||||||||||||||
| Bluetooth | BT5.2, Transmission distance: 10m | ||||||||||||||||
| 2G/3G/4G | GSM：B2/B3/B5/B8 WCDMA：B1/B2/B5/B8 TDD：B38/B39/B40/B41N FDD：B1/B2/B3/B4/B5/B7/B8/B17/B20/B28a/B28b | Operate Temperature | -20 °C ~ 60 °C | ||||||||||||||
| Store Temperature | -30 °C ~ 70 °C | ||||||||||||||||
| Humidity | 95% Non-Condensing | ||||||||||||||||
| GNSS | Support GPS+Glonass+Beidou | Rugged Feature | IP65 certified, MIL-STD-810G certified | ||||||||||||||
| Drop Height | 1.22m | ||||||||||||||||
* Please be aware all technical data, specification and performance figures subject to change without notice.
Various modules and accessories can be selected to meet customers' application in various industries.
Various modules and accessories can be selected to meet customers' application in various industries.
