Debian 11 EM-R88 Rugged Tablet PC (Linux version)

·RK3568 quad-core processor

·Debian 11 OS,4 GB of LPDDR4 RAM and 128 GB storage

·IP65 Waterproof and Dustproof

·Vibration & 1.2m drop resistant

·Professional 2D scanner and NFC reader

·Support GPS+BeiDou

·High speed 2G/3G/4G network

·2.4G/5.0G dual-band Wi-Fi

r88
r88
r88
r88
r88
Debian 11 Debian 11
IP65 IP65
GPS GPS
Dual-battery Dual-battery
NFC NFC
Bluetooth Bluetooth
2D 2D
4G 4G
WiFi WiFi
Camera Camera

Features of Debian 11 EM-R88 Rugged Tablet PC


  • ·RK3568 quad-core processor

  • ·Debian 11 OS,4 GB of LPDDR4 RAM and 128 GB storage

  • ·IP65 Waterproof and Dustproof

  • ·Vibration & 1.2m drop resistant

  • ·Professional 2D scanner and NFC reader

  • ·Support GPS+BeiDou

  • ·High speed 2G/3G/4G network

  • ·2.4G/5.0G dual-band Wi-Fi

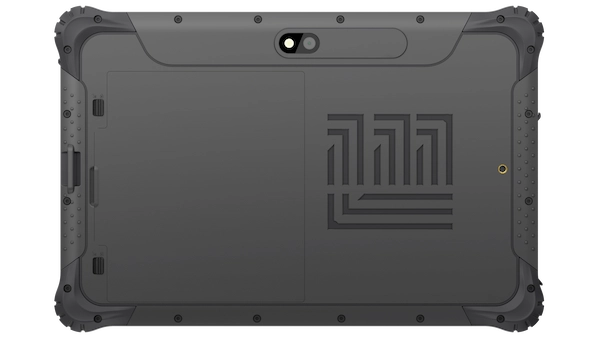

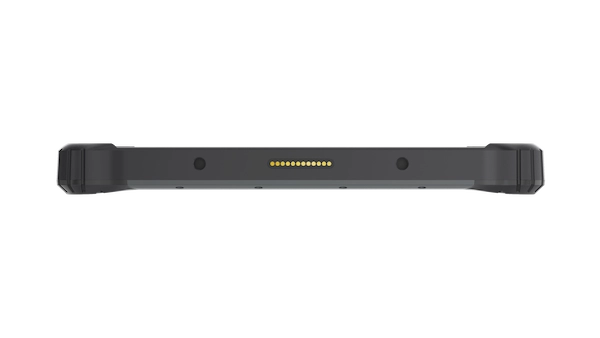

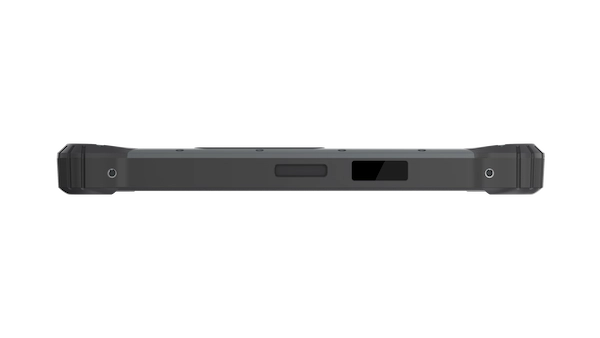

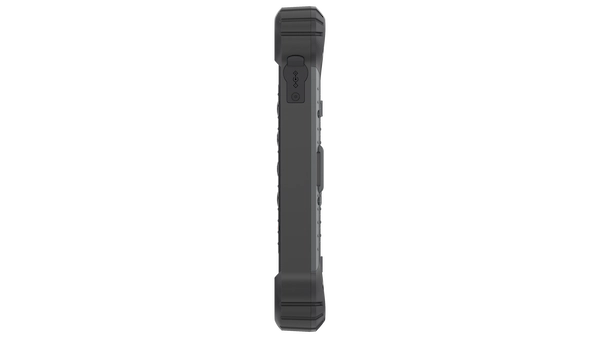

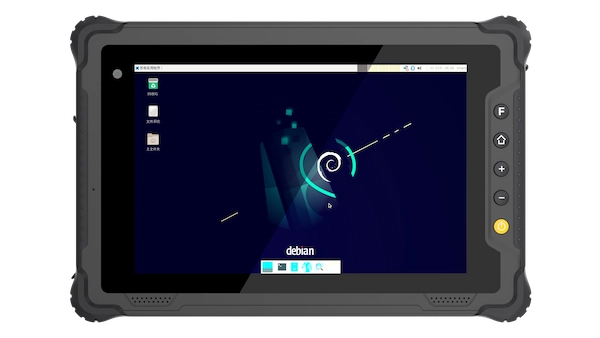

Six Views of Debian 11 EM-R88 Rugged Tablet PC


EM-R88 Rugged Tablet PC



Specifications of Debian 11 EM-R88 Rugged Tablet PC



Basic parameters
Dimension  236.7 x 155.7 x 20.8mm
Weight  Device unit 818 g
Device Color  Gray
LCD  8 inch IPS 16:10, 800×1280, 700 nits
Touch Panel  10 point G+G capacitive touch screen
Camera  Front 5.0MP Rear 8.0MP
I/O  USB 3.0 Type-A x 1, USB Type-C x 1,
SIM Card x 1, TF Card x 1 (MAX 512GB)
HDMI x 1,
12PINPogo Pin x 1
Φ3.5mm standard earphone jack x 1
DC 5V 4A Φ 3.5mm jack x 1
Power  AC100V ~ 240V, 50Hz/60Hz, Output DC 5V/4A
Network connections
WIFI  WiFi 802.11 a/b/g/n/ac (2.4G+5G)
Bluetooth  BT5.0
Transmission distance: 10 m

2G/3G/4G
   GSM:900/1800
WCDMA:B1/B5/B8
TDD:B40
FDD:B1/B3/B5/B7/B8/B20
GNSS  Support GPS/BeiDou


 Performance parameter
 CPU  RK3568
 OS  Debian 11
 RAM  4GB
 Storage  128GB
 Battery
 Capacity  3.8V/10000mAh
 Type  Removable Li-polymer battery
 Endurance  11hrs (50% volume sounds, 50% screen brightness,
1080P HD video display by default)
 Reliability
  Operate
Temperature
   -15 °C to 55 °C
  Store
Temperature
   -30 °C to 70 °C
 Humidity  95% Non-Condensing
  Rugged
Feature
  IP65 certified, MIL-STD-810G certified
 Drop Height  1.22m drop
 Data Collection
 2D  Optional, Optical resolution: 5mil/
scan speed: 50 times/s
  NFC  Optional, 13.56MHz,
Support ISO/IEC 14443A protocol
Card reading distance: 3-5 cm

* Please be aware all technical data, specification and performance figures subject to change without notice.



Accessories of Debian 11 EM-R88 Rugged Tablet PC

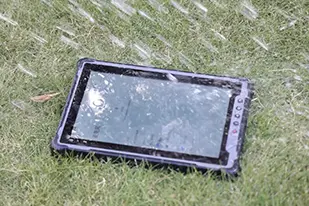

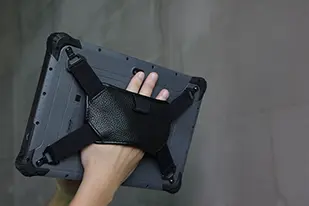

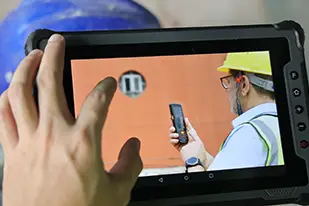

Gallary of Debian 11 EM-R88 Rugged Tablet PC

r88 6
r88 6
r88 7
r88 7
r882
r882

Debian 11 EM-R88 Rugged Tablet PC (Linux version)
