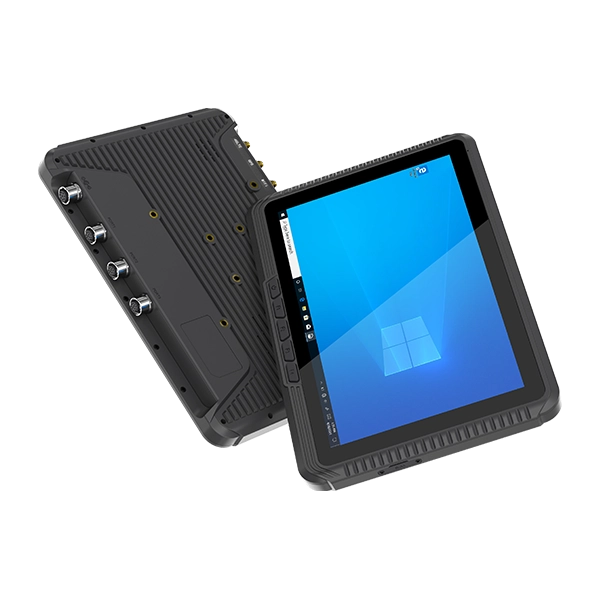

Intel Celeron N5100 10.1 inch Windows 11 Vehicle-mount Tablet : ONERugged V10J

● Equipped with Quad-core Intel JASPER LAKE N5100 processor and running Windows 11 OS, up to 8GB+128GB high-speed capacity.

● 10.1-inch screen, 1000cd/m² high brightness display, multiple-point touch paneland customized keys , ensuring outdoor worker visibility.

● 4G LTE, dual-band Wi-Fi and Bluetooth 5.0 connectivity. Multi-satellite systems ofGPS/Glonass/Beidou, with available vehicle mushroom antenna for real-timetracking to your vehicle and asset management.

● With aviation plug charging interface, switchable for cigarette lighter interface or Φ5.5 power port, and the external 9V-36V DC wide voltage module is optional.

● Supports the battery-free mode, another optional 7.4V/1000mAh capacity battery.

● Available multiple navigation plug interfaces, and also supports USB/DB9/LAN/CAN and other interface extensions.

● IP65 dustproof and waterproof, morphed to endure outdoor applications prone with shock, vibration and extreme temperature


Vehicle Mount Touch Computers
Vehicle Mount Touch Computers
Vehicle Mount Touch Computers
Vehicle Mount Touch Computers
Vehicle Mount Touch Computers
ip65 ip65
gps gps
nfc nfc
4g 4g
wifi wifi
bluetooth bluetooth
windows windows
high capacity high capacity

Features of Intel Celeron N5100 10.1 inch Windows 11 Vehicle Mount Computer : ONERugged V10J

Quad-core Intel JASPER LAKE N5100

Equipped with Quad-core Intel JASPER LAKE N5100 processor and running Windows 11,the V10J delivers unparalleled system performance making it a reliable and productive daily workhorse.


Easy Connect on the Go

Capable of diverse communication protocols, including 4G LTE, dual-band Wi-Fi and Bluetooth 5.0, V10J guarantees seamless connection throughout your entire shift. Multi-satellite running GPS/Glonass/Beidou provides real-time tracking to your vehicle and asset management.

Note: 4G function, 4G antenna, and Beidou function are not standard.


Easy to install

VESA and RAM, the two bracket mounting methods are fixed almost any vehicle-mounted workplace, such as forklifts, agricultural machinery, stackers, cranes, cars, trucks, vans, carts, and more.

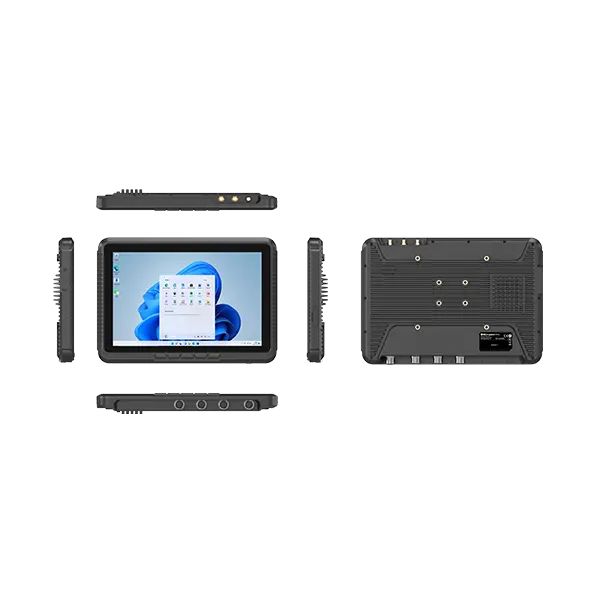

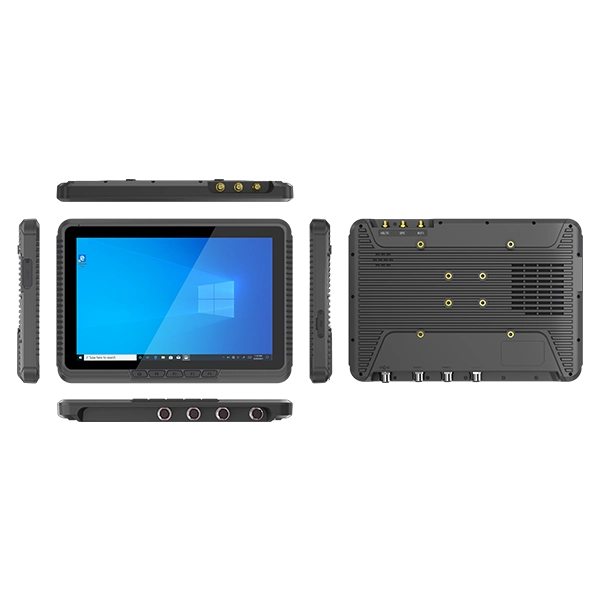

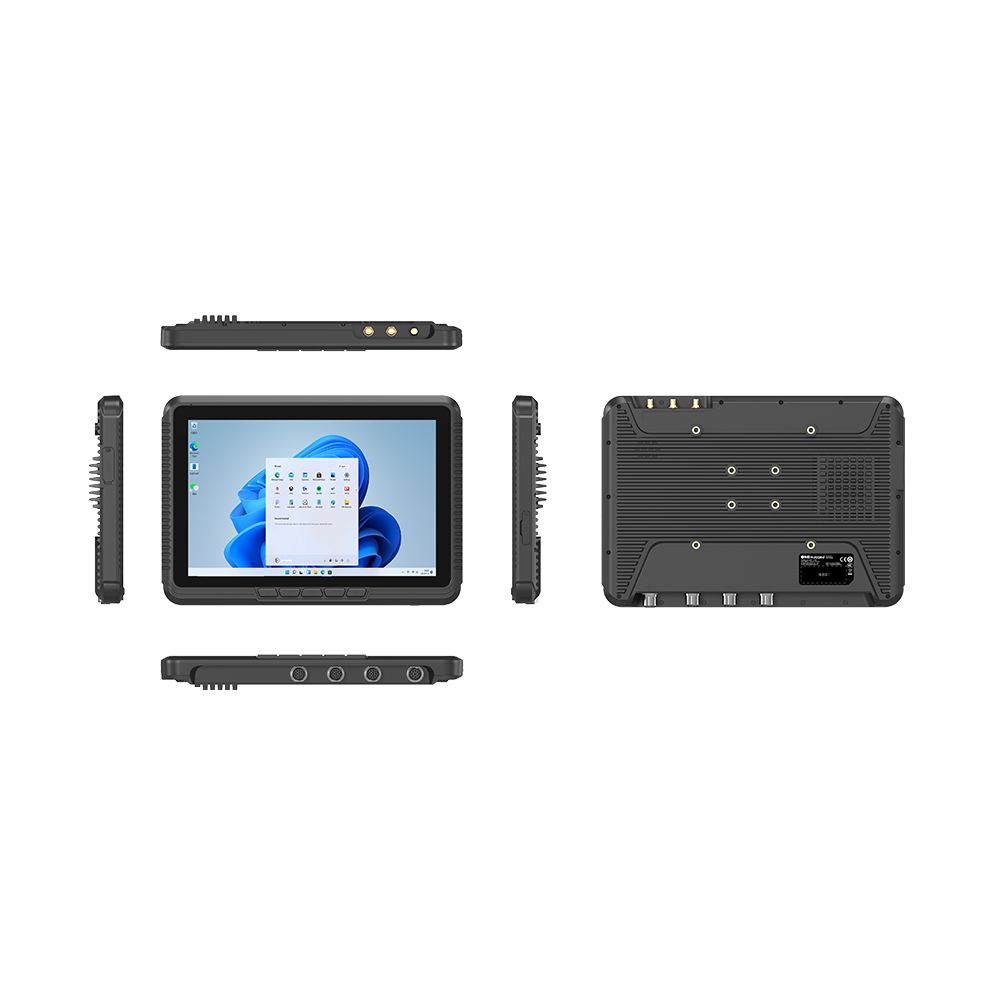

Six views of Intel Celeron N5100 10.1 inch Windows 11 Vehicle Mount Computer: ONERugged V10JVPC10J-six_view.webp


Specifications of Intel Celeron N5100 10.1 inch Windows 11 Vehicle Mount Computer : ONERugged V10J


Basic parameters
Dimension264.5*184.1*23.0mm
WeightTBD
Product ColorBlack
LCD10.1 inch, 800*1280, 700nits
Touch Panel5-point tempered glass capacitive screen G+G
I/O

Nano-SIM *1 (Optional)

USB 3.0 Type-A *1

RS232 + RS232/RS485 (Optional)

Ethernet interface (100/1000M) (Optional)

USB 2.0 *2 + CAN/CVBS *1 (Optional)

DC

PowerAC100V ~ 240V, 50Hz/60Hz, Output DC 19V/3.42A
NFC Optional
Performance parameter
CPUIntel® Celeron® N5100
OSWindows 11, Optional Windows 10
RAM4GB, Optional 8GB, Up to 16GB
Storage64GB, Optional 128GB, Up to 512GB
Network connections
WIFI802.11 a/b/g/n/ac (2.4G/5.8G)
Bluetooth

BT5.0

4G

Optional

LTE FDD: B1/B3/B5/B7/B8/B20

LTE-TDD: B40 WCDMA: B1/B5/B8

GSM: B3/B5

GNSSBuilt-in GPS,GLONASS, Optional Beidou
Reliability
Operate Temperature-20 °C ~ 60 °C
Store Temperature-30 °C ~ 70 °C
Humidity95% Non-Condensing
Rugged FeatureIP65 certified
Electrostatic Discharge±8kV contact discharge, ±15kV air discharge
Battery (Optional)
Capacity1000mAh/7.4V
TypeBuilt-in Li-polymer battery
Endurance

30mins ( 50% volume sounds, 200 lumens brightness,

1080P HD video display by default )



* Please be aware all technical data, specifications and performance figures are subject to change without notice.



Accessories of Intel Celeron N5100 10.1 inch Windows Vehicle Mount Computers : ONERugged V10J

Various modules and accessories can be selected to meet customers' application in various industries.


Application Range of Intel Celeron N5100 10.1 inch Windows Vehicle Mount Computers : ONERugged V10J

Various modules and accessories can be selected to meet customers' application in various industries.


Warehousing Logistics
Warehousing Logistics
Airport Transportation
Airport Transportation
Vehicle Management
Vehicle Management
Automatic Driving of Agricultural Machinery
Automatic Driving of Agricultural Machinery
