Rockchip RK3568 21.5 inch Industrial Panel PC EM-PPC21R

Product Feature:

● RK3568 2.0GHz CPU

● Android 11 OS

● Fanless with low consumption

● IP65 of front panel

● DC 12V

01
02
03
04
05

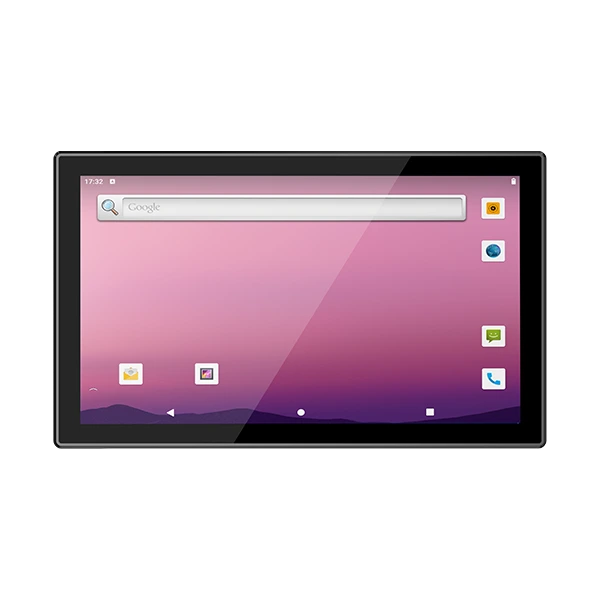

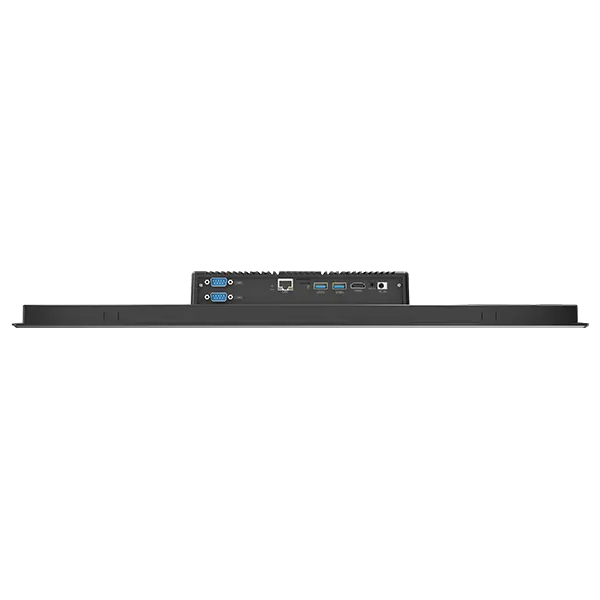

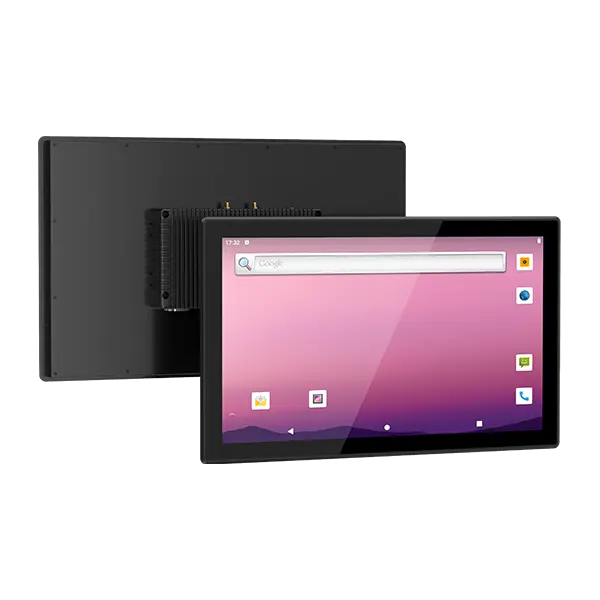

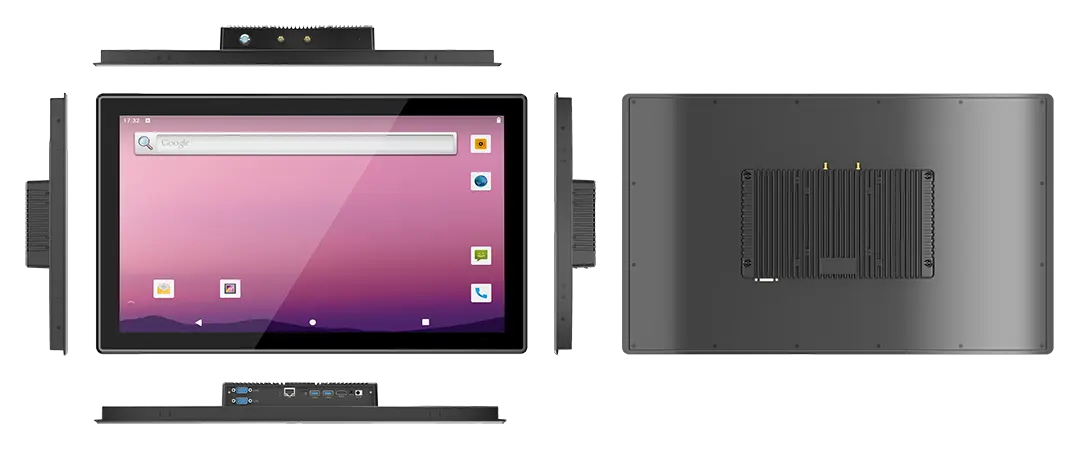

Six Views of Rockchip RK3568 21.5 inch Industrial Panel PC EM-PPC21R



Specification of Rockchip RK3568 21.5 inch Industrial Panel PC EM-PPC21R

TypeDetailsStandard ConfigurationOptional
Product FormTypePPCNA
Dimension537.02 x 324.02 x 57.60 mmNA
WeightDevice unit:   5.05kg
Unit with giftbox and standard accessories:  kg
NA
Device ColorBlack(Front and Rear Panel: Black,Decorate Board:Black)NA
LCDScreen Size21.5 inchNA
Resolution1920x1080  16:9NA
Brightness250 cd/m2
TPTouch PanelPCAP
SpeakerBuilt-inNANA
System Hardware Configuration
TypeDetailsDescriptionOptional
CPUTypeRK3568 Quad core 64 bit ARM V8.2 Cortex-A55NA
Speedup to 2.0 GHzNA
GPUTypeMali-G52-2EENA
RAMDDR42GB   onboard4GB
EMMC/SSDEMMC/SSD16GB32G
Interface Configuration
TypeDetailsDescriptionsOptional
SIM SlotSIM SlotSIM *1  TF*1NA
type A usbUSBUSB3.0*1  + USB3.0*1 OTGNA
DC JackPowerDC 12V  Power connector  x1NA
Earphone JackAudio Output∮3.5mm Standard Earphone Jack  x1NA
Extensive SlotMiniPCIE1*MiniPCIE X1NA
WIFI /BTWIFI /BT802.11b/g/n  /BT4.0NA
DB9 PORTSerial port*2 RS232NA
DisplayDisplayHDMINA
RJ45 PORTInternet port*1(10/100/1000 Mbps)NA
Standard Accessories
TypeDetailsDescriptionsOptional
Power AdaptorStandardAC100V ~ 240V、50Hz/60Hz output DC 12V/4A
NA
Software Configuration
TypeDetailsDescriptionsOptional
Operation SystemOS versionAndroid 11


Product Certificate
TypeDetailsDescriptionsOptional
Certificate SystemIP65IP65 Report:Water Resistance:IP-X5,Dust Resistance:P-6X
a.Inner Nozzle Diameter:6.3mm;   b. Water Speed:12.5±0.625L/min;
c. Water Pressure:Adjust according to water volumn;
d.Central part of water volumn :A round with a diameter of about 40mm at the distance from the nozzle 2.5m.
e.Spray time in surface of panele: About 1 min/Square meter;f.Test time:at least 3min;
g.Distance between nozzle and panel surface:2.5~3m。
After test,there is no water leakage in sample.
NA
CE-NBNANA
MIL-STD-810GNANA
CCCNANA
Reliability
TypeDetailsDescriptionsOptional
Product ReliabilityDrop HeightNA
Operate Temperature-20 °C to 60 °C
Store Temperature-30 °C to 70 °C
HumidityHumidity: 95% Non-Condensing

Product specifications, pictures, and other information are for reference only.  The appearance is subject to the material object. This instruction is subject to change without notice.


Advantages of Rockchip RK3568 21.5 inch Industrial Panel PC EM-PPC21R

READY FOR HARSH ENVIRONMENTS

The EM-PPC10R/EM-PPC15R/EM-PPC21R Industrial Panel PC withstands the most extreme computing environments and can be reliable in temperatures ranging from -20°C to 70°C. The wide input power enables it to be plugged into a wide range of voltages starting as low as 12VDC and as high as 24 VDC, allowing it to connect to various machinery without purchasing additional inverters or power adapters.


DESIGNED FOR ANYWHERE

The EM-PPC10R/EM-PPC15R/EM-PPC21R Industrial Panel PC offers impressive versatility. It can be easily installed with a rear VESA mounting interface or embedded almost anywhere and used for all industrial applications.
