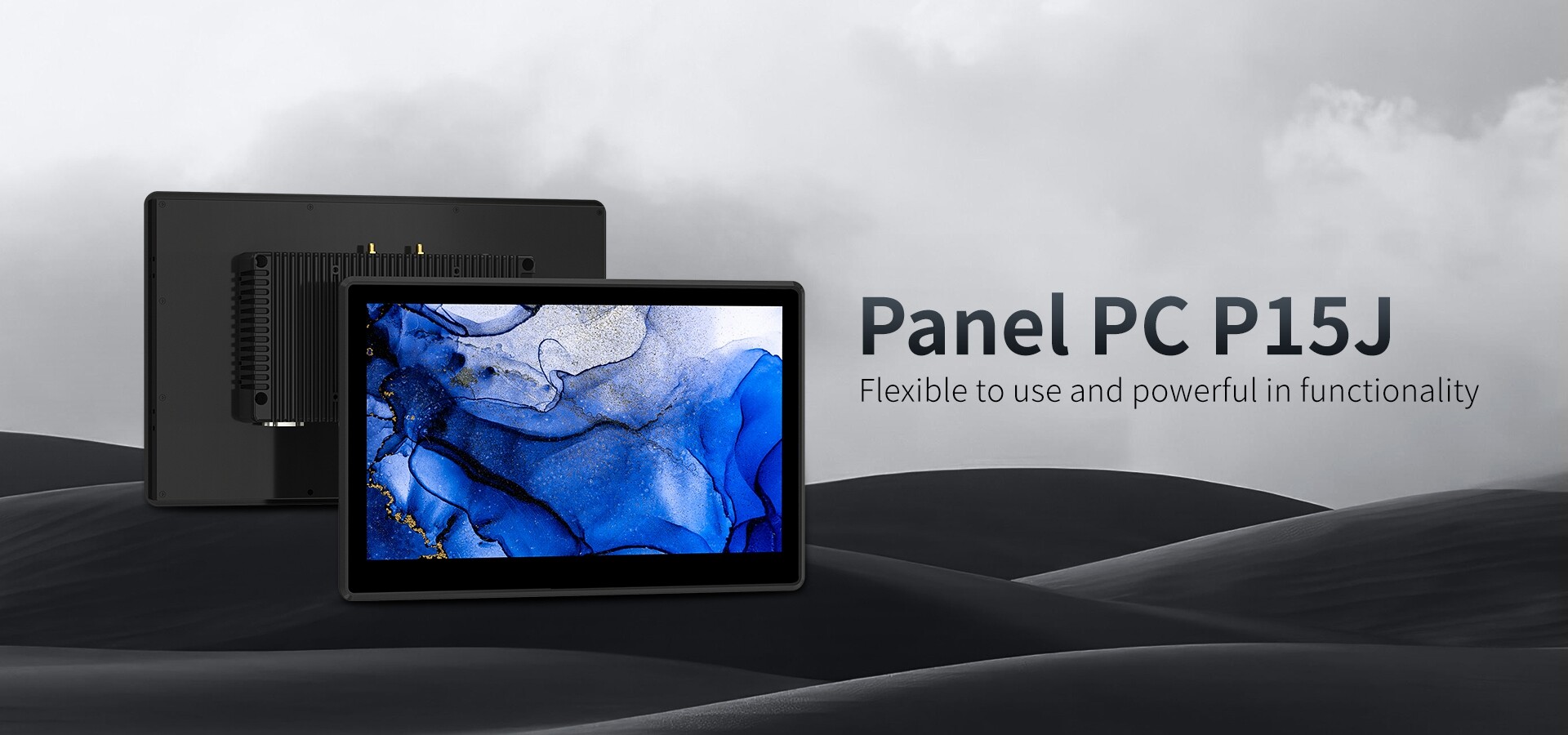

Panel PC
P15J
Flexible to use and powerful in functionality

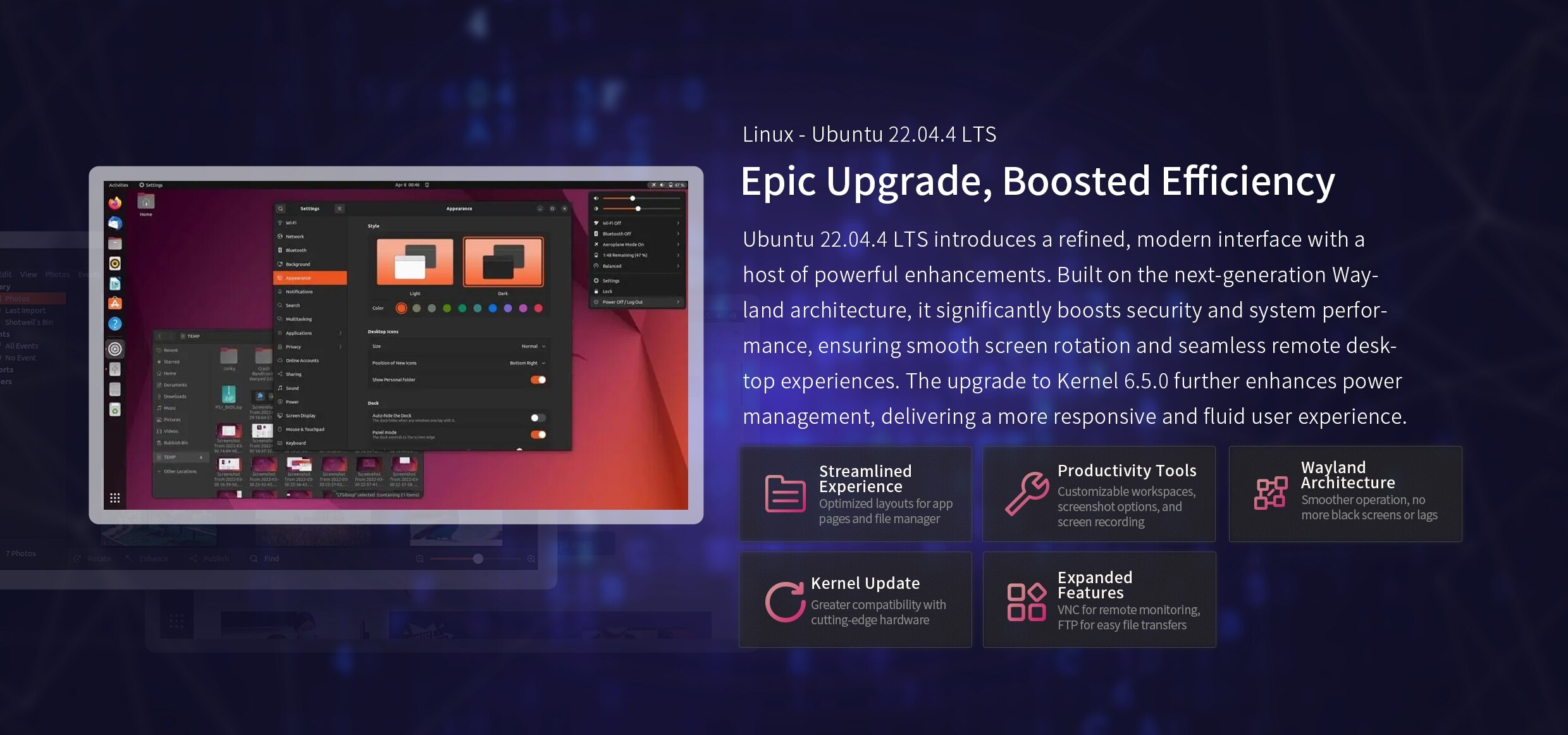

Epic Upgrade
Boosted Efficiency
The P15J introduces a refined, modern interface with a host of powerful enhancements. Built on the next-generation Wayland architecture, it significantly boosts security and system performance.
Ensuring smooth screen interaction and seamless remote desktop experiences, the upgrade to Kernel 6.5.0 further enhances power management, delivering a more responsive and fluid user experience for industrial control.

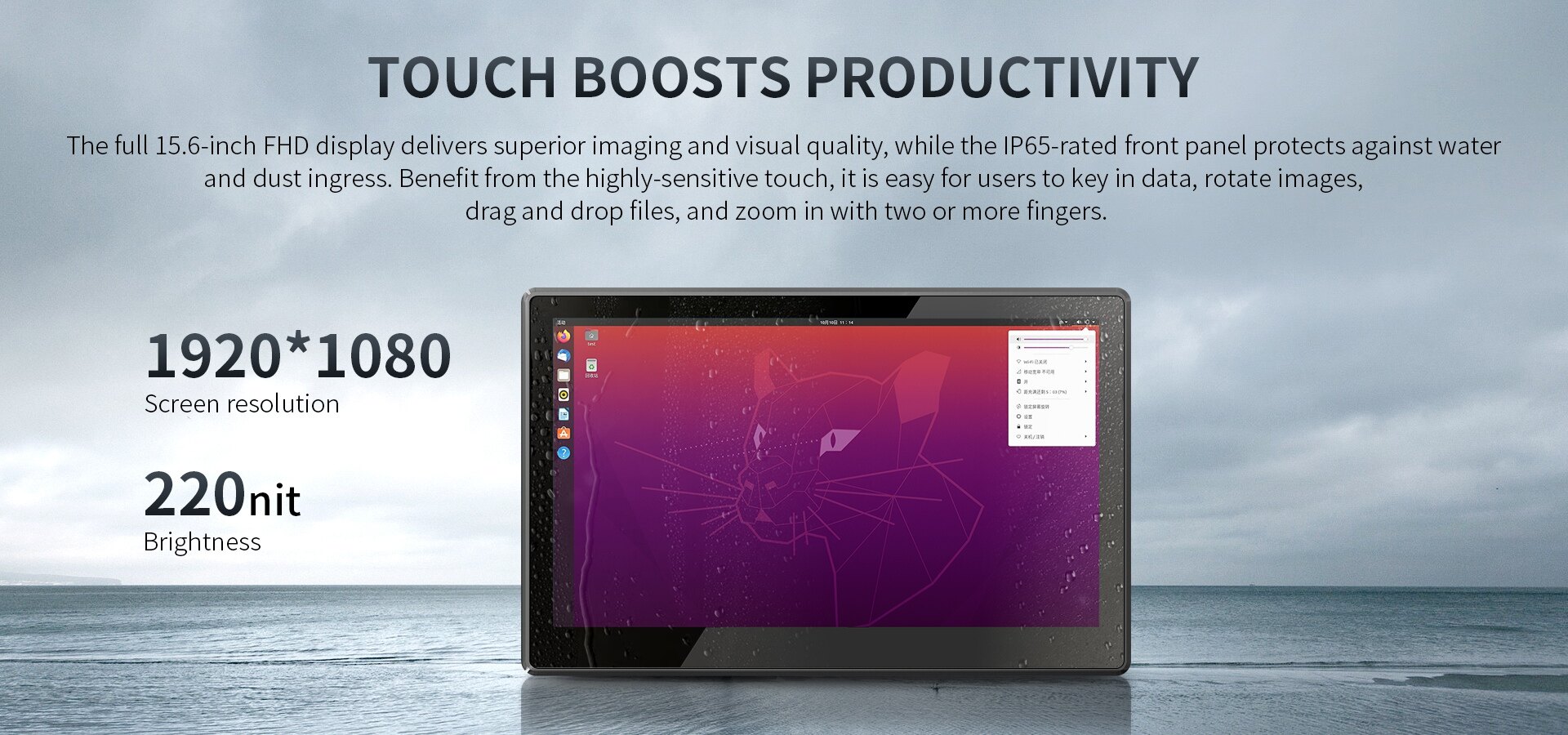

Touch Boosts
Productivity
The full 15.6-inch FHD display delivers superior imaging and visual quality, while the IP65-rated front panel provides a robust shield against water and dust ingress in demanding industrial settings.
Benefit from highly-sensitive 10-point capacitive touch; it allows users to effortlessly key in data, rotate images, drag and drop files, and zoom with multi-finger gestures, significantly enhancing workflow efficiency on the Linux platform.
Impressive Efficiency
X86 Performance Power
The P15J Panel PC is powered by an 11th generation Intel Celeron processor that supports Intel Turbo Boost technology, delivering quad-core processing power for enhanced computing performance.
Engineered for high-speed data handling, it features 8GB of robust memory and 128GB of high-speed storage, providing the necessary bandwidth to run professional Linux applications and manage massive datasets smoothly.

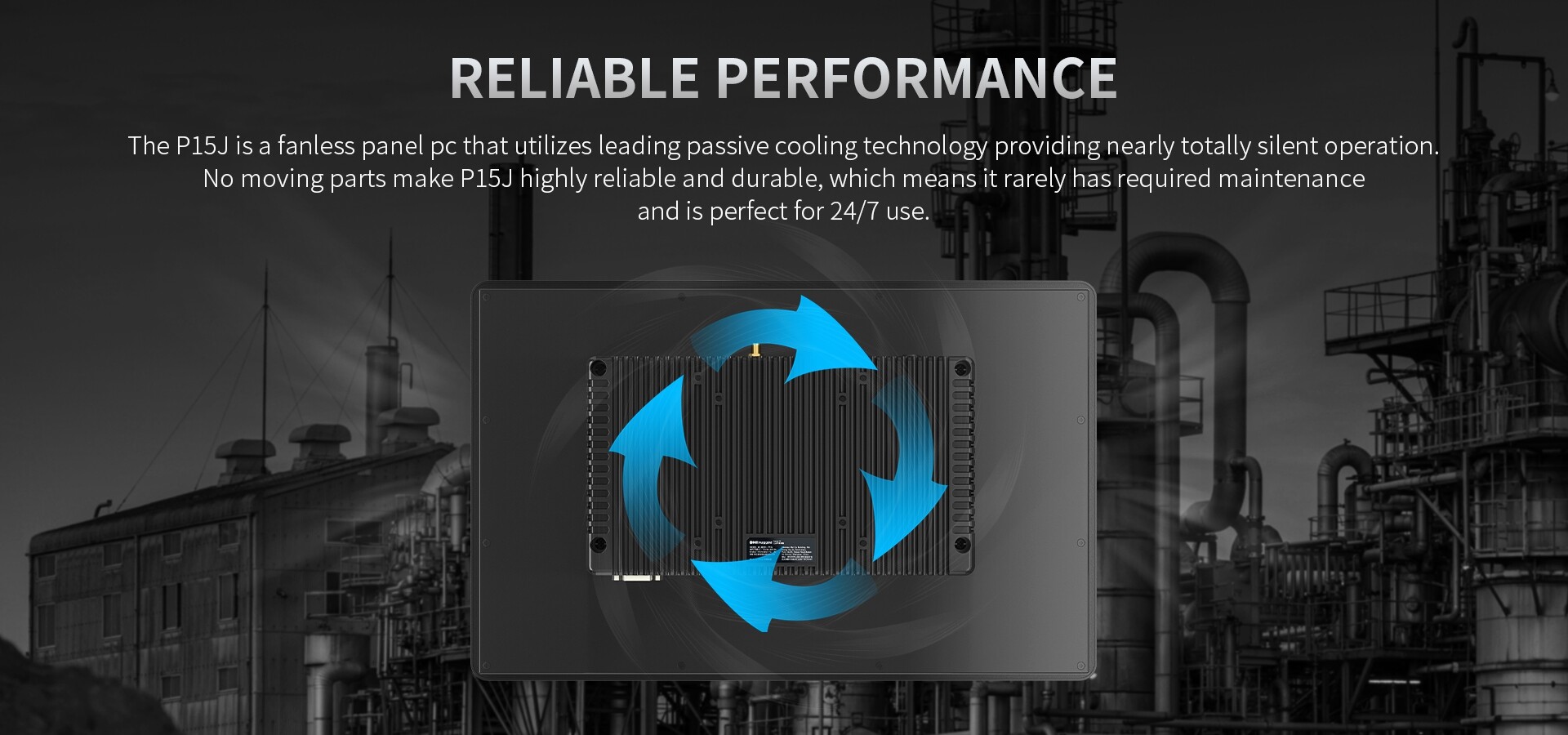

Reliable Performance
24/7 Industrial Stability
The P15J is a premium fanless panel PC that utilizes leading passive cooling technology, providing nearly totally silent operation even under high computing loads.
With no moving parts, the P15J is highly reliable and durable. This solid-state architecture means it rarely requires maintenance and is perfect for 24/7 continuous use in critical industrial automation environments.

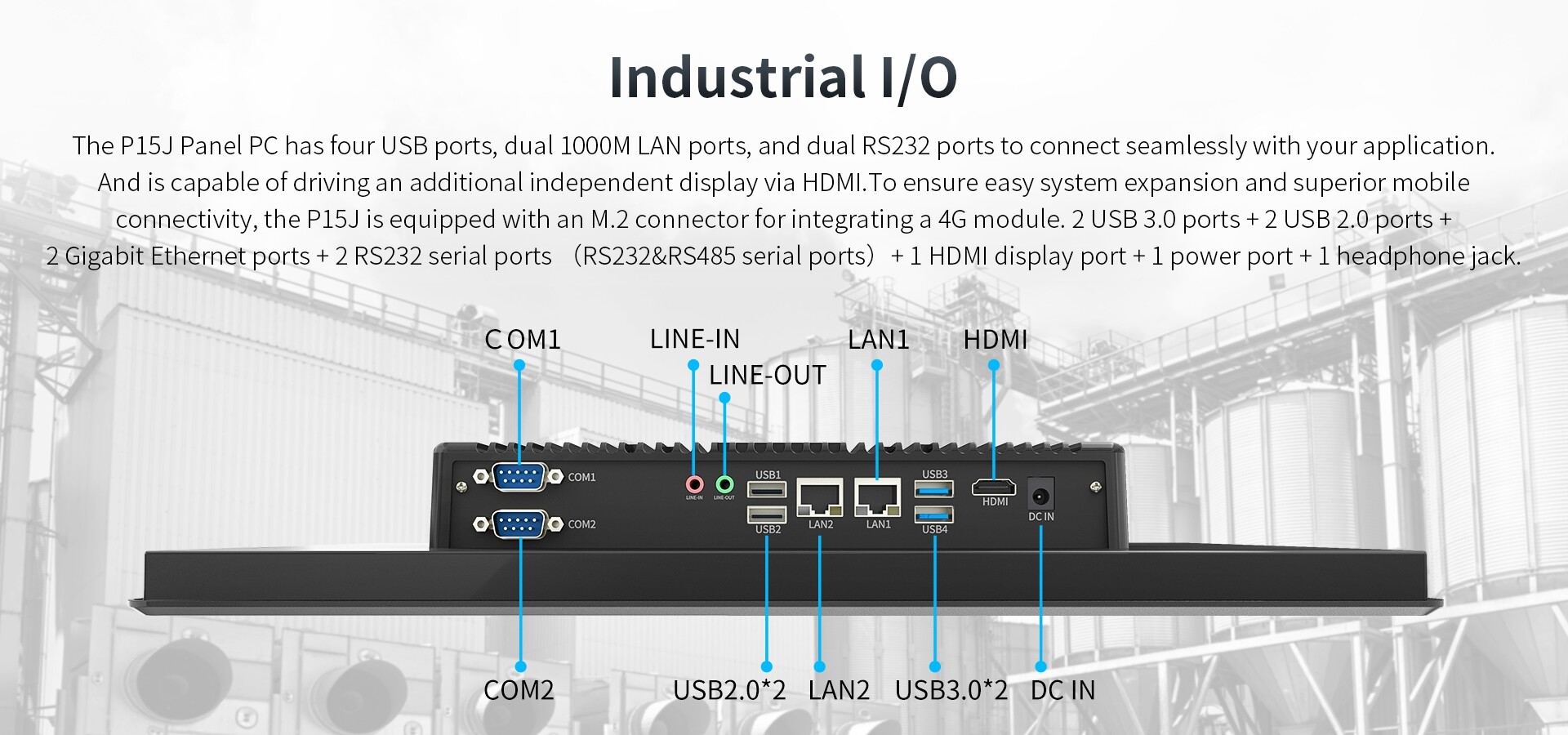

Industrial I/O
Seamless Connectivity
The P15J Panel PC features a rich array of industrial interfaces: four USB ports (including 2x USB 3.0), dual Gigabit Ethernet ports, and dual RS232/RS485 serial ports to connect seamlessly with your legacy and modern applications.
It is capable of driving an additional independent display via HDMI for dual-screen setups. For superior mobile connectivity, the P15J is equipped with an M.2 connector, allowing easy integration of 4G LTE modules.

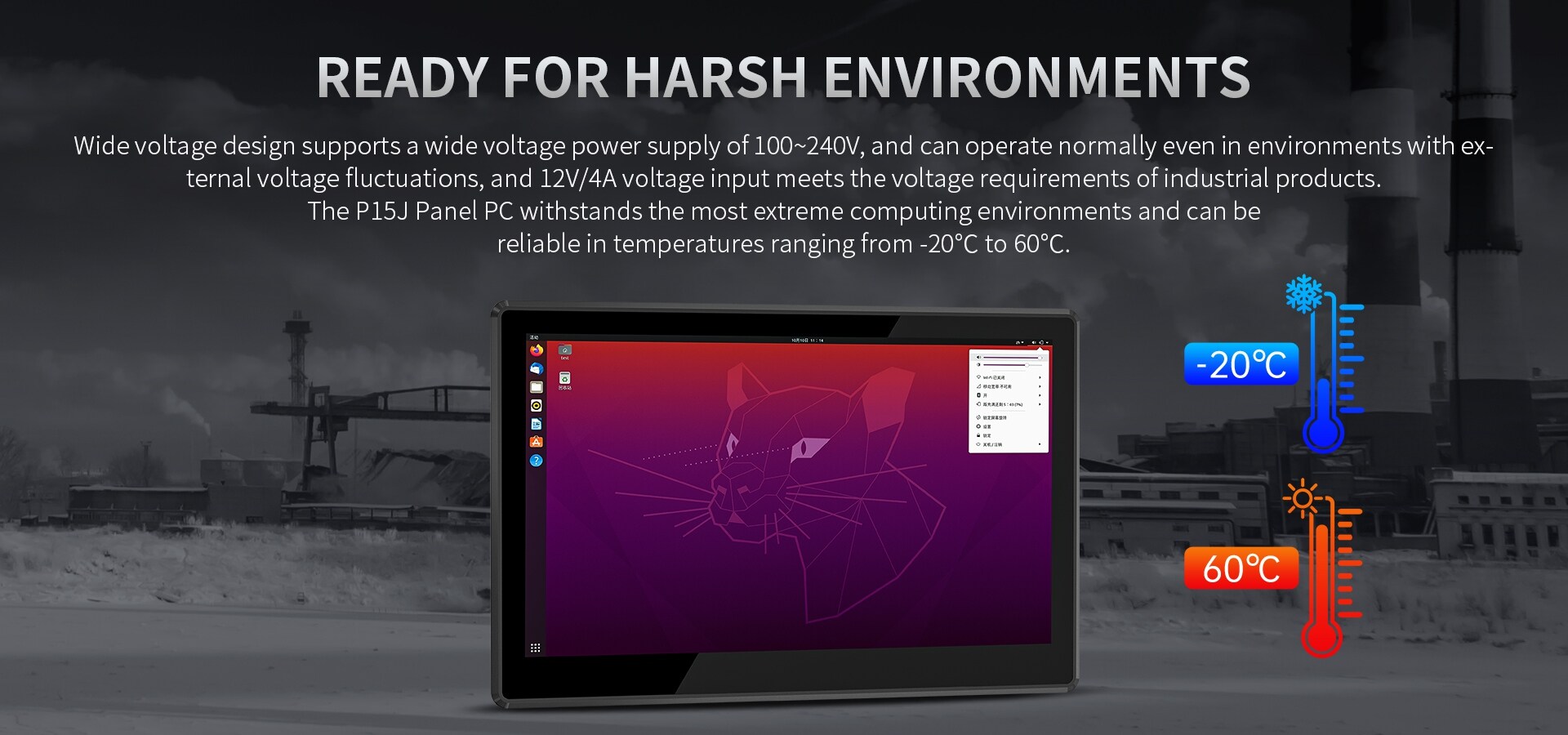

Ready for
Harsh Environments
The P15J Panel PC features a robust wide-voltage design supporting 100-240V power supply, ensuring stable operation even in environments with external voltage fluctuations.
Designed to withstand extreme computing conditions, it remains reliable in operational temperatures ranging from -20°C to 60°C. The standard 12V/4A DC input perfectly meets the rigorous requirements of diverse industrial products.
Designed for Anywhere
Impressive Versatility
The P15J Panel PC is engineered for maximum flexibility in any industrial environment. Its sleek yet rugged profile allows it to blend into high-end control rooms or heavy-duty factory floors alike.
It can be easily installed using standard PPC mounting hook components or embedded seamlessly into customized cabinetry. This "designed for anywhere" philosophy makes it the perfect fit for all industrial applications worldwide.
-
