10'' Android 12 Industrial Digital signage D10R

● Powered by the industrial-grade, power-efficient flagship chip RK3568;

● Equipped with the Android 12 OS, and 4+64GB storage configuration;

● USB Type-A/Gigabit Ethernet port/Phoenix terminal interface and more;

● Integrated LED tri-color indicator, optional camera or face recognition;

● Optional barcode scanner/fingerprint module to meet card reading needs;

● Support 7×24H stable operation under wide range of voltage fluctuations;


Digital signage
Digital signage
Digital signage
Digital signage
Digital signage
RK3568
RK3568
Android 12 Android 12
10.1 inch 10.1 inch
700cd/㎡ 700cd/㎡
wifi wifi
Running 24/7 without Running 24/7 without
Rich interface extensions Rich interface extensions
IP65 IP65

Features of 10.1'' Android Digital signage D10R


● Powered by the industrial-grade, power-efficient flagship chip RK3568;

● Equipped with the Android 12 OS, and 4+64GB storage configuration;

● USB Type-A/Gigabit Ethernet port/Phoenix terminal interface and more;

● Integrated LED tri-color indicator, optional camera or face recognition;

● Optional barcode scanner/fingerprint module to meet card reading needs;

● Support 7×24H stable operation under wide range of voltage fluctuations;

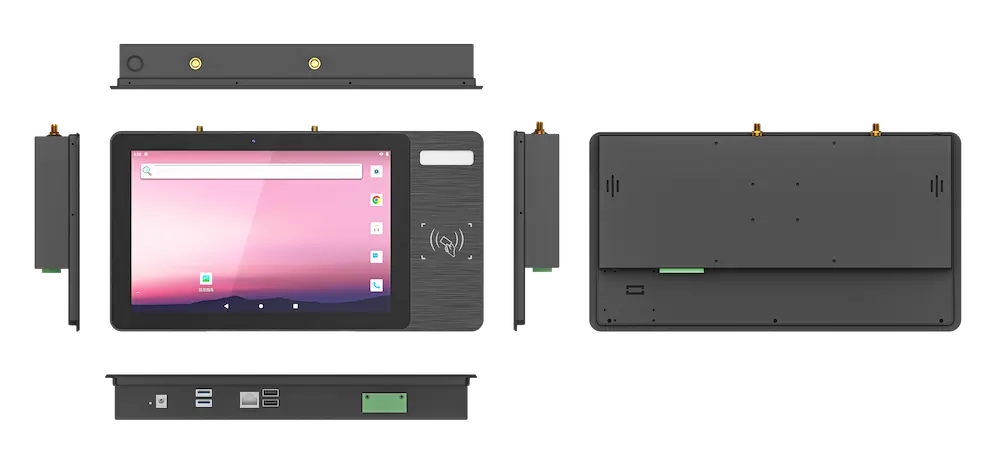

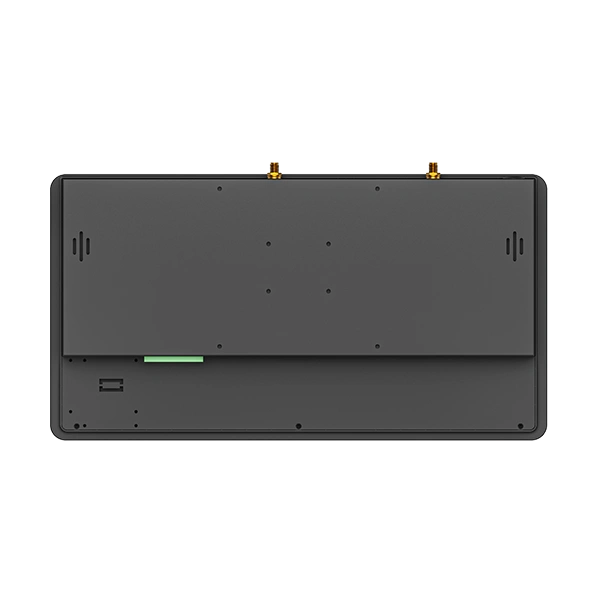

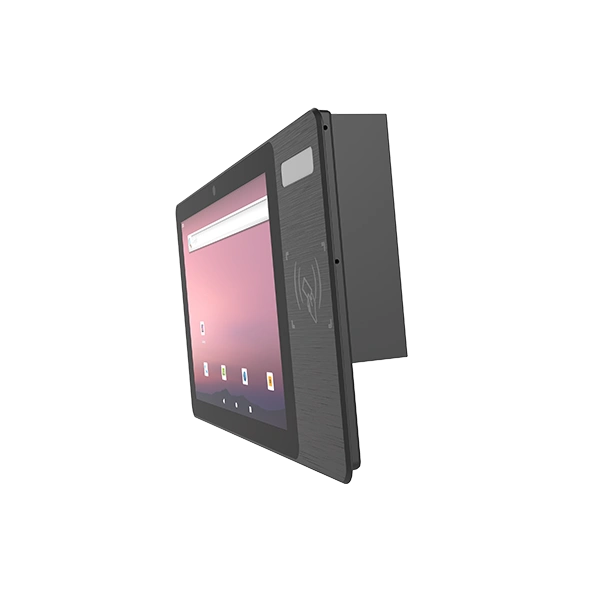

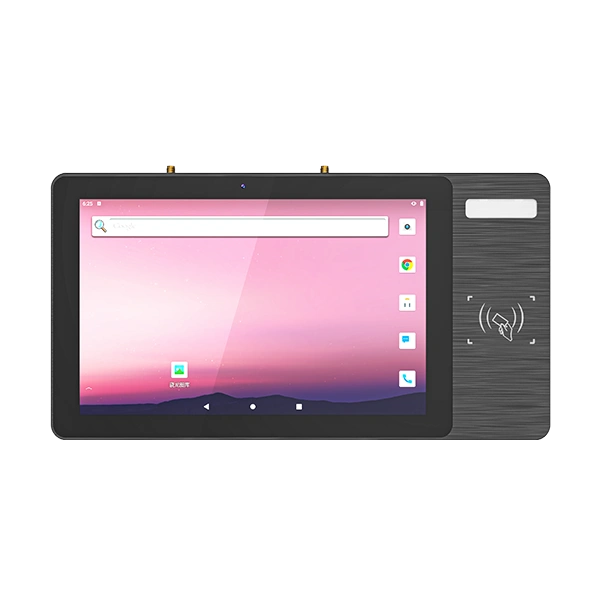

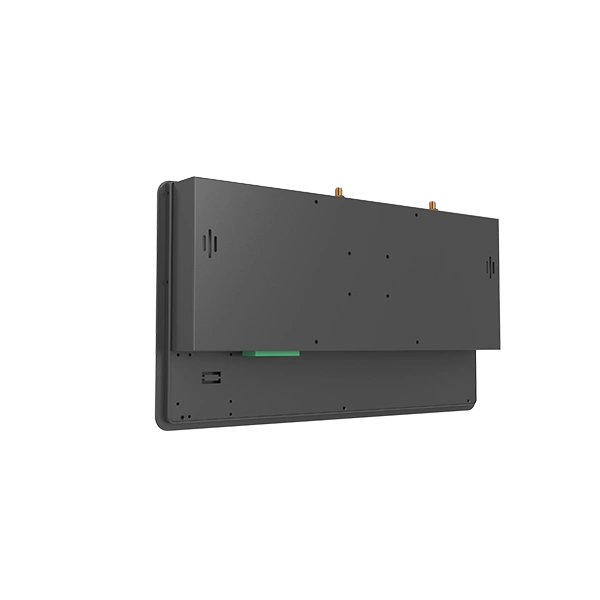

Six Views of 10.1'' Android Digital signage D10R

Digital signage




Specifications of 10.1'' Android Digital signage D10R


Tech Spec
Dimension315mm*168mm*38mm
WeightTBD
Product ColorBlack (Optional: Silver)

CPURK3568
GPUMali-G52-2EE
MemoryRAM   4GB   onboard          ROM  64GB

Operating SystemAndroid 12


DisplayType: LCD
Size: 10.1-inch   16:10
Resolution:  800×1280
Brightness:  700cd/㎡
Touch Pannel10-point capacitive touch


WIFI WIFI 802.11 (a/b/g/n/ac)  2.4G+5G
BluetoothBT 5.0

I/O InterfaceSIM *1  TF*1 (Internal)
Type A USB  (External)
USB3.0*1+USB3.0*1 OTG+USB2.0*2
Power Port
DC 12V *1+Phoenix Terminal
RJ45 *1 (10/100/1000M Adaptive)

Power Adaptor6th-Level Desktop DC Adapter (Category 5/12V4A),
Input: 100~240V AC 50/60Hz
Output: 12VDC 4.0A, UL2464, 20AWG
DC Head: 5.52.510mm, fork groove plated with black rubber, L=1.2M
Shell Size: L103W52H31mm, with indicator light,
6th-level energy efficiency, laser-engraved nameplate, compliant with standards,
CCC, CE, ETL, FCC, SAA.
FunctionsLED indicator light built-in (Standard)
Card reader module (Standard) Working frequency: 13.56M+125K
External alarm light (Optional)
Barcode scanner module (Optional)
Fingerprint module (Optional)
4G module (Optional)
USB mini keyboard (Optional)
Regular or facial recognition camera (Optional)

Rugged FeaturesWorking temperature: -20 °C to 60 °C
Storage temperature: -30 °C to 70 °C
Humidity: 95% Non-Condensing

CertificationsIP65 of Front Panel
CE
CCC


* Please be aware all technical data, specification and performance figures subject to change without notice.



Accessories of 10.1'' Android Digital signage D10R

Various modules and accessories can be selected to meet customers' application in various industries.


12V4A adapter
12V4A adapter

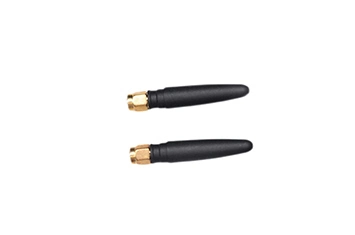

Antenna
Antenna

Application Range of 10.1'' Android Digital signage D10R

Various modules and accessories can be selected to meet customers' application in various industries.


factory mes
factory mes
industrial automation
industrial automation
equipment data collection
equipment data collection
