10'' Android: EM-Q15 Multi-module Tablet PC

  • 10 inch Qualcomm cost-effective rugged tablet.

  • 10000mAh battery supports hot-swap, improve the endurance to make sure the working time 6-8 hours.

  • Support ID card, fingerprint, UHF and other special module combinations. Meet the needs of multiple industries.


IP65 IP65
GPS GPS
ID-card ID-card
High-capacity High-capacity
Android Android
1D 1D
2D 2D
3G,4G. 3G,4G.
Bluetooth Bluetooth
WiFi WiFi

Features of 10'' Intel: EM-Q15 Rugged PC

  • Support for Android 9.0 system

  • Integrated 3G/4G all network communication, WiFi, Bluetooth and other communication modes

  • 10000mAh battery, 7 hours of machine endurance

  • IP65 high protection level, in accordance with MIL-STD-810G

  • Support GPS, Glonass, more accurate positioning

  • 800x1280 IPS, 700nit high brightness screen, more suitable for outdoor harsh environment

  • Support 1D / 2D, UHF, NFC, ID card and other functional modules for free selection

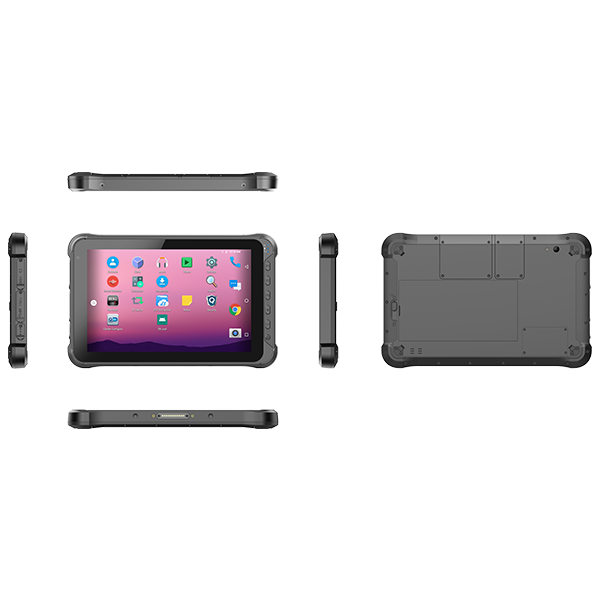

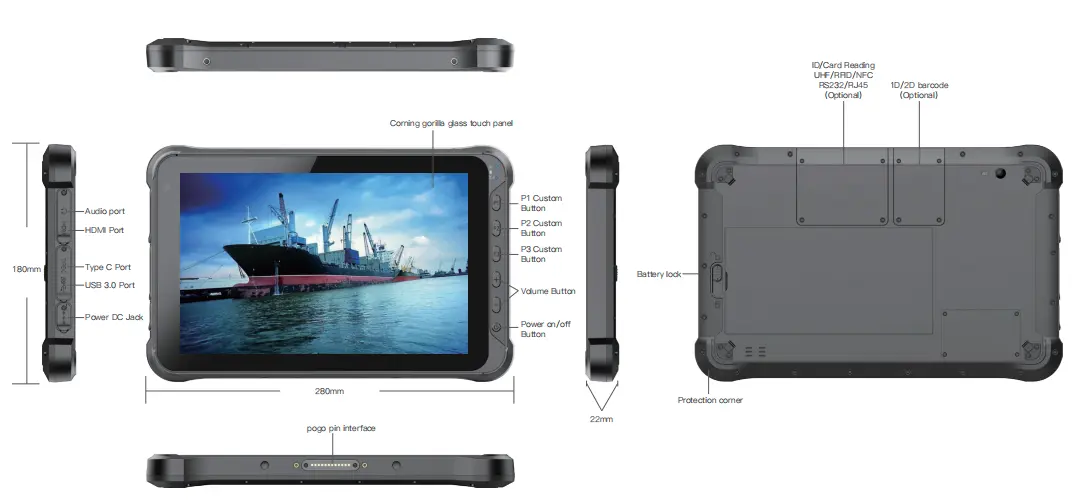

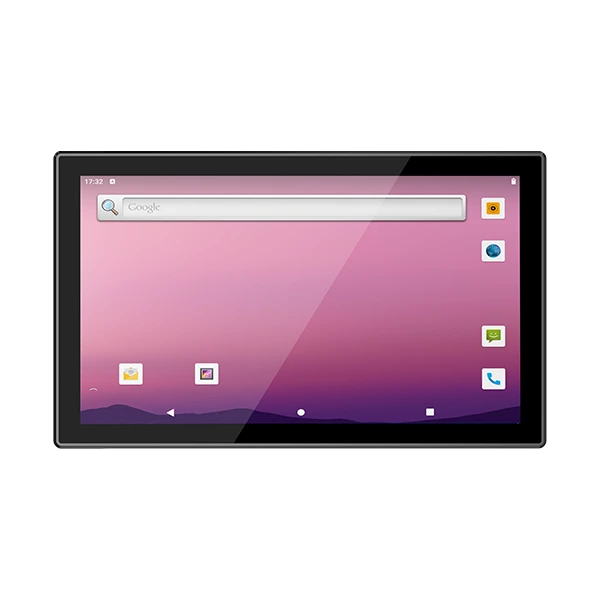

Six Views of 10'' Intel: EM-Q15 Rugged PC


Specifications of 10'' Android Tablet EM-Q15 Rugged PC

TypeDetailsStandard ConfigurationOptional
Product FormTypeRugged TabletNA
Dimension 280*180*25.8 mm NA
WeightDevice unit: 1068g  Unit with giftbox and standard accessories:gNA
Device Colorblack( bottom shell in black, front shell in black)NA
LCDScreen Size10.1“   16:10  NA
Resolution800*1280 IPS LCDNA
BrightnessMinimum 700cd/NA
TPTouch Panel 10points Capacitive,G+G,Rigidity: above 7H-Anti-scratch,TP thickness:1.1mm,COF,support penNA
CameraFrontFront:5.0MP NA
RearRear: 13MP auto-facus with flashlightNA
Speakerbuild in Embedded 8Ω/0.8W waterproof speakerx 1NA
Micbuild in Sensitivity:-42db, output resistance2.2kΩNA
BatteryTypebuild in polymer li-ion batteryNA
Capacity3.7V/10000mAh NA
Endurancenearly 7 hours ( 50% volume sounds,50% brightness, 1080P HD video display by default )NA
System Hardware Configuration
TypeDetailsDescriptionOptional
CPUTypeMSM 8953NA
Speed2.0GHZNA
GPUtypeAdreno 506 1920 × 1200 @ 60 fpsNA
RAMMemory4GB/ LPDDR3NA
ROM  storage64GBNA
 Indicator lightbuild in Indicator light of charge, red light will flash when device has low power. red long light when charging, green long light when full powerNA
Compass Built-inCompass  Sensor *1NA
Gyro SensorBuilt-inGyro Sensor *1NA
G_sensorbuild in Gravity acceleration sensorNA
Network Connections
TypeDetailsDescriptionOptional
WIFIWIFI moduleWIFI 802.11 b/g/n/a/ac frequency 2.4G+5G dual band WIFI,NA
Bluetoothbuild in BT4.1(BLE)NA
2G/3G/4GBbuild in LTE FDD: B1/B3/B5/B7/B8/B20/B28A
LTE TDD: B38/B40/B41
WCDMA: B1/B2/B5/B8
GSM: 850/900/1800/1900MHz
NA
GPSbuild in support:GPS+Glonass;Capture sensitivity:-140 dBmCool Start Time<50秒,Hot start time<5秒,GPS frequency1575.42MHzGlonass frequency:1602MHZNA
serial portoptionalNA RS232
Ethernet interfaceoptionalNA*1(10/100M self-adaption) with indicator light
NFCbuild in NFC-ST21NA
ID ModuleoptionalNAsupport reading the fingerprint information in the 1st and 2nd ID card
Port:USB or TTL serial port optional
power 5v or 3.3v,size:53mm*52mm*10mm
UHFoptionalNAUFH,Working spectrum range
 902Mhz – 928Mhz,inventory tag peak velocity > 50 pcs /second,
the fingerprint module authenticated by Chinese Ministry of public security optionalNAFingerprint collection module for Resident identity card:standard UART/ USB port,Baud rate 115200bps(by default),
Sensor type:Semiconductor capacitance,Image size 256 * 360 pixel,working voltage 3.8~5V,Working current 50mA,Standby current 35mA,size:35mm*23mm*3.4mm
Data Collection
TypeDetailsDescriptionOptional
1DOPTIONALNAHoneywell N4313
optical resolution:5mil
scan speed:50/s
support code system:UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code 128,GS1-128,ISBT 128,Code 39,Trioptic Code 39 ,Code 32,Code 93  ,Code 11
2DOPTIONALEM80EM80
optical resolution:5mil
scan speed:50/s
support code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse
  Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse
Interface Configuration
TypeDetailsDescriptionsOptional
SIM CardSIM CardSIM card   x2     in tabletNA
TF CardTF Card x1    max:128GNA
USB InterfaceExtend external memory and data transferStandard USB 2.0*1         TypeC x1data&charingNA
Earphone JackAudio Output3.5mm standard earphone jack  x1NA
DC JackPowerDC 5.5V 4A 3.5mm Power connector  x1NA
HDMI Video OutputMini HDMI  x1NA
Extensive Slotpogo Pin12pin  Pogo Pin   x1NA
KeysKeysPower*1、Vol*2,P*3NA
Standard Accessories
TypeDetailsDescriptionOptional
OTG cableOTG cableUSB OTG to MICRO USB cable length:45mmNA
USB cable USB cableUSB to micro 5P L=1.2M  4core aluminum foil shield cableNA
Power AdaptorStandardAC100V ~ 240V50Hz/60Hz output DC 5.5V/4A      USA Standard  CE approvalUK standard
EU Standard
Software Configuration
TypeDetailsDescriptionOptional
Operation SystemOS versionAndroid 9.0
Product Certificate
TypeDetailsDescriptionOptional
Certificate SystemIP65 IPX5
 Method name
short time submerging test
test device and test condition
submerge water boxthe size should make the testing sample into submerge box  and after then , the distance from sample bottom to water surface at least 1m. and distance from sample top side to water surface at least 0.15m.
Testing time: 30 min
IP67 optional
CE NBY
MIL-STD-810GY
BatteryUN38.3MSDS,IEC62133
Reliability
TypeDetailsDescriptionsOptional
Product ReliabilityDrop HeightMIL-STD-810G 1.22m drop
Operate Temperature‘-20 °C to 55 °C
Store Temperature’-30 °C to 70 °C
HumidityHumidity: 95% Non-Condensing



Accessories of 10'' Android Tablet EM-Q15 Rugged PC

Various modules and accessories can be selected to meet customers' application in various industries.


Hand-strap
Hand-strap

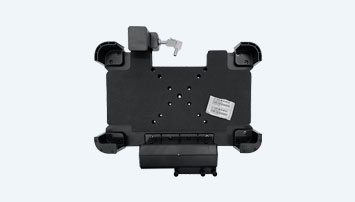

Vehicle Mount
Vehicle Mount
Docking Charger
Docking Charger

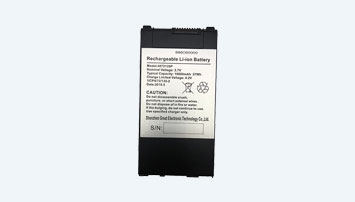

Battery
Battery
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter-cable
Adapter-cable
Adapter-cable
Adapter-cable
Adapter-cable
Adapter-cable
Adapter-cable
Adapter-cable

Application Range of 10'' Android Tablet EM-Q15 Rugged PC

Various modules and accessories can be selected to meet customers' application in various industries.


Warehouse & Logistics Industry
Warehouse & Logistics Industry
Surveying & Mapping Industry
Surveying & Mapping Industry
Manufacturing Industry
Manufacturing Industry
Energy Industry
Energy Industry
Public Industry
Public Industry
Traffic Industry
Traffic Industry
