10'' Android: EM-Q18 Ultra-thin Rugged Tablet

  • Brilliant all day.

  • EM-Q18 is a rugged Tablet PC configurated with NFC and other functions.

  • It features a powerful 10000 mAH battery.

  • Its ruggedness and durability enable EM-Q18 to meet the challenge.

Android Android
IP65 IP65
GPS GPS
High-capacity High-capacity
Bluetooth Bluetooth
Camera Camera
NFC NFC
3G/4G 3G/4G
WiFi WiFi

Functions of 10'' Android Tablet PC EM-Q18 Rugged PC


  • Support for Android 10.0 system

  • Integrated 3G/4G all network communication, WiFi, Bluetooth and other communication modes

  • 10000mAh battery, 12 hours of machine endurance

  • IP65 high protection level, in accordance with MIL-STD-810G

  • Support GPS, Glonass, more accurate positioning

  • Rear 13 million pixel camera, easy to collect images and video information

  • Built in NFC and other functional modules to meet the application needs of multiple industries

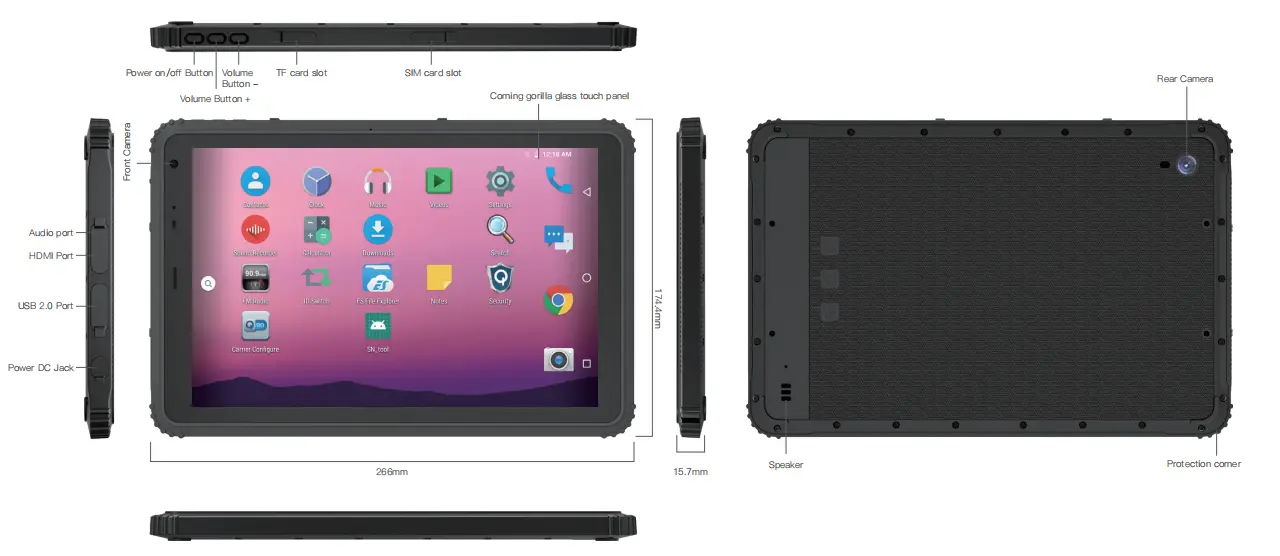

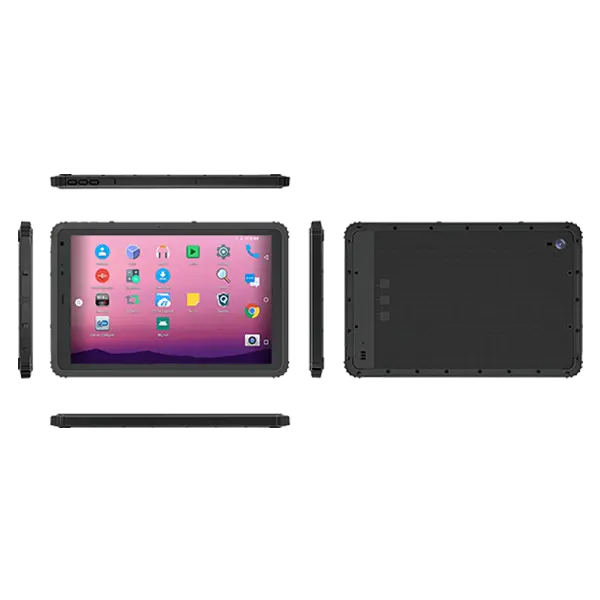

Product Six Views of 10'' Android Tablet PC EM-Q18 Rugged PC

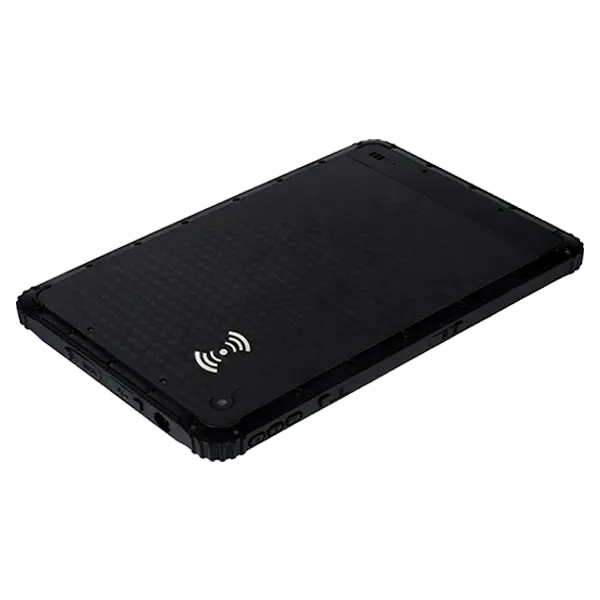

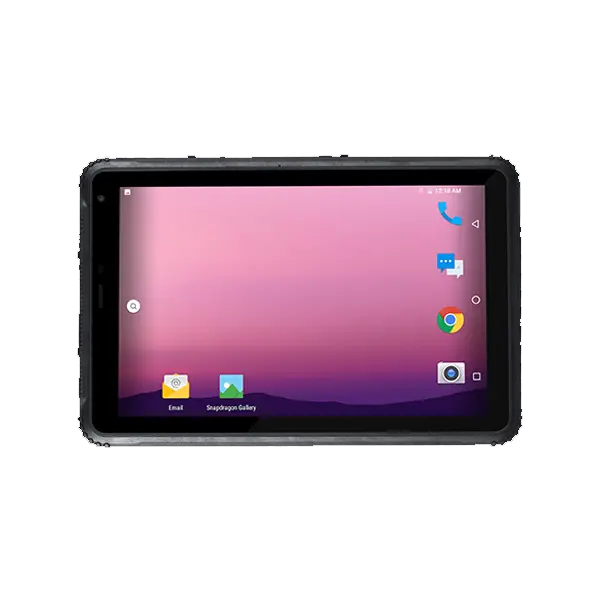

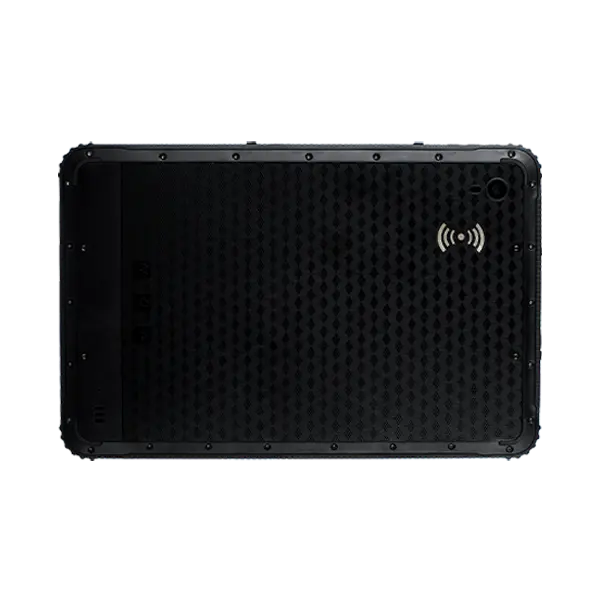

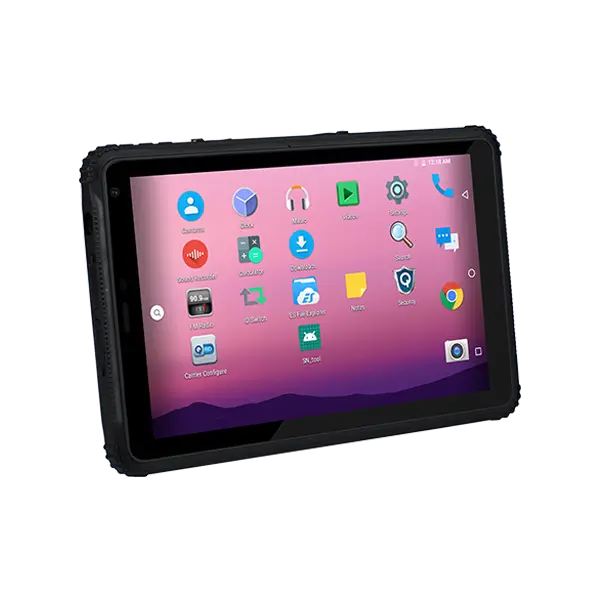

Emdoor 10'' Android Tablet PC EM-Q18 Rugged PC



Specification of 10'' Android Tablet PC EM-Q18 Rugged PC


Model No:EM-Q18 Specification
TypeDetailsStandard ConfigurationOptional
Product FormTypeRugged TabletNA
Dimension266*174.4*15.7mmNA
WeightDevice unit: 927g  ,Unit with the gift box and standard accessories:1660gNA
Device Colorblack+black color(bottom shell: black color, front shell: black color )NA
LCDScreen Size10.1 inch   16:10NA
Resolution800 (RGB)*1280NA
Brightness400 cd/m2NA
TPTouch Panel10points Capacitive,G+G,Rigidity: above 7H-Anti-scratch, TP thickness:1.1mm,COF, support penNA
CameraFrontFront:5.0MP   with indicator lightNA
RearRear: 13.0MPNA
SpeakerBuilt-inEmbedded 8Ω/0.8W BOX waterproof speaker  x 1NA
MicBuilt-inSensitivity:-42db, output resistance2.2kΩNA
BatteryTypeBuild-in Lithium-ion polymer batteryNA
Capacity3.7V/10000mAhNA
EnduranceAbout 12 Hrs(default 50% volumn,default 400 lumens brightness,play 1080P HD video)NA
System Hardware Configuration
TypeDetailsDescriptionsOptional configuration
CPUTypeMSM8953(8core)NA
Speed2.0GHzNA
GPUTypeAdreno 506 1920 × 1200 @ 60 fpsNA
RAMMemory4GB/ LPDDR3NA
ROMstorage64GBNA
led indicateBuilt-inIndicator light of charge, red long light when the device has low power. red long light when charging, green long light when full powerNA
L-SensorBuilt-inlight Sensor *1NA
CompassBuilt-inCompass  Sensor *1NA
Gyro SensorBuilt-inGyro Sensor *1NA
G_sensorBuilt-inG_sensor *1NA
NFCBuilt-inNFC 13.56MHz  support SO/IEC 14443A/14443B/15693/18092/mifare protocol,Card reading distance:3cm~5cmNA
Internet Connections
TypeDetailsDescriptionsOptional
WIFIWIFI moduleWIFI 802.11 b/g/n/a/ac frequency 2.4G+5G dual-band WIFI,NA
Bluetoothbuild inBT4.0(BLE)NA
2G/3G/4GOptionalCMCC 4M:
LTE B1,B3,B5,B7,B8,B20,B38,B39,B40,B41
 WCDMA 1/2/5/8
GSM 2/3/5/8
NA
GPSbuild insupport:GPS+Glonass;Capture sensitivity:-140 dBm;Cool Start Time:<50s,Hot start time:<5s,GPS frequency:1575.42MHz,Glonass frequency:1602MHZNA
I/O Ports
TypeDetailsDescriptionsOptional
TF slotExtensive External Memorysupport SDHC/SDXC   x1    max:128GNA
SIM slotSIM cardSIM x1NA
MICR USB 3.0data transmissionMicr usb3.0*1NA
Earphone JackAudio Output∮3.5mm  standard earphone jack   x1NA
DC JackPowerDC 5V 3A ∮3.5mm Power connector  x1NA
HDMI interfaceVideo OutputHDMI 1.4a   Type Cx1NA
Power onpress keypower key x1NA
Volume + -press keypower key x1,Volume + - x2NA
Standard Accessories
TypeDetailsDescriptionsOptional
Micr USB 2.0 cableUSB cableMICR USB 2.0 cableNA
Power AdaptorStandardAC100V ~ 240V、50Hz/60Hz output DC 5V/3A      USA Standard  CE approvalUK Standard
EU Standard
Software Configuration
TypeDetailsDescriptionsOptional
Operation SystemOS versionAndriod 10.0NA
Product Certificate
TypeDetailsDescriptionsOptional
Certificates SystemIP65IP65 Report: Water resistance:IP-X5,Dust resistance:IP-6X  Report ID no.:SET2015-07677
a.Inner Nozzle diameter:6.3mm;   b. water speed:12.5±0.625L/min;
c. Water Pressure:adjust according to water volumn;

d.Central part of water volumn

e.Spray time on surface of panel:about 1min;f.test time:at least 3min;

g.distance between nozzle and panel surface:2.5~3m。
After test,there is no water leakage in sample.

CE NBY
MIL-STD-810GY
BatteryUN38.3,MSDS, Aviation report, Sea transportation report, IEC62133
Reliability
TypeDetailsDescriptionsOptional
Product reliabilityFalling heightMIL-STD-810G 1.22m drop
Working temperature'-20 °C to 55 °C
Storage temperature'-30 °C to 70 °C
HumidityHumidity: 95% Non-Condensing



Accessories of 10'' Android Tablet PC EM-Q18 Rugged PC

Various modules and accessories can be selected to meet customers' application in various industries.


TP  Film
TP Film
Hand-strap
Hand-strap

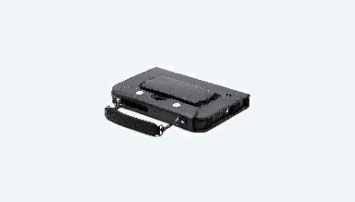

Leather Cover
Leather Cover

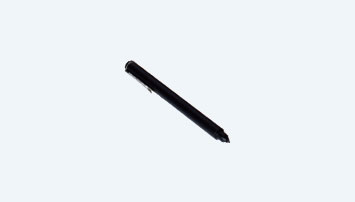

Stylus
Stylus

Application Range of 10'' Android Tablet PC EM-Q18 Rugged PC

Various modules and accessories can be selected to meet customers' application in various industries.


Surveying & Mapping Industry
Surveying & Mapping Industry
Manufacturing Industry
Manufacturing Industry
Energy Industry
Energy Industry
Public Industry
Public Industry
Traffic Industry
Traffic Industry
