10'' Intel: EM-I15H High-brightness Tablet

  • Intimate modular design, suitable for a variety of industries.

  • 1D/2D, RFID, NFC, ID card and Fingerprint. There have everything that you excepts to find.

  • 1000nit high-brightness screen, No matter how big the sun is!

  • The positioning accuracy rate is upgraded. GPS, Glonass, and Beidou three positioning systems can be supported.


Windows Windows
IP65 IP65
GPS GPS
Fingerprint Fingerprint
ID-card ID-card
High-capacity High-capacity
1D 1D
2D 2D
RFID RFID
3G/4G 3G/4G
WiFi WiFi
Bluetooth Bluetooth

Features of 10'' Intel Tablet PC EM-I15H Rugged PC

  • Support for Windows 10 system

  • Integrated 3G/4G all network communication, WiFi, Bluetooth and other communication modes

  • 10000mAh battery, 6-8 hours of machine endurance

  • IP65 high protection level, in accordance with MIL-STD-810G

  • Support GPS, Beidou, GLONASS, more accurate positioning

  • 800x1280 IPS, 1000nit high brightness screen, more suitable for outdoor harsh environment

  • Support 1D/2D, RFID, NFC, ID card and other functional modules for free selection

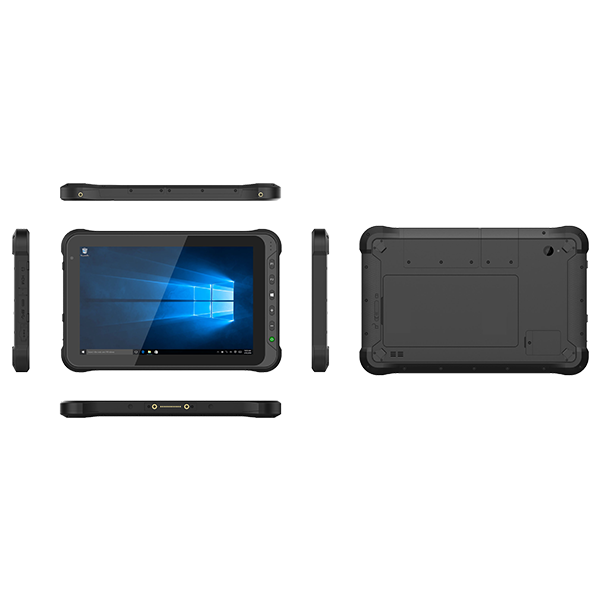

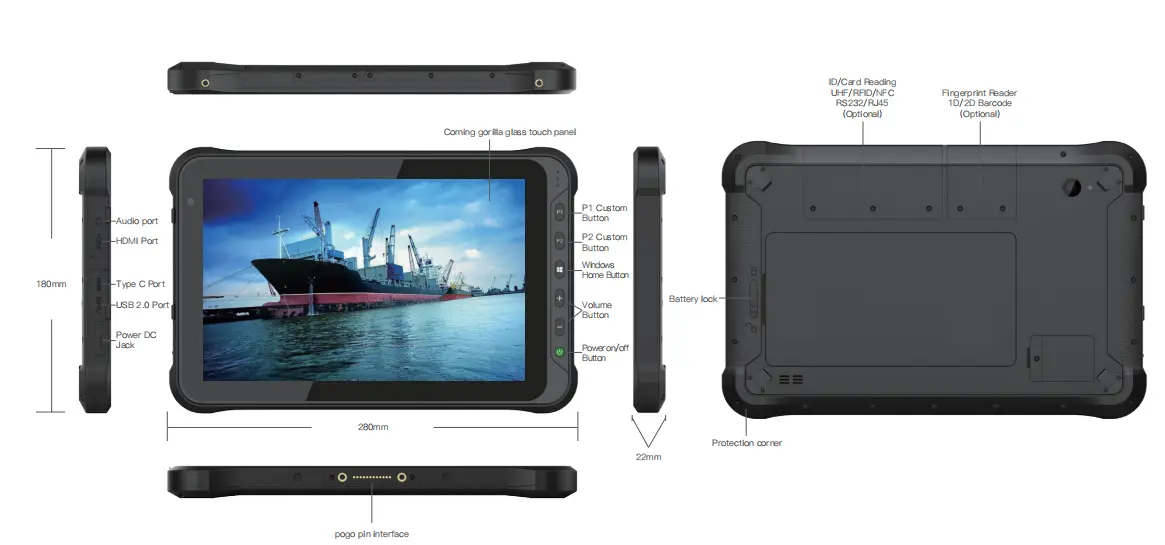

Six views of 10'' Intel Tablet PC EM-I15H Rugged PC


Specifications of  10'' Intel Tablet PC EM-I15H Rugged PC

TypeDetailsStandard ConfigurationOptional configuration
Product FormProduct Form10.1 inch  rugged notebookNA
Dimension 280*180*25.8 mm NA
Weighttablet 1068gNA
Product Colorblack + blackNA
LCDScreen Size10.1 inch   16:10  NA
Resolution800*1280 (RGB)NA
Brightness700cd/㎡ NA
TPTouch panel10 points capacity TP,G+G,Corelle gorilla, hardness over 7H, scratch resistant,NA
CameraFrontFront 2.0MP (mipi)NA
RearRear 5.0MP (mipi)NA
SpeakerBuilt-in 8Ω/0.8W waterproof BOX speaker x1NA
MicrophoneBuilt-inSensitivity:-42db, output impedance 2.2kΩ  NA
Battery(tablet)Type Removable Li-polyment batteryNA
Capacity5000mHA/7.4V NA
Endurance7 hours ( 50% volume sounds, 200 nits brightness, 1080P HD video display by default )
5 hours ( 50% volume sounds, maximum brightness, 1080P HD video display by default )
NA
System Hardware Configuration
TypeDetailsDescriptionsOptional configuration
CPUTypeIntel Cherrytrail Z8350NA
Speed1.44Ghz-1.92GHzNA
GPUtypeIntel® HD GraphicsNA
RAMDDR3L4GB  LPDDR3NA
StorageSSD64GB    EMMC32GB/128GB
CompassBuilt-inNANA
GyroscopeBuilt-inNANA
G_sensorBuilt-inG-sensor NA
Internet Connections
TypeDetailsDescriptionsOptional configuration
WIFIWIFI moduleWIFI 802.11(a/b/g/n/ac)  dual frequency 2.4G+5.8G WIFI intel 3165D2WG (3.3v)NA
BluetoothBuilt-inBT4.2 (BLE) class1  transmited distance:10mNA
3GM.2NAFIBOCOM_H350
GSM/GPRS/EDGE Band(MHz):900/1800;WCDMA Band(MHz):900/2100
1.Asia Pacific,Europe
2.China Unicom 3G
4GM.2EC25-EC
LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8
NA
GPSBuilt-inU-BLOX M8Q GNSS module. support GPS, beidou,glonassNA
Module extension
TypeDetailsDescriptionsOptional configuration
 Two-dimension barcode optionalNAEM80   hardcode
Optical resolution:5mil
scan speed:50 times /s
Code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse
  Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse
Fingerprint optionalNA070-Hello fingerprint module
FPC1020(sensor,capacity press type)
fingerprint effective area:10mm x10mm
 more high resolution:192x192pixel/508DPI
NFCoptionalNANXP NFC 13.56MHz  支持ISO/IEC 下14443A/14443B/15693/18092/mifare 协议,读卡距离:4cm
 One-dimension barcode optionalNAHoneywell  N4313/Optical resolution: 5mil/scan speed: times /s serial port
serial portoptionalNA RS232
Ethernet interfaceoptionalNA*1(10/100M self-adaption) with indicator light
UHF-RFIDoptionalNATTL Uart port,Recognition distance is 3m,
Working voltage DC 3.5V – 5 V,
Standby current <80mA (EN electrical level),Working current 180mA @ 3.5V,Working spectrum range
 902Mhz – 928Mhz,inventory tag peak velocity > 50 pcs /second,
ID ModuleoptionalNAsupport reading the fingerprint information in the 1st and 2nd ID card
Port:USB or TTL serial port optional
power 5v or 3.3v,size:53mm*52mm*10mm
the fingerprint module authenticated by Chinese Ministry of public security optionalNAFingerprint collection module for Resident identity card:standard UART/ USB port,Baud rate 115200bps(by default),
Sensor type:Semiconductor capacitance,Image size 256 * 360 pixel,working voltage 3.8~5V,Working current 50mA,Standby current 35mA,size:35mm*23mm*3.4mm
I/O Ports
TypeDetailsDescriptionsOptional configuration
USB2.0USB2.0USB2.0*1 NA
type Ctype CUSB OTG/chargeing*1
Earphone JackEarphone Jack∮3.5mm standard earjack  x1 in tabletNA
HDMI CHDMI CHDMI C x1  in tabletNA
TF CardTF Cardsupport SDHC/SDXC   x1    max:64G in tabletNA
SIM CardSIM CardSIM card   x1      in tabletNA
DC jack (tablet)DC jackDC  5V 3A jack  x1  in tabletNA
Keys
TypeDetailsDescriptionsOptional configuration
powerpower key x1NA
volumevolume+-Volume adjustment key(+ -)  x 2NA
Windows homeWindows homeWindows home x1NA
P1user-definedBarcode scanning  x1NA
P2user-definedwearing gloves/ wet finger mode switching x1NA
Standard Accessories
TypeDetailsDescriptionsOptional configuration
AdapterStandardAC100V ~ 240V    50Hz/60Hz output DC  5V 3A        the USA standard   with CE certificate  the USA standard
  the European standard
Software Configuration
TypeDetailsDescriptionsOptional configuration
Operation SystemOperation System
Version
windows 10 HOME 64bit   language by default:English  windows 10 IOT 64bit
Windows10 Pro /64bit
Windows 10  enterprise 64bit /64bit

Product Certificate
TypeDetailsDescriptionsOptional configuration
Certificates SystemIP65
IP65 report: Waterproof test: IP-x5, dustproof test: IP-6X
a). The nozzle internal diameter: 6.3mm;
b). The water flow: 12.5 + 0.625L/min;
c). The water pressure: to adjust according to the water flow;
d). the main part of the water flow: a circle of diameter 40mm on the sample surface which is 2.5m far from the nozzle.
e). Per square meter of Sample surface sprayed by water: About 1 minute;
f). The test time: 3 minutes at least;
g). The distance from Nozzle to sample surface: 2.5 ~ 3m.
    After the test, the sample has not water penetration.
the product will make the cetification at T1 stage
CE
the product will make the cetification at T2 stage
810G
the product will make the cetification at T2 stage
Reliability
TypeDetailsDescriptionsOptional configuration
Product reliabilityFalling heightMIL-STD-810G 1.22m drop
Working temperature ‘-20 °C to 60 °C
Storage temperature’-30 °C to 70 °C
HumidityHumidity: 95% Non-Condensing



Accessories of 10'' Intel Tablet PC EM-I15H Rugged PC

Various modules and accessories can be selected to meet customers' application in various industries.


Hand-strap
Hand-strap

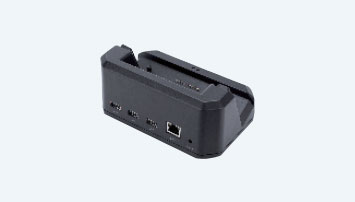

Docking Charger
Docking Charger

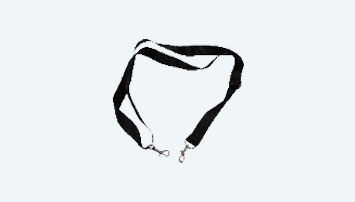

Shoulder-strap
Shoulder-strap

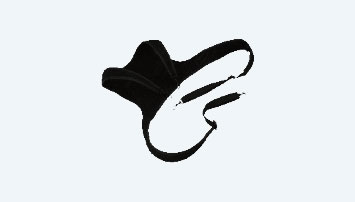

Back-strap
Back-strap

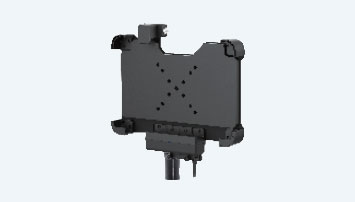

Vehicle Mount
Vehicle Mount

Application Range of 10'' Intel Tablet PC EM-I15H Rugged PC

Various modules and accessories can be selected to meet customers' application in various industries.


Warehouse & Logistics Industry
Warehouse & Logistics Industry
Surveying & Mapping Industry
Surveying & Mapping Industry
Manufacturing Industry
Manufacturing Industry
Energy Industry
Energy Industry
Public Industry
Public Industry
Traffic Industry
Traffic Industry
