12'' Intel: EM-I22K (5G) Intel® Core™ Rugged Notebook

5G is coming!

This is the beginning of a new era!

How it be fast? Speed would increase 10 times.


  • EM-I22K is equipped with Intel® Core™, Runs more smoothly.

  • Enjoy uninterrupted use.

  • Support Windows 10 / Windows 7 / Linux system.

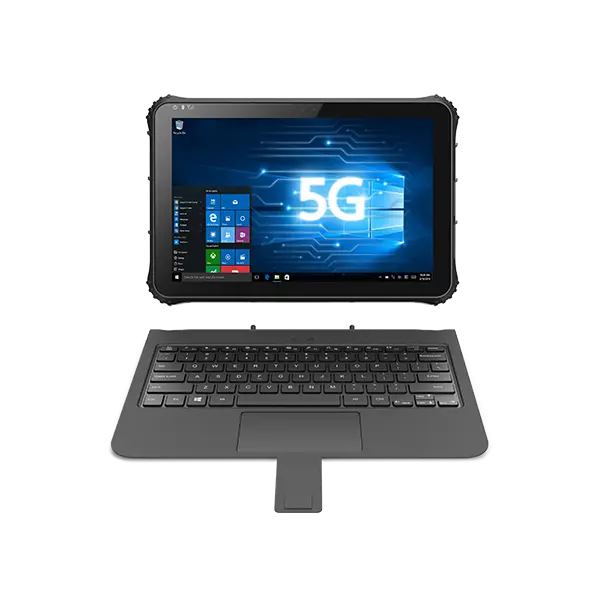

rugged 5G laptop.png
Windows Windows
IP65 IP65
GPS GPS
High-capacity High-capacity
Bluetooth Bluetooth
1D 1D
2D
2D
RFID RFID
4G/5G 4G/5G
WiFi WiFi

Features of 12'' Intel: EM-I22K(5G) Rugged Notebook

  • support Windows 10 OS;

  • Support all sizes of standard of USB2.0,USB3.0,type_c connector;

  • Support NXP NFC(13.56M);

  • Support Ublox GPS High precision positioning;dual frequency WIFI;Wide

  • temperature battery

  • support 1D/2D Scan;

  • support standard DB9 serial port (RS232,RS485);

  • Rugged IP65 protection level;

  • support 6500mAh removeable battery;

  • support  high strength Glass Touch Panel,handwriting input;

  • support RJ45 internet access,100M Ethernet ;

  • Support Wrist Strap and leather keyboard;

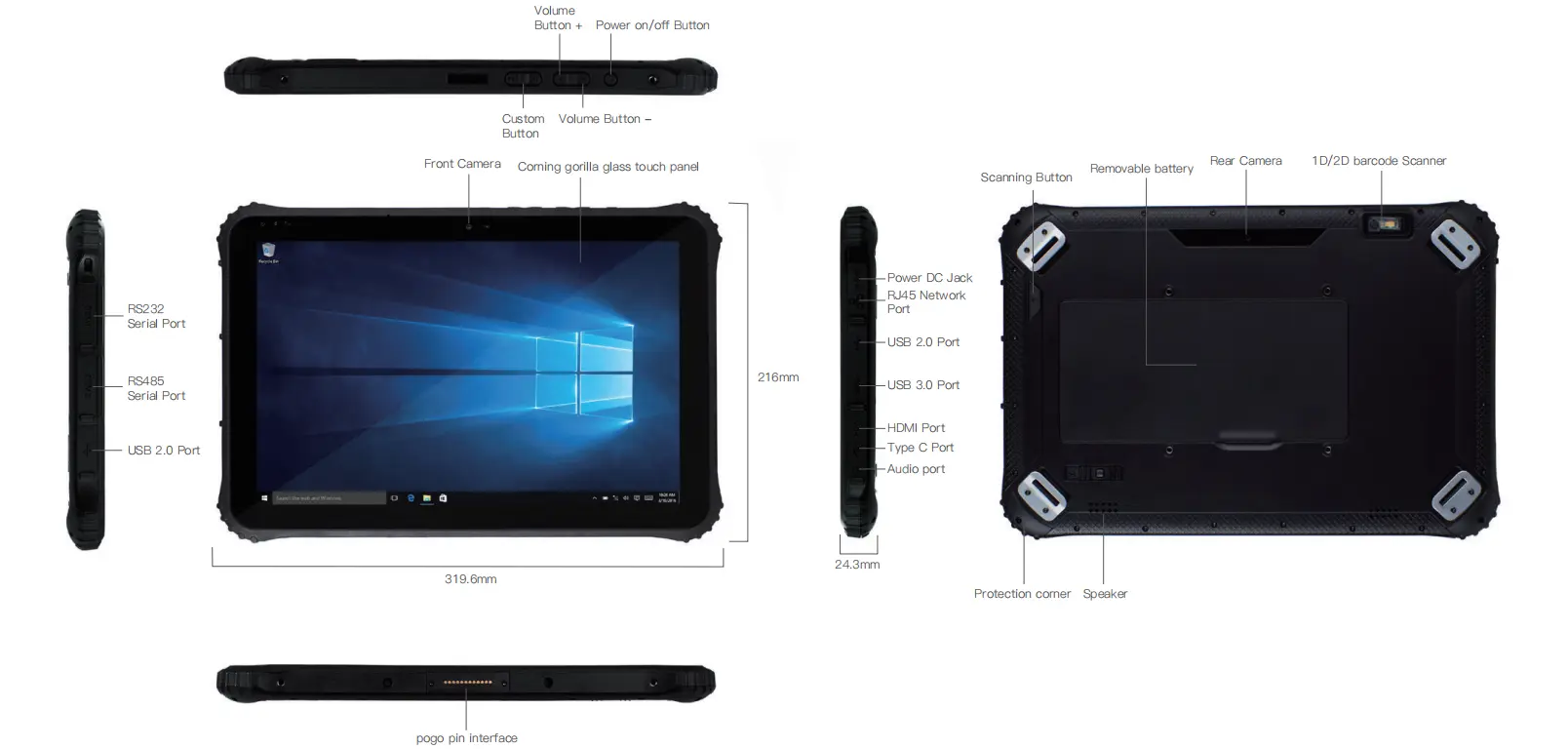

Six Views of 12'' Intel: EM-I22K(5G) Rugged Notebook






Specifications of 12'' Intel: EM-I22K(5G) Rugged Notebook

TypeDetailsStandard ConfigurationOptional configuration
Product FormType12.2 inch Rugged Tablet (Optional keyboard )NA
Dimension319.6*216*23.4 mmNA
Weight1500gNA
Device Colorblack+black color(bottom shell black color,front shell black color)black+silver color(bottom shell silver color ,front shell silver color)
LCDScreen Size12.2 inch  16:10NA
Resolution1920*1200 IPS屏NA
Brightness280cd/㎡optional SLR Sunlight visible film
TPTouch Panel10 points Capacitive,G+G,Corning Gorilla Rigidity: above 7H-Anti-scratch,TP thickness:1.1mm,COF,support handwriteoptional SLR Sunlight visible film
CameraFrontfront 2.0MPNA
Rearrear 5.0MPNA
SpeakerBuilt-inEmbedded 8Ω/0.8W waterproof speaker x2NA
MicBuilt-inSensitivity::-42db, output resistance 2.2kΩNA
BatteryTypeBuild in Lithium-ion polymer battery/large battery can hot plug replacementNA
Capacity6300mAh/7.4V  1000mAh/7.4V  (dual battery )NA
Endurance6hrs(default 50% volumn,default200 lumens brightness play 1080P HD video)NA
System Hardware Configuration
TypeDetailsDescriptionOptional configuration
CPUTypeIntel®Skylake M3-6Y30Intel Kabylake Core™ m3-7Y30
Speed4M Cache, up to 2.20 GHzNA
GPUTypeIntel® HD Graphics 515NA
RAMDDR3L4GB8GB
ROMEmmcNANA
SSDNGFF SSD128G M.2128G/256G/512G
G_sensor内置Gravity acceleration sensorNA
Network Connections
TypeDetailsDescriptionsOptional configuration
WIFIWIFI ModuleWIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G  dual band WIFI intel 3165D2WGNA
BluetoothBuilt-inBT4.2 (BLE) class1 transmission distance:10mNA
3GBuilt-inNAFIBOCOM_H350
GSM/GPRS/EDGE Band(MHz):900/1800;WCDMA Band(MHz):900/2100
1.Asia Pacific,Europe
2.China Unicom 3G
4GBuilt-inEC25-EC
LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8
NA
GPSBuilt-inU-blox NEO-7 Support :GPS; Capture sensitivity: -160 dBm;Cool Start Time:<50second,Hot start time:<28seconds,frequency:0.25 Hz … 10 MHz (configurable)NA
NFCBuilt-inNANXP NFC 13.56MHz  Support ISO/IEC 14443A/14443B/15693/18092/mifare protocol,Card reading distance:4cm
Data Collection
TypeDetailsDescriptionOptional configuration
1DOPTIONALNAMOTO  SE655E100R
optical resolution: 5mil
SCAN SPEED: 50times/s
Code support :UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code 128,GS1-128,ISBT 128,Code 39,Trioptic Code 39 ,Code 32,Code 93  ,Code 11
2DOPTIONALNAEM80   hard decode
optical resolution:5mil
scan speed:50次/s
Code support ::PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse
 Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse
Interface Configuration
TypeDetailsDescriptionsOptional configuration
TF slotExtensive External Memorysupport TF   x1    max:128GNA
SIM card slot3G/4G communicationSIM卡   x1NA
USB interfaceExtensive External Memory and data transmissionUSB 2.0*2 (4pin) (Host)for windowsNA
USB 3.0*1 (9pin)NA
Type C interfaceUSB3.0,charging,AVType c x1NA
Earphone JackAudio Output∮3.5mm standard earphone jack  x1NA
DC JackPowerDC 12V 4A ∮3.5mm  Power connector  x1NA
HDMI interfaceAV OutputHDMI 1.4a   x1NA
Serial port Interfaceserial portDB9 (RS232) ×1, DB9 (RS485) ×1NA
RJ45 interfaceinternet access10/100Mbps self-adaption ×1NA
Extensive Slotpogo Pin12pin  Pogo Pin   x1NA
Key
TypeDetailsDescriptionsOptional configuration
powerpower on/off keyx1NA
volumeVOL+ VOL-VOL+ VOL- x2NA
F KEYBarcode scan keybarcode scan (backside of machine) x1NA
programprogamming keycustomized key function  x2NA
Standard Accessories
TypeDetailsDescriptionOptional configuration
handlehandlehandleNA
Power AdaptorStandardAC100V ~ 240V、50Hz/60Hz output DC 12V/4A      USA Standard  CE approvalUSA standard
EU Standard
Software Configuration
TypeDetailsDescriptionOptional configuration
Operation SystemOS versionwindows 10 IOT 64bit  Default language:EnglishWindows 10 Pro 64bit/Home  64bit
Product Certificate
TypeDetailsDescriptionOptional configuration
Certificate SystemIP65IP65 Report:waterproof test:IP-X5,dustproof test:IP-6X
a.nozzle inner diameter:6.3mm;   b.water-carrying capacity:12.5±0.625L/min;
c.water pressure:adjust according to specified water-carrying capacity;
d.central part of main water flow:Away from the nozzle 2 . 5 m  diameter
about 40mm circle;
e.water spray time for outter shell per a square meter:about 1min;f. test time:at least 3min;
g. distance from nozzle to outter shell surface:2.5~3m。
。after tested,check sample and no water inside situation

CE-NBY
MIL-STD-810GY
BatteryUN38.3,MSDS,IEC62133
Reliability
TypeDetailsDescriptions
Product ReliabilityDrop Height1.22m  composite wood floors, in operation status
Operate Temperature‘-20 °C to 60 °C
Store Temperature’-30 °C to 70 °C
HumidityHumidity: 95% Non-Condensing
Product feature:1.support Windows 10 OS;
        2.Support all sizes of standard of USB2.0,USB3.0,type_c connector;
        3.Support NXP NFC(13.56M);
        4.Support Ublox GPS High precision positioning;dual frequency WIFI;Wide
          temperature battery
        5.support 1D/2D Scan;
        6.support standard DB9 serial port (RS232,RS485);
        7.Rugged IP65 protection level;
        8.support 6500mAh removeable battery;
        9.support  high strength Glass Touch Panel,handwriting input;
        10.support RJ45 internet access,100M Ethernet ;
        11.Support Wrist Strap and leather keyboard;



Accessories of 12'' Intel EM-I22K (5G) Rugged Notebook

Various modules and accessories can be selected to meet customers' application in various industries.


Hand-strap
Hand-strap
Back-strap
Back-strap
Car Charge
Car Charge
Vehicle Mount
Vehicle Mount
Docking Charger
Docking Charger
Battery
Battery
Shoulder-strap
Shoulder-strap
Removable keyboard
Removable keyboard
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter-cable
Adapter-cable
Adapter-cable
Adapter-cable
Adapter-cable
Adapter-cable
Adapter-cable
Adapter-cable
Carry handle
Carry handle
Car Holder
Car Holder

Application Range of 12'' Intel: EM-I22K (5G) Rugged Notebook

Various modules and accessories can be selected to meet customers' application in various industries.


Warehouse & Logistics Industry
Warehouse & Logistics Industry
Surveying & Mapping Industry
Surveying & Mapping Industry
Manufacturing Industry
Manufacturing Industry
Energy Industry
Energy Industry
Public Industry
Public Industry
Traffic Industry
Traffic Industry
