14'' Intel: EM-X14U Dual Battery Notebook

  • EM-X14 is a fully rugged notebook from Emdoor.

  • It supports for Windows 10 system and integrated 3G/4G all network communication, WiFi, Bluetooth and other communication modes.

  • The fuselage of EM-X14 is equipped with dual-battery design, and the endurance is increased to 6-8 hours.

  • Besides, It has passed IP65 high protection level, in accordance with MIL-STD-810G.

  • It is a rugged laptop that is perfectly suitable for difficult and complex outdoor scenes.

  • Support Windows 10 / Windows 7 / Linux system.

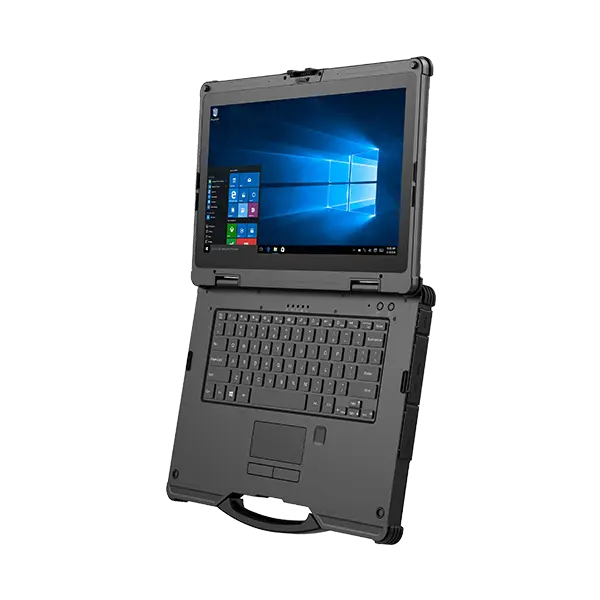

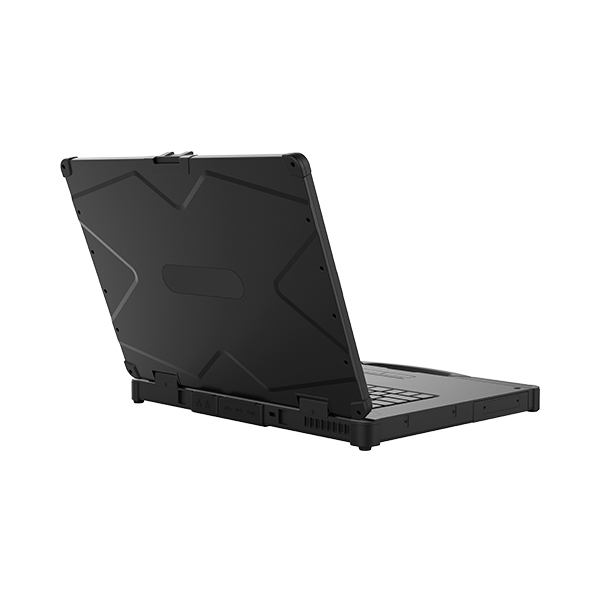

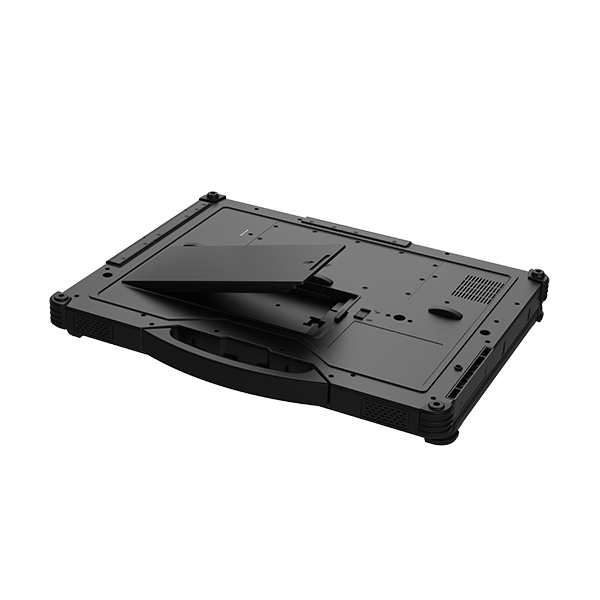

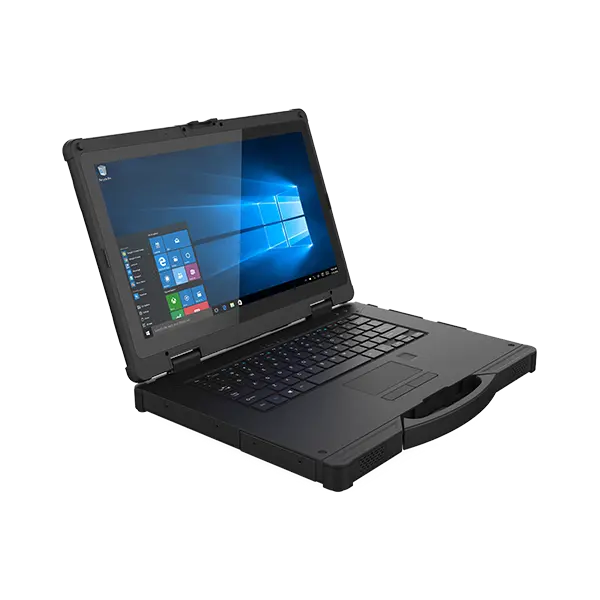

EM-X14U Rugged Notebook
EM-X14U Rugged Notebook
EM-X14U Rugged Notebook
EM-X14U Rugged Notebook
EM-X14U Rugged Notebook
Windows Windows
IP65 IP65
GPS GPS
Camera Camera
Dual-battery Dual-battery
Fingerprint Fingerprint
NFC NFC
3G/4G 3G/4G
WiFi WiFi
Bluetooth Bluetooth

Features of 14'' Intel: EM-X14U Rugged Notebook


  • Support for Win 7, Win 10 system

  • Intel® Core™ i5-8250U/i7-8550U, greatly improved performance

  • The fuselage is equipped with a dual-battery design, and the endurance is increased to 6-8 hours

  • IP65 high protection level, in accordance with MIL-STD-810G

  • Support GPS, Optional Beidou, more accurate positioning

  • Support 1920x1200 FHD, optional with Corning gorilla screen and sunshine visual screen

  • Support rich expansion slot and fingerprint design can be applied to various complex industry needs and expand demand

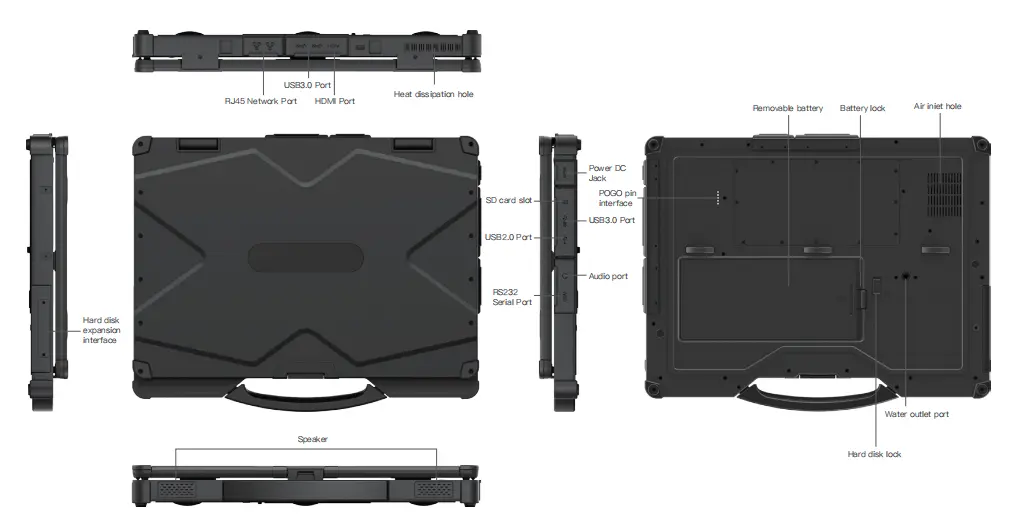

Six Views of 14'' Intel: EM-X14U Rugged Notebook


X14U



Specifications of 14'' Intel: EM-X14U Rugged Notebook


Specification of 14'' Windows Rugged Notebook EM-X14U
TypeDetailsStandard ConfigurationOptional
Product FormTypeFull-rugged NetbookNA
Dimension322*233*26 mm  (Host)NA
WeightDevice unit: 2.85kgNA
Device ColorblackNA
LCDScreen Size14 inch  16:9NA
Resolution1920(H)×1200(V) FHDNA
Brightness650cd/㎡NA
TPTouch PanelNA10 point touch capacitive,G+G,Rigidity: 7H up, Anti-scratch
CameraFrontfront 2.0MPNA
RearNANA
SpeakerBuilt-inEmbedded 8Ω/0.8W waterproof speaker x2NA
MicBuilt-in×2  Internal  Digit MICNA
Battery(Built-in)typeBuilt-in Lithium-ion polymer batteryNA
Capacity1750mHA/7.4VNA
Endurance0.5hrs(Default 50% volume,default 200 nit,Play 720P HD video)NA
Battery(Pluggable)typeExternal Lithium-ion polymer batteryNA
Capacity6300mHA/7.4VNA
Endurance8.5 hrs(Default 50% volume,default 200 nit,Play 720P HD video)NA
System Hardware Configuration
TypeDetailsDescriptionsOptional
CPUType8th Generation  KBL-R Intel® Core™ i5-8250U8th Generation  KBL-R Intel® Core™ i7-8550U
SpeedProcessor 4core 8 threads, processor base frequency 1.60 GHz, maximum frequency 3.40 GHzmaximum frequency 4.0 GHz
GPUTypeIntel® UHD Graphics 620Intel® UHD Graphics 620
RAMDDR4L8GB16GB
SSDNGFF SSD256GB512GB
TPMBuilt-inBuilt-in TPM Security Chip   SLB9665T2.0NA
Network Connections
TypeDetailsDescriptionsOptional
WIFIWIFI ModleWIFI 802.11(a/b/g/n/ac)  Frequency 2.4G+5.8G Dual-frequency WIFI /intel 3165 / Max Speed 433 MbpsNA
BluetoothBuilt-inBT4.2 (BLE) class1 Transmission distance:10mNA
3GBuilt-inMini-PCIe interface(USB and PCIe signal compatibility)MU709s-2 Mini PCIe(UMTS/HSPA+ 900/2100MHz),MU709s-6 Mini PCIe(UMTS/HSPA+ 850/1900/2100 MHz)
4GBuilt-inMini-PCIe interface(USB and PCIe signal compatibility)EC25-AU Mini PCIe
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28 LTE TDD: B40 WCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8
NFCNANANXP NFC 13.56MHz ,support ISO/IEC  14443A/14443B/15693/18092/Mifare, Card reading distance:4cm
GPSBuilt-inU-Blox NEO-7 Support: GPS; Capture sensitivity: -160 dBm;Cool Start Time:<50second,Hot start time:<28seconds,frequency:0.25 Hz … 10 MHz (configurable)Optional Beidou+GPS  U-Blox NE0-M8N-0
Data Collection
TypeDetailsDescriptionOptional
FingerprintBuilt-in×1 SPI fingerprint(Power on login)NA
Interface Configuration
TypeDetailsDescriptionOptional
USB3.0USB3.0USB3.0*3NA
USB2.0USB2.0USB2.0*1NA
Earphone JackEarphone Jack∮3.5mm Standard earphone jack  x1 hostNA
HDMIHDMIHDMI  x1 (type-A)NA
SD CardSD CardSD Card  x1NA
SIM CardSIM CardSIM Card   x1NA
DCDC JackDC 19V 3.42A power jack  x1NA
Serial portSerial portDB9 (RS232) ×1NA
RJ45 portInternet portx2(10/100/1000M Self-adaption)NA
Burglar lock hole(Right)KensingtonKensington x1NA
Heat dissipation air outlet(Right)Heat dissipation air outlet(Right)Heat dissipation air outlet(Right) x1NA
Left  extension dockLeft extension dockNA×1 Passenger transfer card PCIE 4X solt or HDD
POGO PINPOGO PINPOGO PIN*1
Button
TypeDetailsDescriptionOptional
powerPower Buttonx1NA
ResetReset ButtonReset x 1NA
P1P1Used to lock or open screen  ×1NA
Indicator light
TypeDetailsDescriptionOptional
powerBuilt-in×1 Light color is blue when booting (Blue will not too bright), Light off when machine closed.NA
batteryBuilt-in×1( red and green double - color ) Light color is red when charging, then become green when full charge,  red light flash when low - power, it is not bright when discharge.NA
HDD LEDBuilt-in×1NA
Caps lockBuilt-in×1NA
3G/4GOptionalThe light color is blue when 3G/4G opened; Light off when 3G/4G closedNA
Standard Accessories
TypeDetailsDescriptionOptional
Power AdaptorStandard100~240V Input 19V3.42A/65W output      USA standard  CE approvalUSA standard
EU standard
Software Configuration
TypeDetailsDescriptionOptional
OSOS versionWindows 10 home 64bit OSwindows 10 IOT 64bit
Windows10 Pro 64bit
Windows 10  enterprise 64bit
Product Certificate
TypeDetailsDescriptionOptional
Certificate SystemIP65IP65 Report: Water resistance:IP-X5,Dust resistance:IP-6X  Report ID no.:SET2015-07677
a.Inner Nozzle diameter:6.3mm;   b. water speed:12.5±0.625L/min;
c. Water Pressure:adjust according to water volumn;
d.Central part of water volumn:diameter of 40mm, distance from nozzle: 2.5M
e.Spray time on the surface of panel:about 1min;f.test time:at least 3min;
g.distance between nozzle and panel surface:2.5~3m。
After the test, there is no water leakage in the sample.
NA
CE NBY
MIL-STD-810GY
BatteryUN38.3,MSDS,IEC62133
Reliability
TypeDetailsDescriptionsOptional
Product ReliabilityDrop HeightMIL-STD-810G 1.22m drop
Operate Temperature‘-20 °C to 60 °C
Store Temperature’-30 °C to 70 °C
HumidityHumidity: 95% Non-Condensing



Accessories of 14'' Intel: EM-X14U Rugged Notebook

Various modules and accessories can be selected to meet customers' application in various industries.


Battery
Battery
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter-cable
Adapter-cable
Adapter-cable
Adapter-cable
Adapter-cable
Adapter-cable
Adapter-cable
Adapter-cable

Application Range of 14'' Intel: EM-X14U Rugged Notebook

Various modules and accessories can be selected to meet customers' application in various industries.


Surveying & Mapping Industry
Surveying & Mapping Industry
Manufacturing Industry
Manufacturing Industry
Energy Industry
Energy Industry
Public Industry
Public Industry
Traffic Industry
Traffic Industry
