15'' Intel: EM-X15U Multi-interface Rugged Laptop

  • 15.6-inch large display, Allow a glace of more data.

  • Handle design, No matter where you go, just a carry.

  • Support dual battery, Battery can be hot-swappable.

  • Fingerprint unlocking, One step faster.

  • Support Windows 10 / Windows 7 / Linux  system

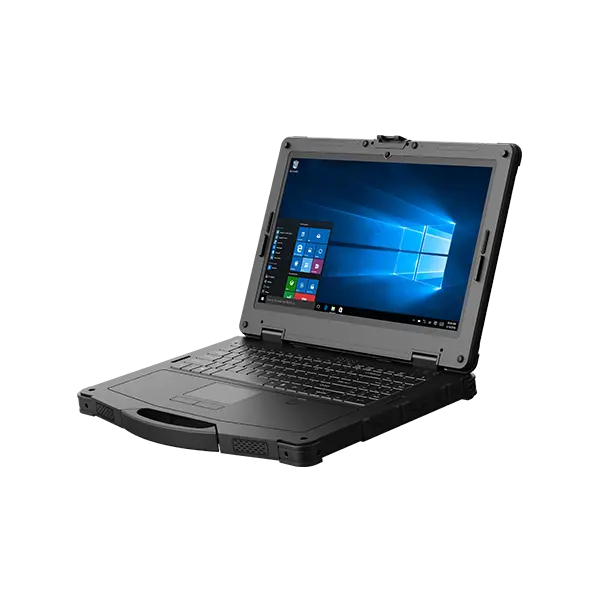

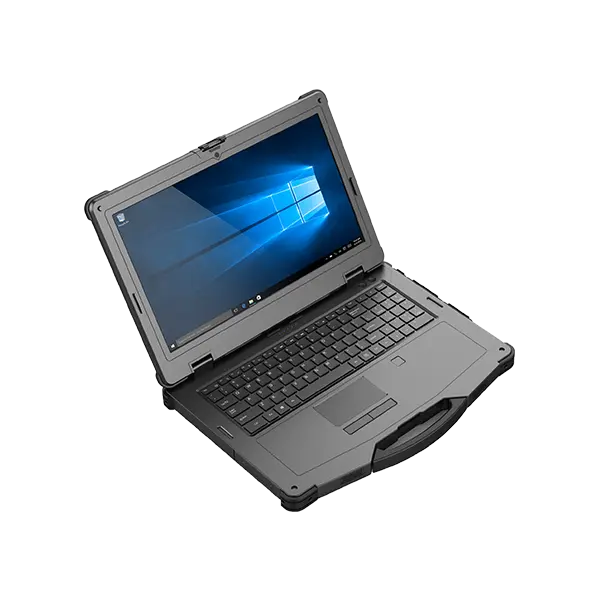

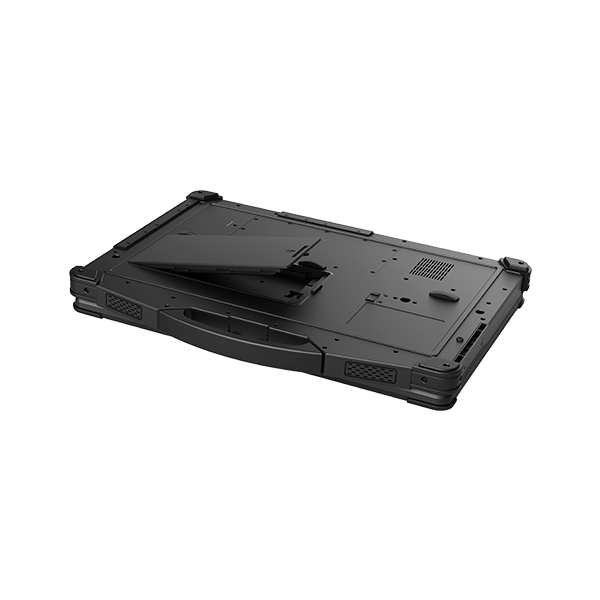

15'' Intel: EM-X15U Rugged Notebook
15'' Intel: EM-X15U Rugged Notebook
15'' Intel: EM-X15U Rugged Notebook
15'' Intel: EM-X15U Rugged Notebook
15'' Intel: EM-X15U Rugged Notebook
Windows Windows
IP65 IP65
GPS GPS
Camera Camera
Dual-battery Dual-battery
Fingerprint Fingerprint
NFC NFC
3G/4G 3G/4G
WiFi WiFi
Bluetooth Bluetooth

Features of 15'' Intel: EM-X15U Rugged Notebook


  • Support for Win 7,Win 10 system

  • Intel® Core™ i5-8250U/i7-8550U, greatly improved performance

  • The fuselage is equipped with dual-battery design, and the endurance is increased to 6-8 hours

  • IP65 high protection level, in accordance with MIL-STD-810G

  • Support GPS, Optional Beidou, more accurate positioning

  • Support 1920x1200 FHD, optional with Corning gorilla screen and sunshine visual screen

  • Support rich expansion slot and fingerprint design can be applied to various complex industry needs and expand demand

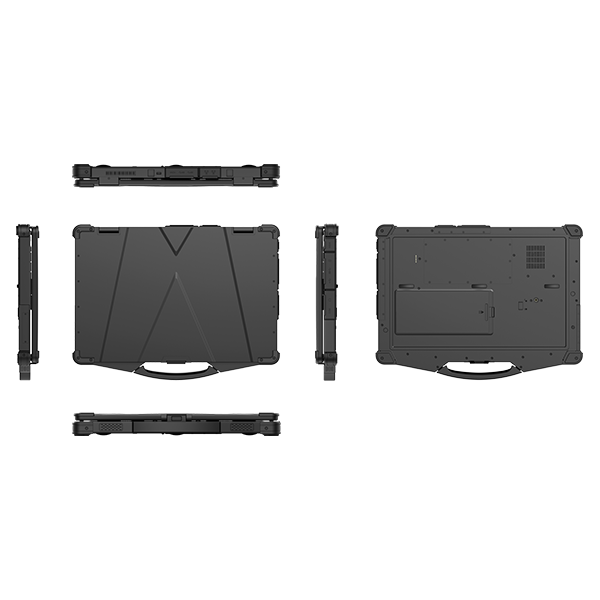

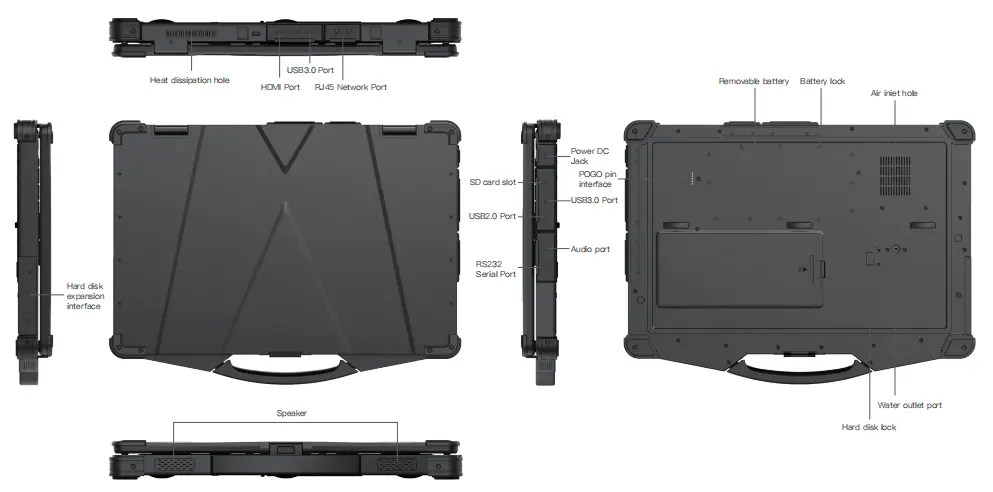

Six Views of 15'' Intel: EM-X15U Rugged Notebook


15'' Intel: EM-X15U Rugged Notebook



Specifications of 15'' Intel: EM-X15U Rugged Notebook


Specification of 15.6'' Windows Rugged Notebook EM-X15U
TypeDetailsStandard ConfigurationOptional
Product FormType15-inch Full-rugged Notebook NA
Dimension397*271*37 mm NA
WeightBare metal 3.3kgNA
Device ColorBlackNA
LCDScreen size15.6“   16:9NA
Resolution1920(H)×1200(V) FHDNA
Brightness650cd/㎡ NA
TPTouch panelNANA
CameraFrontFront 2.0MP  NA
SpeakerBuilt-inBuilt-in 8Ω/1W  x2NA
MicBuilt-in×2  Internal  Digit MIC NA
Battery(Built-in)TypeBuilt-in Lithium-ion polymer batteryNA
Capacitive1750mHA/7.4V NA
Endurance0.5hrs(Default 50% volume,default 200 nit,Play 720P HD video)NA
Battery(Pluggable)TypeExternal Lithium-ion polymer batteryNA
Capacitive6300mHA/7.4V NA
Endurance8 hrs(Default 50% volume,default 200 nit,Play 720P HD video)NA
System Hardware Configuration
TypeDetailsDescriptionsOptional
CPUType8th Generation  KBL-R Intel® Core™ i5-8250U 8th Generation  KBL-R Intel® Core™ i7-8550U
SpeedProcessor 4core 8 threads, processor base frequency 1.60 GHz, maximum frequency 3.40 GHzmaximum frequency 4.0 GHz
GPUTypeIntel® UHD Graphics 620 Intel® UHD Graphics 620
RAMDDR4L8GB  16GB
SSDNGFF SSD256GB  512GB
HDDTypeNAsupport HDD
TPMBuilt-inBuilt-in TPM Security Chip   SLB9665T2.0NA
Hall switchhallhall NA
Network Connections
TypeDetailsDescriptionsOptional
WIFIWIFI ModleWIFI 802.11(a/b/g/n/ac)  Frequency 2.4G+5.8G Dual-frequency WIFI /intel 3165 / Max Speed 433 Mbps NA
BluetoothBuilt-inBT4.2 (BLE) class1 Transmission distance:10mNA
3GBuilt-inMini-pcie interface(USB and pcie signal compatibility)MU709s-2 Mini PCIe(UMTS/HSPA+ 900/2100MHz),MU709s-6 Mini PCIe(UMTS/HSPA+ 850/1900/2100 MHz)
4GBuilt-inMini-PCIe interface(USB and PCIe signal compatibility)EC25-AU Mini PCIe
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28 LTE TDD: B40 WCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8
NFCNANANXP NFC 13.56MHz  support ISO/IEC 下14443A/14443B/15693/18092/mifare,Card reading distance:4cm
GPSBuilt-inU-Blox NEO-7 Support:GPS; Capture sensitivity: -160 dBm;Cool Start Time:<50second,Hot start time:<28seconds,frequency:0.25 Hz … 10 MHz (configurable)Optional Beidou+GPS  U-Blox NE0-M8N-0
FingerprintBuilt-in×1 SPI fingerprint(Power on login)
Interface Configuration
TypeDetailsDescriptionsOptional
USB3.0USB3.0USB3.0*3NA
USB2.0USB2.0USB2.0*1NA
Earphone JackEarphone Jack∮3.5mm Standard earphone jack  x1 hostNA
HDMI HDMI HDMI  x1 (type-A)NA
SD CardSD CardSD Card  x1    NA
SIM CardSIM CardSIM Card   x1     NA
DCDC JackDC 19V 3.42A power jack  x1 NA
Serial portSerial port DB9 (RS232) ×1NA
RJ45 portInternet portx2(10/100/1000M Self-adaption)NA
Burglar lock hole(Right)Kensington Kensington x1NA
Heat dissipation air outlet(Right)Heat dissipation air outlet(Right)Heat dissipation air outlet(Right) x1NA
Left  extension dockLeft extension dockNA×1 Passenger transfer card PCI-E 4X slot or HDD
POGO PINPOGO PINPOGO 5pin
Button
TypeDetailsDescriptionsOptional configuration
powerPower Button x1NA
ResetReset ButtonReset x 1NA
P1P1Used to lock or open screen  ×1 NA
keyboardkeyboardUS 104 button, IP65NA
Indicator light
TypeDetailsDescriptionOptional
powerBuilt-in×1 Light color is blue when booting (Blue will not too bright), Light off when machine closed.NA
batteryBuilt-in×1( red and green double - color ) Light color is red when charging, then become green when full charge,  red light flash when low - power, it is not bright when discharge.NA
HDD LEDBuilt-in×1NA
Caps lockBuilt-in×1NA
3G/4GBuilt-inThe light color is blue when 3G/4G opened; Light off when 3G/4G closedNA
Standard Accessories
TypeDetailsDescriptionOptional configuration
Power AdaptorStandard100~240V Input 19V3.42A/65W output      USA standard  CE approvalUSA standard
EU standard
Software Configuration
TypeDetailsDescriptionOptional
OSOS versionWindows 10 home 64bit OSwindows 10 IOT 64bit
Windows10 Pro 64bit
Windows 10  enterprise 64bit
Software Configuration
TypeDetailsDescriptionOptional
Certificate SystemIP65IP65 Report: Water resistance:IP-X5,Dust resistance:IP-6X  Report ID no.:SET2015-07677
a.Inner Nozzle diameter:6.3mm;   b. water speed:12.5±0.625L/min;
c. Water Pressure:adjust according to water volumn;
d.Central part of water volumn:diameter of 40mm, distance from nozzle: 2.5M
e.Spray time on surface of panel:about 1min;f.test time:at least 3min;
g.distance between nozzle and panel surface:2.5~3m。
After the test,there is no water leakage in sample.
NA
CE NBY
MIL-STD-810GY
BatteryUN38.3,MSDS,IEC62133
Reliability
TypeDetailsDescriptionsOptional
Product ReliabilityDrop Height1.22m  composite wood floors, in operation status
Operate Temperature‘-20 °C to 60 °C
Store Temperature’-30 °C to 70 °C
HumidityHumidity: 95% Non-Condensing


Application Range of 15'' Intel: EM-X15U Rugged Notebook

Various modules and accessories can be selected to meet customers' applications in various industries.



Accessories of 15'' Intel: EM-X15U Rugged Notebook

Various modules and accessories can be selected to meet customers' application in various industries.
