Intel Core i7-1255U 15.6 inch industrial Panel pc windows P15A

● Powered by 12th-generation Intel® Core™ i5-1235U/i7-1255U Processors , equipped with Windows 11 operating system

● 15.6- inch flat capacitive touch panel with high impact resistance

● Wi-Fi 6, Bluetooth 5.1, and expandable 4G (M.2 interface), multiple network connection mode

● Excellent environmental adaptability, anti-electromagnetic interference and anti-static capabilities

● Fanless design, using large-area uniform heating fin, running 24/7 without affecting reliability and service life

● Rich interfaces, including multiple USB/LAN/D89/HDMI and other I/O ports, can easily meet various scenario requirements

● Standard PPC mounting hook component, easy to install and supports various installation methods such as embedded and wall-mounted

industrial Panel pc
industrial Panel pc
industrial Panel pc
industrial Panel pc
industrial Panel pc
i5-1235U/i7-1255U i5-1235U/i7-1255U
windows 11 windows 11
15.6 inch 15.6 inch
220cd/㎡ 220cd/㎡
1920*1080 1920*1080
wifi 6 wifi 6
Running 24/7 without Running 24/7 without
Rich interface extensions Rich interface extensions
storage expansion storage expansion
IP65 IP65

Features of Intel Core i7-1255U 15.6 inch industrial Panel pc windows P15A


● Powered by 12th-generation Intel® Core™ i5-1235U/i7-1255U Processors , equipped with Windows 11 operating system

● 15.6- inch flat capacitive touch panel with high impact resistance

● Wi-Fi 6, Bluetooth 5.1, and expandable 4G (M.2 interface), multiple network connection mode

● Excellent environmental adaptability, anti-electromagnetic interference and anti-static capabilities

● Fanless design, using large-area uniform heating fin, running 24/7 without affecting reliability and service life

● Rich interfaces, including multiple USB/LAN/D89/HDMI and other I/O ports, can easily meet various scenario requirements

● Standard PPC mounting hook component, easy to install and supports various installation methods such as embedded and wall-mounted

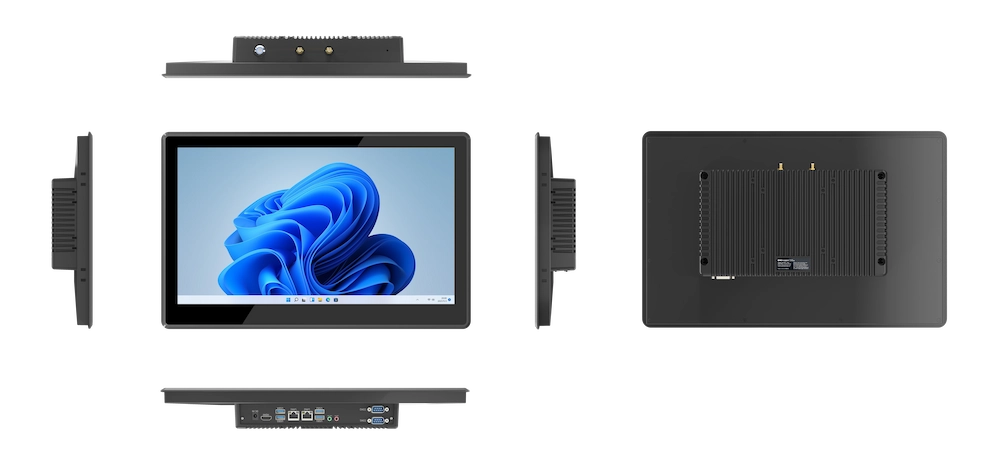

Six Views of Intel Core i7-1255U 15.6 inch industrial Panel pc windows P15A


industrial Panel pc






Specification of Intel Core i7-1255U 15.6 inch industrial Panel pc windows P15A


industrial Panel pc
Dimension388.63 x 248.43 x 54.95 mm
Weight2.4kg
Product ColorBlack
CPUi5-1235U, TDP15W,2P-Cores,8E-Cores,12threads;Speed: 0.9GHz~4.4GHz (Optional i7-1255U)
GPUIntel® Iris® Xe Graphics eligible
MemoryRAM 8GB                      ROM  128GB (Optional 256/512GB)
Operating SystemWindows 11(HOME PRO IOT)
DisplayType: LCD
Size: 15.6 inch   16 : 9
Resolution:  1920x1080
Brightness: 220 cd/㎡
Touch Pannel10 PCAP
WIFI WIFI 802.11(a/b/g/n/ac/ax ) 2.4G+5G , support WIFI6
BluetoothBT5.1
2G/3G/4GOptional:4G
LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8
I/OType A USB
USB3.0*4
Power interface
DC 19V *1 (Support 12--24V)
∮3.5mm Standard Earphone Jack  *1
RJ45 *2 (10M/100M/1000M adaptive)
DB9 PORT  RS232  *2
HDMI  *1
M2 *1  M.2 2280 standard interface(Support SATAⅢ/PCIE3.0X4 signal)
Power AdaptorAC100V ~ 240V、50Hz/60Hz output DC 19V/3.42A

CertificationIP65 Front Panel
Rugged FeaturesWorking temperature: -20 °C to 60 °C
Storage temperature: -30 °C to 70 °C
Humidity: 95% Non-Condensing



*Product specifications, pictures, and other information are for reference only.  The appearance is subject to the material object. This instruction is subject to change without notice.



Application Range of Intel Core i7-1255U 15.6 inch industrial Panel pc windows P15A

Various modules and accessories can be selected to meet customers' application in various industries.


industrial Panel pc
industrial Panel pc
industrial Panel pc
industrial Panel pc
industrial Panel pc
industrial Panel pc
industrial Panel pc
industrial Panel pc
industrial Panel pc
industrial Panel pc
industrial Panel pc
industrial Panel pc
