Supports for Android 9.0 system, brings a more pleasant application experience.
The rear camera has higher pixels, bid farewell to blur.
4GB RAM + 64GB ROM can store more data you need.
Custom buttons on both sides, as you need.
Android
Bluetooth
1D
2D
WiFi
3G/4G
IP65
GPS
Camera
NFC Support for Android 9.0 system
Integrated 3G/4G all network communication, WiFi, Bluetooth, and other communication modes
Equipped with a 4000mAh large capacity battery, the machine has an endurance of 4 hours
IP65 high protection level, in accordance with MIL-STD-810G
Support GPS, GLONASS, more accurate positioning
Equipped with 13 million pixel autofocus camera, easy to collect images and video information
Support 1D/2D, NFC, and other functional modules to meet the application needs of multiple industries
| Type | Details | Standard Configuration | Optional | ||||
| Product Form | Type | Rugged handheld terminal | NA | ||||
| Dimension | 147.7*74*19mm | NA | |||||
| Weight | Device unit: 220g | NA | |||||
| Device Color | Black（frant and rear Panel: black） | NA | |||||

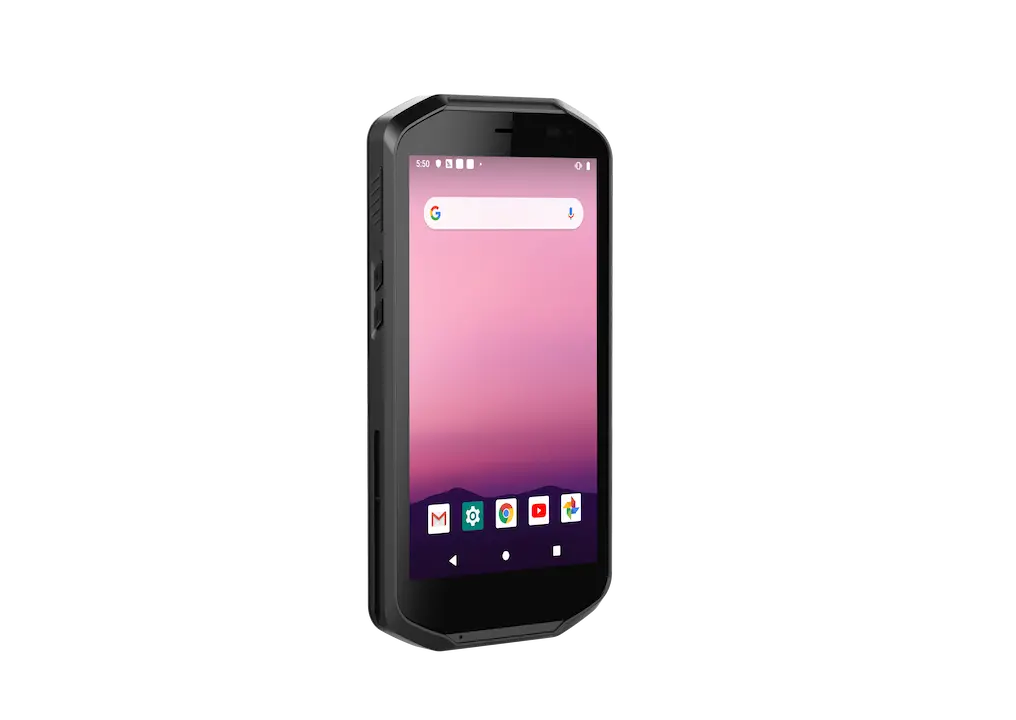

| LCD | Screen Size | 5 inch 16：9 | NA | ||||
| Resolution | 720*1280 IPS | NA | |||||
| Brightness | 330 Nit | NA | |||||
| TP | Touch Panel | 5 points Capacitive，G+F，Rigidity: above 7H-Anti-scratch，TP thickness：1.1mm， COF,Support for handwriting | NA | ||||
| Camera | Front | NA | NA | ||||
| Rear | Rear13.0MP, automatic focusing with astigmatism | NA | |||||
| Speaker | Built-in | Embedded 8Ω/0.7W waterproof speaker x 1 | NA | ||||
| Mic | Built-in | Sensitivity:-42db, output resistance:2.2kΩ | NA | ||||
Receiver | Built-in | Built-in Receiver x 1 | NA | ||||
| Battery | Type | Built-in Lithium-ion polymer battery | NA | ||||
| Capacity | 3.85V/4000mAh | NA | |||||
| Endurance | 4.5hrs(default 50% volumn，default200nit，play 1080P HD video) | NA | |||||
| System Hardware Configuration | |||||||
| Type | Details | Description | Optional | ||||
| CPU | Type | Qualcomm(OCTA Core), 2.0GHz | NA | ||||
| Speed | 2.0GHz | NA | |||||
| GPU | Type | Adreno 506 1920 × 1200 @ 60 fps | NA | ||||
| RAM | Memory | 4GB/ LPDDR3 | NA | ||||
| ROM | storage | 64GB | NA | ||||
| P_sensor | Built-in | Proximity Sensor *1 | NA | ||||
| L-Sensor | Built-in | light Sensor *1 | NA | ||||
| Compass | Built-in | / | NA | ||||
| Gyro Sensor | Built-in | Gyro Sensor *1 | NA | ||||
| G_sensor | Built-in | G_sensor *1 | NA | ||||
| NFC | Built-in | NFC 13.56MHz support SO/IEC 下14443A/14443B/15693/18092/mifare protocol，Card reading distance：3cm~5cm | NA | ||||
| Indicator light | Built-in | Indicator light of charging: keep red when device has low power. Keep red when charging, keep green when full power | NA | ||||
| Network Connections | |||||||
| Type | Details | Description | Optional | ||||
| WIFI | WIFI module | WIFI 802.11 b/g/n/a/ac frequency 2.4G+5G dual band WIFI, | NA | ||||
| Bluetooth | build in | BT4.0(BLE) | NA | ||||
| 2G/3G/4G | build in | CMCC 4M： LTE B1,B3,B5,B7,B8,B20,B38,B39,B40,B41 WCDMA 1/2/5/8 GSM 2/3/5/8 | CMCC 4M： LTE B2,B4,B5,B7,B8,B17,B38,B39,B40,B41 WCDMA /2/5/8 GSM 2/3/5/8 | ||||
| GPS | build in | support:GPS+Glonass;Capture sensitivity:-140 dBm；Cool Start Time：<50秒，Hot start time：<5秒，GPS frequency：1575.42MHz，Glonass frequency:1602MHZ | NA | ||||
| 1D Barcode scanner | Barcode scanner | Zebra SE4710 | EM03 | ||||
| 2D Barcode Scanner | Barcode scanner | ||||||
| sleds | External fitting | DC45（SINGLE-FILLED BASE） /MDC45（ Quadruple base） | |||||
PowerPack | External fitting | BA45（5V2A 2200MAH） | |||||
| triggers | External fitting | SH45 | |||||

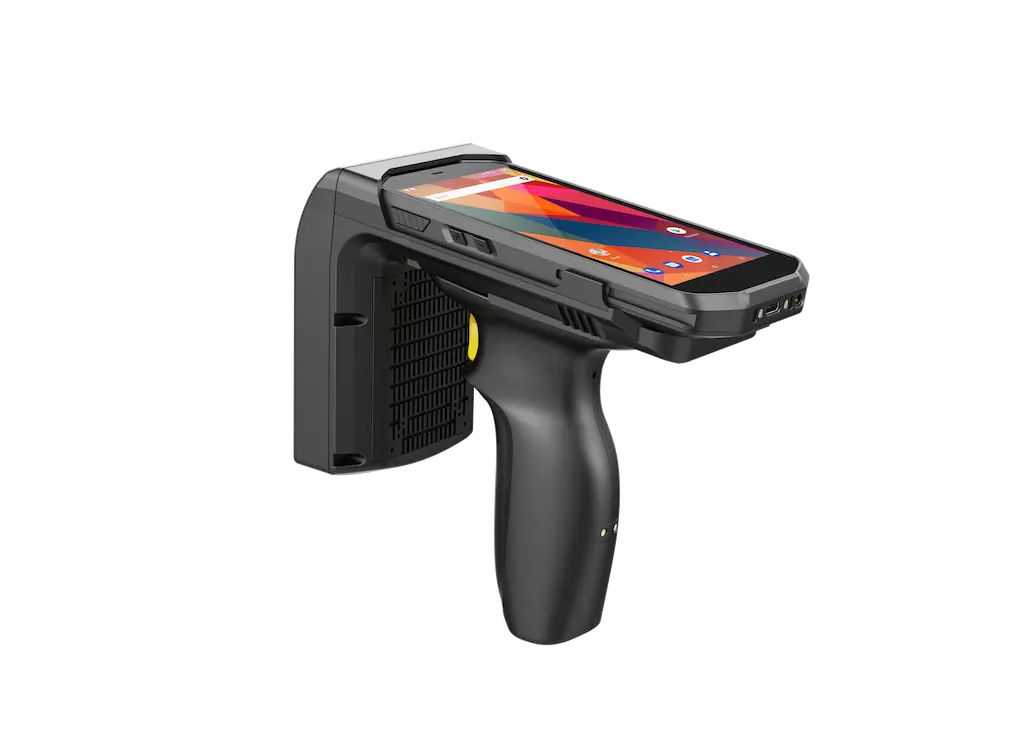

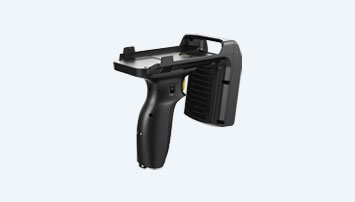

| UHF | External fitting | SUH45 | SLR5100(QM550) | ||||
| UHF | External fitting | SUH45P | SLR1200(R2000) | ||||
| Interface Configuration | |||||||
| Type | Details | Description | Optional | ||||

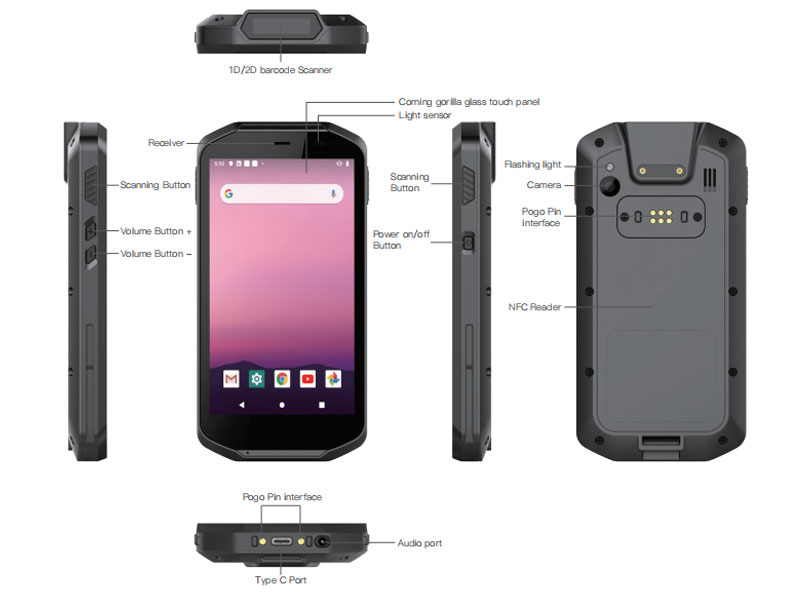

| TF slot | Extensive External Memory | Support SDHC/SDXC x1 max：128G | Inside pogo pin lid | ||||
| SIM slot | SIM card | SIM card x1 | |||||
| type c | data transmission&charing | Type C*1 （data&charing） | NA | ||||
| Earphone Jack | Audio output | ∮3.5mm standard earphone jack x1（US） | NA | ||||
| Barcode Scan Key | barcode | Bar code scanning (left and right)*2 | NA | ||||
| power on | Key | power key x1 | NA | ||||
| Volume addition and subtraction | Key | Volume addition and subtraction x1 | NA | ||||
| POGO PIN1 | Charge | Base Charging 2pin | NA | ||||

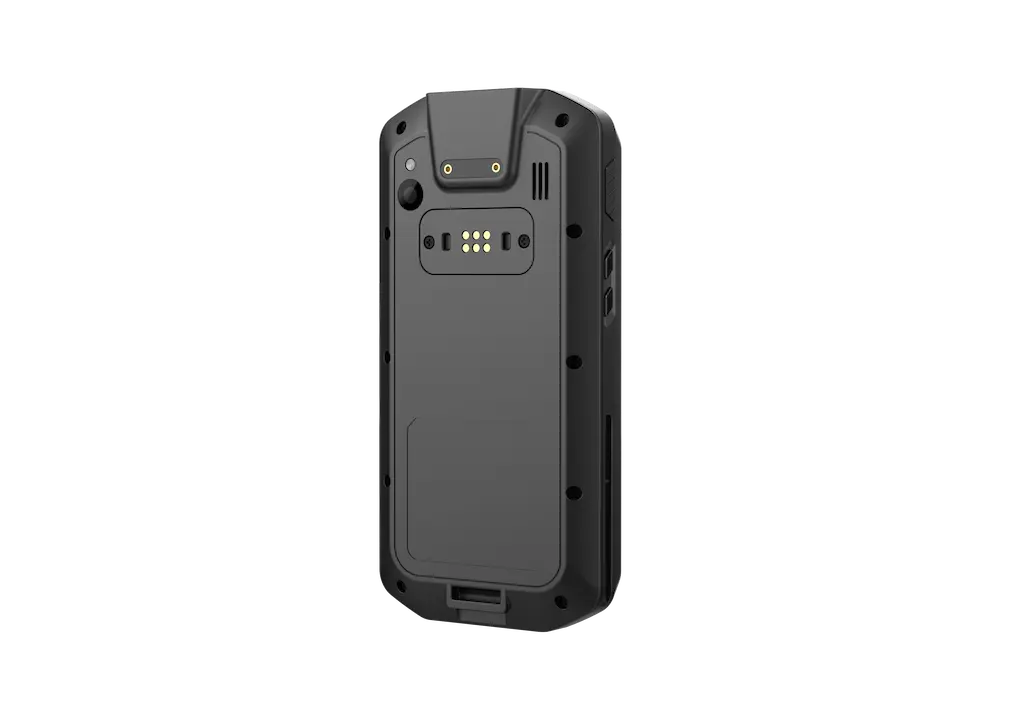

| POGO PIN2 | data transmission | Back 8pin (connecting UHF and Scanner Gun) | fingerprint | ||||
| Standard Accessories | |||||||
| 类型 | Details | Description | Optional | ||||

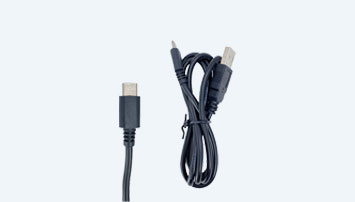

| USB Cable | USB Cable | Type C, USB am to type C, L = 1000mm，Black data line, 3 insulation impedance | NA | ||||
| OTG Cable | OTG Cable | Type C OTG cable, USB AF to TYPE C, black data line | NA | ||||

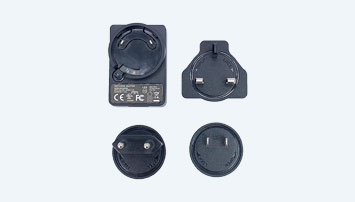

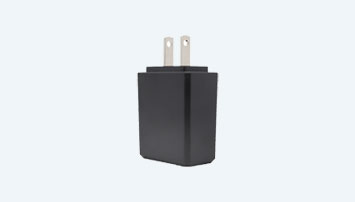

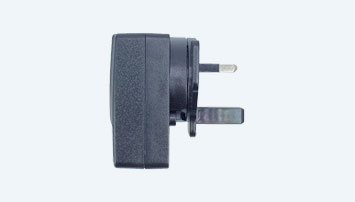

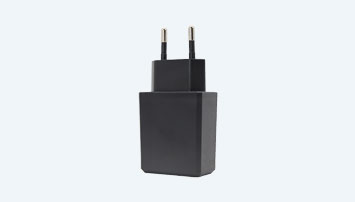

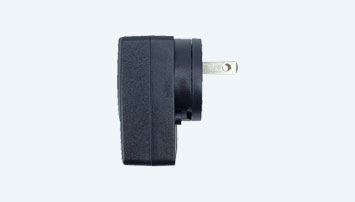

| The power adapter | Standard | AC100V ~ 240V、50Hz/60Hz output DC 5V/2A USA Standard CE approval | UK Standard | ||||

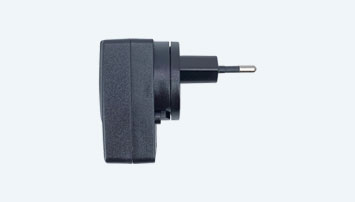

| EU Standard | |||||||
| 软件配置 | |||||||
| Type | Details | Description | Optional | ||||
| operating system | Operating System Version | Andriod 9.0 | NA | ||||
| 产品认证 | |||||||
| Type | Details | Description | Optional | ||||
Certification System | IP65 | IP65 Report： Water resistance：IP-X5，Dust resistance：IP-6X Report ID no.：SET2015-07677 a.Inner Nozzle diameter：6.3mm； b. water speed：12.5±0.625L/min； c. Water Pressure：adjust according to water volumn； d.Central part of water volumn e.Spray time in surface of panel：about 1min；f.test time：at least 3min； g.distance between nozzle and panel surface：2.5～3m。 After test，there is no water leakage in sample. | NA | ||||
| CE NB | Yes | ||||||
| MIL-STD-810G | Yes | ||||||
| Battery | UN38.3,MSDS,Aviation and Maritime Transport Report，IEC62133 | ||||||
| 可靠性 | |||||||
| Type | Details | Description | Optional | ||||
| Product Reliability | drop height | 1.2m Composite wood floor working | |||||
| working temperature | -10 °C to 55 °C | ||||||
| Storage temperature | -20 °C to 60 °C | ||||||
| humidity | Humidity: 95% Non-Condensing | ||||||
Various modules and accessories can be selected to meet customers' application in various industries.
Various modules and accessories can be selected to meet customers' application in various industries.
