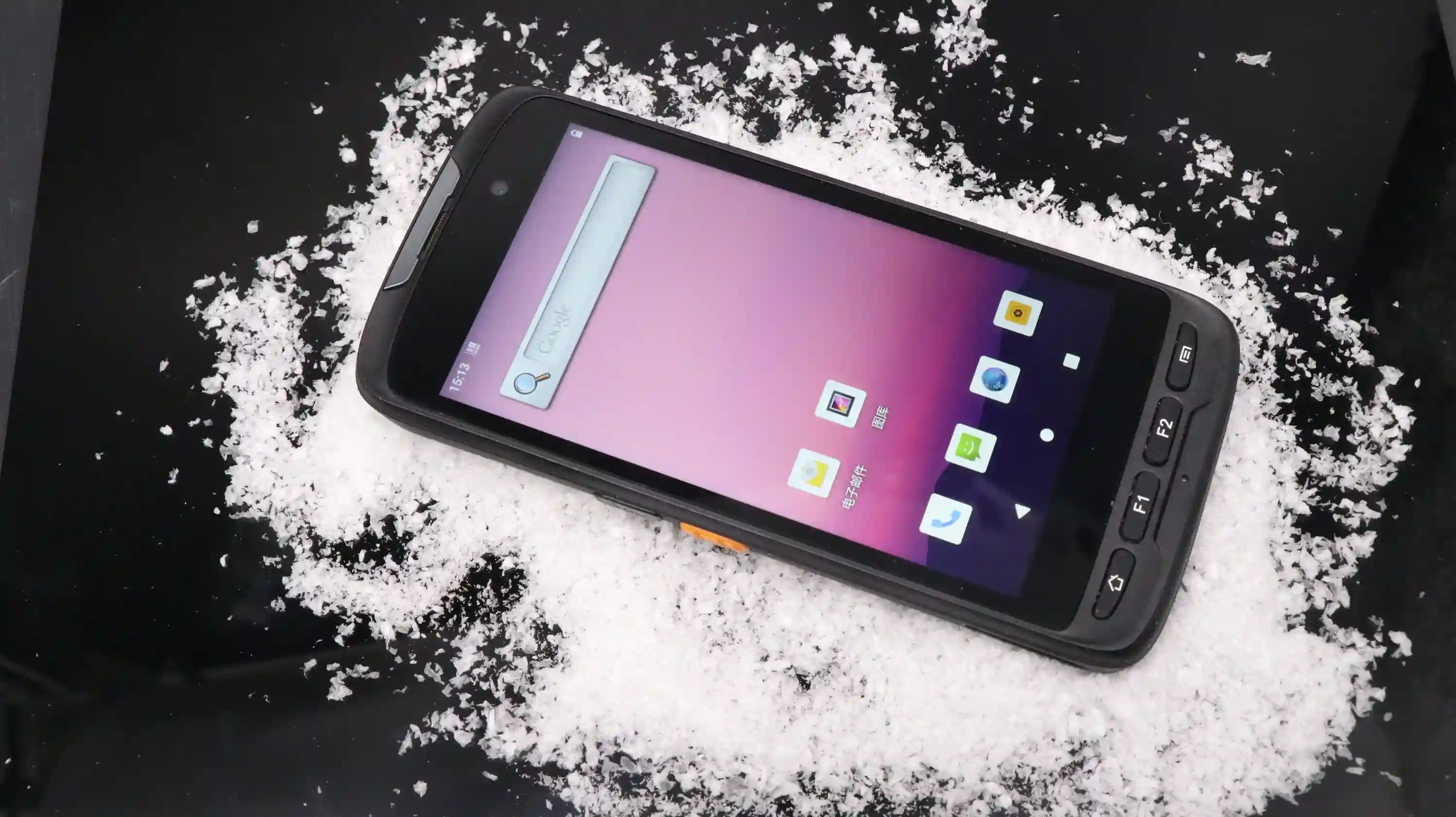

Classic till the end
We' made good even better
Improve 40% the speed of its predecessor
Symmetrical scan button design ,it doesn't matter left or right hands
More than one GNSS is used at the same time.
Android
Bluetooth
2D
WiFi
3G/4G
IP65
GPS
Camera
NFC • Support for Android 11 system
• Integrated 3G/4G all network communication, WiFi, Bluetooth and other communication modes
• Equipped with 4000mAh large capacity battery, the machine has a endurance of 10 hours
• IP65 high protection level, in accordance with MIL-STD-810G
• Support GPS, Glonass, Beidou(G+G+B), more accurate positioning
• Optional front 5 million and rear 16 million pixel auto focus camera
• Support 2D, NFC and other functional modules to meet the application needs of multiple industries
| Type | Details |  Standard Configuration | Optional | ||||
| Product Form | Type | Rugged handheld terminal | NA | ||||
| Dimension | 157.4*74.6*24.2mm | NA | |||||
| Weight | 260g | NA | |||||
| Device Color | Black（front and rear Panel: black） | NA | |||||
| LCD | Screen Size | 5 inch 16：9 | |||||
| Resolution | 720*1280 IPS | ||||||
| Brightness | 300 Nit | ||||||
| TP | Touch Panel | 5 points Capacitive，G+F，Rigidity: above 7H-Anti-scratch | |||||
| Camera | Front | 5MP | |||||
| Rear | Rear13.0MP, automatic focusing with astigmatism，PDAF support | ||||||
| Rear flash | YES single LED | ||||||
| Speaker | Built-in | Embedded 8Ω/1W speaker x 1 | |||||
| Mic | Built-in | Sensitivity:-42db, output resistance:2.2kΩ | |||||

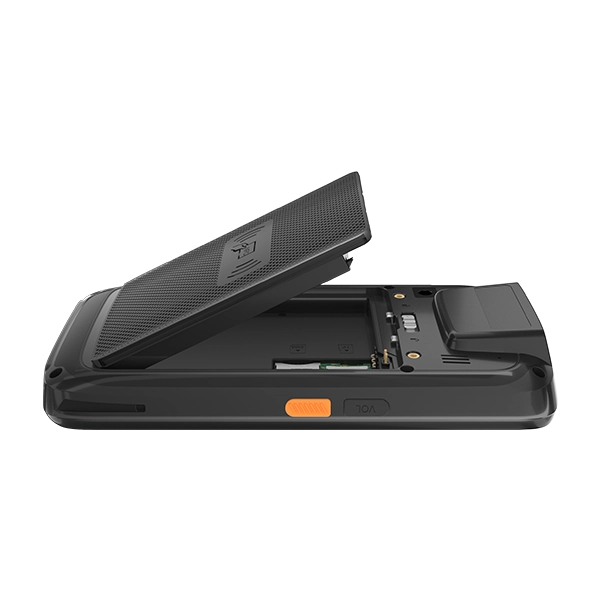

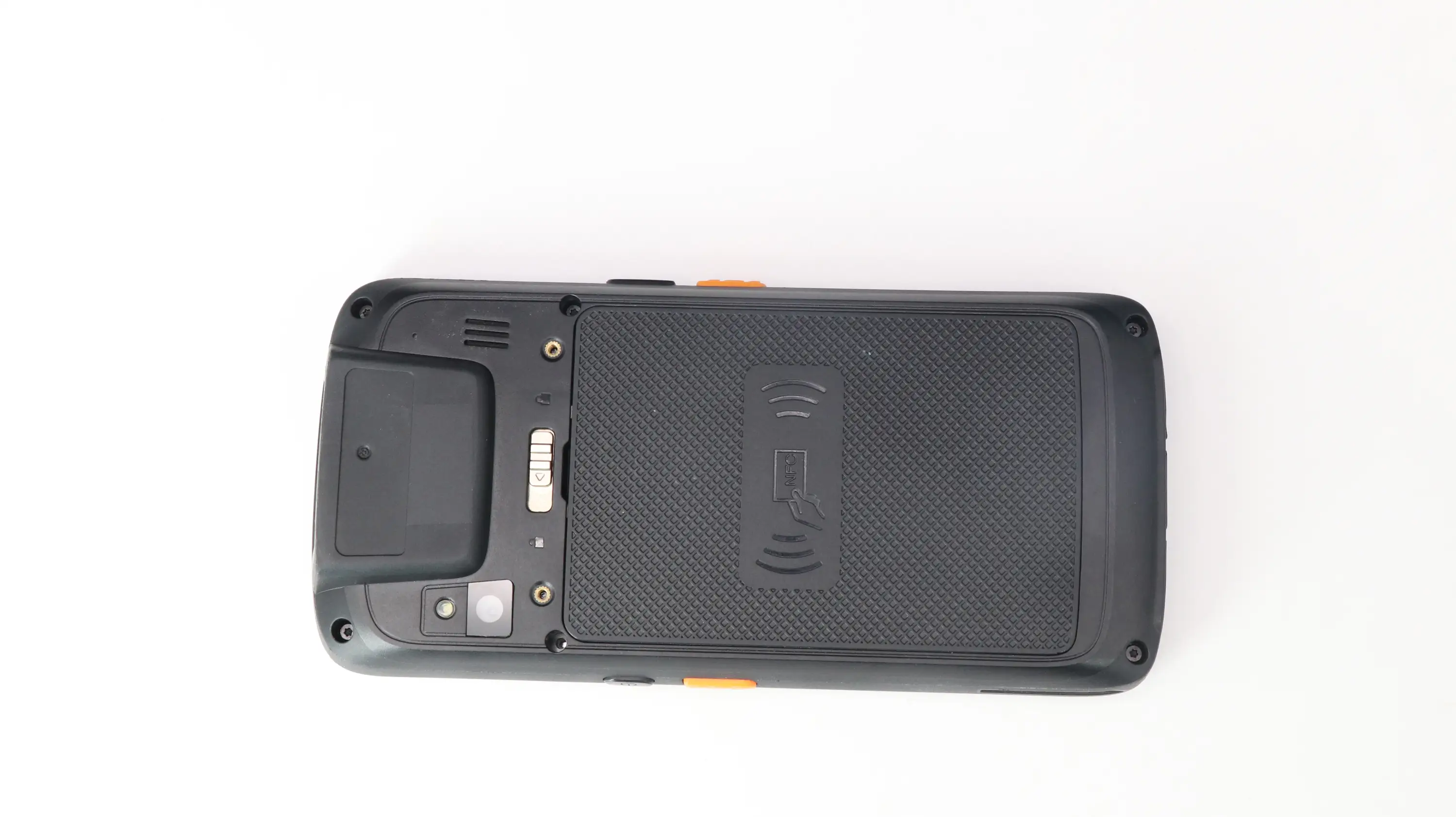

| Battery | Type | Built-in Removable Lithium-ion polymer battery | |||||
| Capacity | 3.8V/4000mAh | ||||||
| Endurance | |||||||
| System Hardware Configuration | |||||||
| Type | Details | Description | Optional | ||||
| CPU | Type | MTK OCTA Core | |||||
| Speed | 4*A53 2.0GHz 4*A53 1.5GHz | ||||||
| GPU | Type | IMG GE8320 650MHz | |||||
| RAM | LPDDR4X | LPDDR4X up to 4GB(dual channels with 16-bit data bus width) | |||||
| ROM | EMMC | 64GB | |||||
| Indicator light | Built-in | YES | |||||
| L-Sensor | Built-in | light Sensor *1 | |||||
| M-Sensor | onboard | Geomagnetic sensor *1 | |||||
| gyroscope | onboard | Ggyroscope *1 | |||||
| G_sensor | onboard | G_sensor *1 | |||||
| Audio amplifier | Built-in | Class K power amplifier | |||||
| Real Time Clock(RTC): | Built-in | YES | |||||
| Network Connections | |||||||
| Type | Details | Description | Optional | ||||
| WIFI | WIFI module | WIFI 802.11(a/b/g/n/ac) frequency 2.4G+5G dual band WIFI,Support AP seamless roaming | |||||
| Bluetooth | build in | BT5.0(BLE) | |||||
| 2G/3G/4G | build in | GSM(B2/3/5/8)+WCDMA(B1/B2/5/8)+TDS(B34/B39)+FDD(B1/2/3/4/5/7/8/13/17/20/28AB)+TDD(B38/39/40/41) | |||||
| build in | |||||||
| GPS | build in | 1. Support GPS、Glonass、beidou(G+G+B) | |||||
| NFC | build in | NFC 13.56MHz support 14443A/14443B/15693/18092/mifare protocol under ISO/IEC | |||||
| Data Collection | |||||||
| Type | Details | Description | Optional | ||||
| 2D Barcode Scanner | Optional | Zebra4710 | Serial port&MIPI EM80//EM03（under debugging) | ||||

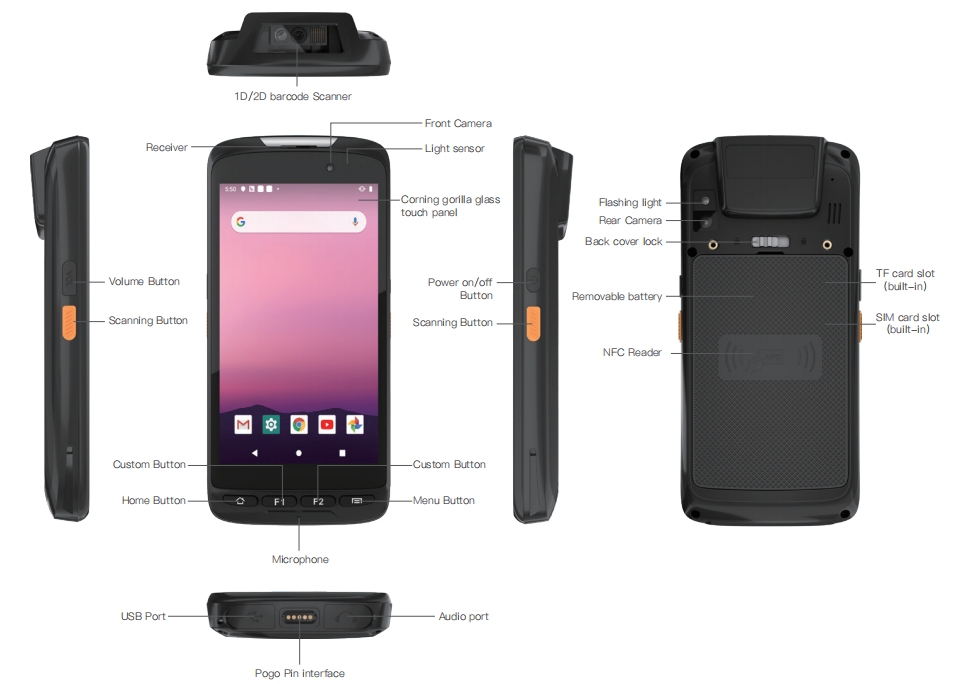

| Interface Configuration | |||||||
| Type | Details | Description | Optional | ||||
| TF slot | Extensive External Memory | Support SDHC/SDXC x1 max：128G | NA | ||||
| SIM slot | SIM card | SIM card x1 | NA | ||||
| Micr USB 2.0 | Data | Micr usb2.0*1 OTG | NA | ||||
| Earphone Jack | Audio output | ∮3.5mm standard earphone jack x1 | NA | ||||
| System home button | home | HOME*1 | NA | ||||
| Barcode Scan Key | barcode | Bar code scanning (left and right)*2 | NA | ||||

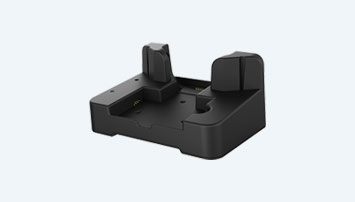

| POGO PIN | Charge | Base Charge | NA | ||||
| power on | Key | power key x1 | NA | ||||
| Volume addition and subtraction | Key | Volume addition and subtraction x1 | NA | ||||
| Others | Key | MENU*1，BACK*1，CUSTOM*2 | NA | ||||
| Standard accessories | |||||||
| Type | Details | Description | Optional | ||||
| USB Cable | USB Cable | Micro USB cable 5P L=1.2M | NA | ||||
| The power adapter | Standard | AC100V ~ 240V、50Hz/60Hz output DC 5V/2A | UK Standard | ||||
| EU Standard | |||||||
| Software configuration | |||||||
| Type | Details | Description | Optional | ||||
| operating system | Operating System Version | Andriod11 | NA | ||||
| Certification | |||||||
| Type | Details | Description | Optional | ||||
Certification System | IP65 | IP65 Report： Water resistance：IP-X5，Dust resistance：IP-6X Report ID no.：SET2015-07677 a.Inner Nozzle diameter：6.3mm； b. water speed：12.5±0.625L/min； c. Water Pressure：adjust according to water volumn； d.Central part of water volumn e.Spray time in surface of panel：about 1min；f.test time：at least 3min； g.distance between nozzle and panel surface：2.5～3m。 After test，there is no water leakage in sample. | NA | ||||
| Reliability | |||||||
| Type | Details | Description | Optional | ||||
| Product Reliability | drop height | 1.2m Composite wood floor working | |||||
| working temperature | ‘-10 °C to 50 °C | ||||||
| Storage temperature | ’-20 °C to 60 °C | ||||||
| humidity | Humidity: 95% Non-Condensing | ||||||
