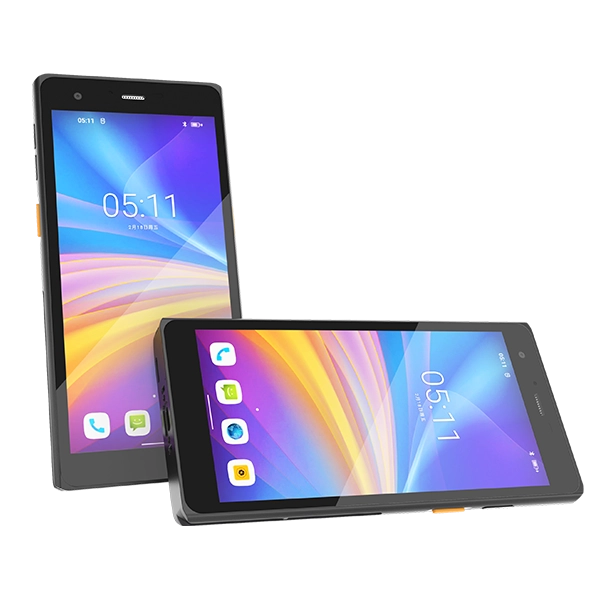

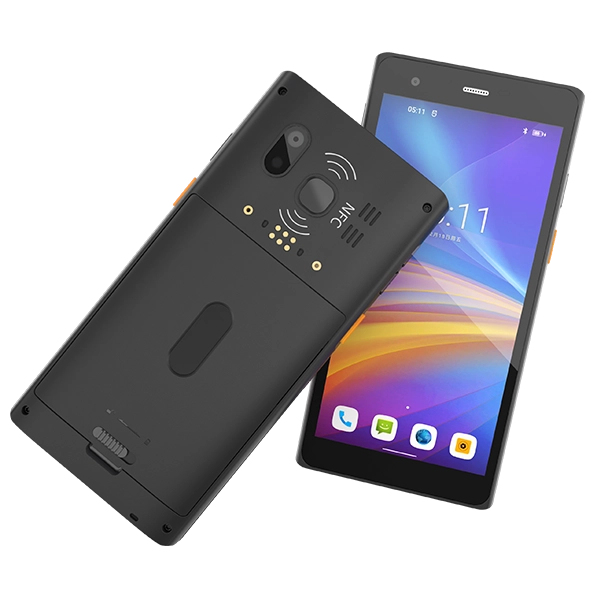

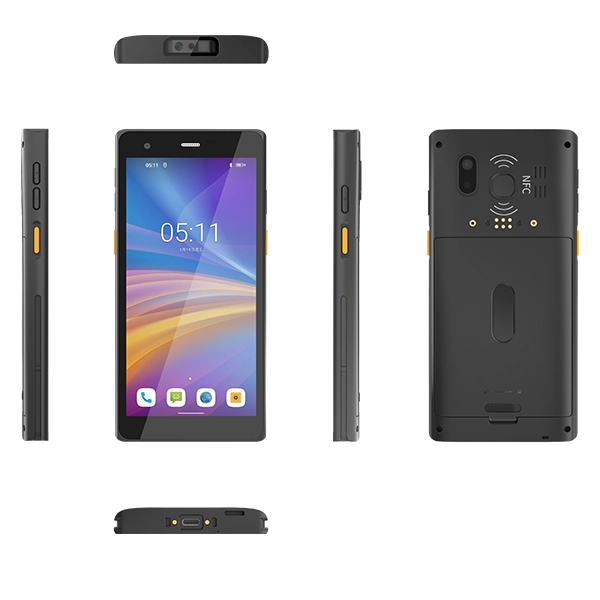

EM-T695 is the first 5G rugged handheld terminal of Emdoor Information. Adopting 5.99-inch large screen size, super large, instant access to data information; equipped with an Octa-core processor, integrated 5G baseband, super-fast, superior performance;
Verified by 28 reliability tests. Super stable, creating a benchmark hardcore quality. What's more, there are a series of functional highlights such as Android12 OS, bringing you a more personalized, safer and more personalized, more secure, and easier to use hands-on experience.
MediaTek Octa-core CPU with two Arm 'Big' Cores
Android 12 OS and 4GB RAM+64GB storage
5.99 inch IPS screen with 5-point touch Communication
Dual 5G (SA/NSA) network support
Dual-band Wi-Fi 5 ·Upgrade BT 5.1, fast and more stable

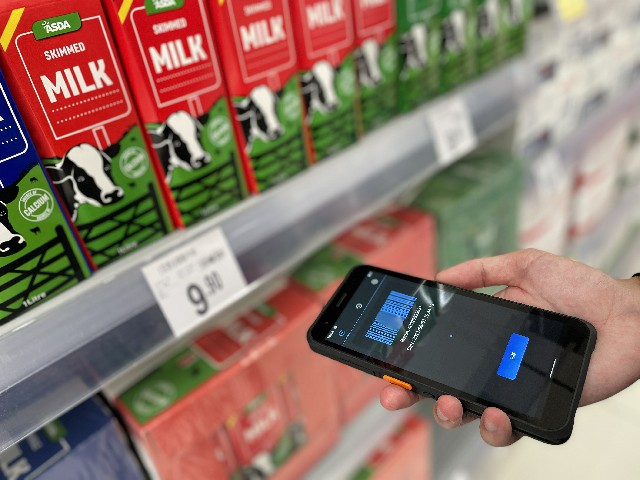

Professional 2D scanner and multi-function NFC Support GPS / GLONASS / GALILEO / BDS
IP65 Waterproof and Dustproof; Built to operate in extreme temperatures, MIL-STD-810H certified
Basic parameters | |
Dimension | 164 x 80 x 14mm |
Weight | 255g |
Product Color | black |
LCD | 5.99 inch IPS 18:9, 720×1440 |
Touch Panel | 5 point G+FF capacitive touch screen |

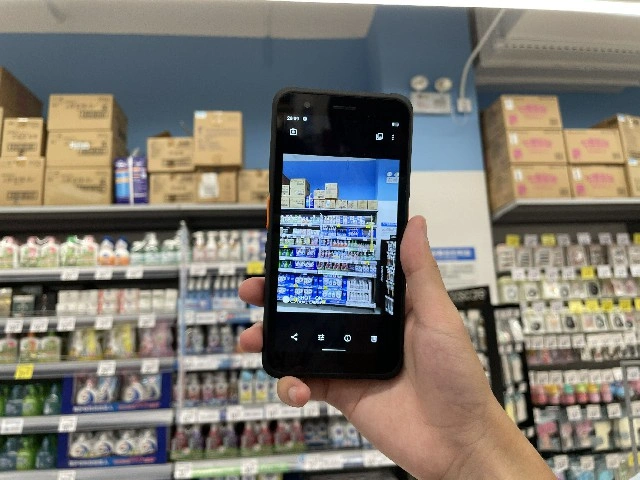

Camera | Front 5.0MP Rear 13.0MP |

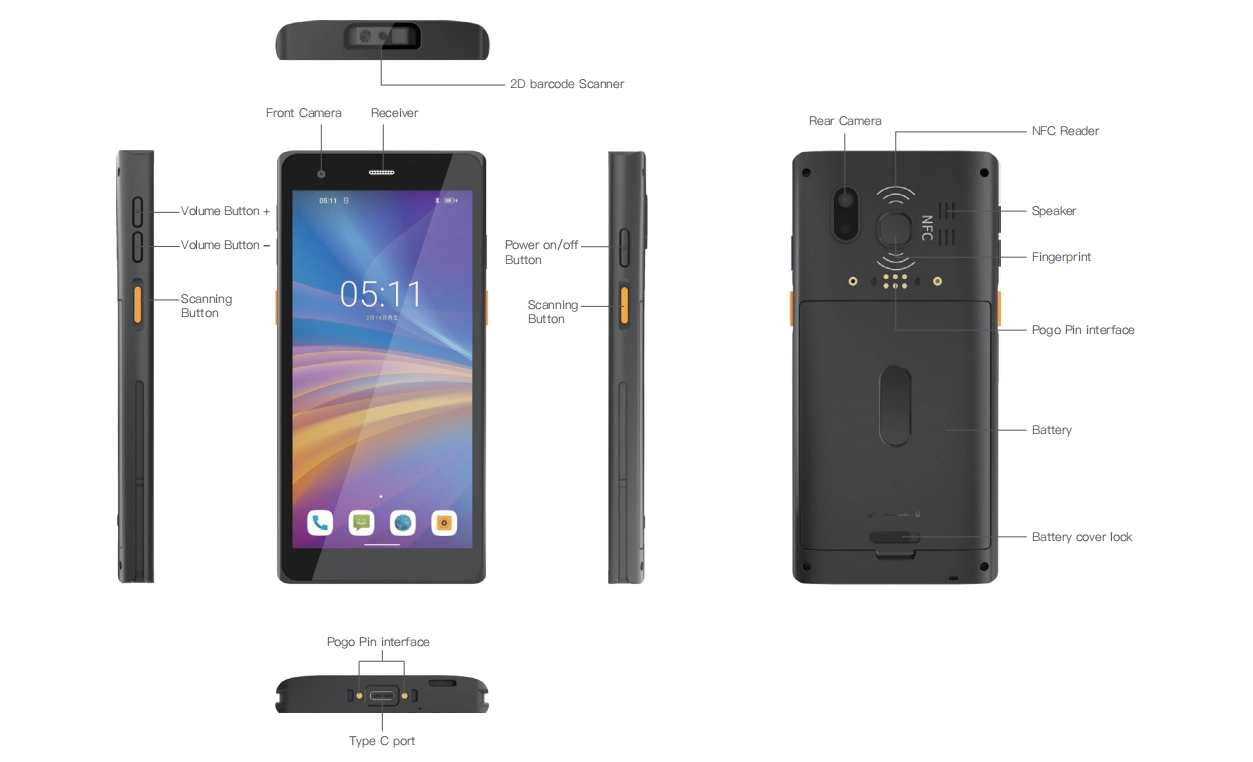

I/O | USB Type-C x 1, SIM Card, TF Card, Two out of three card holders (two nano SIM cards or one nano SIM card and one TF card) Charge Pogo Pin x 1, Extend Pogo Pin x 1 |
Power | AC100V ~ 240V, 50Hz/60Hz, Output DC 5V/2A |
Communication | |
WIFI | WiFi 802.11 a/b/g/n/ac (2.4G+5G) |
Bluetooth | BT5.1 |
2G/3G/4G/5G (Optional) | GSM:B2/B3/B5/B8 WCDMA:B1/B2/B5/B8 TDD:B38/B39/B40/B41 FDD:B1/B2/B3/B5/B7/B8/B20 5G:N1/N3/N5/N38/N41/N77/N78/N79 |
GNSS | GPS+GLONASS+Beidou+Galileo |
Performance parameter | |
CPU | ARM (5G-C) (OCTA Core) |
OS | Android 12 |
RAM | 4GB |
ROM | 64GB |
Battery | |
Capacity | 4500mAh/3.8V |

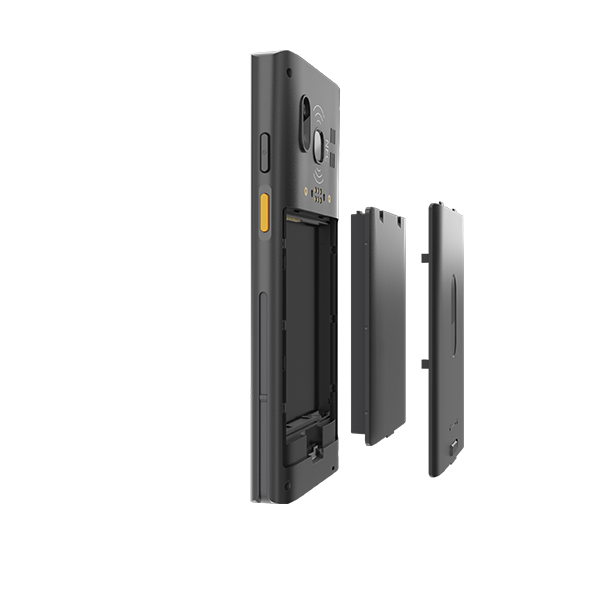

Type | Removable polymer lithium ion battery |
Endurance | 8hrs ( 50% volume sounds, 200 lumens brightness, 1080P HD video display by default ) |
Reliability | |
Operate Temperature | -10 °C ~ 55 °C |
Store Temperature | -20 °C ~ 60 °C |
Humidity | 95% Non-Condensing |
Rugged Feature | IP65 certified, MIL-STD-810H certified |
Drop Height | 1.2m |
Data Collection | |
NFC | Built-in, 13.56MHz, ISO/IEC 14443A/B, ISO/IEC 15693, ISO/IEC 18092, ISO/IEC mifare |
2D | Built-in |
Fingerprint | Login fingerprint |
* Please be aware all technical data, specification and performance figures subject to change without notice.
