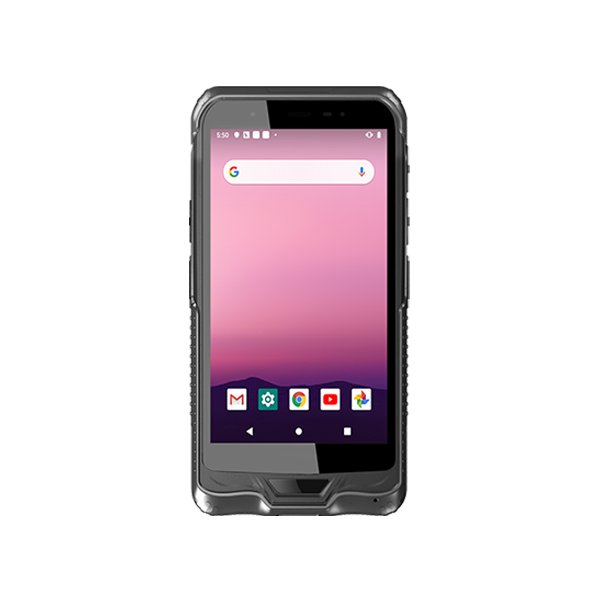

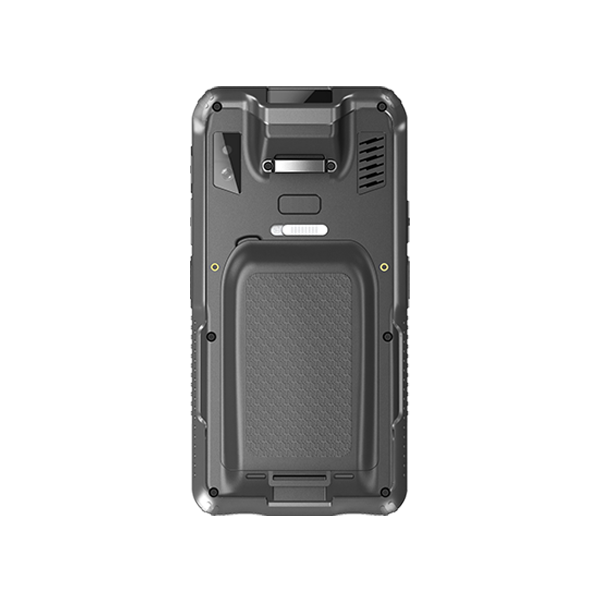

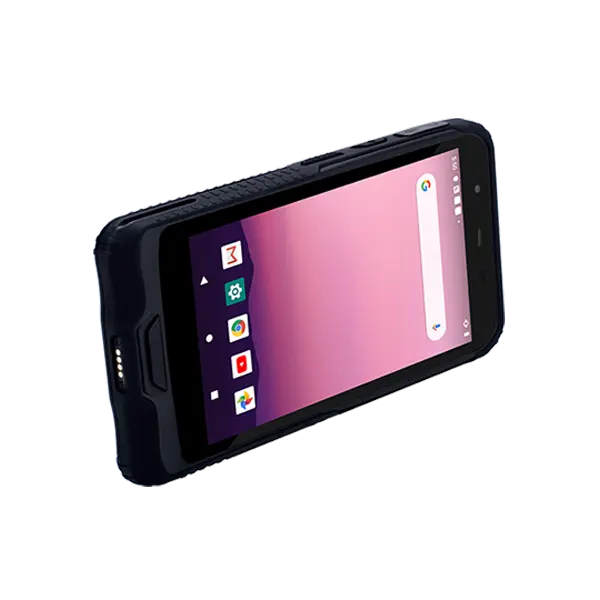

6'' Android: EM-Q66 Handwriting Rugged handheld

  • Same 6 inches but the core is different!

  • It equipped with 2.0GHz Qualcomm(OCTA Core).

  • System upgrade, Android10.0 -More than just fast.

  • Combining GPS and GLONASS GNSS positioning to be more accurate.

6'' Android: EM-Q66 Rugged Handheld
6'' Android: EM-Q66 Rugged Handheld
6'' Android: EM-Q66 Rugged Handheld
6'' Android: EM-Q66 Rugged Handheld
6'' Android: EM-Q66 Rugged Handheld
Android Android
High-capacity High-capacity
Bluetooth Bluetooth
1D 1D
2D 2D
WiFi WiFi
IP65 IP65
GPS GPS
NFC NFC
3G/4G 3G/4G

Features of 6'' Rugged Android Handheld EM-Q66 Rugged PC

  • Support for Android 10.0 system

  • Integrated 3G/4G all network communication, WiFi, Bluetooth and other communication modes

  • Equipped with 5000mAh large capacity battery, the machine has a endurance of 5 hours

  • IP65 high protection level, in accordance with MIL-STD-810G

  • Support GPS, GLONASS, more accurate positioning

  • Equipped with rear 13 million pixel auto focus camera

  • Support 1D/2D, NFC and other functional modules to meet the application needs of multiple industries

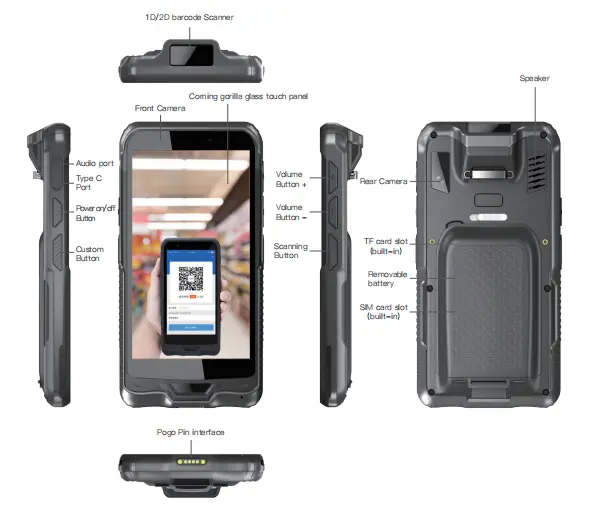

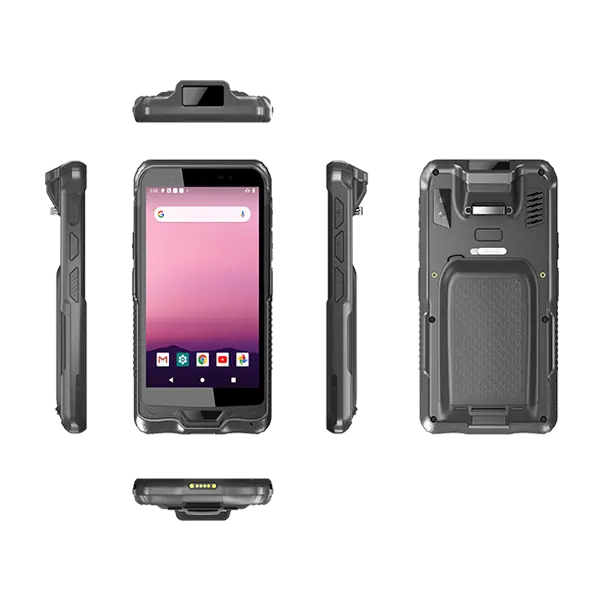

Six Views of 6'' Android Handheld EM-Q66 Rugged PC



Specifications of 6'' Android Handheld EM-Q66 Rugged PC

TypeDetailsStandard ConfigurationOptional
Product FormTypeRugged Handheld TerminalNA
Dimension185*94.6*28.5mmNA
WeightWhole unit:380gNA
Device Colorblack+black color(bottom shell : black color, front shell: black color )NA
LCDScreen Size5.98",16:9   (TP and Glass use full lamination technolog )NA
Resolution720*1280 IPS ScreenNA
Brightness300NitNA
TPTouch Panel5 Point Touch Capacitive,G+F,Rigidity: 7H up, Anti-scratchNA
CameraFrontFront5.0MPNA
RearRear 13.0MP,with flash and auto-focusNA
SpeakerBuilt-inEmbedded 8Ω/0.7W speaker  x 1NA
MicBuilt-inSensitivity:-42db, output resistance2.2kΩNA
EarphoneBuilt-inbuilt inx 1NA
BatterytypeLi_polyment, removeable batteryNA
Capacity5000mHA/3.7VNA
Endurance5hrs(Default50%volumn,Default 200lumens brightness,Play1080P video)NA
System Hardware Configuration
TypeDetailsDescriptions
CPUTypeMSM8953(8core)NA
Speed2.0GHzNA
GPUTypeAdreno 506 1920 × 1200 @ 60 fpsNA
RAMMemory4GB/ LPDDR3NA
ROMstorage64GBNA
P_sensorBuilt-inProximity Sensor *1NA
L-SensorBuilt-inlight Sensor *1NA
CompassBuilt-inCompass  Sensor *1NA
Gyro SensorBuilt-inGyro Sensor *1NA
G_sensorBuilt-inG_sensor *1NA
NFCBuilt-inNFC 13.56MHz  support SO/IEC 下14443A/14443B/15693/18092/mifare protocol,Card reading distance:3cm~5cmNA
Led IndicateBuilt-inIndicator light of charge, red light will flash when device has low power. red long light when charging, green long light when full powerNA
Network Connections
TypeDetailsDescriptions
WIFIWIFI moduleWIFI 802.11 b/g/n/a/ac frequency 2.4G+5G dual band WIFI,NA
Bluetoothbuild inBT4.0(BLE)NA
2G/3G/4Gbuild inCMCC 4M:
LTE B1,B3,B5,B7,B8,B20,B38,B39,B40,B41
 WCDMA 1/2/5/8
GSM 2/3/5/8
CMCC 4M:
LTE B2,B4,B5,B7,B8,B17,B38,B39,B40,B41
 WCDMA /2/5/8
GSM 2/3/5/8
NA
GPSbuild insupport:GPS+Glonass;Capture sensitivity:-140 dBm;Cool Start Time:<50秒,Hot start time:<5秒,GPS frequency:1575.42MHz,Glonass frequency:1602MHZ
1D barcode scannerOptionalNA
2D barcode scannerOptionalNASupport EM80
Interface Configuration
TypeDetailsDescriptions
TF SlotExtensive External Memorysupport TF   x1    max:128GNA
SIM SlotSIM CardSIMx1NA
Type-Cdata&charingx1 Type-CNA
Earphone JackAudio Output ∮3.5mm  standard earphone jack  x1(US)NA
System HOME KeyHomeHOME*1NA
BarcodeBarcodeBarcode *2NA
POGO PINdata&charing*1(4pin Machine Below)2in used in docking charger,2pin used in USB expandNA
Power onPress KeyPower Key x1NA
Volume + -Press KeyVolume + - x2NA
Standard Accessories
TypeDetailsDescription
OTG cableOTG cabletype-c OTG cableNA
type-c cabletype-c cabletype-c cable
Power AdaptorStandardAC100V ~ 240V、50Hz/60Hz output DC 5V/2A  USA Standard  CE approvalUK standard
EU Standard
Software Configuration
TypeDetailsDescription
Operation SystemOS versionAndriod 10NA
Software Configuration
TypeDetailsDescription
Certificate SystemIP65IP65 Report: Water resistance:IP-X5,Dust resistance:IP-6X  Report ID NO.:SET2015-07677
a.Inner Nozzle diameter:6.3mm;   b. water speed:12.5±0.625L/min;
c. Water Pressure:Adjust according to water volumn;
d.Central part of water volumn:Diameter of 40mm, Distance from nozzle: 2.5M
e.Spray time in surface of panel:About 1min;f.Test time:At least 3min;
g.Distance between nozzle and panel surface:2.5~3m。
After test,there is no water leakage in sample.
NA
CE NBY
MIL-STD-810GY
BatteryUN38.3,MSDS,IEC62133
Reliability
TypeDetailsDescriptions
Product ReliabilityDrop Height1.2m Composite wood floors, in operation status
Operate Temperature‘-10 °C to 50 °C
Store Temperature’-20 °C to 60 °C
HumidityHumidity: 95% Non-Condensing
Product feature:
        1.support android 10 system;
        2.Support standard USB2.0 OTG connector;
        4.Support GPS navigation;
        5.Rugged IP65 protection level;
        6.support  high strength Glass Touch Panel;
        7.Support Wrist Sling



Application Range of 6'' Rugged Android Handheld EM-Q66

The handheld terminal with RFID UHF technology is widely used, which can meet the application in retail, storage material management, finance, express delivery, medical and other fields.

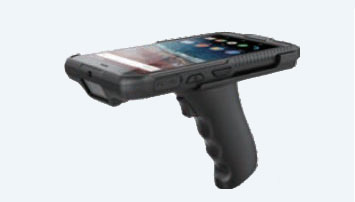

Scanning Trigger
Scanning Trigger

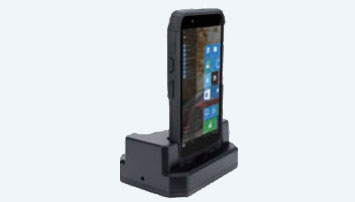

Docking Charger
Docking Charger

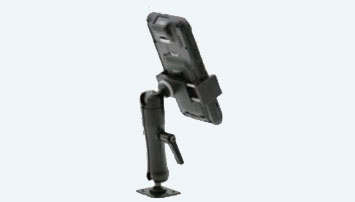

Car Holder
Car Holder

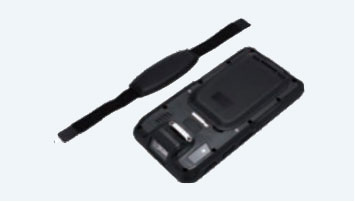

Hand-strap
Hand-strap

Application Range of 6'' Rugged Android Handheld EM-Q66

The handheld terminal with RFID UHF technology is widely used, which can meet the application in retail, storage material management, finance, express delivery, medical and other fields.


Warehouse & Logistics Industry
Warehouse & Logistics Industry
Surveying & Mapping Industry
Surveying & Mapping Industry
Manufacturing Industry
Manufacturing Industry
Energy Industry
Energy Industry
Public Industry
Public Industry
Traffic Industry
Traffic Industry
