6.5”Intel: EM-I61J Windows 11 Rugged Handheld

● Support for Windows 11/10 system

● Equipped with front 5 million and rear 8 million pixel auto focus camera

● Support 4G all network communication, Dual-band WiFi, Bluetooth and other communication modes

● Removable 7.4V 4000mAh high-voltage high-capacity battery, supports 45W Type-C PD3.0 fast charging

● Support GPS, Glonass, more accurate positioning

● Support NFC and the optional 2D module , to meet the application needs of multiple industries

● IP67 high protection level, in accordance with MIL-STD-810H

01
02
03
04
05
Windows Windows
IP67 IP67
GPS GPS
High-capacity High-capacity
Bluetooth Bluetooth
camera camera
2D 2D
NFC NFC
4G 4G
WiFi WiFi

Features of 6.5" Intel EM-I61J Rugged Windows 11 Handheld PDA Scanner



● Support for Windows 11/10 system

● Equipped with front 5 million and rear 8 million pixel auto focus camera

● Support 4G all network communication, Dual-band WiFi, Bluetooth and other communication modes

● Removable 7.4V 4000mAh high-voltage high-capacity battery, supports 45W Type-C PD3.0 fast charging

● Support GPS, Glonass, more accurate positioning

● Support NFC and the optional 2D module , to meet the application needs of multiple industries

● IP67 high protection level, in accordance with MIL-STD-810H

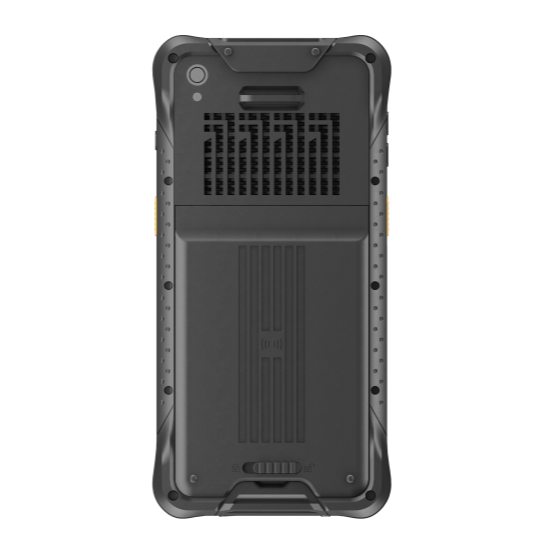

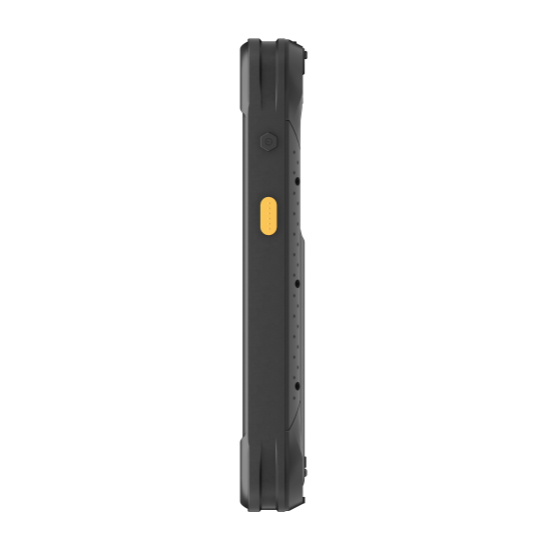

Six Views of 6.5" Intel EM-I61J Rugged Windows 11 Handheld PDA Scanner


six-views-of-I61J



Specifications of 6.5'' Intel EM-I61J Rugged Windows 11 Handheld PDA Scanner


Basic parametersPerformance parameter
Dimension   183.1*88.6*24.1mmCPU   Intel JASPER LAKE N5100
Weight   Device unit 470gOS   Windows 11/10
Device Color   BlackRAM   8GB
LCD   6.5 inch  TFT 20:9, 720*1600, 500cd/cm²ROM   128GB
Touch Panel 5 point G+FF capacitive touch screen
Corning®  Gorilla®  Glass
Battery
Camera   Front 5.0MP Rear 8.0MPCapacity   7.4V/4000mAh
I/O TYPE-C 2.0*1  OTG   (Data transmission)
Standard USB-A port/Data Transfer (3.0)
TF card *1, Max: 512GB
Nano-SIM * 1

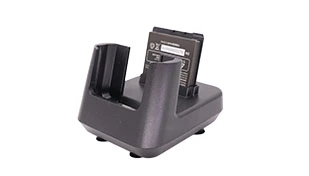

Pogo Pin (Suitable docking charger DC61J)

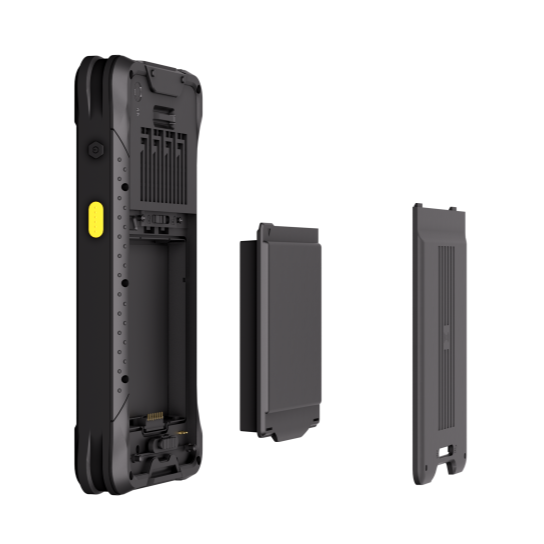

Type   External polymer lithium ion battery
Endurance    About 6 hours(50% volume sounds, 50% screen
brightness, 1080P HD video display by default )
Reliability

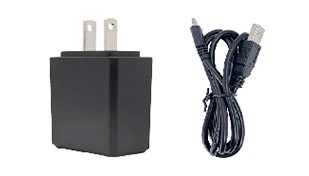

Power   Input 100-240V AC 0.5A 50/60Hz PD3.0 45WOperate
Temperature
    -20 °C ~ 60 °C
CommunicationStore
Temperature
    -30 °C ~ 70 °C
WIFI   WIFI 802.11(a/b/g/n/ac)  Dual frequency
2.4G+5.8G WIFI
Humidity    95% Non-Condensing
Bluetooth   BT5.0
Transmission distance: greater than 10m
Rugged
Feature
   IP67 certified, MIL-STD-810H certified
Drop Height   1.5m
3G/4G    LTE FDD: B1/B3/B7/B8/B20  LTE TDD: B40
WCDMA: B1/B5/B8  GSM: 900/1800
Optional:
LTE-FDD:B2/4/5/12/13/17/18/25/26
LTE-TOD:B41 WCDMA: B2/4/5
CDMA&EVDO: BC0/BC1  GSM: 850/1900
LTE-FDD: B2/4/5/7/8/28
LTE-TOD:B40 WCDMA: B2/5/8 GSM:850/900/1900
Data Collection

NFC
   Support, 13.56MHz,
Support ISO/IEC 14443A/14443B/15693/18092/
mifare protocol
Card reading distance: 3-5cm
2D   Optional,
Optical resolution: 5mil
Scanning speed: 30 times /s
Support code:  PDF417, MicroPDF417, Data Matrix,
Data Matrix Inverse
Maxicode, QR Code, MicroQR, QR Inverse, Aztec,
Aztec Inverses, Han Xin, Han Xin Inverse"
GNSS   GPS+GLONASS



* Please be aware all technical data, specification and performance figures subject to change without notice.



Application Range of 6.5" Intel EM-I61J Rugged Windows 11 Handheld PDA Scanner


Warehouse & Logistics Industry
Warehouse & Logistics Industry
Surveying & Mapping Industry
Surveying & Mapping Industry
Manufacturing Industry
Manufacturing Industry
Energy Industry
Energy Industry
Public Industry
Public Industry
Traffic Industry
Traffic Industry
