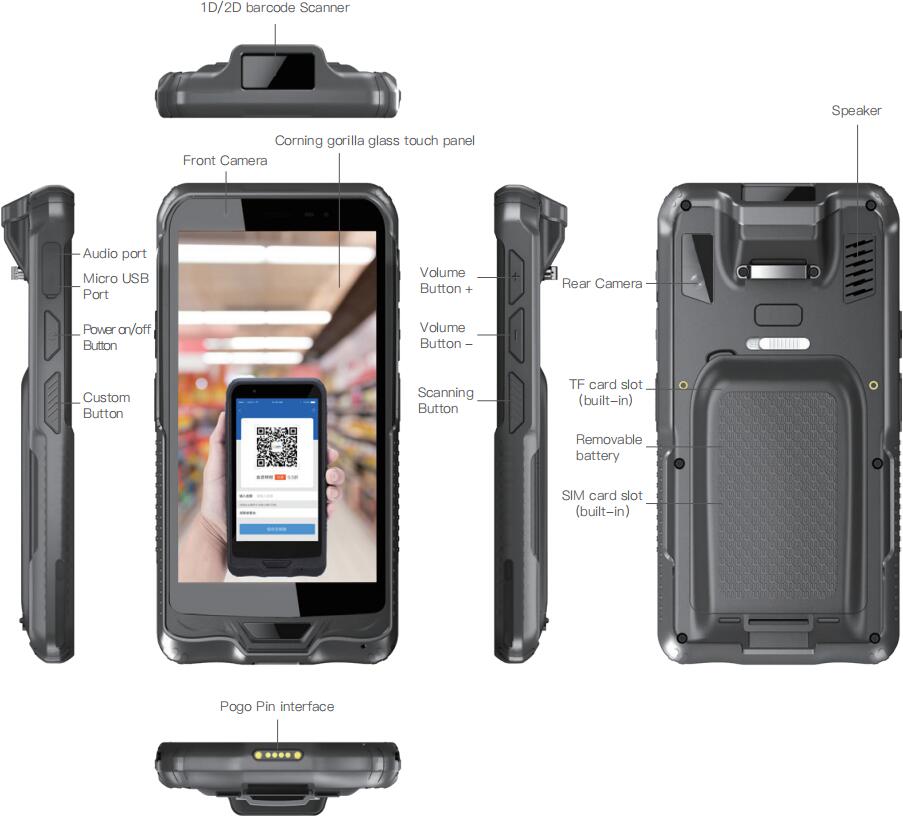

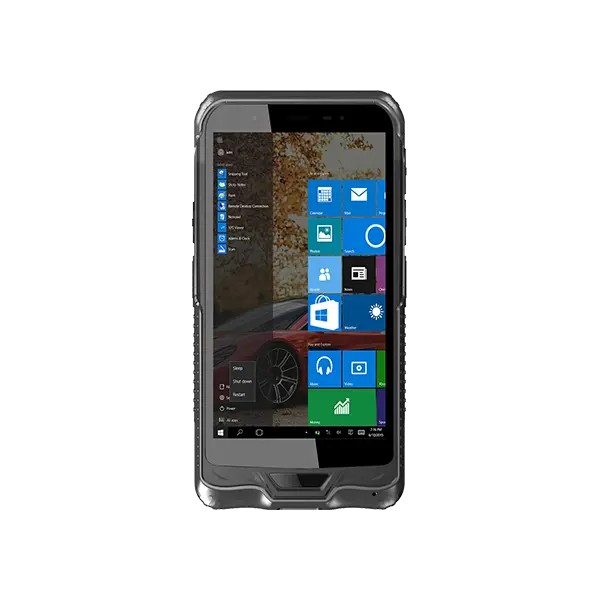

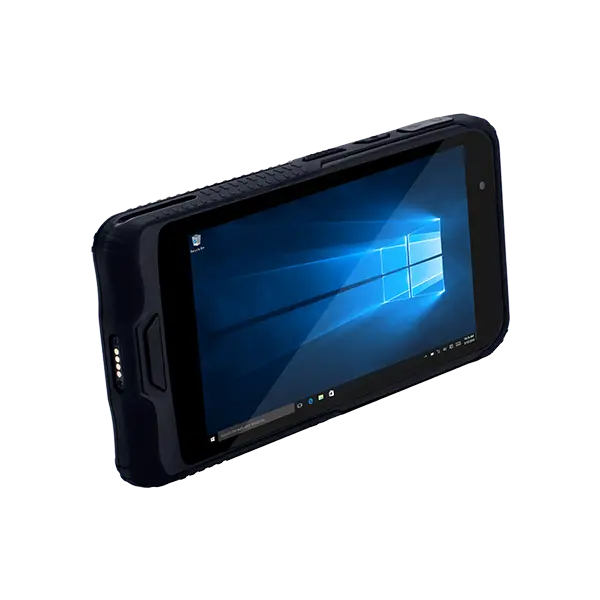

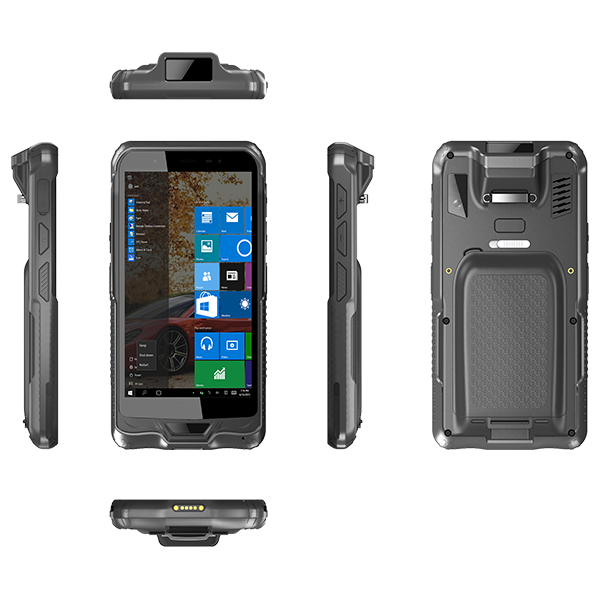

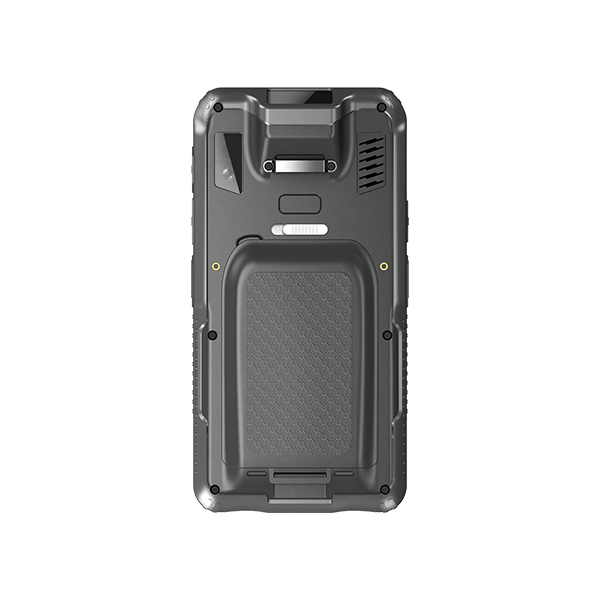

6' Windows Rugged Handheld EM-I62H.

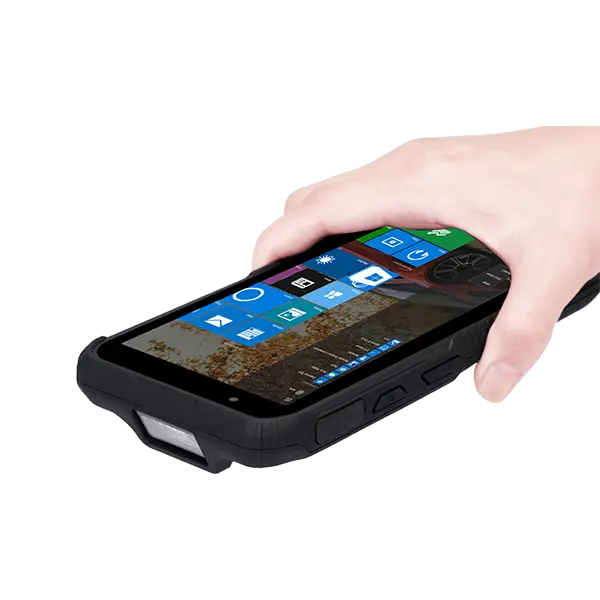

EM-I62H is a perfect size with a thin and light, ergonomic design that’s easy to hold in your hand.
one of the smallest windows 10 PDA in rugged field.
Rugged IP65 protective grade for waterproof & dustproof.
Intel Atom®/Win10/Gorilla glass TP.
1D/2D barcode scanner/USB/NFC/BD.
Windows
IP65
GPS
NFC
3G
High-capacity
Bluetooth
1D
2D
WiFi Support for Windows 10 system
Integrated 4G all network communication, WiFi, Bluetooth and other communication modes
Equipped with a 5000mAh large capacity wide temperature battery, the machine has an endurance of 6-8 hours
IP65 high protection level, in accordance with MIL-STD-810G
Support GPS, more accurate positioning
Equipped with a front 2 million and rear 5 million pixel autofocus camera
Support 1D / 2D, NFC and other functional modules to meet the application needs of multiple industries
| Model No：EM-I62H Specification | |||||||
| Type | Details | Standard Configuration | Optional | ||||
| Product Form | Type | Rugged handheld device ( Rugged PDA) | NA | ||||
| Dimension | 185*93*20.7mm | NA | |||||
| Weight | device unit 380g | NA | |||||
| Device Color | black | NA | |||||
| LCD | Screen Size | 5.98"，16:9 (TP and screen adopts full joint technology) | NA | ||||
| Resolution | 720*1280, 720P，IPS screen | NA | |||||
| Brightness | 430Nit | NA | |||||
| TP | Touch Panel | 5points Capacitive，G+FF，Corning Gorilla Glass, Rigidity: above 7H-Anti-scratch | NA | ||||
| Camera | Front | front 2.0MP | NA | ||||
| Rear | Rear 5.0MP automatic focusing | NA | |||||
| Speaker | Built-in | build in 8Ω/0.8W waterproof speaker x 1 | NA | ||||
| Mic | Built-in | Sensitivity::-42db, output resistance2.2kΩ | NA | ||||

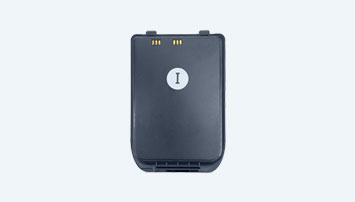

| Battery | Type | Li_polyment, removable battery | NA | ||||
| Capacity | 3.7V/5000mAh | NA | |||||
| Endurance | 6hrs(default 50% volumn，default200 lumens brightness play 720P HD video) | NA | |||||
| System Hardware Configuration | |||||||
| Type | Details | Description | Optional | ||||
| CPU | Type | Intel cherry trail Z8350 | NA | ||||
| Speed | 1.44Ghz-1.92GHz | NA | |||||
| GPU | Type | Intel® HD Graphics | NA | ||||
| RAM | DDR3L | 4GB | NA | ||||
| ROM | Emmc | 64GB | NA | ||||
| G_sensor | Built-in | Gravity acceleration sensor | NA | ||||
| indicator light | Built-in | start and shut down indicator light | NA | ||||
| Network Connections | |||||||
| Type | Details | Descriptions | Optional | ||||
| WIFI | WIFI module | WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G dual-band WIFI intel 3165D2WG | NA | ||||
| Bluetooth | build-in | BT4.2 (BLE) class1 transmission distance：10m | NA | ||||
| 4G | Optional | EC25-EC LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 | NA | ||||
| GPS | build-in | U-Blox NEO-7 Support :GPS; Capture sensitivity: -160 dBm；Cool Start Time：<50second，Hot start time：<28seconds，frequency：0.25 Hz … 10 MHz (configurable) | NA | ||||
| NFC | build-in | NA | NXP NFC 13.56MHz support under ISO/IEC 14443A/14443B/15693/18092/mifare protocol，Card reading distance：4cm | ||||
| Data Collection | |||||||
| Type | Details | Description | Optional | ||||
| 1D | OPTIONAL | NA | Honeywell N4313/Optical resolution: 5mil/scan speed: 50次/s supportive code:UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code 128,GS1-128,ISBT 128,Code 39,Trioptic Code 39 ,Code 32,Code 93 ,Code 11 | ||||
| 2D | OPTIONAL | NA | EM80 hard decode | ||||
| Optical resolution:5mil,scan speed:50times/s | |||||||
| supportive decode:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse | |||||||
| key button | |||||||
| Type | Details | Description | Optional | ||||
| power | power on/off button | x1 | NA | ||||
| volume | Volume + - | Volume + - x2 | NA | ||||
| barcode | barcode scan key | barcode key(left、right) x2 | NA | ||||
| HOME | system HOME key | x1 | NA | ||||
| Interface | |||||||
| Type | Details | Descriptions | Optional | ||||
| Micr USB | charging and data transmission | charging and OTG x1 | NA | ||||
| Earphone Jack | audio output | ∮3.5mm standard earphone jack x1 | NA | ||||
| TF Card | Extensive External Memory | support SDHC/SDXC x1 max：128G | NA | ||||
| SIM Card | 3G/4G SIM card | SIM card interface x1 | NA | ||||

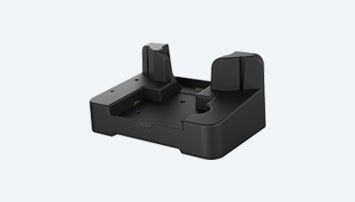

| POGO PIN*2 | Docking Charger | *1（4pin Machine Below）2in used in docking charger，2pin used in USB expand | NA | ||||
| standard accessories | |||||||
| Type | Details | Descriptions | Optional | ||||
| OTG cable | OTG cable | OTG cable 130mm x1 | NA | ||||
| USB cable | USB connect cable | Micro USB cable 5P L=1.2M 4core plus aluminum foil plus screen shielding | NA | ||||
| power adapter | standard | Input:100~240VAC 50/60HZ output:5VDC 3A USB ,adapter for ( EU, US,UK, AU) | US adapter | ||||
| EU adapter | |||||||
| Software Configuration | |||||||
| Type | Details | Description | Optional | ||||
| operation system | OS version | windows 10 IOT 32bit | Windows 10 Pro 32bit | ||||
| product certificate | |||||||
| Type | Details | Description | Optional | ||||
| certificate system | IP65 | IP65 Report：waterproof test：IP-X5，dustproof test：IP-6X a.nozzle inner diameter：6.3mm； b.water-carrying capacity：12.5±0.625L/min； c.water pressure：adjust according to specified water-carrying capacity； d.central part of main water flow：Away from the nozzle 2 . 5 m diameter about 40mm circle； e.water spray time for outer shell per a square meter：about 1min；f. test time：at least 3min； g. distance from nozzle to outer shell surface：2.5～3m。 。after tested, check sample and no water inside the situation | NA | ||||
| CE NB | Yes | ||||||
| MIL-STD-810G | Yes | ||||||
| Battery | UN38.3, MSDS，IEC62133, Marine Transport 、Air Transport report | ||||||
| Reliability | |||||||
| Type | Details | Descriptions | Optional | ||||
| Product Reliability | Drop Height | 1.2m composite wood floors, in operation status | |||||
| Operate Temperature | ‘-10 °C to 50 °C | ||||||
| Store Temperature | ’-20 °C to 60 °C | ||||||
| Humidity | Humidity: 95% Non-Condensing | ||||||
