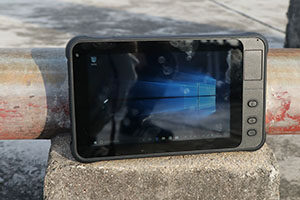

7'' Intel: EM-I75H Front fingerprint Rugged PC

  • The screen is too small? Bright enough 1000nit high brightness screen, let you see more clearly.

  • Built with Window 10 OS, More Advanced in Every Way.

  • Support a variety of detachable modules.

  • NFC, 1D /2D barcode scanner, UHF, ID CARD and fingerprint.

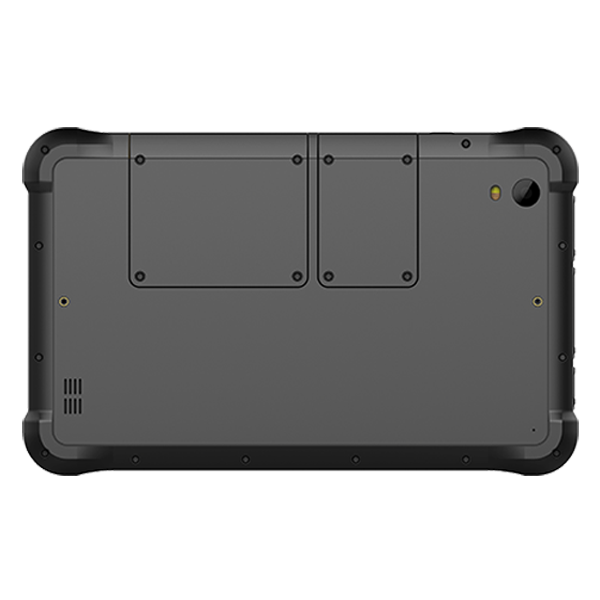

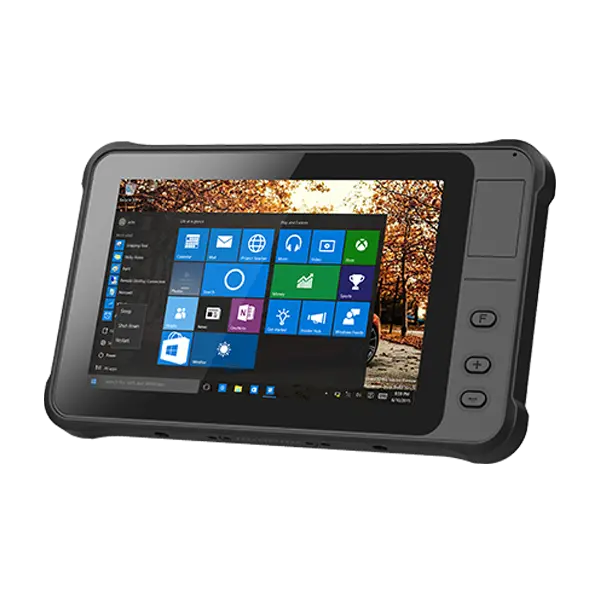

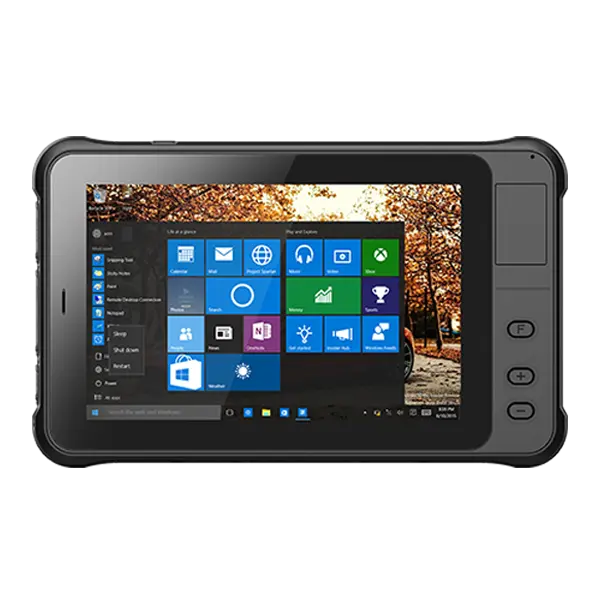

7'' Intel: EM-I75H Rugged Tablet
7'' Intel: EM-I75H Rugged Tablet
7'' Intel: EM-I75H Rugged Tablet
7'' Intel: EM-I75H Rugged Tablet
Windows Windows
IP65 IP65
GPS GPS
Fingerprint Fingerprint
3G/4G 3G/4G
ID-card ID-card
High-capacity High-capacity
1D 1D
2D 2D
RFID RFID
WiFi WiFi
Bluetooth Bluetooth

Features of 7'' Intel Tablet EM-I75H Rugged PC


  • Support for Windows 10 system

  • Integrated 3G/4G all network communication, WiFi, Bluetooth and other communication modes

  • 7500mAh battery, 6-8 hours of machine endurance

  • IP65 high protection level, in accordance with MIL-STD-810G

  • Support GPS, Beidou, GLONASS, more accurate positioning

  • 800x1280 IPS, 1000nit high brightness screen, more suitable for outdoor harsh environment

  • Support 1D/2D, UHF, NFC, ID card and other functional modules for free selection

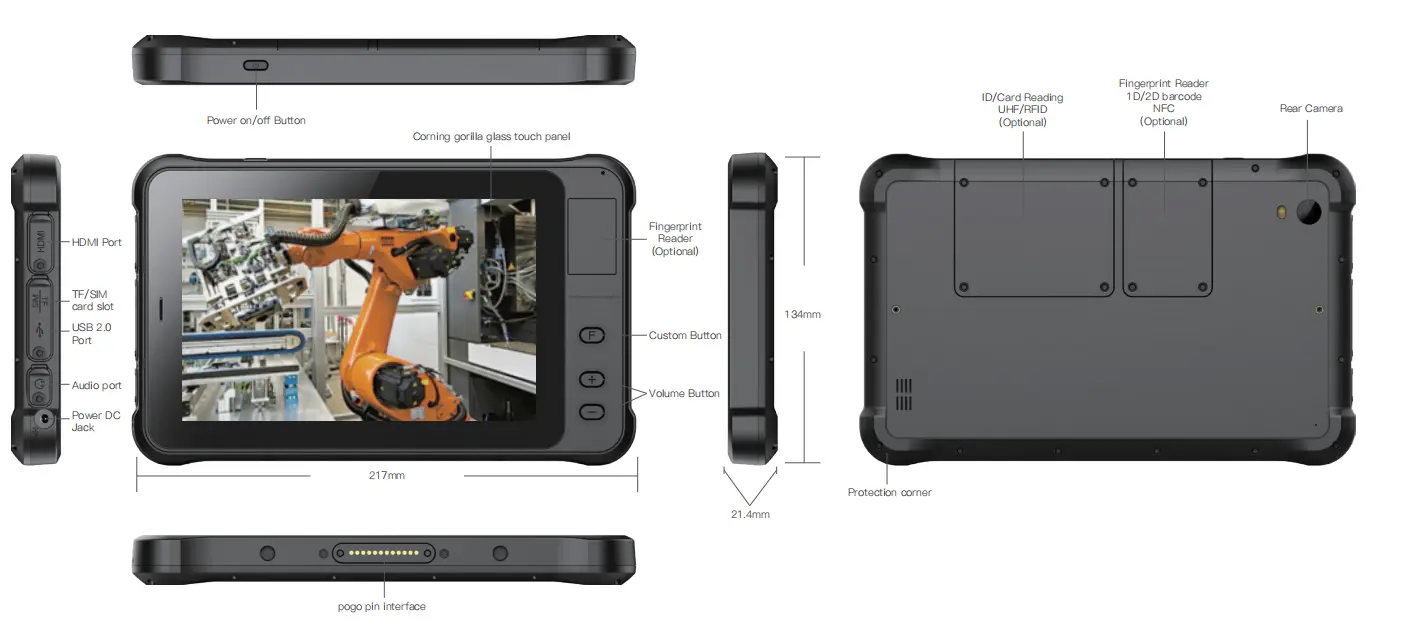

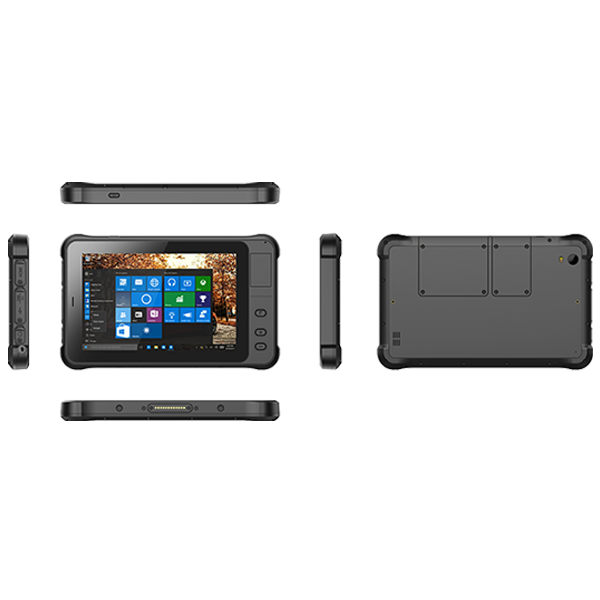

Six Views of 7'' Intel Tablet EM-I75H Rugged PC


7'' Intel: EM-I75H Rugged Tablet


Specifications of 7'' Intel Tablet EM-I75H Rugged PC


Model No:EM-I75H Specification
TypeDetailsStandard ConfigurationOptional
Product FormProduct Form7 inch  rugged TabletNA
Dimension216.98*133.96*21.4NA
Weight680gNA
Product ColorBlack (front + rear)
LCDScreen Size7 inch  16:10NA
Resolution800*1280 IPSNA
BrightnessMinimum 1000cd/m2
TPTouch panel5 points capacity TP,G+G,hardness over 7H, scratch-resistant, TP thickness:1.1mm,COF, support touch with wearing gloves and wet fingerNA
CameraFrontFront 2.0MPNA
RearRear 5MP, Autofocus with flashNA
SpeakerBuilt-inbuilt-in 8Ω/1W Boss speaker x 1NA
MicrophoneBuilt-inSensitivity: -42db, output impedance 2.2kΩNA
Battery(tablet)TypeRemovable Li-polymer batteryNA
Capacitycalculate 3.7V/7500mAhNA
Endurancenearly 6hours ( 50% volume sounds, 50% brightness, 1080P HD video display by default )NA
System Hardware Configuration
TypeDetailsDescriptionsOptional
CPUTypeIntel Cherry trail Z8350NA
Speed1.44Ghz-1.92GHzNA
GPUtypeIntel® HD GraphicsNA
RAMDDR3L4GB  LPDDR3NA
ROMEmmc64GB    EMMCNA
Indicator lightBuilt-inCharging indicator light, which is red flash when low power, keeping on red light when power more than 20%, keeping on green light when full charged.

NA
L/P-SensorBuilt-inLight/Proximity sensorsNA
G_sensorBuilt-inG_sensorNA
Internet Connections
TypeDetailsDescriptionsOptional
WIFIWIFI moduleWIFI 802.11(ac/a/b/g/n)   dual-frequency 2.4G+5.8G WIFINA
BluetoothBuilt-inBT4.0 (BLE) class1.5     Transmission distance :10mNA
3GBuilt-inNAH350
GSM/GPRS/EDGE Band(MHz):900/1800;WCDMA Band(MHz):900/2100

4GBuilt-inEC25-E :
LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8
NA
GPSBuilt-inU-BLOX M8Q GNSS.Support GPS/Beidou/glonassNA
Data collection
TypeDetailsDescriptionsOptional
one-dimension barcodeoptionalNAN 4313
Optical resolution: 5mil
Scan speed: 50 times/s
Code system:UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code 128,GS1-128,ISBT 128,Code 39,Trioptic Code 39 ,Code 32,Code 93  ,Code 11
Two-dimension barcodeoptionalNAN3680
Optical resolution:5mil
Scan speed:50 times/s
Code system: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse
 Maxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse
NFCoptionalNANXP NFC 13.56MHz  Support ISO/IEC :14443A/14443B/15693/18092/mifare ,
identification distance :4cm
ID ModuleoptionalNAsupport reading the 2nd,the 3rd ID card information and the fingerprint information built-in.
FingerprintoptionalNAthe fingerprint module authenticated by Chinese Ministry of public security supports the collection of the resident fingerprint which built-in their ID card.
UHFoptional

M-550 UHF RFID slim all-in-one module:
I/O Ports
TypeDetailsDescriptionsOptional
TF cardExtending external storagex1    max:128GNA
SIM cardSIM card storageSIM x1NA
USB portExtending external storage and data exchangeMicroUSB 2.0*1  、    Android   OTG  x1NA
earphone jackaudio output∮3.5mm standard earphone jack  x1NA
DC jackpowerwaterproof DC 5V 3A ∮3.5mm DC jack x1NA
HDMI portvideo, audio outputHDMI 1.4a Type C  x1NA
Extension interfacepogo Pin12pin  Pogo Pin   x1( USB +  power )NA
Standard Accessories
TypeDetailsDescriptionsOptional
OTG CableOTG CableUSB OTG turn MICRO USB cable  length 45mmNA
USB  CableUSB CableUSB turn micro 5P L=1.2M    4 wires with aluminum foil and shieldingNA
AdapterStandardAC100V ~ 240V,50Hz/60Hz   Output DC 5V/3A      Europe standard with  CE certificatethe UK standard
the European standard
Software Configuration
TypeDetailsDescriptionsOptional
Operation SystemOperation System
Version
windows 10 IOT 64bitWindows10 Home/Pro
Product Certificate
TypeDetailsDescriptionsOptional
Certificates SystemIP65IP65 Report: Water resistance:IP-X5,Dust resistance:IP-6X  Report ID no.:SET2015-07677
a.Inner Nozzle diameter:6.3mm;   b. water speed:12.5±0.625L/min;
c. Water Pressure:adjust according to water volumn;
d.Central part of water volumn
e.Spray time on surface of panel:about 1min;f.test time:at least 3min;
g.distance between nozzle and panel surface:2.5~3m。
After test,there is no water leakage in sample.

CE NBY
MIL-STD-810GY
BatteryUN38.3,MSDS, Aviation report, Sea transportation report, IEC62133
Reliability
TypeDetailsDescriptionsOptional
Product reliabilityFalling heightMIL-STD-810G 1.22m drop
Working temperature‘-20 °C to 60°C
Storage temperature’-30 °C to 70 °C
HumidityHumidity: 95% Non-Condensing



Application Range of 7'' Intel Tablet EM-I75H Rugged PC

Various modules and accessories can be selected to meet customers' application in various industries.



Accessories of 7'' Intel Tablet EM-I75H Rugged PC

Various modules and accessories can be selected to meet customers' application in various industries.


Hand-strap
Hand-strap

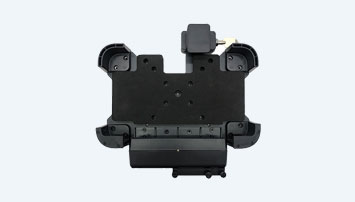

Vehicle Mount
Vehicle Mount
Docking Charger
Docking Charger
