8'' Android: EM-Q81 Android 10.0 Rugged Tablet

  • Seem like EM-T81? Actually different.

  • Equipped with Qualcomm(OCTA Core), Stronger performance.

  • It supports for Android 10.0 system, Compatible with multiple application systems.

  • Conforms to the U.S. military standard MIL-STD-810G.

  • Drop from 122cm, unscathed!


8'' Android: EM-Q81 Android 9.0 Rugged Tablet
8'' Android: EM-Q81 Android 9.0 Rugged Tablet
8'' Android: EM-Q81 Android 9.0 Rugged Tablet
8'' Android: EM-Q81 Android 9.0 Rugged Tablet
8'' Android: EM-Q81 Android 9.0 Rugged Tablet
Android Android
IP65 IP65
GPS GPS
NFC NFC
3G/4G 3G/4G
High-capacity High-capacity
Bluetooth Bluetooth
1D 1D
2D 2D
WiFi WiFi

Functions of 8'' Android Tablet PC EM-Q81 Rugged PC


  • Support for Android 10.0 system

  • Integrated 3G/4G all network communication, WiFi, Bluetooth and other communication modes

  • 6000mAh battery, 6 hours of machine endurance

  • IP65 high protection level, in accordance with MIL-STD-810G

  • Support GPS, GLONASS, more accurate positioning

  • Support 13 million pixel autofocus camera, easy to collect images and video information

  • Support 1D/2D, NFC and other functional modules for free selection

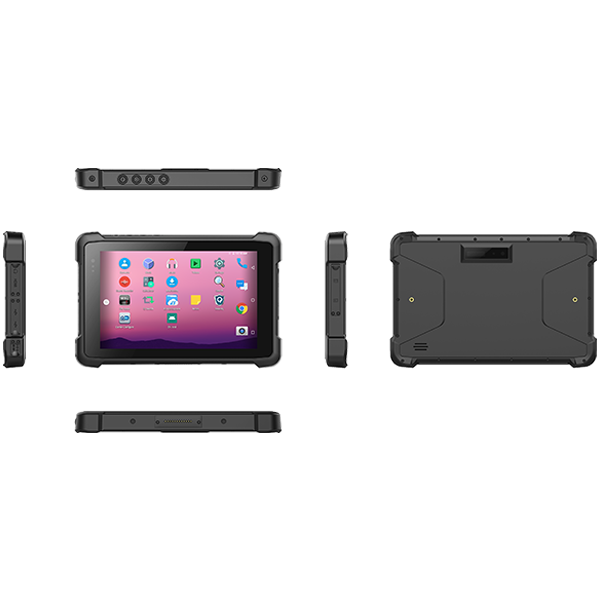

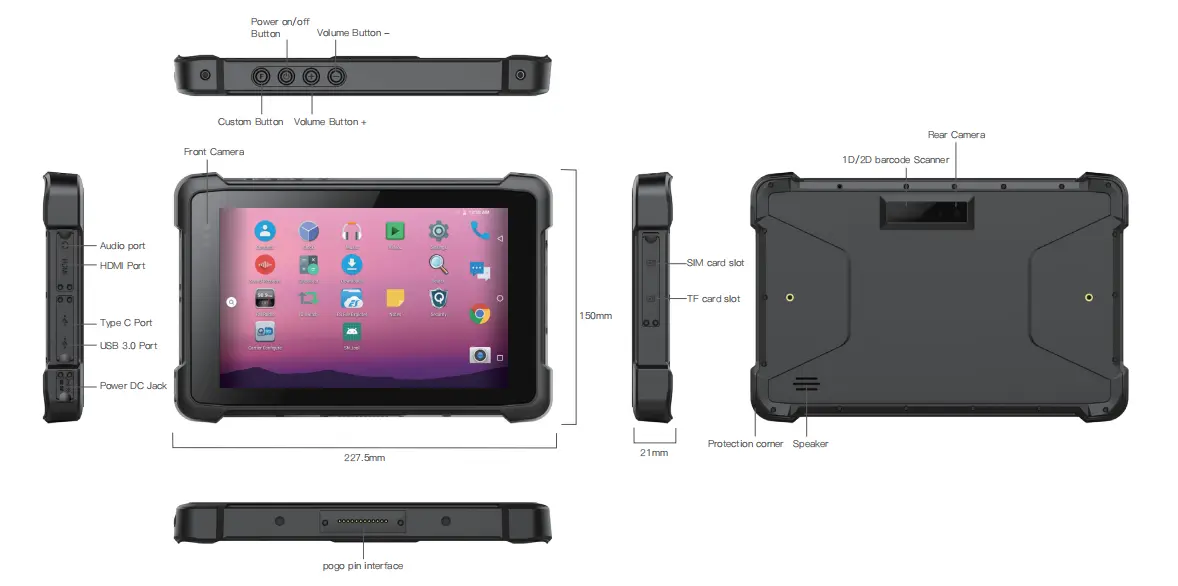

Product Six Views of 8'' Android Tablet PC EM-Q81 Rugged PC





Specification Parameter of 8'' Android Tablet PC EM-Q81 Rugged PC


Model No:EM-Q81 Specification
TypeDetailsStandard ConfigurationOptional
Product FormProduct Formrugged tablet PCNA
Dimension227.5*150*21 mmNA
Weighttablet  680gNA
Product Colorblack(rear housing and front housing)NA
LCDScreen Size8 inch  16:10NA
Resolution800*1280 IPS screenNA
Brightness450 Nits
TPTouch panel5 points capacity TP,G+G,hardness 6H, scratch-resistant,NA
CameraFrontFront 5.0MPNA
RearRear 13.0MP, autofocus and flashlightNA
SpeakerBuilt-inBuilt-in 8Ω/0.8W waterproof speaker x 1NA
MicrophoneBuilt-inSensitivity: -42db, output impedance 2.2kΩNA
Battery(tablet)TypeBuilt-in Li-polymer batteryNA
Capacity3.7V/6000mAhNA
Endurancenearly6 hours ( 50% volume sounds,50% brightness, 1080P HD video display by default )NA
System Hardware Configuration
TypeDetailsDescriptionsOptional configuration
CPUTypeMSM 8953NA
Speed2.0GHZNA
GPUtypeAdreno 506 1920 × 1200 @ 60 fpsNA
RAMMemory4GB/ LPDDR3NA
ROMstorage64GBNA
Indicator lightBuilt-inIndicator light of charge, red light will flash when device has low power. red long light when charging, green long light when full powerNA
L-SensorBuilt-inlight Sensor *1NA
CompassBuilt-inCompass  Sensor *1NA
Gyro SensorBuilt-inGyro Sensor *1NA
G_sensorBuilt-inG_sensor *1NA
NFCBuilt-inNFC 13.56MHz  support SO/IEC 14443A/14443B/15693/18092/mifare protocol,Card reading distance:3cm~5cmNA
Internet Connections
TypeDetailsDescriptionsOptional
WIFIWIFI moduleWIFI 802.11 b/g/n/a/ac frequency 2.4G+5G dual-band WIFI,NA
BluetoothBuilt-inBT4.1(BLE)NA
2G/3G/4GOptionalCMCC 4M:
LTE B1,B3,B5,B7,B8,B20,B38,B39,B40,B41
 WCDMA 1/2/5/8
GSM 2/3/5/8
NA
GPSBuilt-insupport:GPS+Glonass;Capture sensitivity:-140 dBm;Cool Start Time:<50s,Hot start time:<5s,GPS frequency:1575.42MHz,Glonass frequency:1602MHZNA
Data Collection
TypeDetailsDescriptionsOptional
One-dimension barcodeOptionalNAMOTO  SE655E100R
Optical resolution:5mil
Scan speed:50 times per second
Code system: UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code 128,GS1-128,ISBT 128,Code 39,Trioptic Code 39 ,Code 32,Code 93  ,Code 11
Two-dimension barcodeOptionalNAHoneywell N3680   Hard decode
MOTO SE4710  soft decode
Optical resolution:5mil
Scan speed:50 times per second
Code system: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse
 Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse
I/O Ports
TypeDetailsDescriptionsOptional
TF CardExtending external storagesupport TF   x1 pc,   max:128GNA
SIM CardSIM Cardx1NA
USB portExtending external storage and data exchangestandard USB 3.0x1  、   type C x1(data&charing)NA
Earphone Jackaudio output∮3.5mm standard earphone jack  x1NA
DC jackpowerDC 5V 3A ∮3.5mm DC jack  x1NA
HDMI portvideo,audio outputHDMI 1.4a Type C  x1NA
Extension interfacepogo Pin12pin  Pogo Pin   x1NA
Standard Accessories
TypeDetailsDescriptionsOptional
OTG cableOTG cabletype-c OTG cableNA
type-c cabletype-c cabletype-c cableNA
AdapterStandardAC100V ~ 240V,50Hz/60Hz   Output DC 5V/3A    the European standard with  CE certificatethe UK standard
the European standard
Software Configuration
TypeDetailsDescriptionsOptional
Operation SystemOS versionAndriod 10.0NA
Product Certificate
TypeDetailsDescriptionsOptional
Certificates SystemIP65IP65 Report: Water resistance:IP-X5,Dust resistance:IP-6X  Report ID no.:SET2015-07677
a.Inner Nozzle diameter:6.3mm;   b. water speed:12.5±0.625L/min;
c. Water Pressure:adjust according to water volumn;
d.Central part of water volumne.Spray time on surface of panel:about 1min;f.test time:at least 3min;
g.distance between nozzle and panel surface:2.5~3m。
After test,there is no water leakage in sample.

CE NBY
MIL-STD-810GY
BatteryUN38.3,MSDS, Aviation report, Sea transportation report, IEC62133
Reliability
TypeDetailsDescriptionsOptional
Product reliabilityFalling heightMIL-STD-810G 1.22m drop
Working temperature-10 °C to 50 °C
Storage temperature-20 °C to 60 °C
HumidityHumidity: 95% Non-Condensing



Accessories of 8'' Android Tablet PC EM-Q81 Rugged PC

Various modules and accessories can be selected to meet customers' application in various industries.


TP Film
TP Film
Docking Charger
Docking Charger

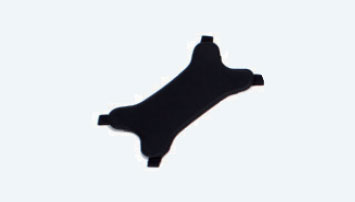

Hand-strap
Hand-strap

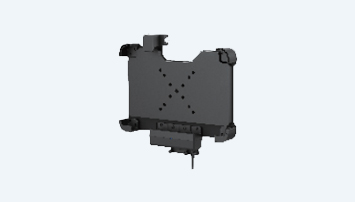

Vehicle Mount
Vehicle Mount

Application Range of 8'' Android Tablet PC EM-Q81 Rugged PC

Various modules and accessories can be selected to meet customers' application in various industries.


Warehouse & Logistics Industry
Warehouse & Logistics Industry
Surveying & Mapping Industry
Surveying & Mapping Industry
Manufacturing Industry
Manufacturing Industry
Energy Industry
Energy Industry
Public Industry
Public Industry
Traffic Industry
Traffic Industry
