8'' Android: EM-Q88 Ultra-thin Rugged PC

  • 8-inch Qualcomm OCTA Core cost-effective rugged tablet.

  • IP67 Protective grade.

  • If you need better waterproof equipment, then it is just right for you.

  • The interface of the whole machine is well sealed, without fear of wind, snow and dust.

  • No fear of heat and cold, Stable operation under -20°C to 55°C.

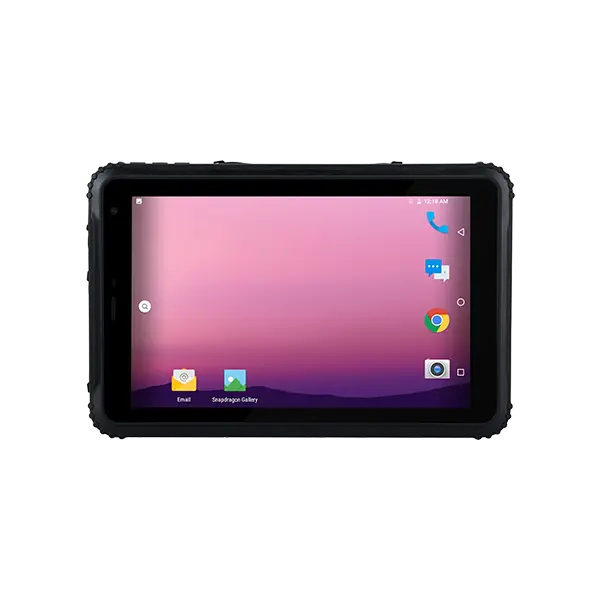

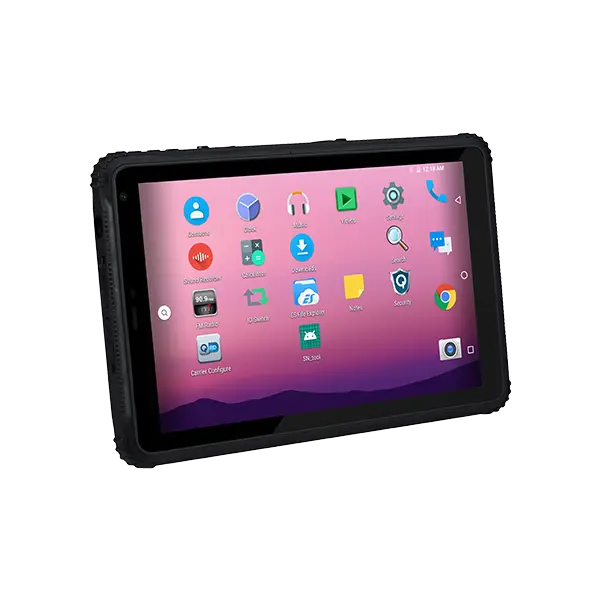

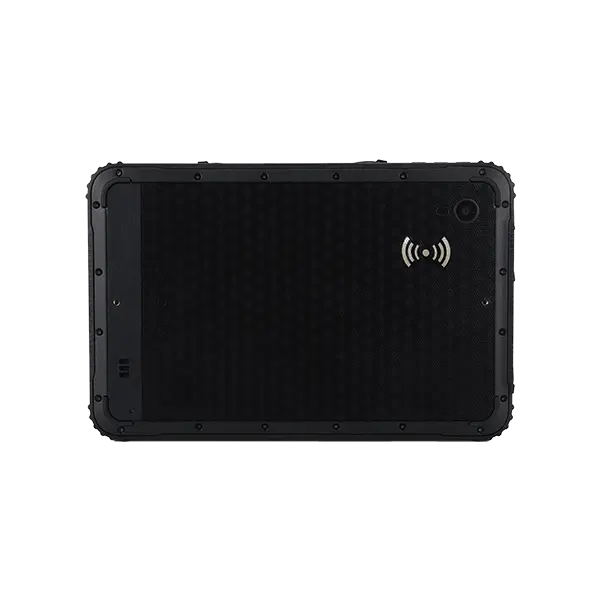

8'' Android: EM-Q88 Rugged Tablet
8'' Android: EM-Q88 Rugged Tablet
8'' Android: EM-Q88 Rugged Tablet
8'' Android: EM-Q88 Rugged Tablet
8'' Android: EM-Q88 Rugged Tablet
Android Android
IP67 IP67
GPS GPS
Camera Camera
NFC NFC
3G/4G 3G/4G
High-capacity High-capacity
WiFi WiFi
Bluetooth Bluetooth

Features of 8'' Android Tablet EM-Q88 Rugged PC


  • Support for Android 10.0 system

  • Integrated 3G/4G all network communication, WiFi, Bluetooth and other communication modes

  • 7500mAh battery, 6-8 hours of machine endurance

  • IP67 high protection level, in accordance with MIL-STD-810G

  • Support GPS, Glonass, more accurate positioning

  • Rear 13 million pixel camera, easy to collect images and video information

  • Built in NFC and other functional modules to meet the application needs of multiple industries

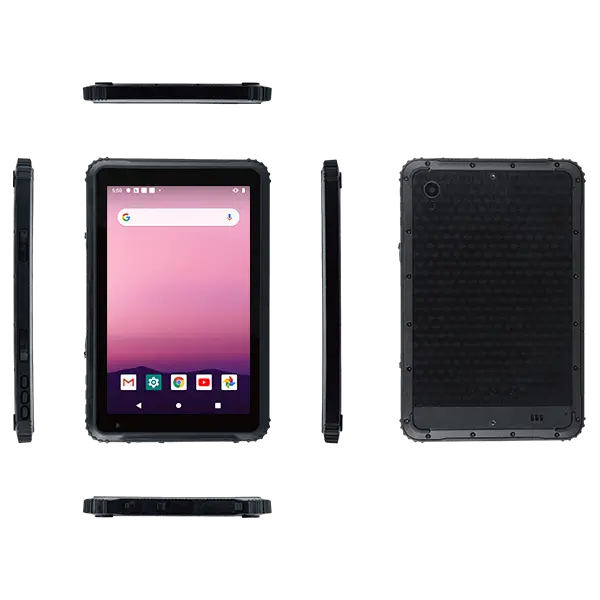

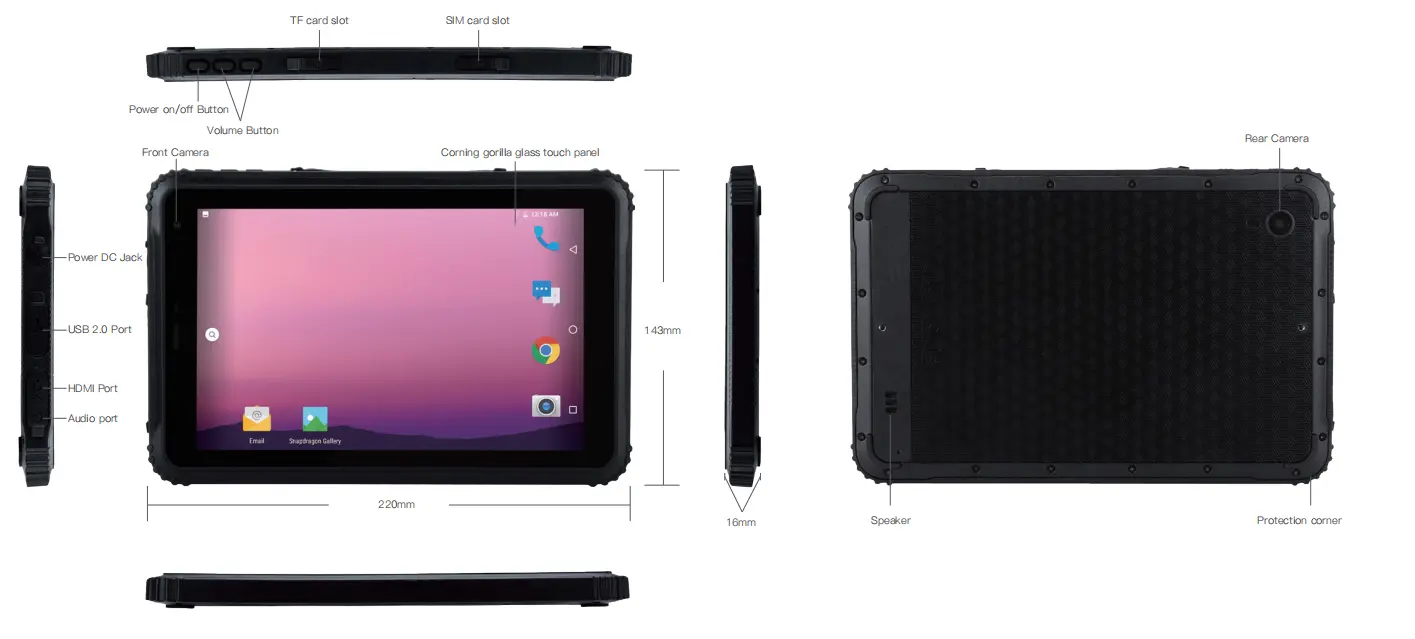

Six Views of 8'' Android Tablet EM-Q88 Rugged PC





Specifications Of 8'' Android Tablet EM-Q88 Rugged PC


Model No:EM-Q88 Specification
TypeDetailsStandard ConfigurationOptional
Product FormTypeRugged TabletNA
Dimension220*143*16mmNA
WeightDevice unit: 647g  ,Unit with gift box and standard accessories:1000gNA
Device Colorblack+black color(bottom shell: black color, front shell: black color )NA
LCDScreen Size8 inch  16:10NA
Resolution800*1280 IPSNA
Brightness450 NitNA
TPTouch Panel5points Capacitive,G+G,,Rigidity: above 7H-Anti-scratch, support handwriteNA
CameraFrontFront:5.0MPNA
RearRear: 13.0MP   With flashNA
SpeakerBuilt-inEmbedded 8Ω/0.8W BOX waterproof speaker  x 1NA
MicBuilt-inSensitivity:-42db, output resistance2.2kΩNA
BatteryTypeBuild-in Lithium-ion polymer batteryNA
Capacity3.7V/7500mAh NA
EnduranceAbout 6.5 Hrs(default 50% volumn,default 400 lumens brightness,play 1080P HD video)NA
System Hardware Configuration
TypeDetailsDescriptionsOptional
CPUTypeMSM8953(8core)NA
Speed2.0GHzNA
GPUTypeAdreno 506 1920 × 1200 @ 60 fpsNA
RAMMemory4GB/ LPDDR3NA
ROM  storage64GBNA
L-SensorBuilt-inlight Sensor *1NA
Compass Built-inCompass  Sensor *1NA
Gyro SensorBuilt-inGyro Sensor *1NA
G_sensorBuilt-inG_sensor *1NA
NFC Built-in NFC 13.56MHz  support SO/IEC 下14443A/14443B/15693/18092/Mifare protocol,Card reading distance:3cm~5cmNA
led indicateBuilt-inIndicator light of charge, red light will flash when device has low power. red long light when charging, green long light when full powerNA
Network Connections
TypeDetailsDescriptionsOptional
WIFIWIFI moduleWIFI 802.11 b/g/n/a/ac frequency 2.4G+5G dual-band WIFI,NA
BluetoothBuilt-inBT4.0(BLE)NA
2G/3G/4G OptionalCMCC 4M:
LTE B1,B3,B5,B7,B8,B20,B38,B39,B40,B41
  WCDMA 1/2/5/8
GSM 2/3/5/8
NA
GPSBuilt-insupport: GPS+Glonass; Capture sensitivity:-140 dBm;Cool Start Time:<50秒,Hot start time:<5秒,GPS frequency:1575.42MHz,Glonass frequency:1602MHZNA
Interface Configuration
TypeDetailsDescriptionsOptional
TF slotExtensive External Memorysupport SDHC/SDXC   x1    max:128GNA
SIM slotSIM cardSIM x1NA
Micr USB 3.0data transmissionMicr usb3.0*1  NA
Earphone JackAudio Output∮3.5mm  standard earphone jack   x1NA
DC JackPowerDC 5V 3A ∮3.5mm Power connector  x1NA
HDMI interfaceVideo OutputHDMI 1.4a   Type Cx1NA
Power onpress keypower key x1NA
Volume + -press keypower key x1,Volume + - x2NA
Standard Accessories
TypeDetailsDescriptionOptional configuration
Micr USB 2.0 cableUSB cableMicr USB 2.0 cableNA
Power AdaptorStandardAC100V ~ 240V、50Hz/60Hz output DC 5V/3A      USA Standard  CE approvalUK standard
EU Standard
Software Configuration
TypeDetailsDescriptionOptional
Operation SystemOS versionAndroid 10.0NA
Software Configuration
TypeDetailsDescriptionOptional
Certificate SystemIP65 IPX7
Method name:short time submerging test
test device and test condition:submerge water box. the size should make the testing sample into submerge box and after then, the distance from sample bottom to water surface at least 1m. and distance from sample top side to water surface at least 0.15m.
Testing time: 30 min
NA
CE NBY
MIL-STD-810GY
BatteryUN38.3,MSDS, IEC62133
Reliability
TypeDetailsDescriptionsOptional
Product ReliabilityDrop HeightMIL-STD-810G 1.22m drop
Operate Temperature‘-20 °C to 55 °C
Store Temperature’-30 °C to 70 °C
HumidityHumidity: 95% Non-Condensing



Accessories of 8'' Android Tablet EM-Q88 Rugged PC

Various modules and accessories can be selected to meet customers' application in various industries.

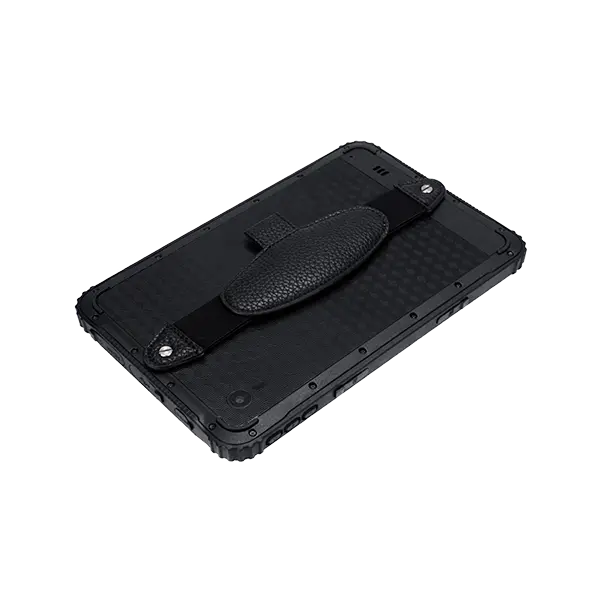

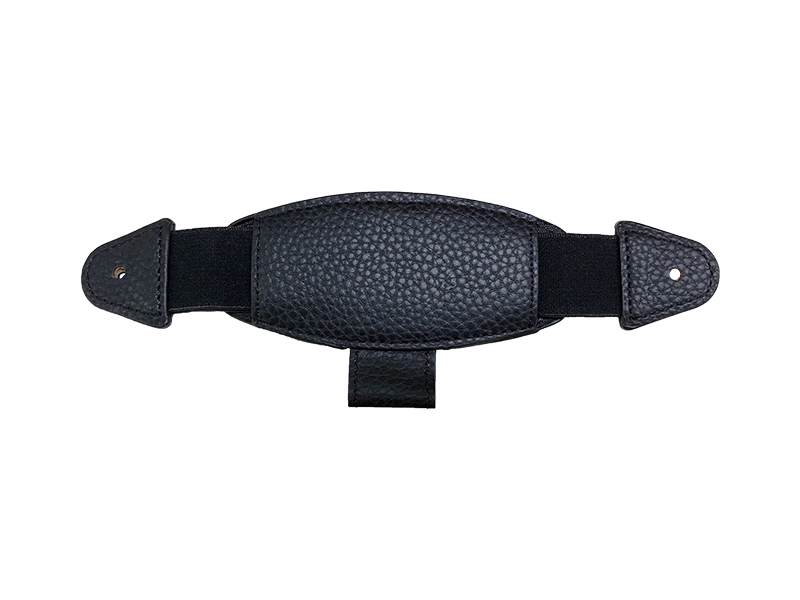

Hand-strap
Hand-strap

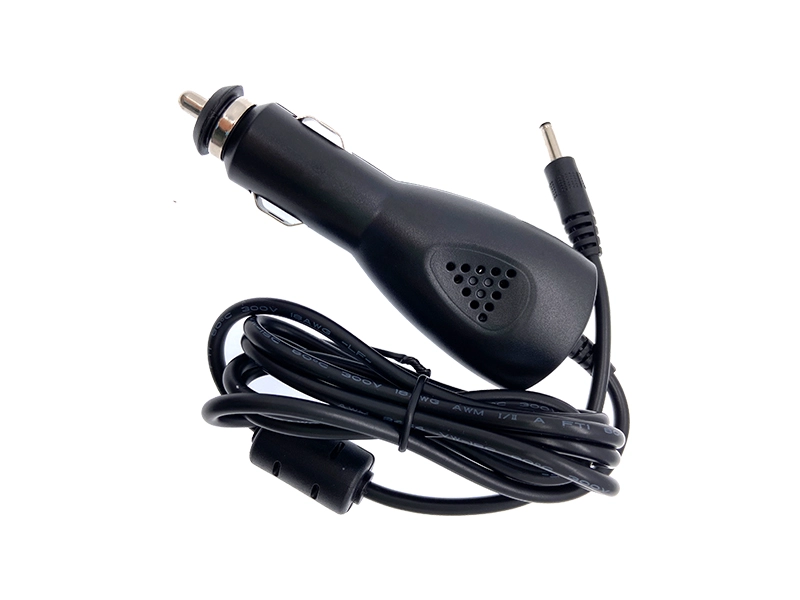

Car Charge
Car Charge

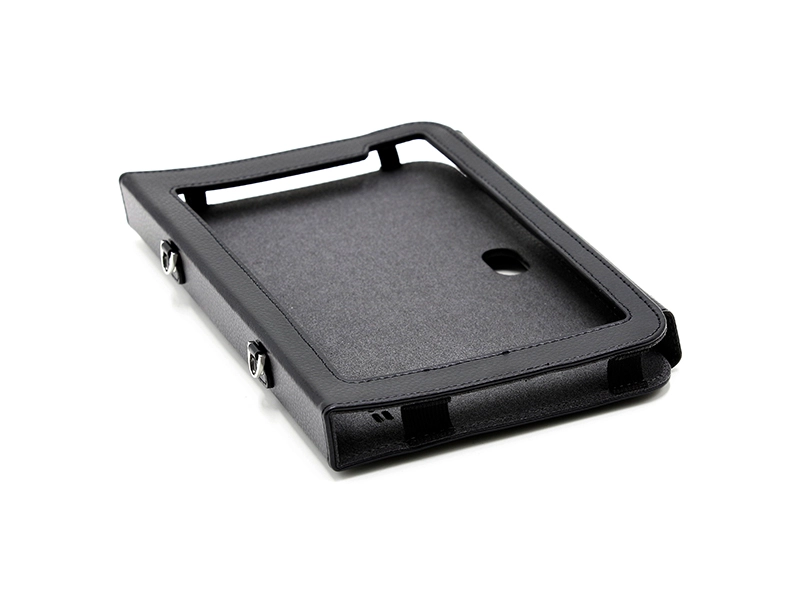

Leather Cover
Leather Cover

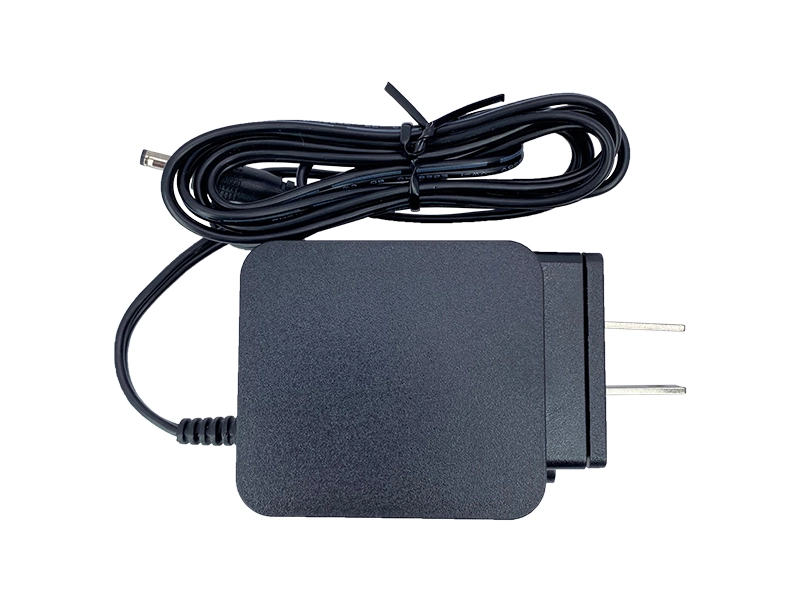

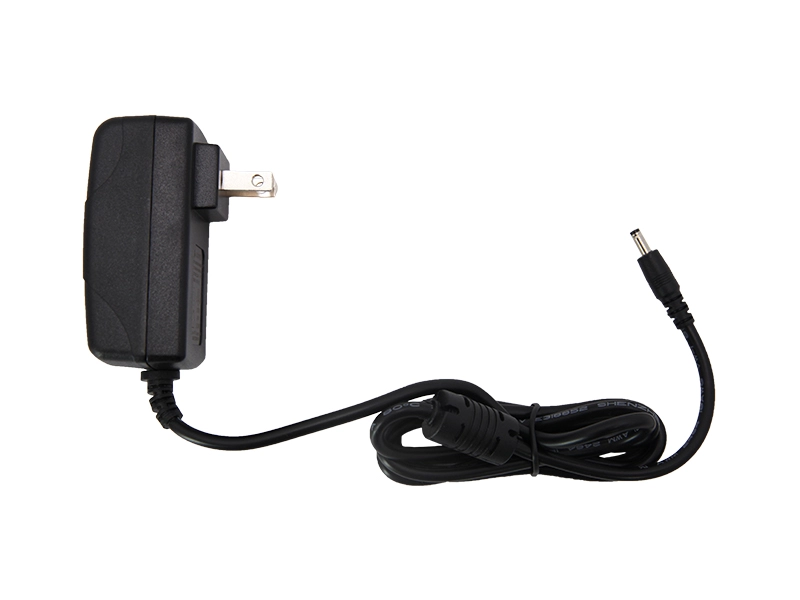

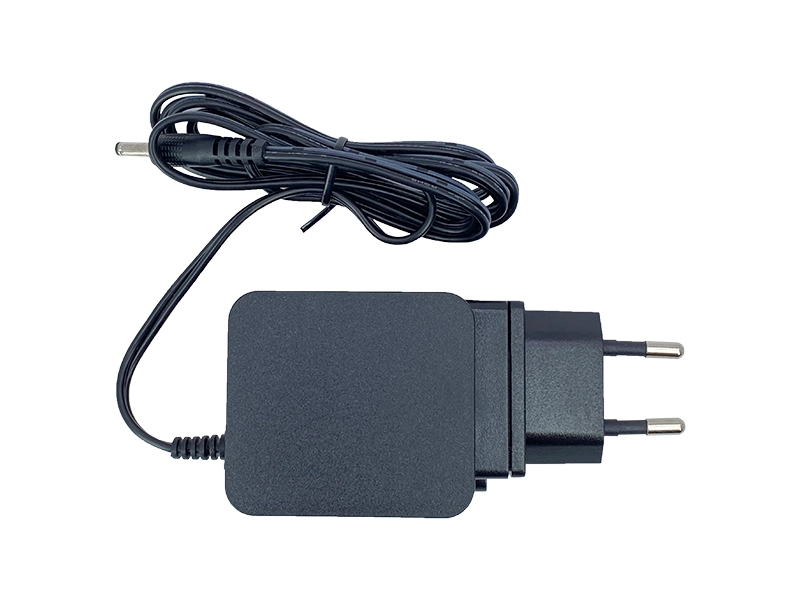

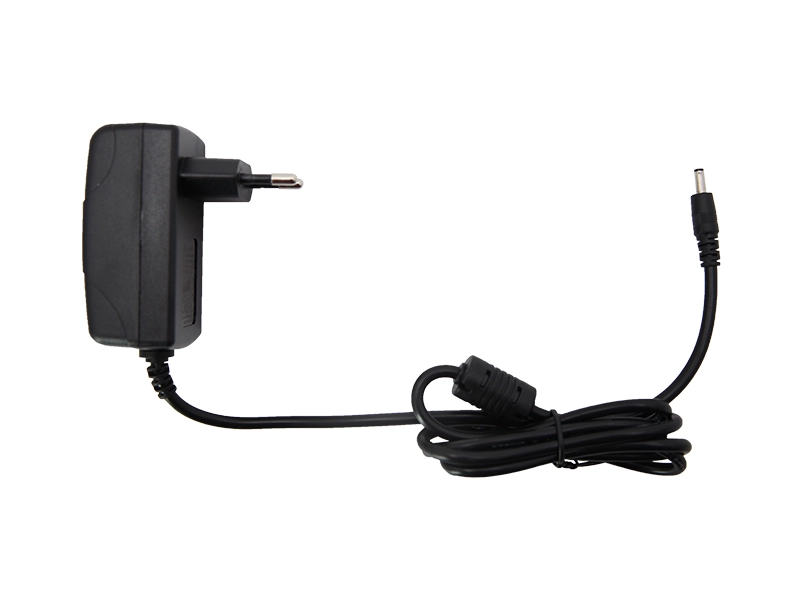

Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter
Adapter

Application Range of 8'' Android Tablet EM-Q88 Rugged PC

Various modules and accessories can be selected to meet customers' application in various industries.


Warehouse & Logistics Industry
Warehouse & Logistics Industry
Surveying & Mapping Industry
Surveying & Mapping Industry
Manufacturing Industry
Manufacturing Industry
Energy Industry
Energy Industry
Public Industry
Public Industry
Traffic Industry
Traffic Industry
