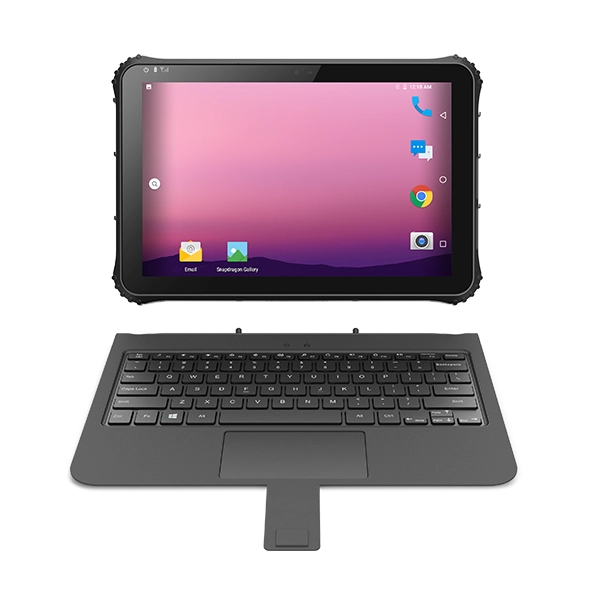

ARM (OCTA Core) 2.0GHz 12.2 inch Andriod 11 5G Rugged Tablet PC EM-Q225M

• Support for Andriod 11 system

• Optional 4G/5G all network communication, WiFi, Bluetooth and other communication modes

• 12600mAh battery, 7 hours of machine endurance

• IP65 high protection level, in accordance with MIL-STD-810G

• Support GPS, Glonass, more accurate positioning

• Support 1920x1200 high score screen, optional with Corning gorilla TP

• Support 2D, NFC and other functional modules for free selection


1
2
3
4
ip65 ip65
gps gps
nfc nfc
4g 4g
wifi wifi
bluetooth bluetooth
high capacity high capacity
camera camera

Six views of ARM (OCTA Core) 2.0GHz 12.2 inch Andriod 11 5G Rugged Tablet PC EM-Q225M



Specifications of ARM (OCTA Core) 2.0GHz 12.2 inch Andriod 11 5G Rugged Tablet PC EM-Q225M


Basic parameters
Dimension319.6 x 216 x 24.3mm
Weightdevice unit 1500g
Product ColorBlack
LCD12.2 inch IPS 16:10, 1920x1200
Touch Panel10 point G+G capacitive touch screen

Corning® Gorilla® Glass

I/O

USB 2.0 Type-A x 2, USB 3.0 Type-A x 1,

USB Type-C x 1, SIM Card x 1, TF Card x 1,

HDMI x 1, 12pins Pogo Pin x 1,

RS232 x 1, RS485 x 1, RJ45 (10/100M) x 1,

Φ3.5mm standard earphone jack x 1,

Φ3.5mm DC jack x 1

PowerAC100V ~ 240V, 50Hz/60Hz, Output DC 5V/4A
NFC Optional
Performance parameter
CPUARM (OCTA Core), 2.0GHz
OSAndriod 11
RAM4GB
Storage64GB
Data Collection
NFCBuilt-in, ISO/IEC 14443A
2DOptional
Network connections
WIFIWiFi 802.11 a/b/g/n/ac (2.4G+5G)
Bluetooth

BT5.1

3G/4G/5G

(Optional)

WCDMA: B1/B5/B8

TDD-LTE: B34/B38/B39/B40/B41

FDD-LTE: B1/B3/B5/B8

5G NR: N1/N28/N41/N78/N79

GNSS

Built-in GPS+Glonass

Reliability
Operate Temperature-20 °C ~ 60 °C
Store Temperature-30 °C ~ 70 °C
Humidity95% Non-Condensing
Rugged FeatureIP65 certified, MIL-STD-810G certified
Drop Height1.22m
Battery (Optional)
Capacity1000mAh/7.4V
TypeBuilt-in Li-polymer battery
Endurance

30mins ( 50% volume sounds, 200 lumens brightness,

1080P HD video display by default )


* Please be aware all technical data, specification and performance figures subject to change without notice.


Features of ARM (OCTA Core) 2.0GHz 12.2 inch Andriod 11 5G Rugged Tablet PC EM-Q225M

Powerful 5G Cpu

The 8 nm process node octa-core 5G cpu incorporates rate and stamina with power effectiveness for sustainable, premium connectivity. As much as 2.0 GHz for continually robust performance.

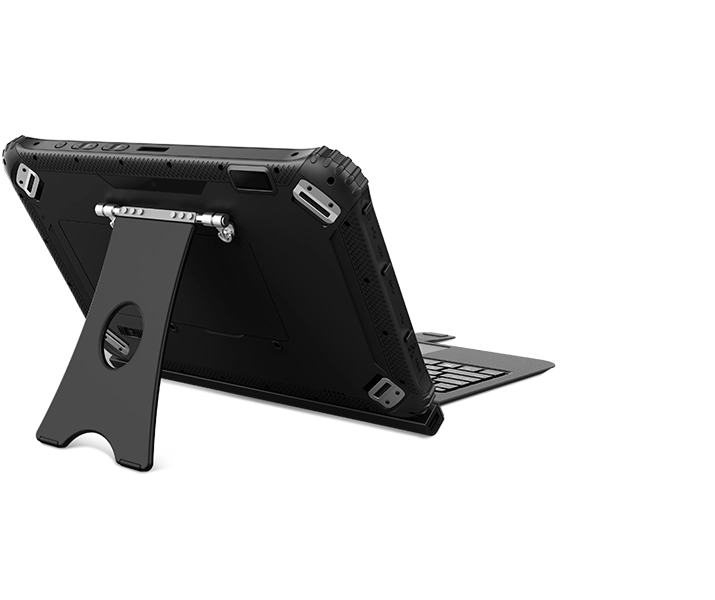

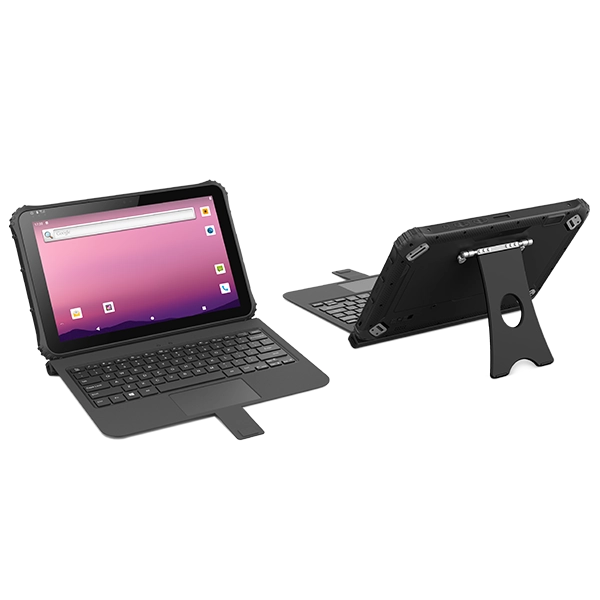

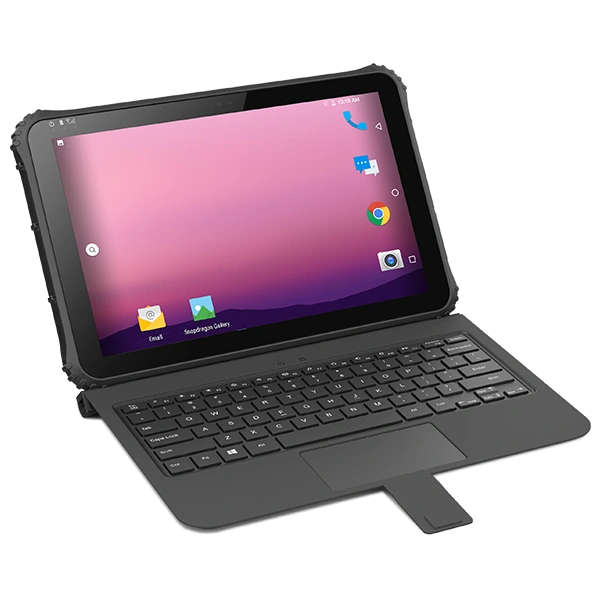

One tool, Two usage

With the keyboard connected, it is almost equivalent from a notebook.

Use your own anyhow you choose, the laptop mode when you require a lot of editing and enhancing, after that switch over into tablet computer mode when you need to get things done on-the-go.

Professional scanning engine

Able to read selection of 1D/2D barcodes as well as related symbologies with blurred printing, reduced contrast and also severe damages. 1sts reaction speed can supply improved efficiency.


Accessories of ARM (OCTA Core) 2.0GHz 12.2 inch Andriod 11 5G Rugged Tablet PC EM-Q225M

Various modules and accessories can be selected to meet customers' application in various industries.


docking charger
docking charger
battery
battery
hand strap
hand strap
vehicle mount
vehicle mount

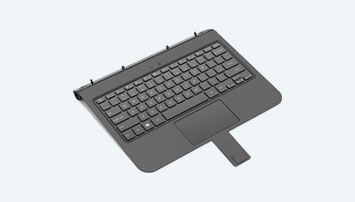

keyboard
keyboard

Application Range of Rugged Tablet PC EM-Q225M

Various modules and accessories can be selected to meet customers' application in various industries.


Outdoor Exploration
Outdoor Exploration
Manufacturing
Manufacturing
Industry
Industry
Animal Husbandry
Animal Husbandry
