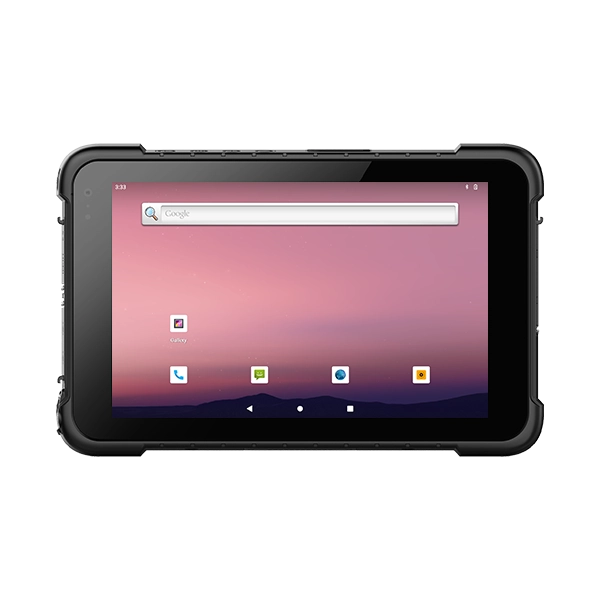

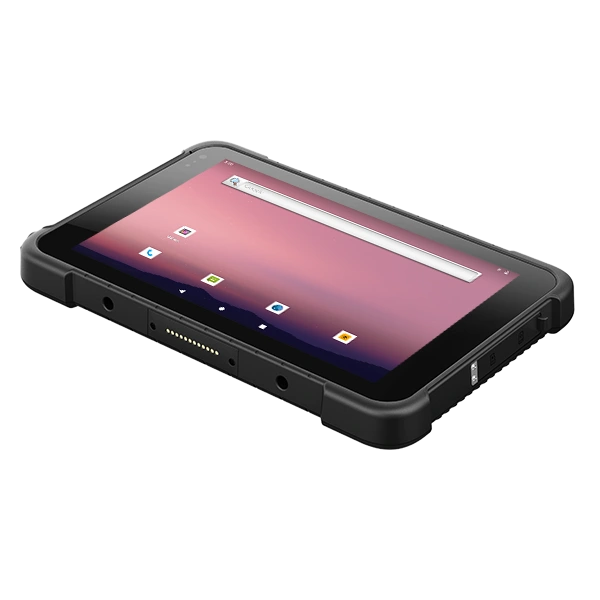

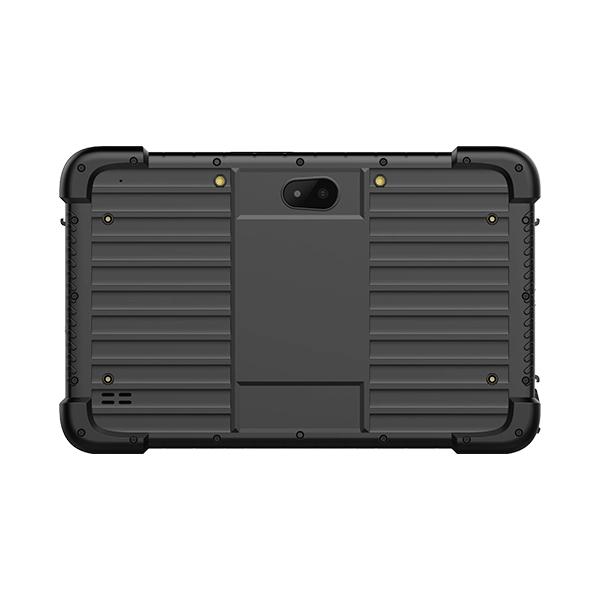

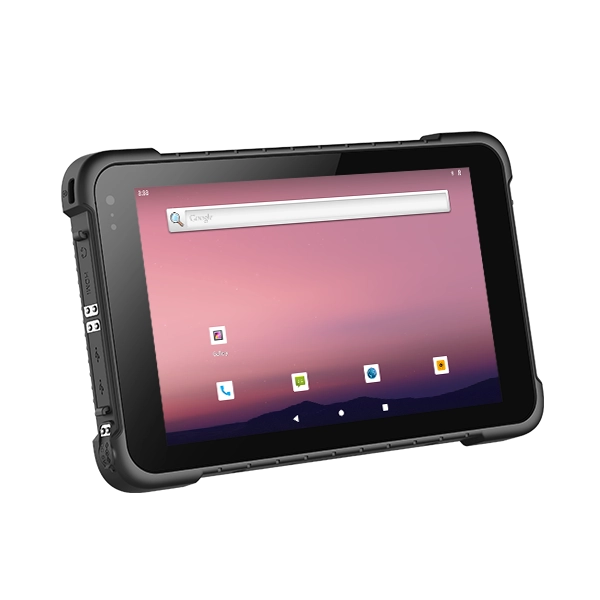

ARM (OCTA Core) 8 inch Heavy Duty Android 12 Tablet EM-T86X

• Support for Android 12 GMS system

• Support 2G/3G/4G all network communication, WiFi, Bluetooth and other communication modes

• 8500mAh battery, 7 hours of machine endurance

• IP67 high protection level, in accordance with MIL-STD-810H

• Support GPS/Glonass, more accurate positioning

• Front 5 million, rear 13 million pixel autofocus camera for easy collection of working images and video information

• Support 2D and other functional modules for free selection

waterproof android tablet with gps
waterproof tablet
heavy duty android tablet
waterproof android tablet
heavy duty tablet
Android Android
IP67 IP67
GPS GPS
High-capacity High-capacity
Bluetooth Bluetooth
1D 1D
2D 2D
NFC NFC
2G/3G/4G 2G/3G/4G
WiFi WiFi

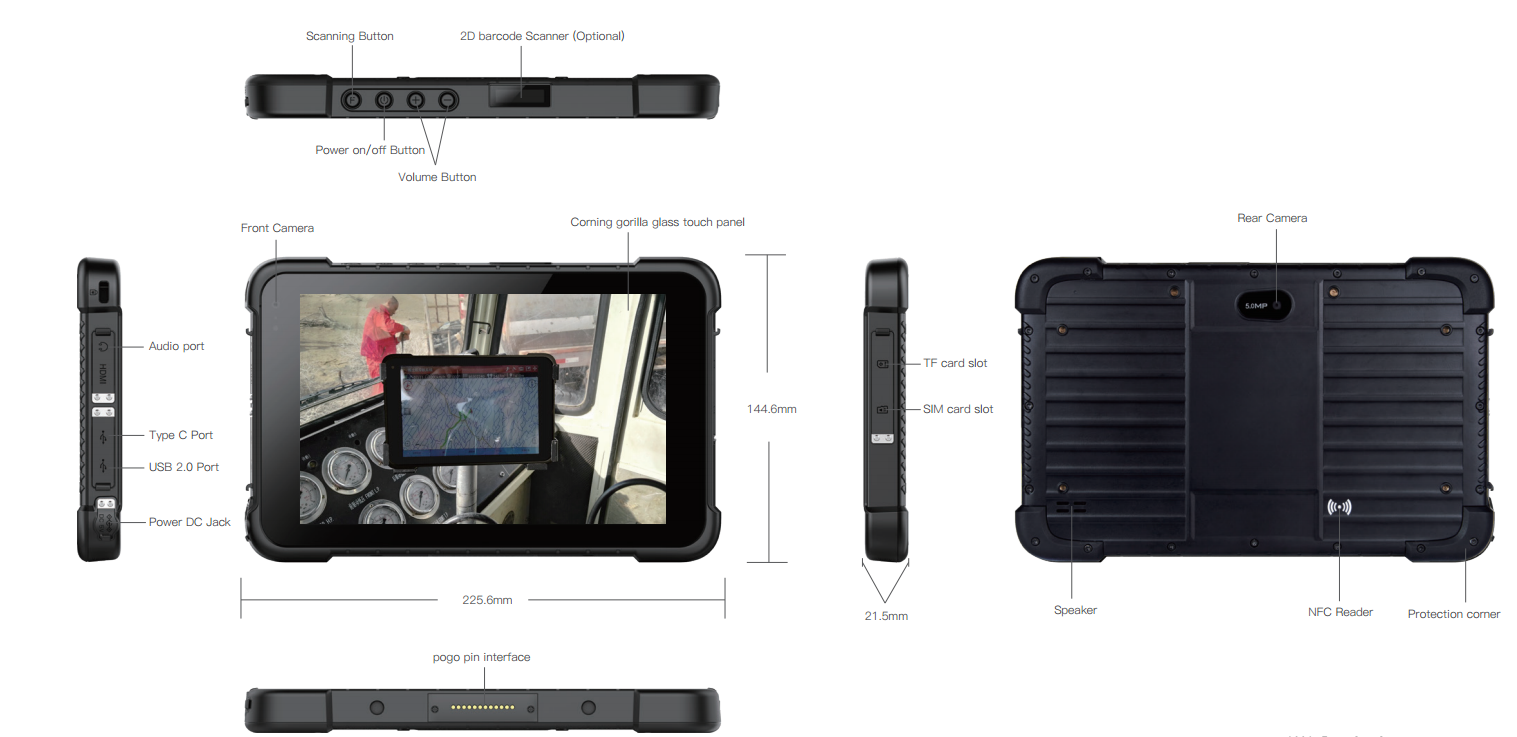

Six Views of ARM (OCTA Core) 8 inch Heavy Duty Waterproof Android 12 Tablet with GPS EM-T86X


ARM (OCTA Core) 8 inch Heavy Duty Android 12 Tablet EM-T86X



Specifications of ARM (OCTA Core) 8 inch Heavy Duty Waterproof Android 12 Tablet with GPS EM-T86X

Basic parameters
Dimension225.6 x 144.6 x 21.5mm
Weightdevice unit 715g
Rugged tablet ColorBlack
LCD8 inch IPS 16:10, 800x1280, 700 nits
Touch Panel5 point G+G capacitive touch screen. Gorilla glass
I/O

USB 2.0 x 1

Type C x 1

SIM Card x 1

TF Card x 1 Max 512GB

12pins Pogo Pin x 1

Φ3.5mm standard earphone jack x 1

Φ3.5mm DC jack x 1

PowerAC100V ~ 240V, 50Hz/60Hz, Output DC 5V/3A
CameraFront 5.0MP Rear 13.0MP
Performance parameter
CPUARM (OCTA Core), 2.0GHz
OSAndroid 12 GMS
RAM8GB
Storage128GB
Data Collection
NFC

Support, 13.56MHz

Support ISO/IEC 14443A protocol

Card reading distance: 4cm

2DOptional, Optical resolution: 5mil/ scan speed: 50 times/s
Network connections
WIFIWiFi 802.11 a/b/g/n/ac (2.4G+5.8G)
Bluetooth

BT5.2 Transmission distance: 10m

2G/3G/4G

LTE FDD: B1/B2/B3/B4/B5/B7/B8/B17/B28A&B

LTE TDD: B38/B39/B40/B41N

WCDMA: B1/B2/B5/B8

GSM: B2/B3/B5/B8

GNSS

Support GPS/Glonass

Reliability
Operate Temperature-10 °C ~ 50 °C
Store Temperature -20 °C ~ 60 °C
Humidity95% Non-Condensing
Rugged tablet FeatureIP67 certified, MIL-STD-810H certified
Drop Height1.22m
Battery
Capacity3.7V/8500mAh
TypeBuilt in polymer lithium ion battery
Endurance

7hrs ( 50% volume sounds, 50% screen brightness,  1080P HD video display by default )


* Please be aware all technical data, specification and performance figures subject to change without notice.



Features of ARM (OCTA Core) 8-inch Heavy Duty Waterproof Android 12 Tablet with GPS EM-T86X

The heavy-duty Android tablet is designed to meet the needs of professionals in various industries, including construction, manufacturing, and transportation. They have advanced features such as waterproof and dustproof protection, shock resistance, and long battery life. This makes them ideal for use in harsh environments where other devices may fail.


Heavy-duty Android tablets also offer a range of connectivity options, including Wi-Fi, Bluetooth, and 4G LTE, ensuring that professionals can stay connected at all times. They also have advanced security features, such as biometric authentication, to protect data and prevent unauthorized access.


In conclusion, a heavy-duty android tablet is a powerful tool that offers professionals the flexibility, durability, and security they need to perform their tasks effectively. Whether you work in the field or the office, a heavy-duty Android tablet is a versatile device that can help you stay productive and connected. So if you're in the market for a reliable and rugged device that can keep up with your demanding workload, consider investing in a heavy-duty Android tablet.


Accessories of ARM (OCTA Core) 8 inch Heavy Duty Android 12 Tablet EM-T86X

Various modules and accessories can be selected to meet customers' application in various industries.


Docking Charger
Docking Charger

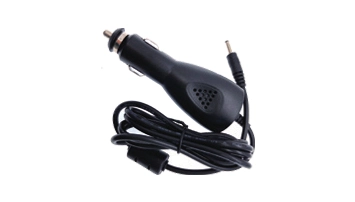

Car Charge
Car Charge

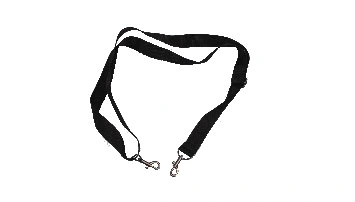

Shoulder-strap
Shoulder-strap

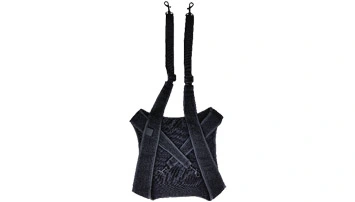

Back-strap
Back-strap

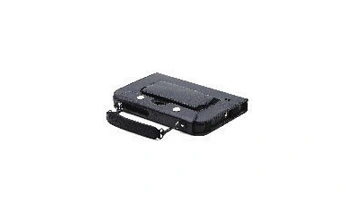

Leather Cover
Leather Cover

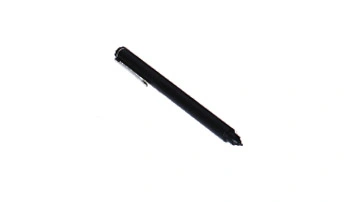

Stylus
Stylus

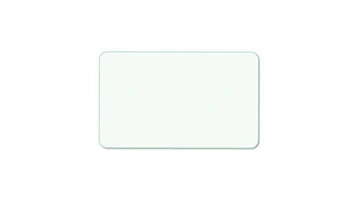

TP Resist Film
TP Resist Film

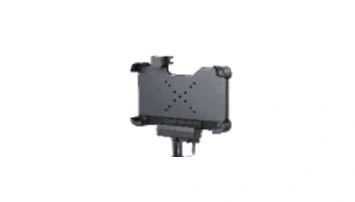

Vehicle Mount
Vehicle Mount

Application Range of ARM (OCTA Core) 8 inch Heavy Duty Android 12 Tablet EM-T86X

Various modules and accessories can be selected to meet customers' application in various industries.


Surveying & Mapping Industry
Surveying & Mapping Industry
Manufacturing Industry
Manufacturing Industry
Energy Industry
Energy Industry
Traffic Industry
Traffic Industry
