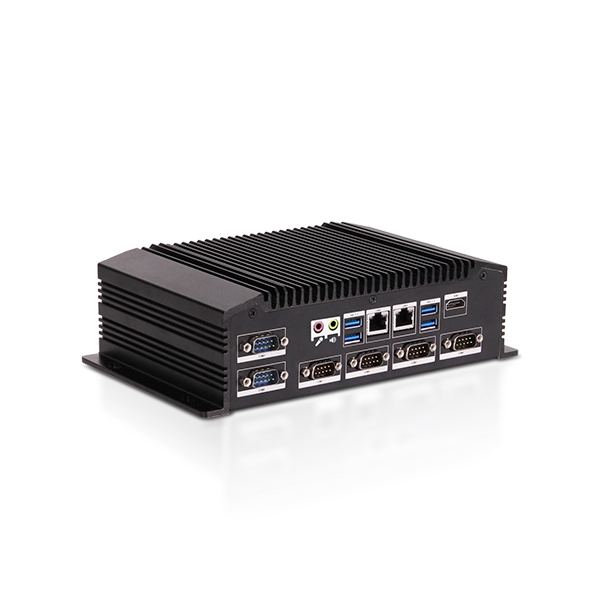

Fanless Embedded PC EM-MP150S

Fanless Embedded PC EM-MP150S  uses alternative cooling methods and lower-powered components that give off less heat.

Fanless Embedded PC EM-MP150S
Fanless Embedded PC EM-MP150S
Fanless Embedded PC EM-MP150S
Fanless Embedded PC EM-MP150S

The fanless industrial PC made by Emdoor has good quality and features, let's get to know it.


Feature of Fanless Embedded PC EM-MP150S

● Intel Core i5 7200U 2.5GHz CPU

● Up to DDR4L 16GB memory

● Support VGA+HDMI display output

● Support 4 LAN (Optional 2 POE)

● Support 4 COM (Optional 2 with photoelectric isolation)

● Fanless design, high computing performance

● Operation Temperature: -20℃ ~ 70℃

● 9~36V Wide voltage input

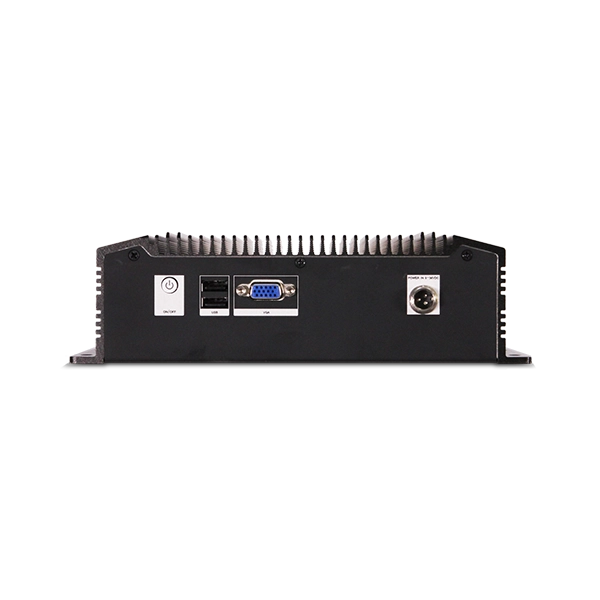

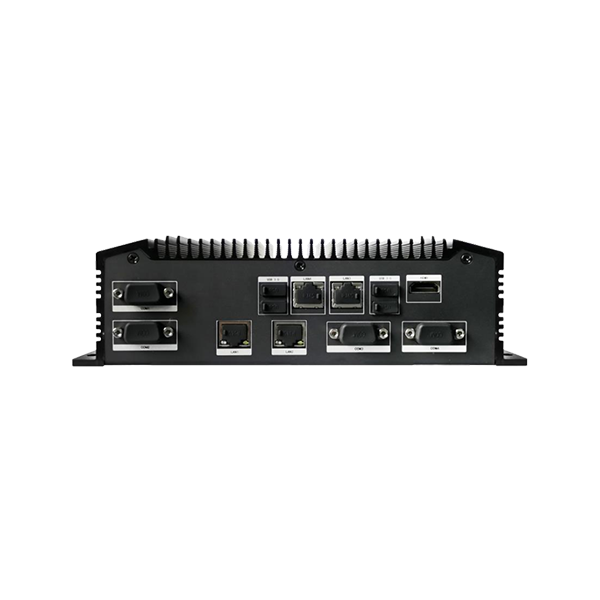

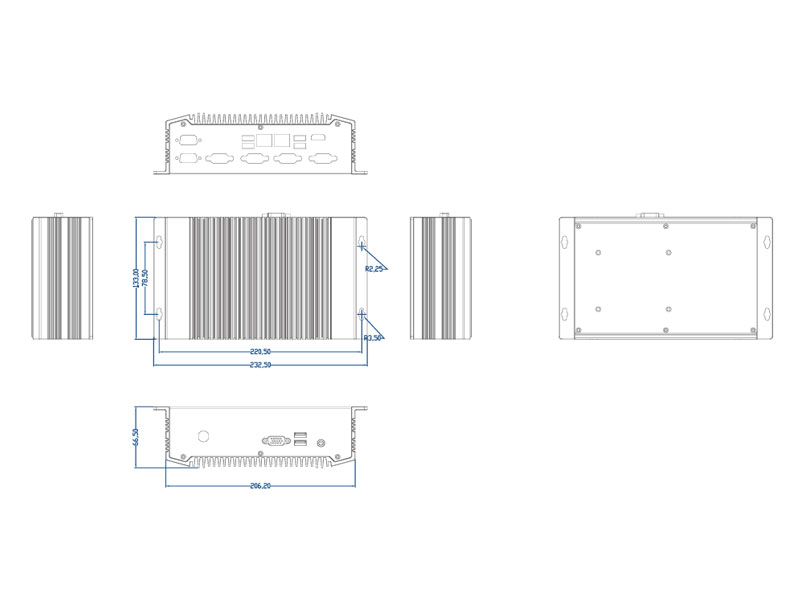

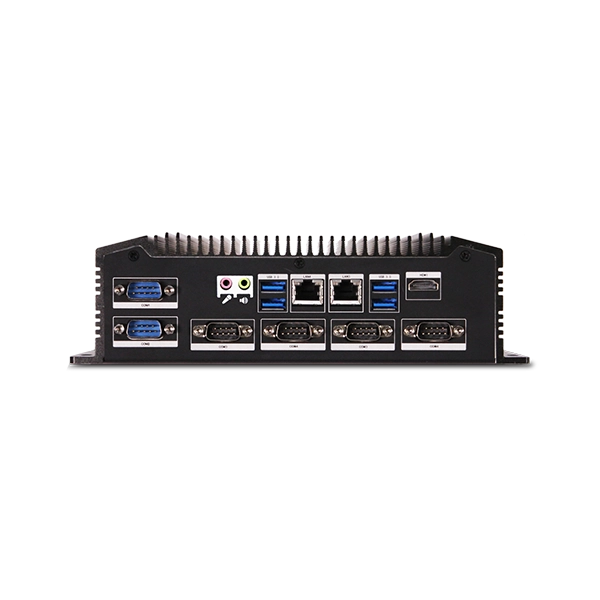

Six Views of Windows Industrial Panel PC EM-MP150S

Fanless Embedded PC EM-MP150S

Product specifications of Fanless Embedded PC EM-MP150S


Name

embedded computer

CPU

Intel i5 7200U (2.5GHz,TDP15W)

Memory

4GB DDR4

Chipset

Intel Kaby Lake

I/O Port

1 x VGA;1 x HDMI

4 x USB 3.0;2 x USB2.0

4 x RJ-45  LAN1、LAN2 Support POE

4 x DB-9 COM; COM1:RS-232 with photoelectric isolation function

COM2:RS-422 with photoelectric isolation function

COM3:RS-232

COM4:RS-232

1 x 3 pin aviation plug-in power interface

Storage

128GB SSD M-SATA SSD

Expansion

1 x Mini PCI-E x1 ,support SIM Slot

OS

Windows 7 pro

Windows 10 Pro /IoT, Linux

Power

DC IN

9~36V DC

Material

Front panel

aluminium alloy

Rear panel

aluminium alloy

Size(mm)

232.5 x 133 x 66.5mm

Weight

2 Kg

Environment

Working temperature

-20℃ to 70℃

Storage temperature

-40℃ to +75℃

Storage humidity

10~95% @70 ℃, no condensation




Application Range of Fanless Embedded PC EM-MP150S

Various modules and accessories can be selected to meet customers' application in various industries.


Warehouse & Logistics Industry
Warehouse & Logistics Industry
Surveying & Mapping Industry
Surveying & Mapping Industry
Manufacturing Industry
Manufacturing Industry
Energy Industry
Energy Industry
Public Industry
Public Industry
Traffic Industry
Traffic Industry
