Intel i5-1235U Windows Embedded Box PC B10A

● Exceptionally efficient 12th-Gen Alder Lake Processor,  equipped with Windows 11 operating system;

● PCIe 3.0 M.2 design with expandable memory up to 512GB;

● Next-Gen WiFi 6 wireless rapid connectivity;

● USB3.0/RJ45/DB9/HDMI and other rich interfaces;

● Wide temperature operation from -20°C to 60°C;

● Supports 12-24V wide voltage input, 24/7 all day operation;

● Supports wall-mounted, embedded, or desktop installation;

● Made of high quality aluminum alloy, making it sturdy.

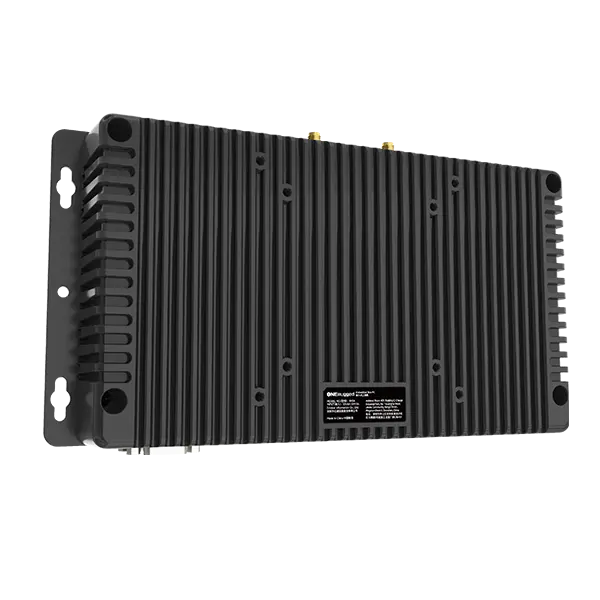

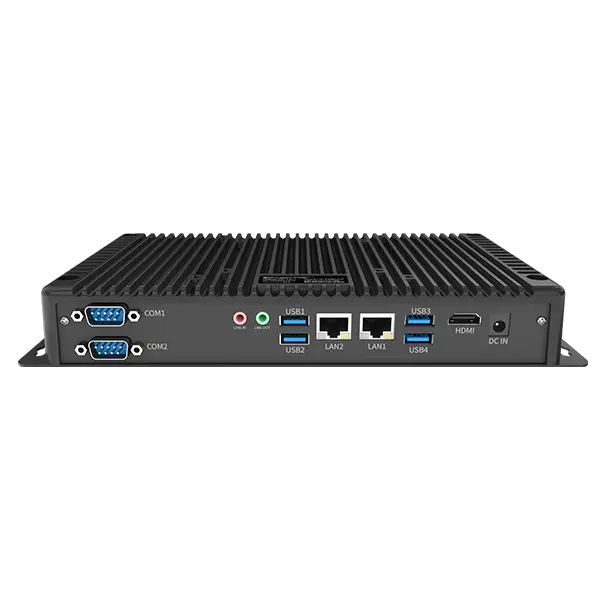

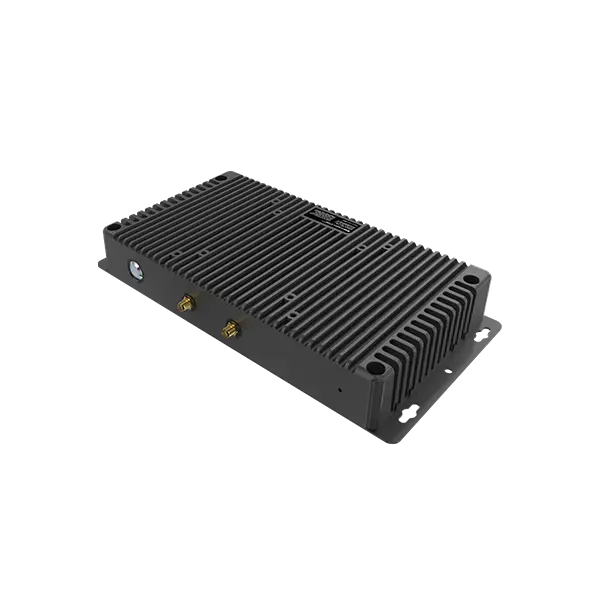

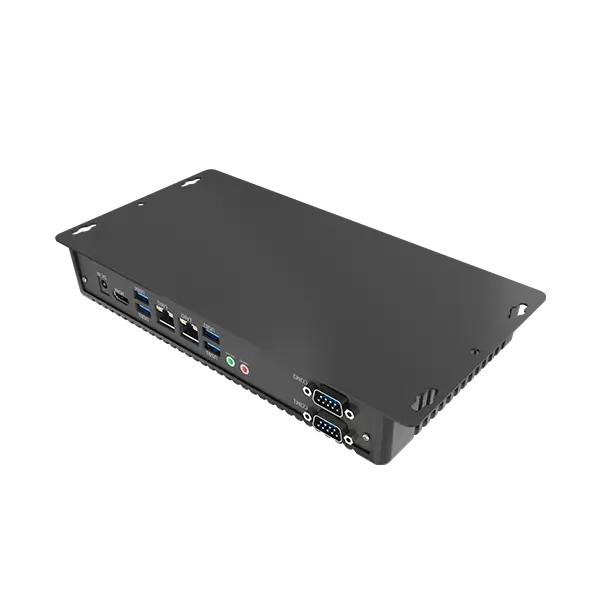

Embedded Box PC
Embedded Box PC
Embedded Box PC
Embedded Box PC

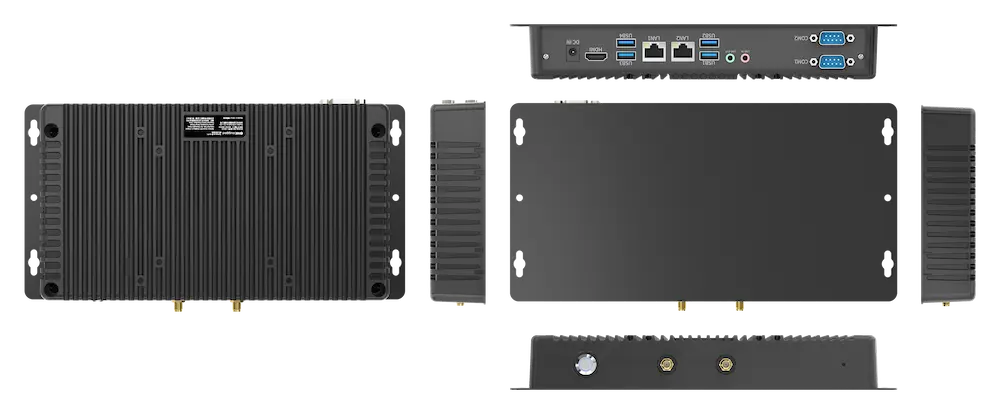

Six Views of Intel i5-1235U Windows Embedded Box PC B10A


Specification of Intel i5-1235U Windows Embedded Box PC B10A

Embedded Box PC B10A
System Parameter
CPUi5-1235U, TDP15W,2P-Cores,8E-Cores,12threads;Speed: 0.9GHz~4.4GHz (Optional i7-1255U)
ChipsetIntel® Iris® Xe Graphics eligible
RAM8GB  Onboard
Storage128GB (Optional 256/512GB)
I/O

USB3.0*4

DC 19V *1 (Supports 12--24V)

∮3.5mm Standard earjack  *1

RJ45 *2 (10M/100M/1000M adaptive)

DB9 RS232 *2

HDMI  *1

M2 *1  M.2 2280 standard interface(SATAⅢ/PCIE3.0X4 signal)

OS

Windows 11   (Home, Pro, IOT)

Power
DCAC100V ~ 240V, 50Hz/60Hz output DC 19V/3.42A
Product Form
Dimension264x 135.2 x 37.2 mm
Device Colorblack
Weight1 Kg
Reliability
Operate Temperature-20℃ to 60℃
Store Temperature-30℃ to 70℃
HumidityHumidity: 95% Non-Condensing

*Product specifications, pictures, and other information are for reference only.  The appearance is subject to the material object. This instruction is subject to change without notice.


Advantages of Intel i5-1235U Windows Embedded Box PC B10A

Suitable for continuous use

The PC box 10J can provide incredible performance with the Intel® Celeron processors. It has exceptional capabilities, working continuously on maximum operation. If your application demands powerful, scalable, and efficient processing, the pc box 10J covers you.


Ample availability of I/O ports

One of the strengths of the box PC 10J is the very ample availability of input/output ports and modules. It offers many interface options that allow it to be used in any industrial system.Connectivity includes up to 2x COM, 2x USB 3.0, 2x USB 2.0, 2x RS232,1x M.2 key HDMI and 2x Gigabit Ethernets.


Designed for industrial demands

The fanless industrial-grade design of the box PC 10J is built to withstand the challenges of even the most extreme computing environments. It is elegant, durable, and cool even after long operations under heavy CPU and GPU utilization. With its extended operating temperature range of -20°C to 60°C, you can use it in any industrial environment.


Wide Input Voltage

The box PC 10J provides a wide range of voltage input together with reliability. You can connect any power supply between the 12-36 VDC range, and it will work for weeks and mounts without any issues.


Customized module

Reserving space inside the box PC 10J caters to the various customization demands. Stably fixed by four 63x64 mm positioning holes, the customized module connects to the mainboard via a serial port or USB interface.


Compact for more computing applications

Due to its compact structure, The box PC 10J is easily integrated into existing industrial automation environments. It offers multiple mounting options for different settings. While it can simply be used as a desktop computer or mounted on the wall via the VESA holes.

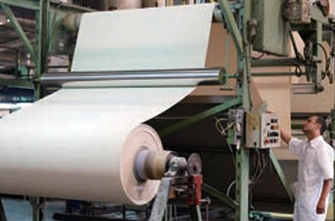

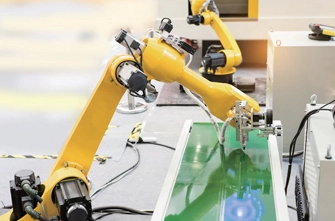

Application Range of i5-1235U Windows Embedded Box PC B10A
