Intel Celeron N5100 15.6 inch Windows Industrial Panel PC P15J ONERugged

● ONERugged branded(3 year warranty )

● Full 15.6-inch FHD display, the IP65-rated front panel protects against water and dust ingress.

● Powered by an 11th generation Intel Celeron processor, equipped with

 Windows 10 operating system

● Excellent environmental adaptability, anti-electromagnetic interference

 and anti-static capabilities

● Fanless design, using large-area uniform heating fin, running 24/7 without

 affecting reliability and service life

● Rich interfaces, including multiple USB/LAN/D89/HDMI and other I/O ports,

 can easily meet various scenario requirements

● Dual-band Wi-Fi, Bluetooth 5.0, and expandable 4G (M.2 interface),

 multiple network connection modes

● Wide voltage and temperature design, can operate normally even

 under external voltage fluctuations or in extremely hot or cold conditions

● Standard PPC mounting hook component, easy to install and supports various installation


1
2
3
4

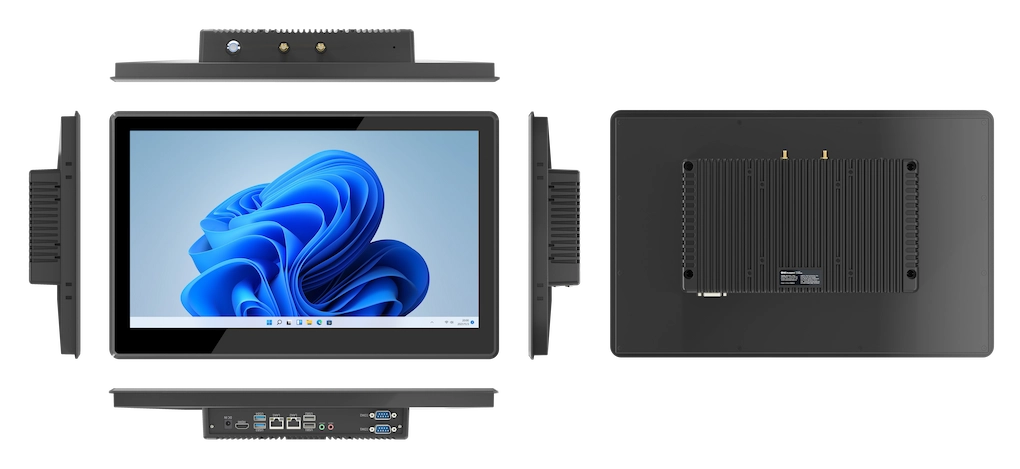

Six Views of Intel Celeron N5100 15.6 inch Industrial Panel PC: ONERugged P15J



Specification of Intel Celeron N5100 15.6 inch Industrial Panel PC: ONERugged P15J

ONERugged P15J
CPUIntel®Celeron N5100, up to 2.80GHz
Memory4GB
USB2 x USB3.0, 2 x USB2.0
OS support

Windows 11 IOT

Optional:Windows 11 Pro

Windows 10 Pro/IOT/Home

System Parameter
CPUIntel® Celeron N5100 CPU, up to 2.80GHz
ChipsetIntel UHD
RAMOnboard 4GB
Storage64GB
I/O

USB3.0*2 USB2.0*2

Power interface

DC 12V Power connector *1

Standard Earphone Jack *1

RJ45 *2

DB9 PORT RS232 *2

HDMI 2.0a Mini *1

Expansion SlotM2 x 1
OS

Windows 11 IOT

Optional:Windows 11 Pro

Windows 10 Pro/IOT/Home

Display
Size15.6" TFT-LCD 16 : 9
Resolution1920 x 1080
Brightness220cd/m 2
Touch Pane10 point capacitive touch screen
Power
DCAC100V ~ 240V, 50Hz/60Hz, DC 12V/4A
Product Form
Dimension388.63 x 248.43 x 54.95 mm
Device Colorblack
Weight2.4Kg
Reliability
IP CodeIP65 of front panel
Operate Temperature-20℃ to 60℃
Store Temperature-30℃ to 70℃
Humidity95%@40℃, Non-Condensing

Product specifications, pictures, and other information are for reference only.  The appearance is subject to the material object. This instruction is subject to change without notice.
