Intel Celeron N5100 10.1 inch Industrial Panel PC EM-PPC10J

Product Feature:

● Intel Celeron N5100

● Windows 10 OS

● Fanless with low consumption

● IP65 of front panel

● DC 12V/19V/24V/36V

01
02
03
04
05

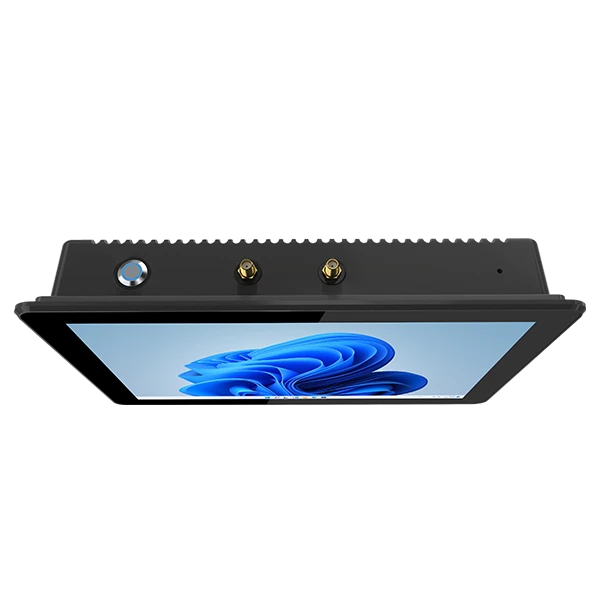

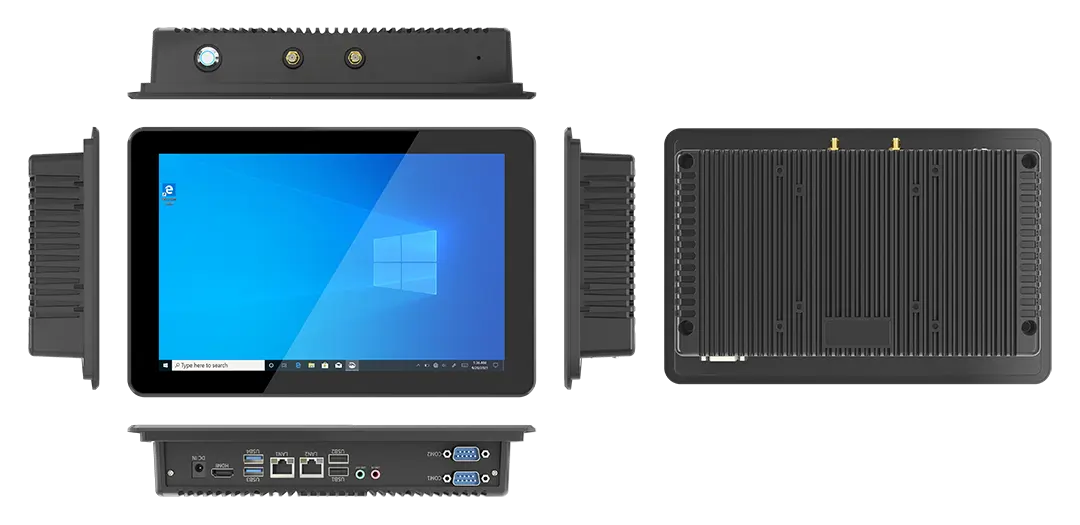

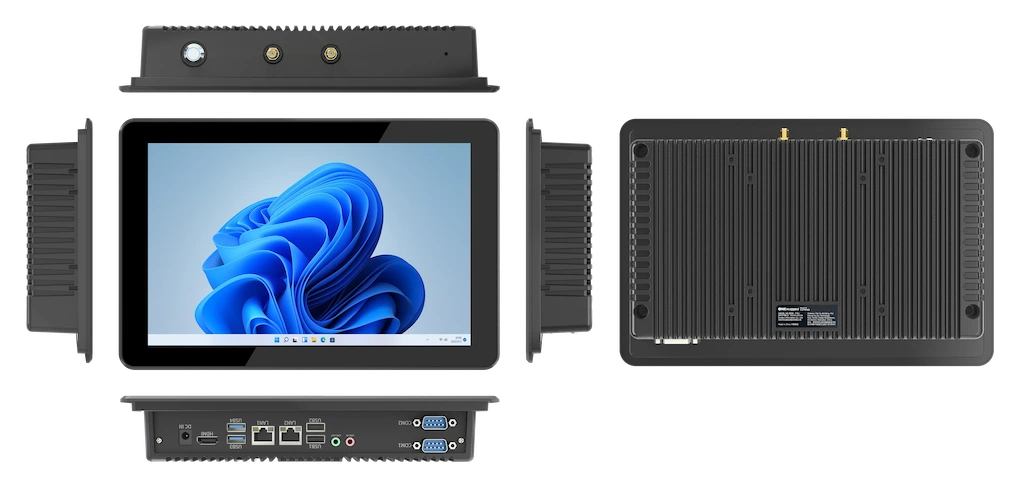

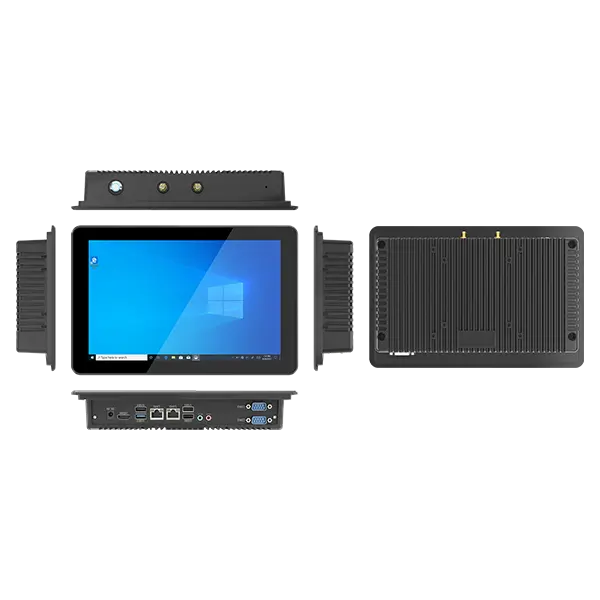

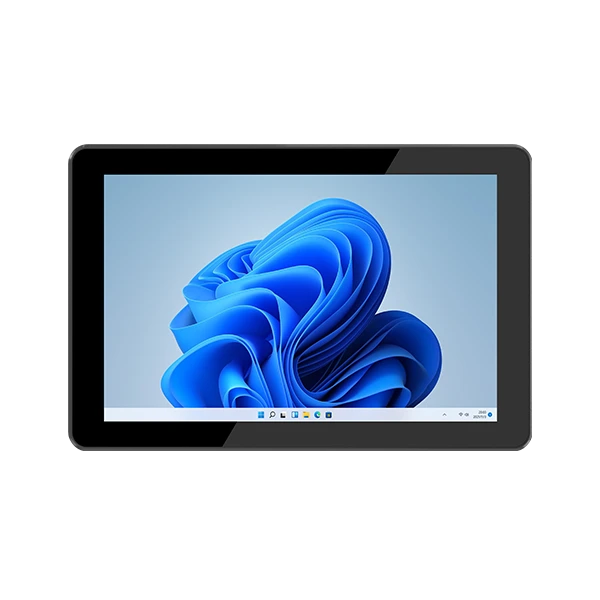

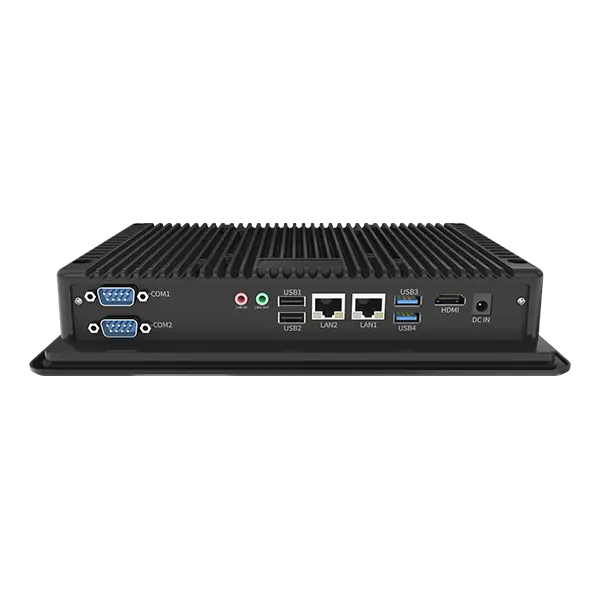

Six Views of Intel Celeron N5100 10.1 inch Industrial Panel PC EM-PPC10J



Specification of Intel Celeron N5100 10.1 inch Industrial Panel PC EM-PPC10J

TypeDetailsStandard ConfigurationOptional
Product FormTypePPCNA
Dimension257.2*170*45.95mmNA
WeightDevice unit:  1.2kg
Unit with giftbox and standard accessories:  kg
NA
Device ColorBlack(Front and Rear Panel: Black,Decorate Board:Black)NA
LCDScreen Size10.1 inchNA
Resolution800x1280NA
Brightness450 cd/m2
TPTouch PanelPCAP
SpeakerBuilt-inNANA
System Hardware Configuration
TypeDetailsDescriptionOptional
CPUTypeIntel® Celeron® Processor N5100,4M Cache, up to 2.80 GHz,TDP 6W,4C4TNA
Speed4M Cache, up to 2.80 GHzNA
GPUTypeIntel  UHDNA
RAMDDR44GB onboardNA
EMMC/SSDEMMC/SSD64GBNA

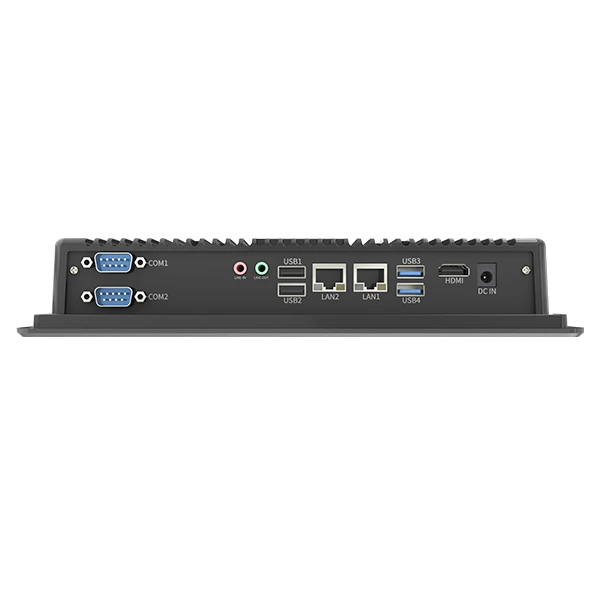

Interface Configuration
TypeDetailsDescriptionsOptional
SIM SlotSIM Slot*1NA
type A usbUSBUSB3.0*2  USB2.0*2NA
DC JackPowerDC 12V  Power connector  x1NA
Earphone JackAudio Output∮3.5mm Standard Earphone Jack  x1NA
Extensive SlotMiniPCIE1*M2NA
WIFI /BTWIFI /BTWIFI 802.11(ac)   2.4G+5G / BT5.0NA
DB9 PORTSerial port*2 RS232NA
DisplayDisplayHDMINA
RJ45 PORTInternet port*2(10/100/1000 Mbps)NA
Standard Accessories
TypeDetailsDescriptionsOptional
Power AdaptorStandardAC100V ~ 240V、50Hz/60Hz output DC 12V/4ANA
NA
Software Configuration
TypeDetailsDescriptionsOptional
Operation SystemOS versionWindows 10


Product Certificate
TypeDetailsDescriptionsOptional
Certificate SystemIP65IP65 Report:Water Resistance:IP-X5,Dust Resistance:P-6X
a.Inner Nozzle Diameter:6.3mm;   b. Water Speed:12.5±0.625L/min;
c. Water Pressure:Adjust according to water volumn;
d.Central part of water volumn :A round with a diameter of about 40mm at the distance from the nozzle 2.5m.
e.Spray time in surface of panele: About 1 min/Square meter;f.Test time:at least 3min;
g.Distance between nozzle and panel surface:2.5~3m。
After test,there is no water leakage in sample.
NA
CE-NBNANA
MIL-STD-810GNANA
CCCNANA
Reliability
TypeDetailsDescriptionsOptional
Product ReliabilityDrop HeightNA
Operate Temperature‘-20 °C to 60 °C
Store Temperature’-30 °C to 70 °C
HumidityHumidity: 95% Non-Condensing


Product specifications, pictures, and other information are for reference only.  The appearance is subject to the material object. This instruction is subject to change without notice.


Advantages of Intel Celeron N5100 10.1 inch Industrial Panel PC EM-PPC10J

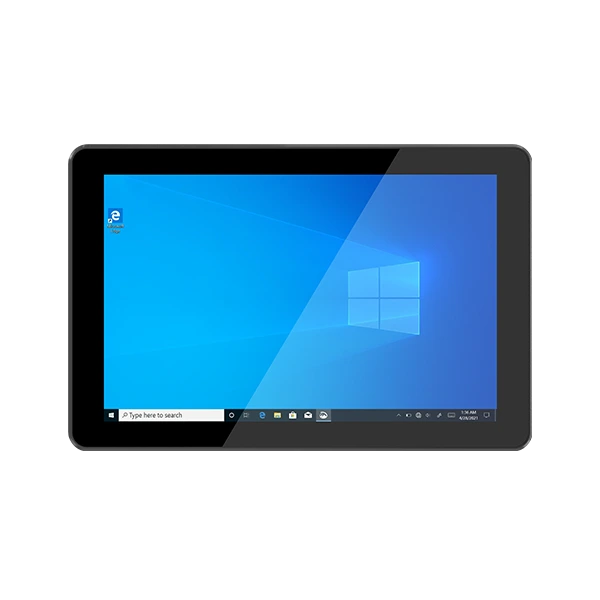

Touch boosts productivity

The full 10.1 / 15.6 / 21.5-inch HD display delivers superior imaging and visual quality, while the IP65-rated front panel protects against water and dust ingress. Benefiting from the highly-sensitive touch, it is easy for users to key in data, rotate images, drag and drop files, and zoom in with two or more fingers.

450nit Brightness


IMPRESSIVE EFFICIENCY

The EM-PPC10J /EM-PPC15J/EM-PPC21J industrial computer is powered by an 11th generation Intel® Celeron™ processor that supports Intel® Turbo Boost technology and multi-task processing for enhanced computing performance. It also features 4 GB of DDR4 memory and support for 64GB SSD storage to facilitate high-speed data processing and storage.
