Product Feature：
● Intel Celeron N5100
● Windows 10 OS
● Fanless with low consumption
● IP65 of front panel
● DC 12V/19V/24V/36V
| Type | Details | Standard Configuration | Optional | ||||
| Product Form | Type | PPC | NA | ||||
| Dimension | 537.02 x 324.02 x 57.60 mm | NA | |||||
| Weight | Device unit: 5.05kg Unit with giftbox and standard accessories: kg | NA | |||||
| Device Color | Black（Front and Rear Panel: Black，Decorate Board:Black） | NA | |||||
| LCD | Screen Size | 21.5 inch | NA | ||||
| Resolution | 1920x1080 16:9 | NA | |||||
| Brightness | 250 cd/m2 | ||||||
| TP | Touch Panel | 10 PCAP | |||||
| Speaker | Built-in | NA | NA | ||||
| System Hardware Configuration | |||||||
| Type | Details | Description | Optional | ||||
| CPU | Type | Intel® Celeron® Processor N5100,4M Cache, up to 2.80 GHz，TDP 6W，4C4T | NA | ||||
| Speed | 4M Cache, up to 2.90 GHz | NA | |||||
| GPU | Type | Intel UHD | NA | ||||
| RAM | DDR4 | 4GB onboard | NA | ||||
| EMMC/SSD | EMMC/SSD | 64GB | NA | ||||

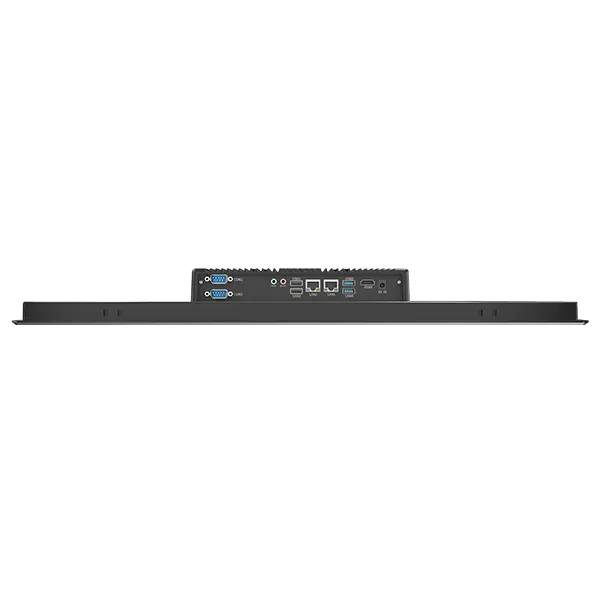

| Interface Configuration | |||||||
| Type | Details | Descriptions | Optional | ||||
| SIM Slot | SIM Slot | NA | NA | ||||
| type A usb | USB | USB3.0*2 USB2.0*2 | NA | ||||
| DC Jack | Power | DC 12V Power connector x1 | NA | ||||
| Earphone Jack | Audio Output | ∮3.5mm Standard Earphone Jack x1 | NA | ||||
| Extensive Slot | MiniPCIE | 1*M2 | NA | ||||
| WIFI /BT | WIFI /BT | WIFI 802.11(ac) 2.4G+5G / BT5.0 | NA | ||||
| DB9 PORT | Serial port | *2 RS232 | NA | ||||
| Display | Display | HDMI | NA | ||||
| RJ45 PORT | Internet port | *2(10/100/1000 Mbps) | NA | ||||
| Standard Accessories | |||||||
| Type | Details | Descriptions | Optional | ||||
| Power Adaptor | Standard | AC100V ~ 240V、50Hz/60Hz output DC 12V/4A | NA | ||||
| NA | |||||||
| Software Configuration | |||||||
| Type | Details | Descriptions | Optional | ||||
| Operation System | OS version | Windows 10 | |||||
| Product Certificate | |||||||
| Type | Details | Descriptions | Optional | ||||
| Certificate System | IP65 | IP65 Report：Water Resistance：IP-X5，Dust Resistance：P-6X a.Inner Nozzle Diameter：6.3mm； b. Water Speed：12.5±0.625L/min； c. Water Pressure：Adjust according to water volumn； d.Central part of water volumn ：A round with a diameter of about 40mm at the distance from the nozzle 2.5m. e.Spray time in surface of panele: About 1 min/Square meter；f.Test time：at least 3min； g.Distance between nozzle and panel surface：2.5～3m。 After test，there is no water leakage in sample. | NA | ||||
| CE-NB | NA | NA | |||||
| MIL-STD-810G | NA | NA | |||||
| CCC | NA | NA | |||||
| Reliability | |||||||
| Type | Details | Descriptions | Optional | ||||
| Product Reliability | Drop Height | NA | |||||
| Operate Temperature | -20 °C to 60 °C | ||||||
| Store Temperature | -30 °C to 70 °C | ||||||
| Humidity | Humidity: 95% Non-Condensing | ||||||
Product specifications, pictures, and other information are for reference only. The appearance is subject to the material object. This instruction is subject to change without notice.
READY FOR HARSH ENVIRONMENTS
The EM-PPC10J /EM-PPC15J/EM-PPC21J Industrial Panel PC withstands the most extreme computing environments and can be reliable in temperatures ranging from -20°C to 70°C. The wide input power enables it to be plugged into a wide range of voltages starting as low as 12VDC and as high as 36VDC, allowing it to connect to various machinery without purchasing additional inverters or power adapters.
DESIGNED FOR ANYWHERE

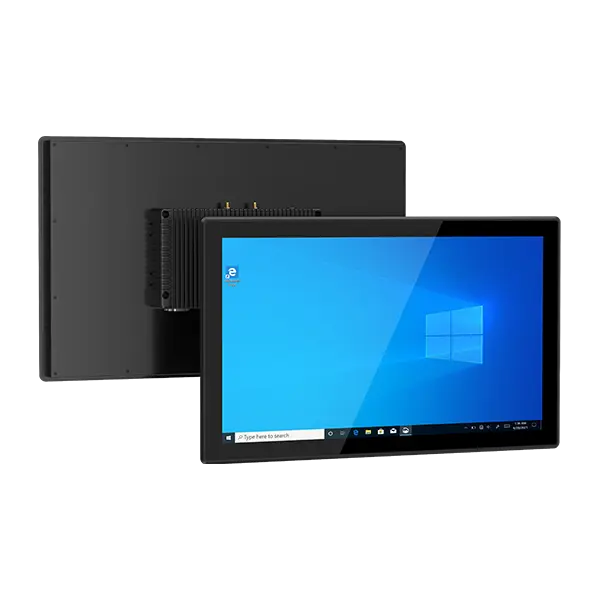

The EM-PPC10J /EM-PPC15J/EM-PPC21J Industrial Panel PC offers impressive versatility. It can be easily installed with a rear VESA mounting interface or embedded almost anywhere and used for all industrial applications.
